52 crotch cooler deluxe split fusebox

[dave1]

Hi all,
Can someone please forward a picture of the fusebox area under the spare wheel area. Are there two fuseboxes in this area, next to each other?

Thanks for you help Dave

[splitjunkie]

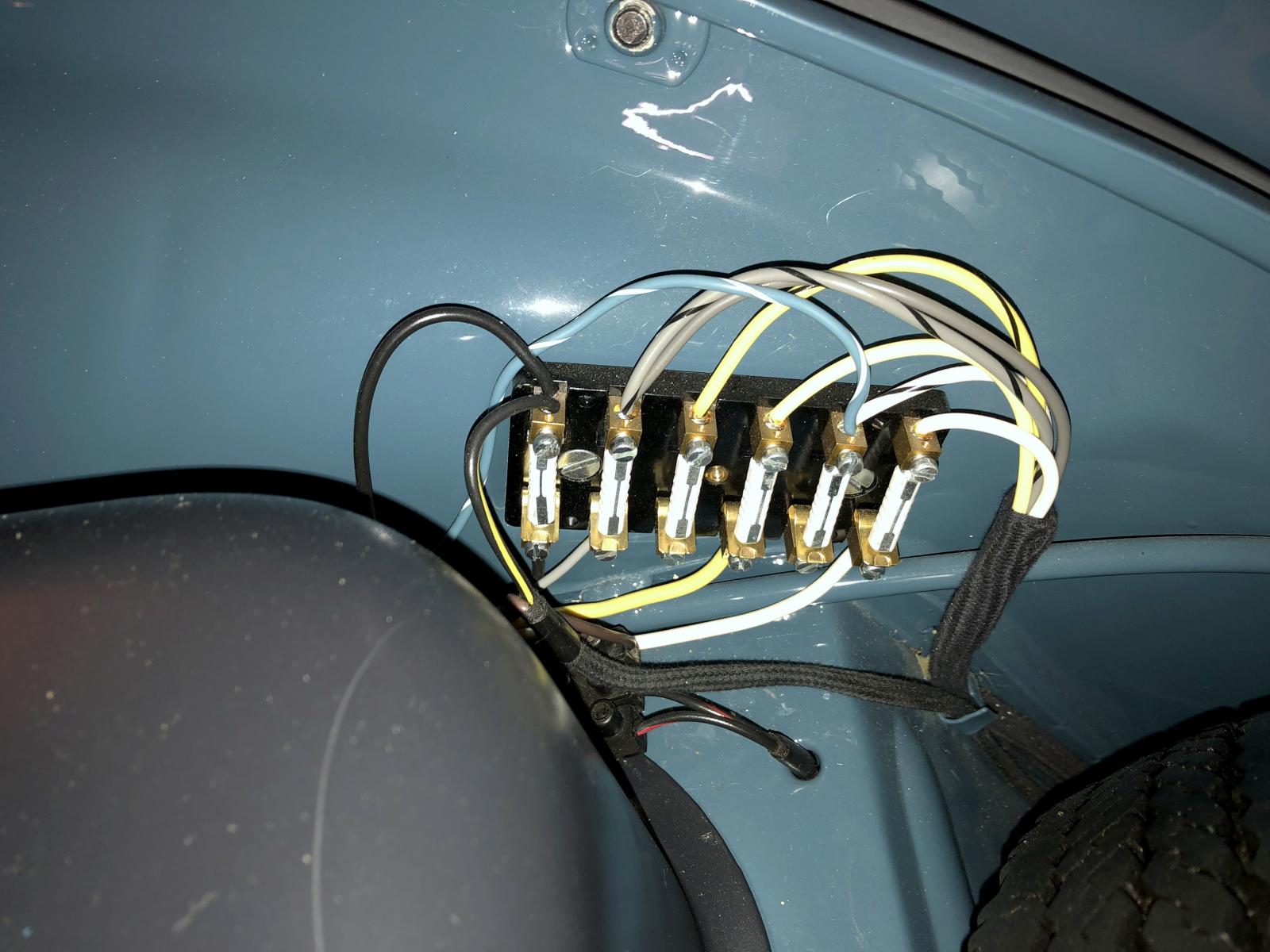

There is only one fuse box up front. It's a 6 location fuse box.

_________________
Chris

You know, a lot of these scratches will buff right out... Jerry Seinfeld

[dave1]

Hi Splitjunkie ,
Thank you for the pictures. I'm still a bit confused as a 52 wiring diagram shows another 3 fusebox next to the six fusebox. Where should this be located? Car manufacture is Feb 1952 if this helps.

diagram as shown

I appreciate the help Dave

[wagen19]

[finster]

the key/legend for each wiring diagramme is in the next column to the right
https://www.thesamba.com/vw/archives/info/wiring/4_52bug_key.jpg

google translate can help decipher the german
_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[splitjunkie]

As others have said, M6 is the three position screw terminal block that you can partially see under part of the wiring harness in the pictures I posted.
_________________
Chris

You know, a lot of these scratches will buff right out... Jerry Seinfeld

[virtanen]

I'm also putting wiring for my split right now and wonder why there is connector "M2", in-line from ignition switch to coil? Why not connect the wire direct to the switch?
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects

[dave1]

Hi all,
Nice one. Thank you for the feedback & information great help
Dave

[splitjunkie]

[virtanen]

Yes, that makes sense. I can't find the M2 connector on my 48 instruction book, maybe added later. The schema is also rather messy there.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects

[dave1]

Hi Splitjunkie,
Would it be possible to see what the M4 connector looks like so that I can purchase one through the forum
Thanks Dave

[finster]

that's it near the bottom of this photo, they usually come in a strip and you cut off how many you want.

_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[dave1]

Thanks Finster, thought it might be like that but wanted to make sure. Mine at present has a 3 way fusebox which I will change out
Thank you all
Dave

[splitjunkie]

This is a modern version. Certainly not exact, but gives you a pretty good idea how they look.

_________________
Chris

You know, a lot of these scratches will buff right out... Jerry Seinfeld

[dave1]

Thanks Splitjunkie
