 Posted: Mon Feb 03, 2025 12:27 pm Post subject: HELP Wanted: Door Gap After Heater Channel Replacement |
 |
|
Hello All,
I am having issues with my door gap after having installed the heater channel. The door gap was never good, even before removing the old heater channel.
Here is a video explaining the current predicament that I am in. Any advice would be greatly appreciated.
Link
tldr: I am able to adjust my doors perfectly with the cross bracing, but then when I loosen it after tacking the channel back in, everything goes completely out of alignment.
The work I have done so far regarding the door gaps/heater channels is shown in my thread. What isn't shown in the thread, is that I have now welded in the entire rear luggage tray, rear clip, and engine compartment side trays:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...;start=120
| rstrobel wrote: |
With the help of a couple of ratchet straps and cross braces, I was able to get the heater channel to be parallel with the door.

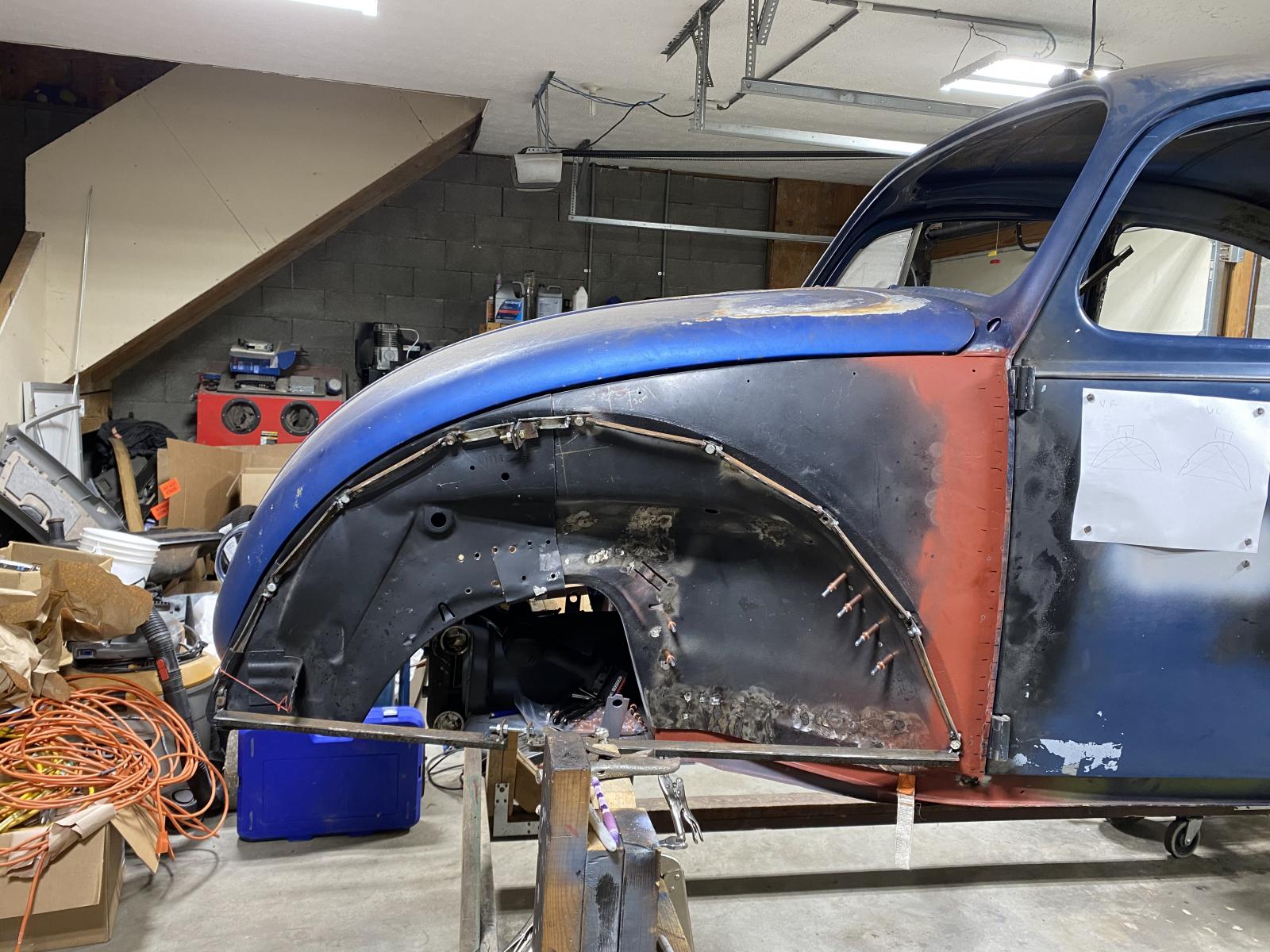

I'm still having difficulties with the doors. I had adjusted the cross braces until the doors fit perfectly. I used clecos for the quarter panel and spot welds for the A pillar to stabilize these moving areas. Welding/stabilizing everything didn't work completely. Although I no longer need to use the horizontal brace, the diagonal one still needs to be used to prevent the doors from sagging.
My initial worry was that the diagonal brace not only pulls the front up, but also the rear. This turned out to be true. As the diagonal brace was loosened, I could feel the rear quarter panel/body mount area lower a couple millimeters...even though it was resting on the body mount pads.

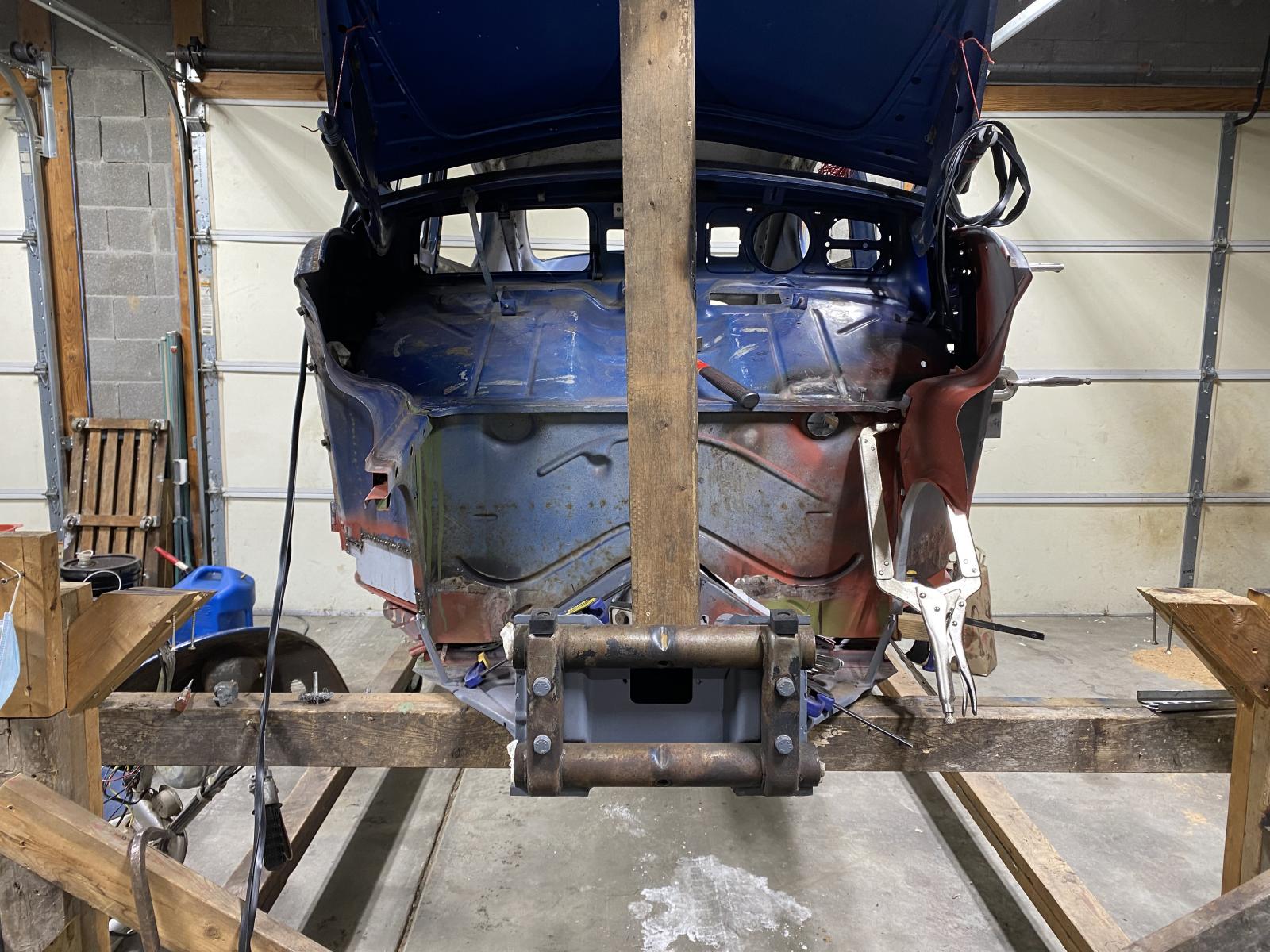

My next plan is to weld the rear back together (currently, everything is taken out...entire rear clip, luggage tray, inner wheel houses, etc.). I hope that doing so, while having the cross braces adjusted properly, or even "over adjusted, will hold it up as necessary.

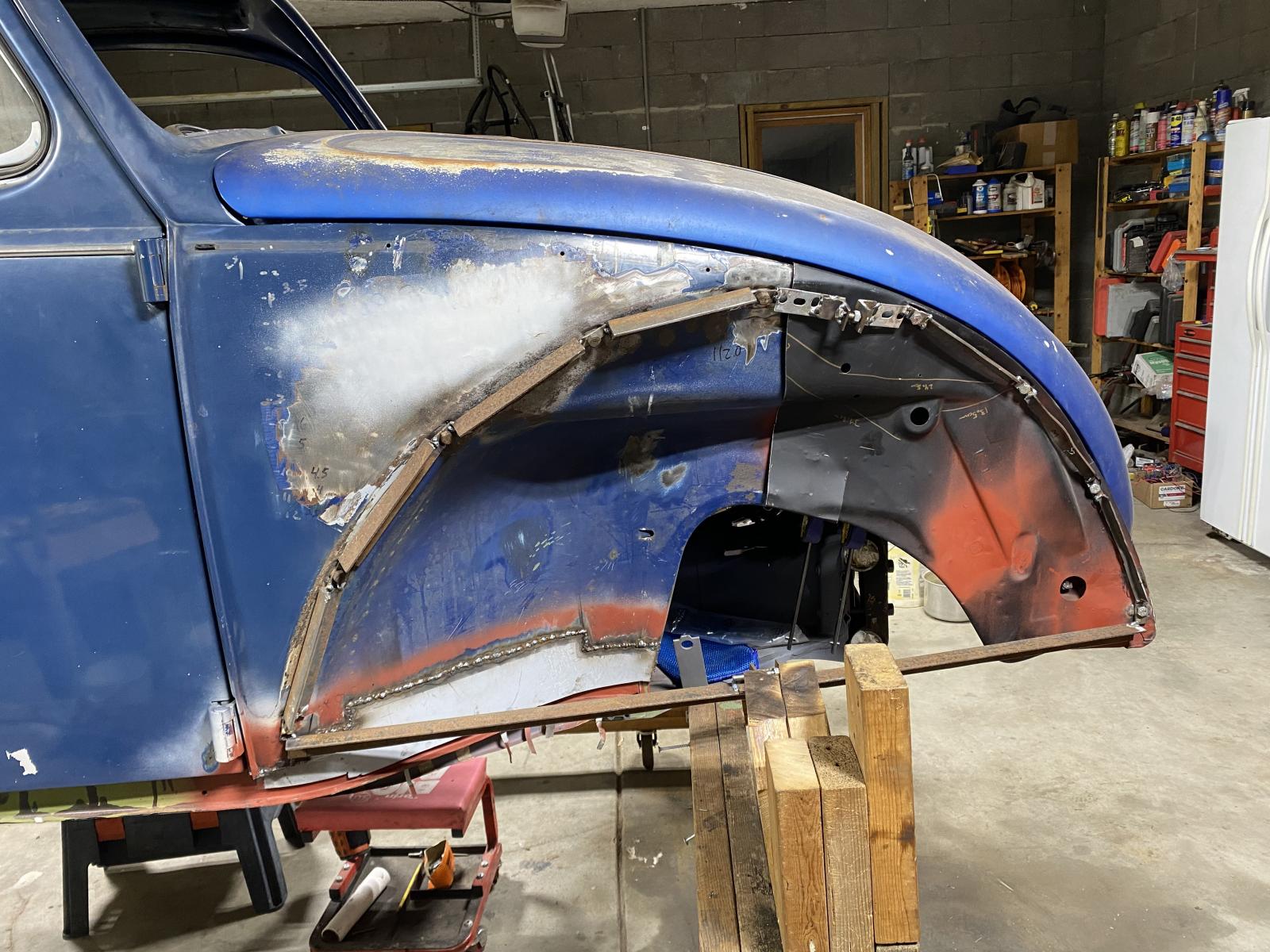

I noticed that as the A pillars are pulled back, the quarter panels are consequently pulled down. To prevent any further unwanted adjustments to the front quarter panels, I'll weld the front clip on.
I had a super rusty beam laying around, so I cut it down to size. This allowed me to bolt the front clip down. Not only does this hold it in place, but it also mimics how it will be in the end.
I then slid the front clip over the quarter panels, added my adjustable braces, and started taking measurements.
I'll continue adjusting it a little bit to try to minimize the hood gap. |
