| Author |
Message |
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 321
Location: Sweden
|
 Posted: Thu Nov 12, 2020 1:12 am Post subject: Upgraded fuel inlets |
 |
|
| Is this part available from any source? I want the upgraded fuel inlet, but not a full rebuild. |
|
| Back to top |
|
 |
sjbartnik
Samba Member
Joined: September 01, 2011
Posts: 6041
Location: Brooklyn
|
| Posted: Thu Nov 12, 2020 3:51 pm Post subject: Re: Upgraded fuel inlets |
|
|
I'm sure it's available somewhere
May have to go down the rabbit hole in some fuel fittings supply catalog somewhere.
_________________
1965 Volkswagen 1500 Variant S
2000 Kawasaki W650 |
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4511
Location: Illinois
|
| Posted: Thu Nov 12, 2020 4:38 pm Post subject: Re: Upgraded fuel inlets |
|
|
| HenrikL wrote: |
Is this part available from any source? I want the upgraded fuel inlet, but not a full rebuild.
I'm in Europe and sending the carburettors to the US is not cost effective. |

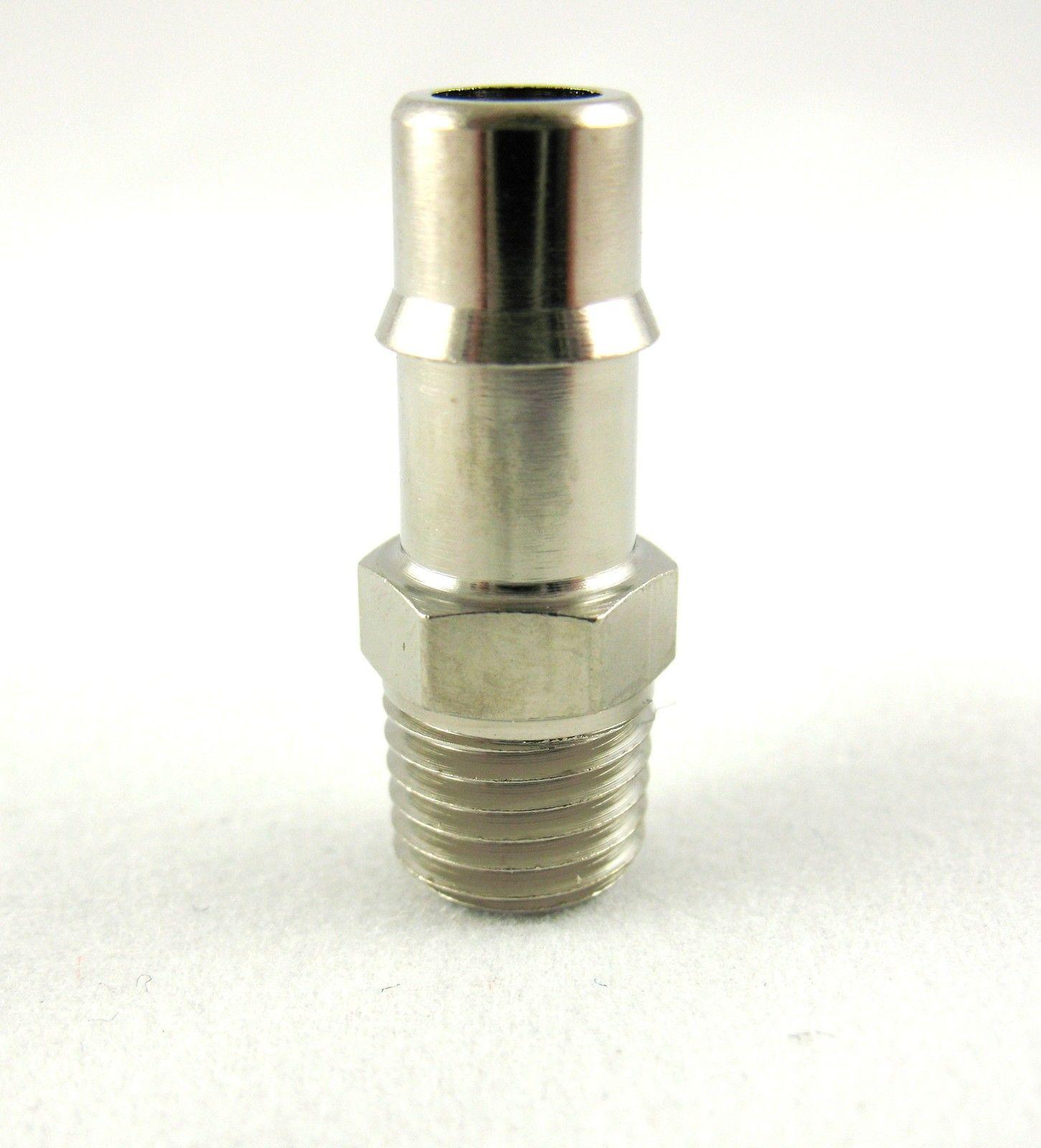

I bought these:
https://www.amazon.com/gp/product/B007QTZ3NM/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

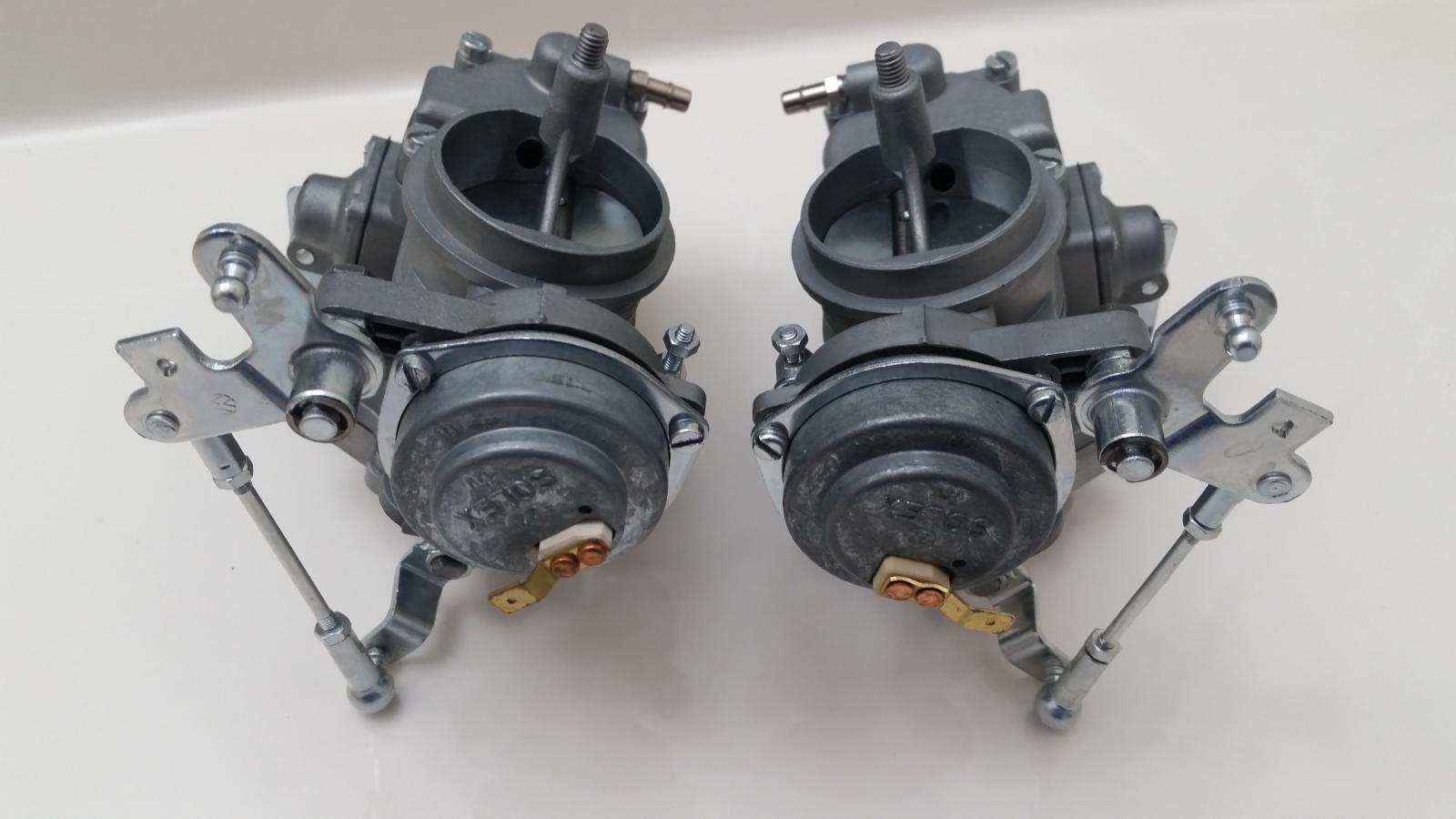

They're the exact same pieces Tim uses - he's rebuilt several sets of Type 3 carbs for me.
I have a spare set if someone wants to buy the set I have. I can ship way faster than Amazon right now
Last edited by ataraxia on Fri Nov 13, 2020 4:09 pm; edited 1 time in total |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23499
Location: Kimball, Mi
|
| Posted: Fri Nov 13, 2020 9:43 am Post subject: Re: Upgraded fuel inlets |
|
|
| ataraxia wrote: |
| HenrikL wrote: |
Is this part available from any source? I want the upgraded fuel inlet, but not a full rebuild.
I'm in Europe and sending the carburettors to the US is not cost effective. |
I bought these:
https://www.amazon.com/gp/product/B007QTZ3NM/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
They're the exact same pieces Tim uses - he's rebuilt several sets of Type 3 carbs for me.
I have a spare set if someone wants to buy the set I have. I can ship way faster than Amazon right now |
Thanks for the link. I didn't know Amazon carried them, as I don't spend a lot of time on their site (I end up spending too much money when I do).
Edit: I wonder if they'll fit Weber ICT carbs, as I've had that issue more than on Solex carbs.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
sjbartnik
Samba Member
Joined: September 01, 2011
Posts: 6041
Location: Brooklyn
|
| Posted: Fri Nov 13, 2020 4:53 pm Post subject: Re: Upgraded fuel inlets |
|
|
There may be variations out there - the ones pictured in ataraxia's photos are different than the ones Tim put on my carbs. Mine are brass-colored like the original and have like 3 barbs on them instead of just one.
I guess one could just ask Tim where he sources them.
_________________
1965 Volkswagen 1500 Variant S
2000 Kawasaki W650 |
|
| Back to top |
|
|
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 544
Location: north bay,ca.
|
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4511
Location: Illinois
|
| Posted: Fri Nov 13, 2020 5:02 pm Post subject: Re: Upgraded fuel inlets |
|
|
| sjbartnik wrote: |
There may be variations out there - the ones pictured in ataraxia's photos are different than the ones Tim put on my carbs. Mine are brass-colored like the original and have like 3 barbs on them instead of just one.
I guess one could just ask Tim where he sources them. |
Perhaps he changed what he uses. He built three sets for me, all using the same fittings, over three years...probably three or four years ago. |
|
| Back to top |
|
|
Tvättbjörn
Samba Member
Joined: May 07, 2004
Posts: 1438
Location: SoCal
|
| Posted: Fri Nov 13, 2020 7:20 pm Post subject: Re: Upgraded fuel inlets |
|
|
1/4" nipples sounds way too large for a factory hose.   |
|
| Back to top |
|
|
sjbartnik
Samba Member
Joined: September 01, 2011
Posts: 6041
Location: Brooklyn
|
| Posted: Sat Nov 14, 2020 10:47 am Post subject: Re: Upgraded fuel inlets |
|
|
Here's a better view of the fittings he used in my carbs in 2019.
These fit the metric 5mm cloth-braided fuel hose perfectly.
_________________
1965 Volkswagen 1500 Variant S
2000 Kawasaki W650 |
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4511
Location: Illinois
|
| Posted: Sat Nov 14, 2020 11:46 am Post subject: Re: Upgraded fuel inlets |
|
|
| sjbartnik wrote: |
Here's a better view of the fittings he used in my carbs in 2019.
These fit the metric 5mm cloth-braided fuel hose perfectly. |
Those look much closer to original - nice! |
|
| Back to top |
|
|
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 321
Location: Sweden
|
| Posted: Sat Nov 14, 2020 11:56 am Post subject: Re: Upgraded fuel inlets |
|
|

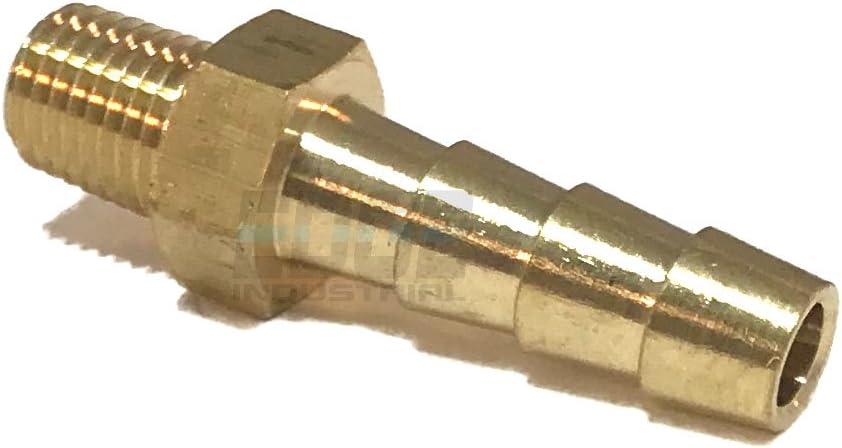

EDGE INDUSTRIAL 1/4" Hose ID to 1/16" Male NPT MNPT Straight Brass Fitting Fuel/AIR/Water/Oil/Gas/WOG
This one looked promising, but what is the outside diameter of 1/16 NPT?
"PLEASE NOTE, 1/16" NPT MEASURES 0.313" OUTSIDE THREAD DIAMETER IN LINEAR INCHES "
0.313 * 25.4 = 7.95 mm
https://www.amazon.com/EDGE-INDUSTRIAL-Straight-Brass-Fitting/dp/B07CQ948YZ
|
|
| Back to top |
|
|
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 321
Location: Sweden
|
| Posted: Sat Nov 14, 2020 11:57 am Post subject: Re: Upgraded fuel inlets |
|
|
| ataraxia wrote: |
| sjbartnik wrote: |
Here's a better view of the fittings he used in my carbs in 2019.
These fit the metric 5mm cloth-braided fuel hose perfectly. |
Those look much closer to original - nice! |
I wonder how to turn them without the hex part? |
|
| Back to top |
|
|
sjbartnik
Samba Member
Joined: September 01, 2011
Posts: 6041
Location: Brooklyn
|
| Posted: Sat Nov 14, 2020 4:00 pm Post subject: Re: Upgraded fuel inlets |
|
|
Very carefully?
_________________
1965 Volkswagen 1500 Variant S
2000 Kawasaki W650 |
|
| Back to top |
|
|
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 321
Location: Sweden
|
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4511
Location: Illinois
|
| Posted: Yesterday 7:24 am Post subject: Re: Upgraded fuel inlets |
|
|
18 euro each is hilariously overpriced for a functional part no one will notice. |
|
