 Posted: Wed Apr 09, 2025 1:23 pm Post subject: Looking for a pair of wheels like this |
 |
|

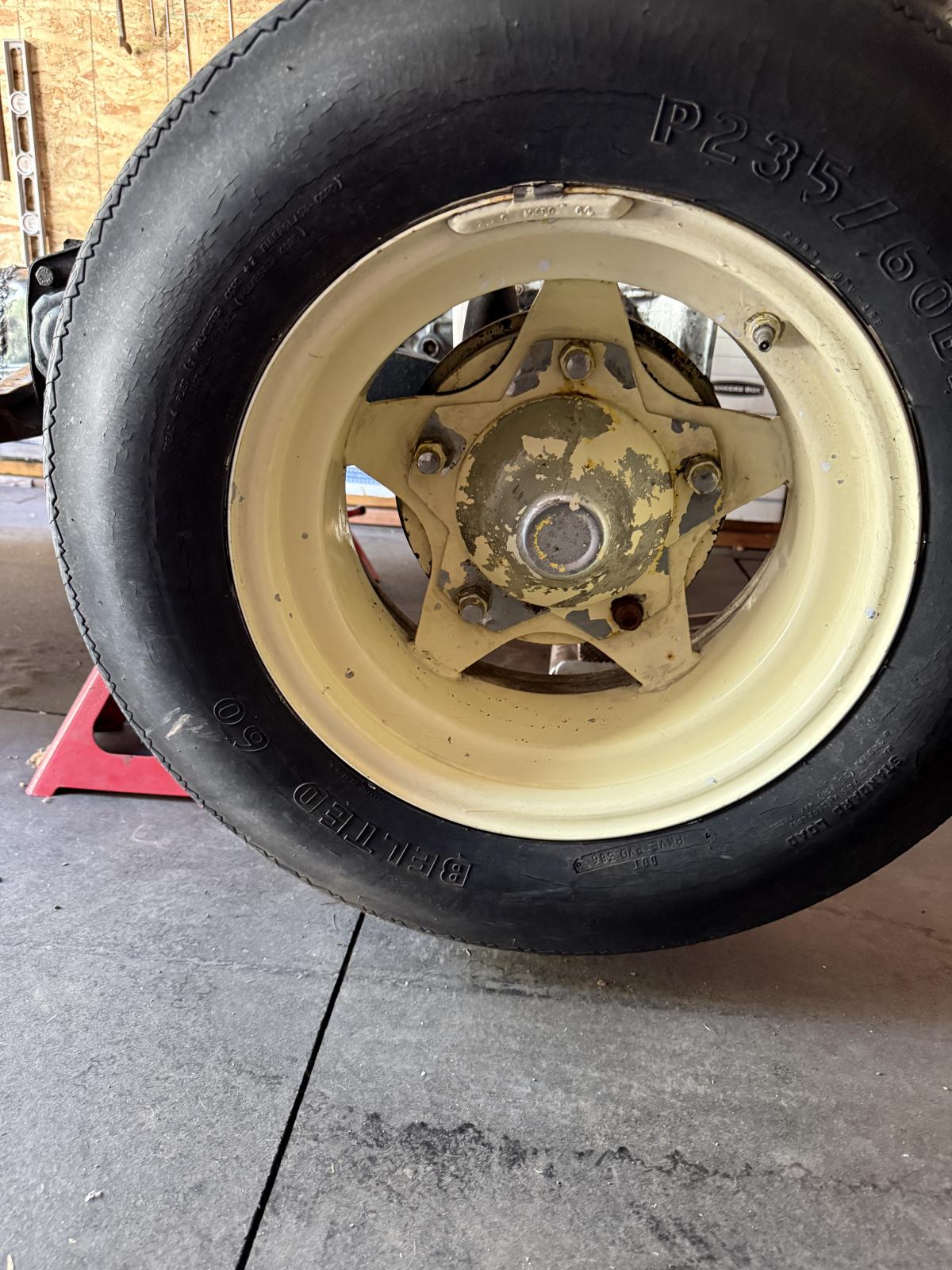

I suspect that this is a wheel from the 70's. The center cap is installed using the lug bolts. I need a couple of like wheels 5" or 5-1/2" wide for the front. Thanks in advance for info |
|
| Back to top |
|
 |
Wolfgangdieter
Samba Member
Joined: June 25, 2008
Posts: 1994
Location: FL Panhandle
|
| Posted: Wed Apr 09, 2025 2:49 pm Post subject: Re: Looking for a pair of wheels like this |
|
|
Those appear to be old Jackman wheels - there are some available on Wheels and tires classifieds here on TheSamba. Assume yours are wide five.
Here's the center caps
https://www.ebay.com/itm/115352984767?_trkparms=am...DHPHR03FFQ
_________________
CMC '57 Porsche Speedster Replica and Dolphin boat tailed full pan VW MOD-T Street Buggy |
|
| Back to top |
|
|
NJ John
Samba Member
Joined: September 21, 2007
Posts: 2854
Location: HdG, MD & NJ
|
|
| Back to top |
|
|
aquavette
Samba Member
Joined: May 30, 2007
Posts: 185
Location: Argyle, TX.
|
|
| Back to top |
|
|
Tom_Kathleen
Samba Member
Joined: August 26, 2004
Posts: 933
Location: Vernon, CT
|
| Posted: Thu Apr 10, 2025 4:31 am Post subject: Re: Looking for a pair of wheels like this |
|
|
That center cap is made to go behind the wheel. It fits between the wheel and brake disk or drum. Looks much better that way and is not messed up by the lug nuts. Tom
_________________
Manxter #16, 1968 Meyers Manx & Kick-Out SS #16 (WIP)
Manx Club & CVA |
|
| Back to top |
|
|
oprn
Samba Member
Joined: November 13, 2016
Posts: 14685
Location: Western Canada
|
| Posted: Thu Apr 10, 2025 5:26 am Post subject: Re: Looking for a pair of wheels like this |
|
|
I just picked up a set that someone painted red. Two 6" and two 8" but looking at them they may be made by two different manufacturers.
You can see how the narrow ones have a rim that is part of the spokes but the wide ones have the spokes directly welded to the rim. The wide ones look like Jackmans but the narrow ones look like the ones J Bugs sells.
I am not so sure I am sold on the color though.
_________________
Our cars get old, we get old but driving an old VW never gets old! |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9321
Location: Canada
|
| Posted: Sat Apr 12, 2025 7:59 am Post subject: Re: Looking for a pair of wheels like this |
|
|
| DO NOT install the hub cap like that. It shokld be behind the wheel. The lug nuts will not seat propetly and you risk losing a wheel |
|
| Back to top |
|
|
EVfun
Samba Member
Joined: April 01, 2012
Posts: 6118
Location: Seattle
|
| Posted: Sat Apr 12, 2025 3:05 pm Post subject: Re: Looking for a pair of wheels like this |
|
|
| oprn wrote: |
I just picked up a set that someone painted red. Two 6" and two 8" but looking at them they may be made by two different manufacturers.
You can see how the narrow ones have a rim that is part of the spokes but the wide ones have the spokes directly welded to the rim. The wide ones look like Jackmans but the narrow ones look like the ones J Bugs sells.
I am not so sure I am sold on the color though. |
They could both be from Custom & Commercial Wheel. I remember seeing both of those styles, and a few more, all available in either chrome, or white with thin red and blue pinstripes around the edge. The style I ended up getting were like the ones with the slightly smaller cutouts, with fake rivets around the outside of the center, and in chrome. Back then (early ‘90’s) you could specify offset within the range possible for the design. The design with the smaller cutouts that didn’t extend to the rim could be ordered with a more positive ET (that I wanted). My fronts were 15 by 5 with a +25 ET. The rears were 15 by 7 with a 0 ET.
I sold those after I changed to 14 inch Bus steel wheels, powder coated almond, for a more old skool rod look. The front are stock with a +48 ET. The rears are widened to 7.5 inches and deep dish (negative ET). I swapped to short axles at the same time, to get that deep dish steely look and to tuck the front tires in more.
The version of those the OP has are very common and a set of 5 inch wide fronts shouldn’t be too hard to find.
