wompninja Samba Member

Joined: July 06, 2008 Posts: 2163 Location: Salt Lake City
|
Posted: Mon Jun 09, 2025 7:33 am Post subject: Weird wheel poke |
|
|

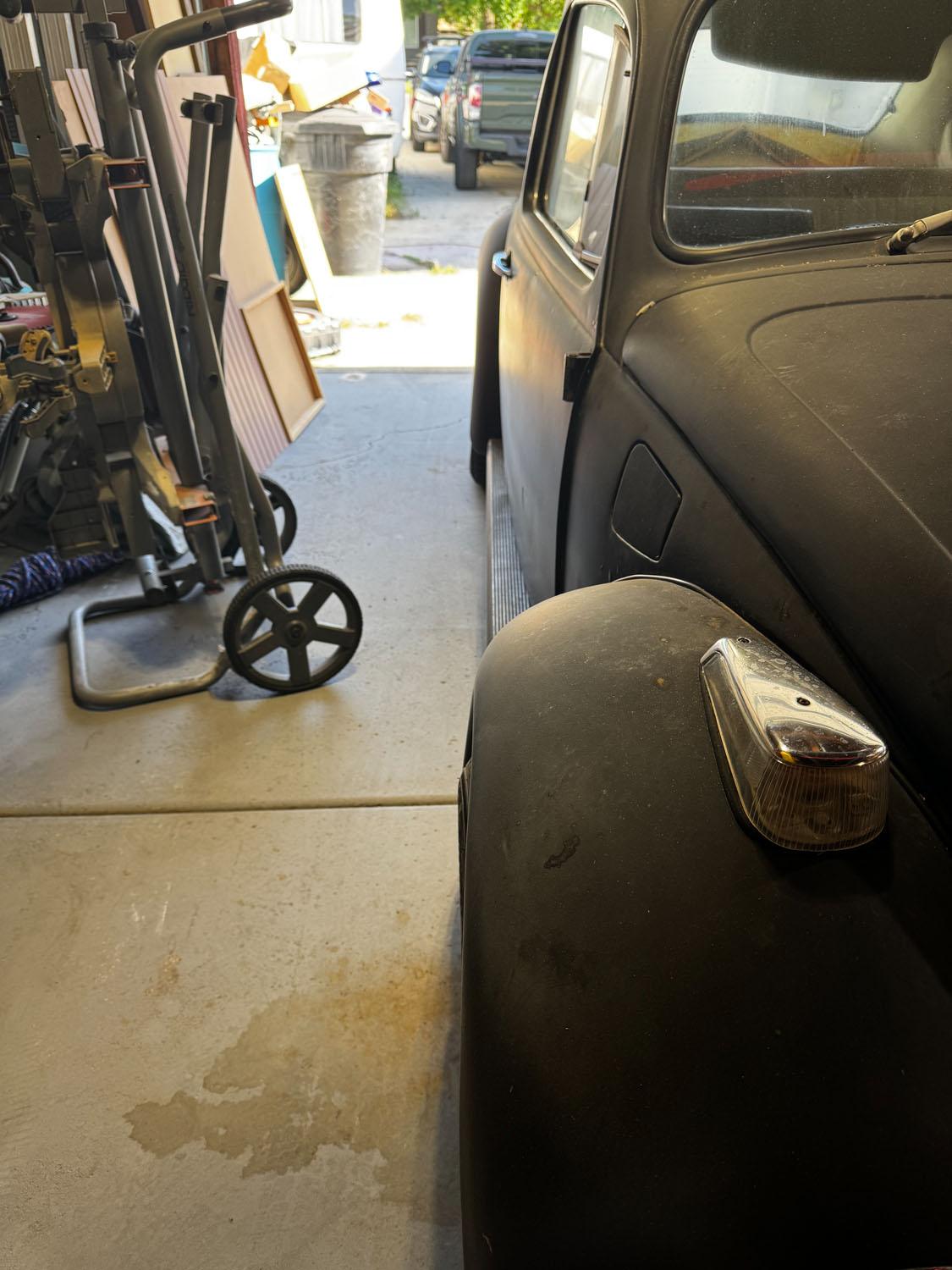

I just put some new wheels on my 70 and I am having a weird issue. The driver side wheels stick out past the fender and the passenger side are pretty much perfect. What could cause this?
_________________ Pics of my 1970 Satin Black Type 1 build |
|
Back to top |
|
 |
Glenn  Mr. 010

Joined: December 25, 2001 Posts: 79442 Location: Sneaking up behind you
|
Posted: Mon Jun 09, 2025 8:02 am Post subject: Re: Weird wheel poke |
|
|
Previous collision damage. _________________ Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
Back to top |
|
 |
wompninja Samba Member

Joined: July 06, 2008 Posts: 2163 Location: Salt Lake City
|
Posted: Mon Jun 09, 2025 8:06 am Post subject: Re: Weird wheel poke |
|
|
It's possible but, there's not really any wrinkling or anything in any of the fender wells. _________________ Pics of my 1970 Satin Black Type 1 build |
|
Back to top |
|
 |
Chinaclipper Samba Member
Joined: October 03, 2019 Posts: 807 Location: Somewhere in the great Midwest
|
Posted: Mon Jun 09, 2025 8:18 am Post subject: Re: Weird wheel poke |
|
|
I agree with Glenn. If someone has ever taken the body off, you COULD conceivably lose some alignment when returning it to the frame, especially if there has been some "repairs" done after restoration or collision. You MAY even have a completely different body switched in after a collision, which would explain the lack of damage in the body now. The body attaches front and back, and I am wondering if there was a slight shifting to the right when a body was re-joined with the frame.
The frame looks like a big capitol letter "I" when everything is stripped away; I am wondering if the frame was compressed with a collision and was pushed one way or another.
Speculation. _________________ China Clippers Official 1971 Super Beetle Project!
https://www.thesamba.com/vw/forum/viewtopic.php?t=728089&highlight= |
|
Back to top |
|
 |
my3bugs Samba Member
Joined: June 18, 2003 Posts: 842 Location: Moreno Valley
|
Posted: Mon Jun 09, 2025 8:20 am Post subject: Re: Weird wheel poke |
|
|
could be a fender has been replaced with a repo or replacment fender and isnt a perfect match . |
|
Back to top |
|
 |
Buggeee Samba Member

Joined: December 22, 2016 Posts: 4929 Location: Stuck in Ohio
|
|
Back to top |
|
 |
wompninja Samba Member

Joined: July 06, 2008 Posts: 2163 Location: Salt Lake City
|
Posted: Mon Jun 09, 2025 9:23 am Post subject: Re: Weird wheel poke |
|
|
All 4 fenders are aftermarket from the same company replaced at the same time. Where would some good measurement points be to see if it’s the body or the pan that is the problem? _________________ Pics of my 1970 Satin Black Type 1 build |
|
Back to top |
|
 |
Bobs67vwagen Samba Member
Joined: March 27, 2005 Posts: 288 Location: Eastern north carolina
|
Posted: Mon Jun 09, 2025 11:05 am Post subject: Re: Weird wheel poke |
|
|
I would take 2 measurements when looking at the fender from around 10 o'clock and 12 o'clock. Measure from the fender attaching panel out to the fender edge. Do it on both sides at the same place and see what you get. If these measurements are equal on both sides that would seem to indicate to me that the damage is frame and not body damage. good luck |
|
Back to top |
|
 |
wompninja Samba Member

Joined: July 06, 2008 Posts: 2163 Location: Salt Lake City
|
Posted: Mon Jun 09, 2025 11:47 am Post subject: Re: Weird wheel poke |
|
|
Looks like the passenger side fenders stick out about 1/2" further than the driver's side both front and back. On the front wheels I measured from the shock bolt to the outside of the tire and the driver's side was about an 1" wider, it should be the same right? maybe the trailing arms on the passenger are bent in a bit. _________________ Pics of my 1970 Satin Black Type 1 build |
|
Back to top |
|
 |
Tha Driver Samba Member
Joined: November 01, 2004 Posts: 42
|
Posted: Mon Jun 09, 2025 12:53 pm Post subject: Re: Weird wheel poke |
|
|
Are you sure all your wheels have the same offset? Could be two wheels have more offset to go on the rear. I would measure all 4 wheels from the frame or some point on the suspension... _________________ ~ Paul
aka "Tha Driver" |
|
Back to top |
|
 |
wompninja Samba Member

Joined: July 06, 2008 Posts: 2163 Location: Salt Lake City
|
Posted: Mon Jun 09, 2025 3:56 pm Post subject: Re: Weird wheel poke |
|
|
They are brand new Mobilwagen wheels that only come in one offset but that's a good thing I can check easily. _________________ Pics of my 1970 Satin Black Type 1 build |
|
Back to top |
|
 |
bhartwell59 Samba Member

Joined: December 28, 2014 Posts: 829 Location: dallas, tx
|
Posted: Tue Jun 10, 2025 5:27 am Post subject: Re: Weird wheel poke |
|
|
Maybe some shade tree fender pulling is needed : 0 _________________ '74 Zambezi green Ghia vert, autostick, 103k
'87 Jeep Wrangler, 4.2, 334k |
|
Back to top |
|
 |
Rome Samba Member
Joined: June 02, 2004 Posts: 10524 Location: Pearl River, NY
|
Posted: Fri Jun 13, 2025 5:27 pm Post subject: Re: Weird wheel poke |
|
|
Seeing how the tire is unevenly exposed/angled out towards the rear, there might be significant toe-in in the front suspension.
|
|
