Is this a Type 3 RHD drivers side footrest?

[FunkyOldPatina]

Hi guys,

I've seen beetle footrests before which this is similar to, but this one is different (yes I realise its RHD ) in that it has a fold where the accelerator pedal would go through?

Does anyone know what VW this is off? I have Google checked for Type 4 411/412 and nothing has come up for that, and this is the first of these I've seen.

Thanks guys.

[Bobnotch]

It might be a type 3 right side RHD foot plate. I only say that due to the distance of the clutch pedal slot from the brake pedal slot.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120

[FunkyOldPatina]

Thanks for your thoughts. I've not found a pic online of a LHD Type3 drivers foot plate to see if it is the mirror opposite of that?

Or maybe its a Type 34 or Thing plate?

Either way it's not one I've seen before

[gtixpress]

This is a LHD foot plate from my Squareback (1969).

_________________
Joe P.
1969 VW Type 3 Squareback
2002 VW GTI 337 (Limited Edition)
2018 VW Atlas SE VR6 4Motion
2019 VW Beetle S Final Edition Convertible

[FunkyOldPatina]

[KTPhil]

Try contacting Samba member parmaynu.
About 9 years ago he said he sells replacement RHD Beetle pedal parts, and he may identify this for you.
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback

[really-whale]

First thought was that's for sure a RHD plate, but mine has a slightly more vertical clutch pedal opening. It does still seems like it would be from a RHD type 3 though?

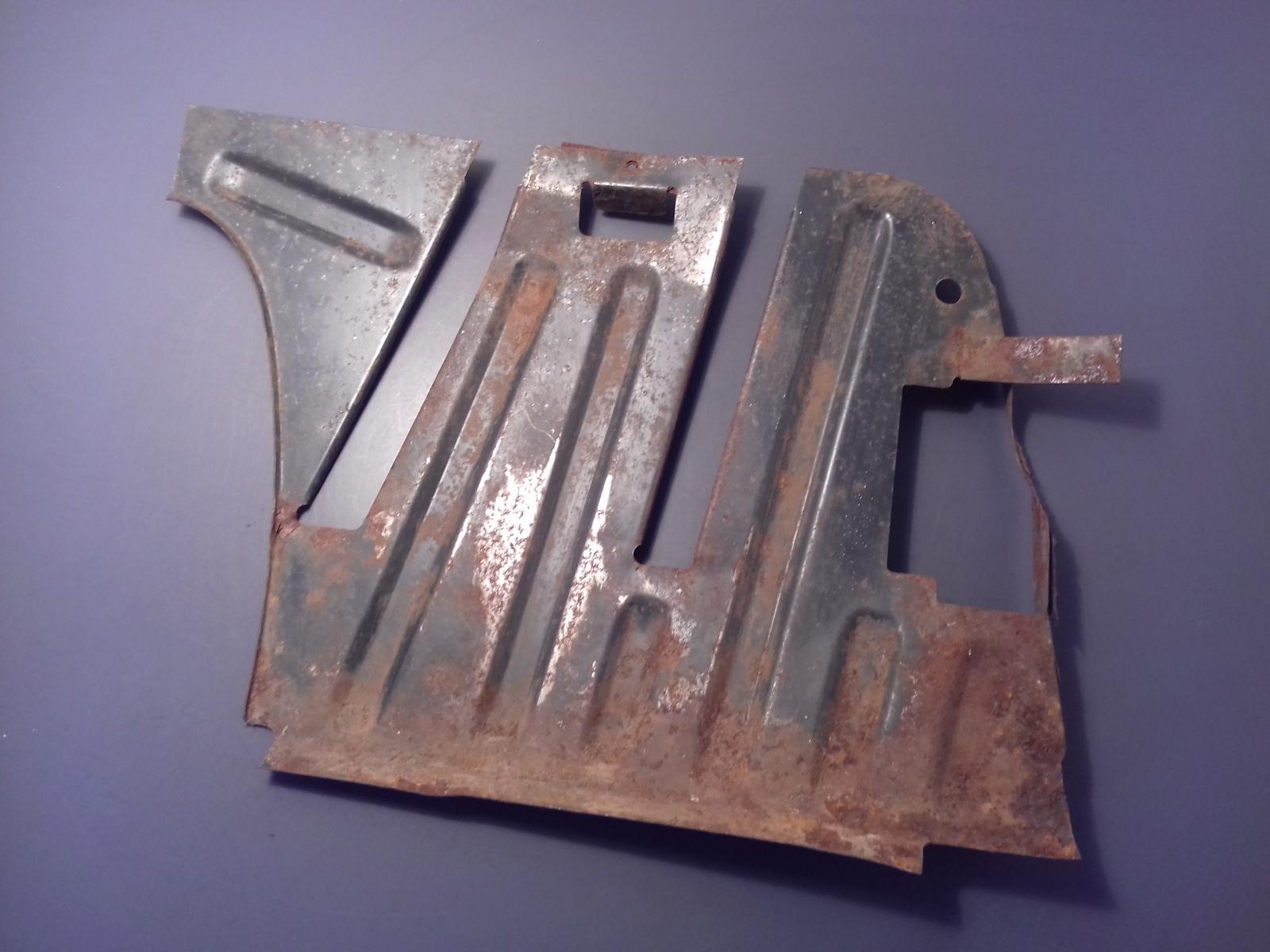

I've included a picture of the one I have, it's off a ~71 RHD squareback pan.

_________________
Pete - '67 Aust. RHD Squareback - Build Thread - Engine Thread

[FunkyOldPatina]

[really-whale]

Glad I could help! Yeah, the RHD pedal assembly is pretty different, and the reason it's not a perfect mirrror is that the pedals are still in the same order left to right for both LHD and RHD..

I'm assuming the plate you have there will be earlier and suit a pedal assembly where the stalk for the clutch pedal is angled outward more than mine. I'm not sure of the year to year differences there..
_________________
Pete - '67 Aust. RHD Squareback - Build Thread - Engine Thread

[FunkyOldPatina]

[Bobnotch]

[ALLWAGONS]

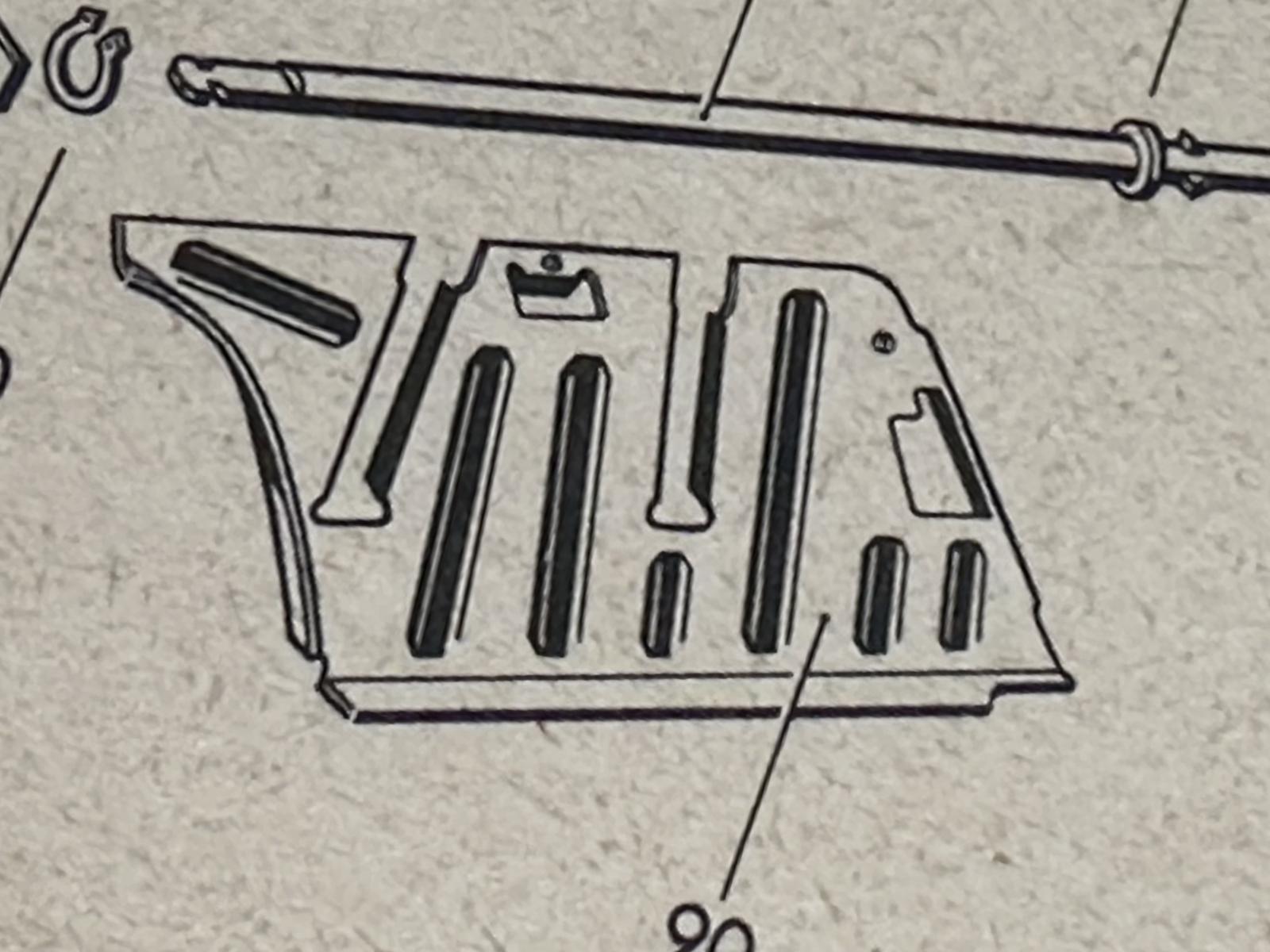

It sure looks different. Compare it to this pic from the parts manual.

_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.

I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.

Thanks to my Tesla driving neighbors, I feel more relaxed driving my SUBURBAN and old VW's.

Everything sounds good on paper!

[Bobnotch]
