Seems straight forward but electrical has never been my strongsuit.
I have a 6v 3 prong in my '61. I picked up a 12v unit but the numbers don't mean anything to me. Can you guys point me in the right direction?

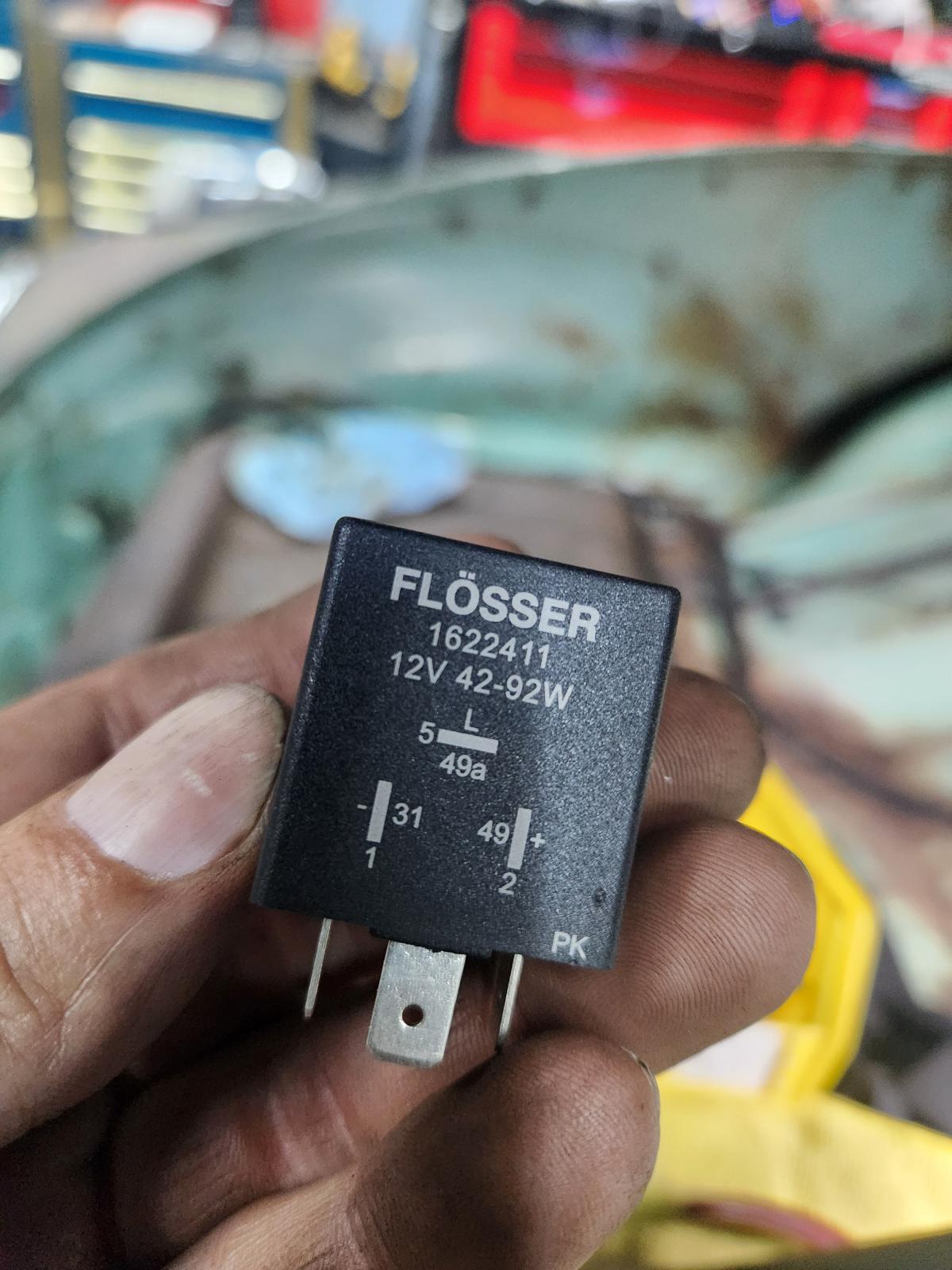

Here's what I picked up
My beetles flashed is currently wired like the diagram.
_________________
Barndoor Mafia
Box On Wheels
SBS #00 |
|
| Back to top |
|
 |
EVfun
Samba Member
Joined: April 01, 2012
Posts: 6067
Location: Seattle
|
| Posted: Fri May 23, 2025 7:51 am Post subject: Re: 6v to 12v flasher wiring help |
|
|
Those are standard Bosch terminal numbers. Here is the translation into old VW wiring speak:
31 is a chassis ground. Since this flasher has a plastic housing it isn't grounded by being bolted to the car.
49 is the same as terminal 15. This is the power supply to the flasher.
49a is the flasher output, the same as terminal 54 on the original flasher. You also want to connect the dash indicator light wire, terminal K, to this terminal. Hopefully it will function correctly, some solid state flashers have a problem being partially grounded through the dash light when the turn signals are not in use.
