 Posted: Thu Jun 26, 2025 4:10 pm Post subject: Anyone have pics, breather hose on 1979 fuel injected bug? |
 |
|
| Working on a 1979 fuel injected bug and original breather hose is long gone and some weird replacement jammed off to the side. Does anyone have pics of what the original breather hose looks like and how and where it is connected? I see a small connection on intake boot that has small plastic tube with dual wire connector as well. What is that and did it hook up there? Thanks |
|
| Back to top |
|
 |
Raescafe
Samba Member
Joined: June 29, 2019
Posts: 53
Location: Ohio
|
| Posted: Thu Jun 26, 2025 5:05 pm Post subject: Re: Anyone have pics, breather hose on 1979 fuel injected bug? |
|
|

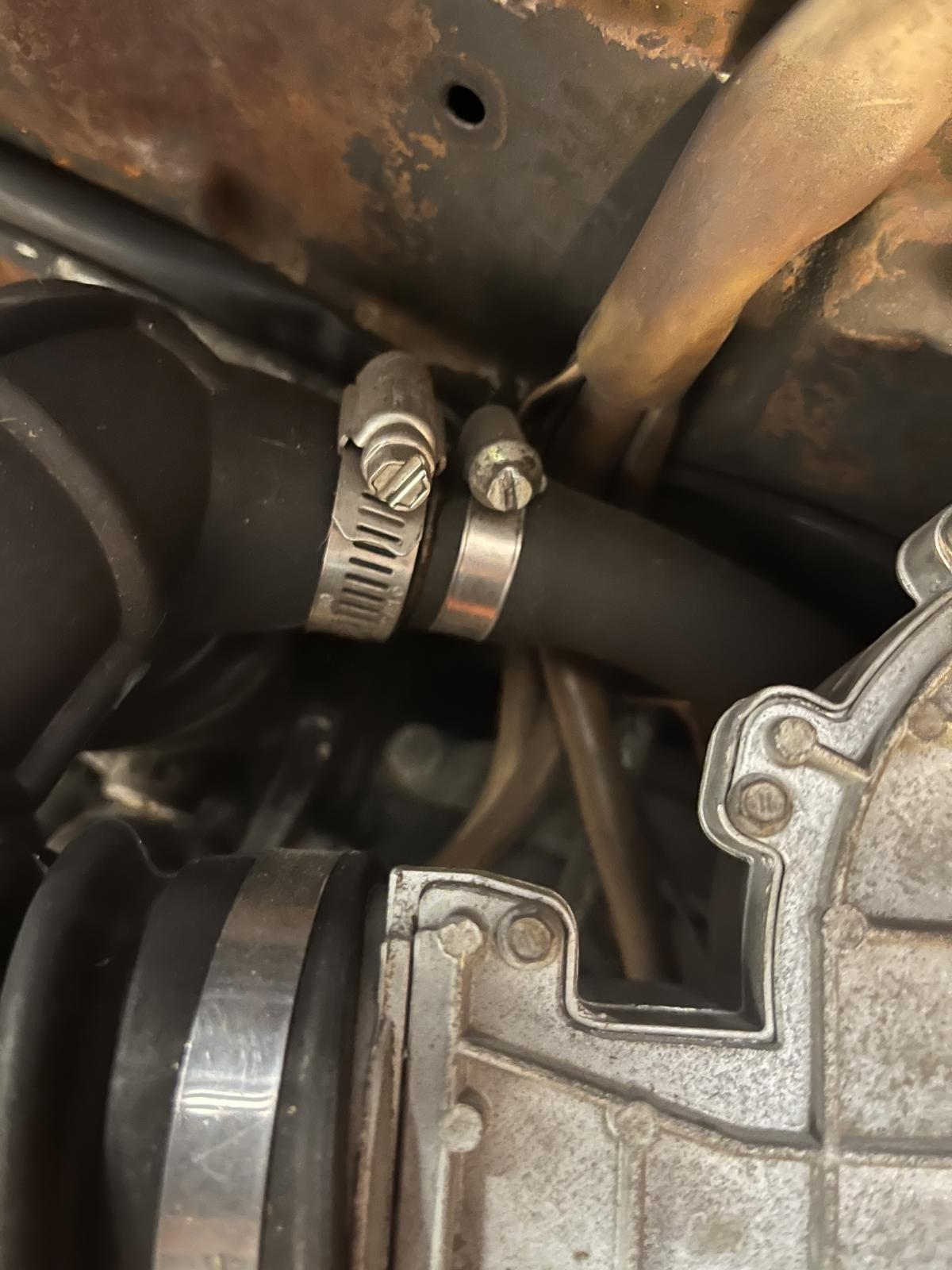

Here are photos from my ‘78 FI. I replaced the breather hose a while back. It’s a tight fit from oil filler to air intake. It gets pinched. I had no issues.
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52896
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Jun 26, 2025 6:08 pm Post subject: Re: Anyone have pics, breather hose on 1979 fuel injected bug? |
|
|
California or federal?, there's two versions, since you don't share a location or vehicle details it's hard to guess...
You might try some searches for keywords like 'breather' or 'hose' in the fuel injection topic in the stickies at the top of this forum page, there's a number of solutions offered there.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
tristanblue
Samba Member
Joined: May 30, 2019
Posts: 346
|
| Posted: Thu Jun 26, 2025 6:09 pm Post subject: Re: Anyone have pics, breather hose on 1979 fuel injected bug? |
|
|
| Raescafe wrote: |
Here are photos from my ‘78 FI. I replaced the breather hose a while back. It’s a tight fit from oil filler to air intake. It gets pinched. I had no issues.
|
I appreciate the efforts and pictures but that didn't help me too much.
Yes it sure looks like your hose is bent and pinched off. I heard this can be a problem. That is why I am curious what the original hose looked like so can try my best in either fabricating or finding one. |
|
| Back to top |
|
|
Raescafe
Samba Member
Joined: June 29, 2019
Posts: 53
Location: Ohio
|
| Posted: Fri Jun 27, 2025 5:12 am Post subject: Re: Anyone have pics, breather hose on 1979 fuel injected bug? |
|
|
I can’t remember what online parts store has the hose but this is what it looks like.
https://www2.cip1.com/VWC-181-129-651-C/?gad_sourc...v6EALw_wcB
I was going to cut the hose and add a 90 elbow to avoid the pinch point but once I got it in place I decided not mess with it. |
|
| Back to top |
|
|
VW_Jimbo
Samba Member
Joined: May 22, 2016
Posts: 11244
Location: Huntington Beach, CA
|
| Posted: Fri Jun 27, 2025 10:13 am Post subject: Re: Anyone have pics, breather hose on 1979 fuel injected bug? |
|
|
If this is the hose you are looking for, here is the quote for it from the FI thread. If not, ignore my post. But I am fairly sure you are looking for this one.
| KKiley wrote: |

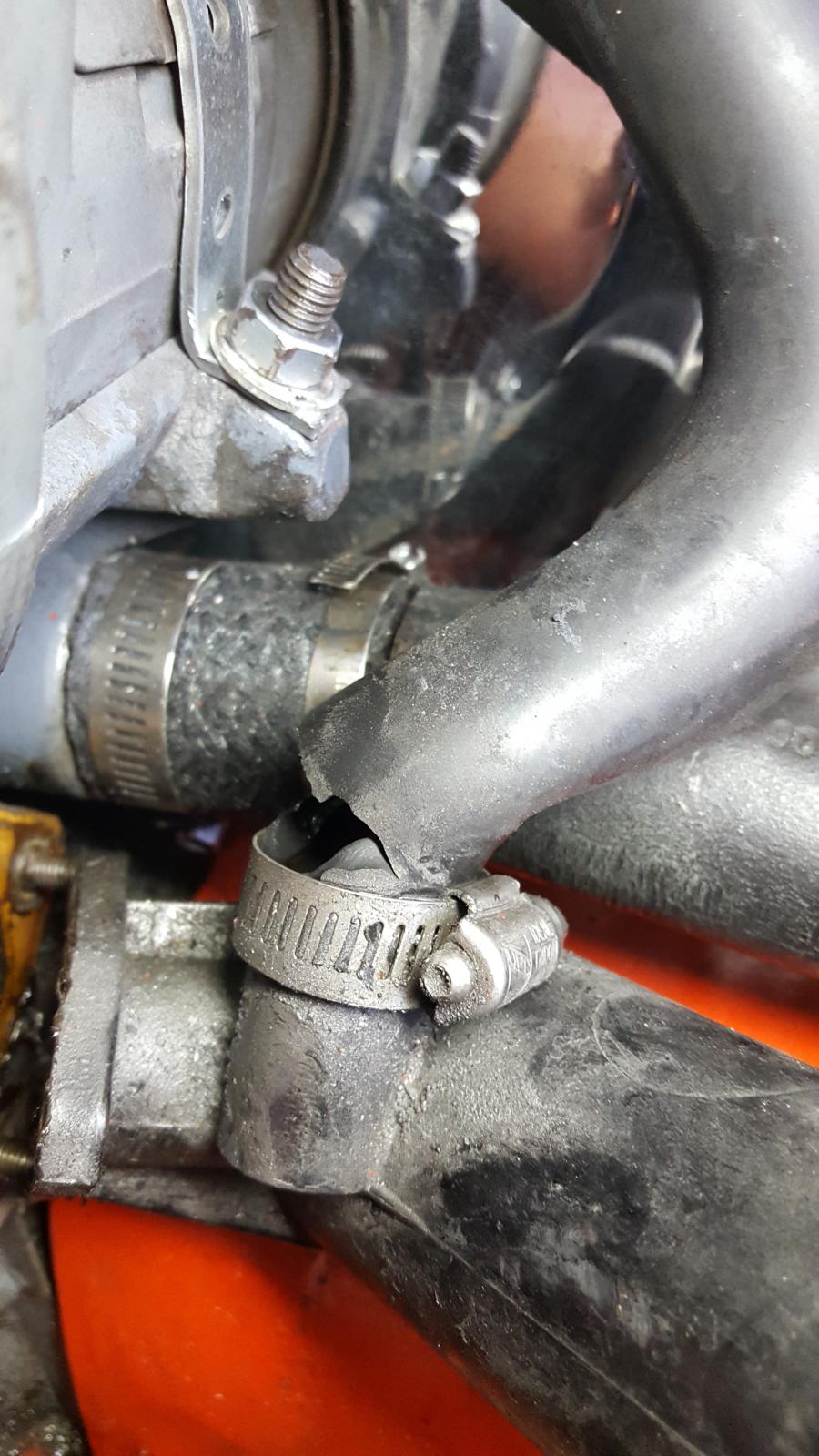

I thought I would post this part number for those that need to replace their hoses. The quality of the replacement parts are sketchy sometimes. This picture is the hose going from the oil fill to the S Tube. This was a brand new hose after being installed less than a week. The oil made the material so soft, it broke apart. You could not trim it back far enough to make the hose functional:

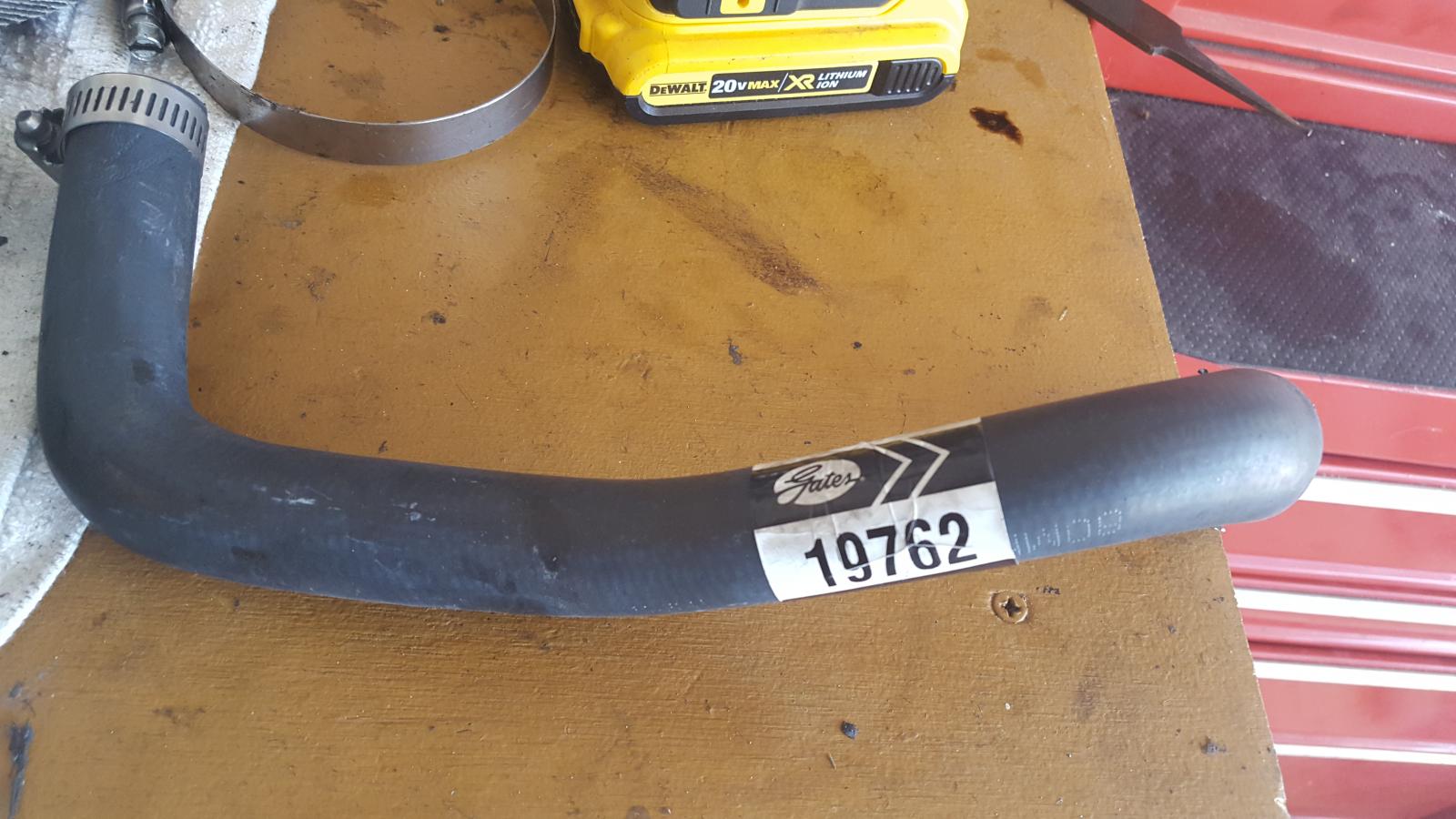

I ended going to Oreilly's and finding this hose. It was longer than this and had other bends, but I trimmed out the piece that I needed and it fit perfect and will not deteriorate. It is a Gates hose and I included the part number for future reference.
This hose has been in there several months and is still like new.
Hope this helps others.
Cheers
Kevin |
