1958 Bug transaxle in a 1960 Ghia
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
prhoades
Samba Member


Joined: January 14, 2004
Posts: 5

prhoades is offline
PostPosted: Sun Jun 29, 2025 9:18 pm    Post subject: 1958 Bug transaxle in a 1960 Ghia Reply with quote
Image may have been reduced in size. Click image to view fullscreen.

I
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

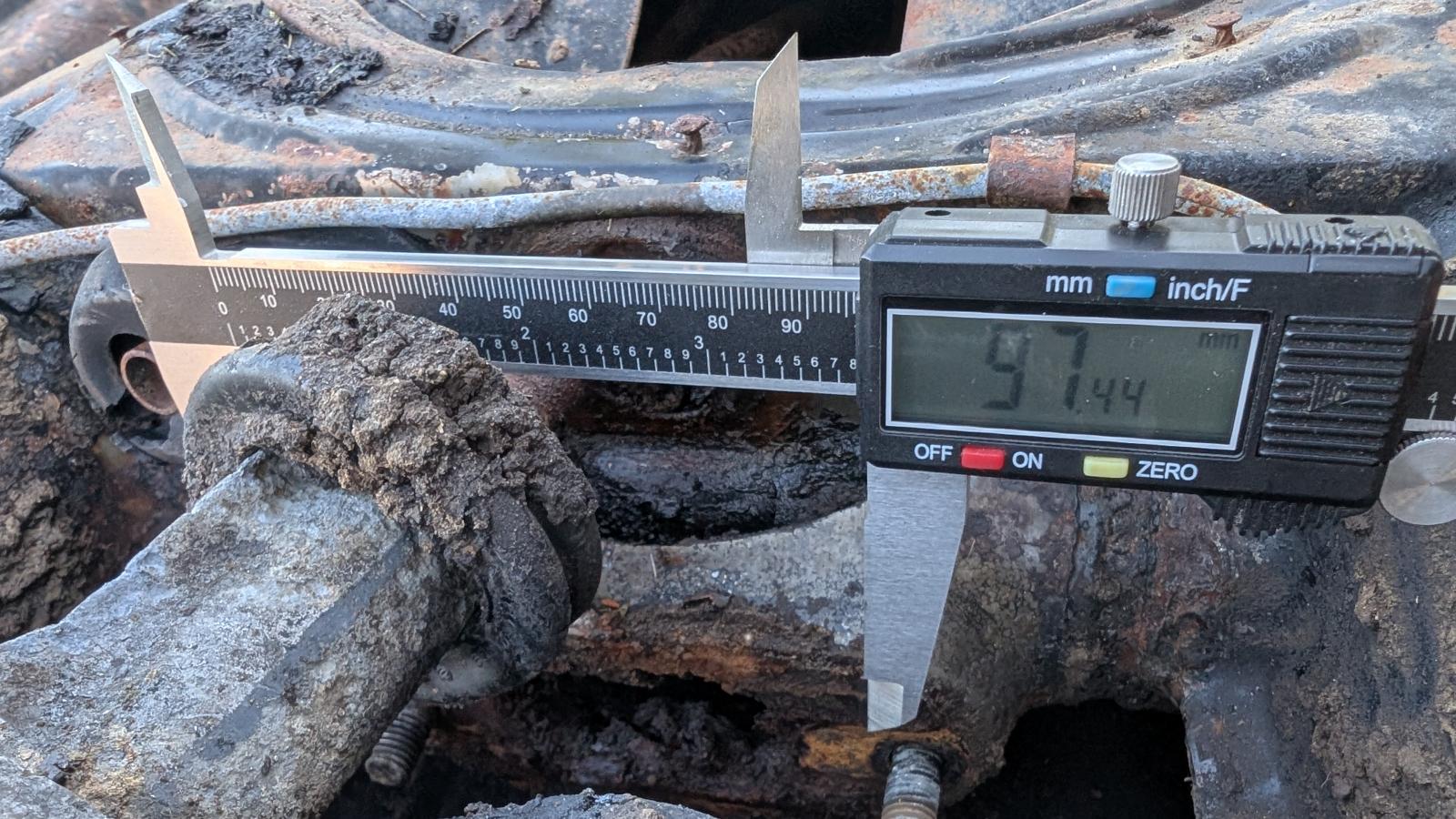

'm attempting to put in a transaxle from a 1958 bug into my 1960 ghia but the front transaxle frame bolts are further apart then the 58 bug. 'I'll post some pictures
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
wagen19
Samba Member


Joined: November 16, 2007
Posts: 656
Location: germany
wagen19 is offline
PostPosted: Mon Jun 30, 2025 1:00 am    Post subject: Re: 1958 Bug transaxle in a 1960 Ghia Reply with quote
prhoades wrote:
Image may have been reduced in size. Click image to view fullscreen.

I
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

'm attempting to put in a transaxle from a 1958 bug into my 1960 ghia but the front transaxle frame bolts are further apart then the 58 bug. 'I'll post some pictures

It´s not a good idea.
The model 1960 has a one year only version of trans, nose cone, shift forks.
Well, it´s not impossible to fit a 58 trans in a 60 ghia or beetle, but you need plenty of parts and have to split the trans.
Much better is to go for a 60 trans. (stay original!)
Back to top
View user's profile Send private message Classifieds Feedback
prhoades
Samba Member


Joined: January 14, 2004
Posts: 5

prhoades is offline
PostPosted: Mon Jun 30, 2025 7:20 am    Post subject: Re: 1958 Bug transaxle in a 1960 Ghia Reply with quote
Thanks, that's what I needed to know. So a 1960 Ghia transaxle is a one year only? or will pre-60 Ghia transaxles work?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VeloMikey
Samba Member


Joined: March 19, 2012
Posts: 770
Location: So Cal
VeloMikey is offline
PostPosted: Mon Jun 30, 2025 12:16 pm    Post subject: Re: 1958 Bug transaxle in a 1960 Ghia Reply with quote
The only thing you need to do is the replace the nose cone mount. Since the body is off, cut it off and weld on a 58 mount. The 58 trans should slide right in. Here is a thread all about it... https://www.thesamba.com/vw/forum/viewtopic.php?t=621790
_________________
'58 Ghia 2387cc with a Berg / Folts 5 Speed

Ghia Build Thread https://www.thesamba.com/vw/forum/viewtopic.php?t=768748
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
wagen19
Samba Member


Joined: November 16, 2007
Posts: 656
Location: germany
wagen19 is offline
PostPosted: Mon Jun 30, 2025 10:30 pm    Post subject: Re: 1958 Bug transaxle in a 1960 Ghia Reply with quote
VeloMikey wrote:
The only thing you need to do is the replace the nose cone mount. Since the body is off, cut it off and weld on a 58 mount. The 58 trans should slide right in. Here is a thread all about it... https://www.thesamba.com/vw/forum/viewtopic.php?t=621790

A hack job is allways possible, if someone wants to do so.
Maybe replace the whole pan and go for ball joint or IRS pan.
For a reversible "bolt-on-solution" you need either a model 1960 only Beetle or Ghia trans, or a hours of labor and a lot of parts to upgrade a pre 8´59 semi synchro trans to fit a 1960 model.
Back to top
