 Posted: Thu Nov 07, 2024 9:33 am Post subject: Power nap: On building a 400HP Riviera Camper. |
 |
|
So in the B32 thread E1 said he wants more 'race Vanagon' content... So here we go...
Meet my 1980 Riviera Camper, Vanny DeVito.
When I purchased it it was your usual bone stock 2.0L aircooled Vanagon... Which blew it's engine on it's very first trip away from home.
I grew up in a mechanical family, and I've been building hotrods since before I could drive them, my Vanagon is actually the NEWEST car I've ever owned. So I'm used to hiccups and breakdowns. Comes with the territory.
I've always lived by the motto 'anything worth doing is worth wildly overdoing' when building my rides, and this was no exception.
So that engine came out and was replaced by a 150HP 2.2L aircooled on Megasquirt that did me fine for the next few years... Until April of this year, when it snapped a crank clean in two and locked up hard!
That engine was fine, but it was still not FAST. Not stock slow, but slower than my gasoline fueled heart wanted. So THIS round I decided to Subaru swap. But I hate doing things the same way everyone else does, so I wasn't going to go with the standard naturally aspirated 2.5L... No....
I decided I was going to import a JDM(Japanese Domestic Market) EJ20x TURBO engine from their Legacy GT and WRX STi models.
Due to some interesting emissions laws in Japan they replace motors between 40 and 60k miles, so they can be easily had with very low miles exported from Japan!

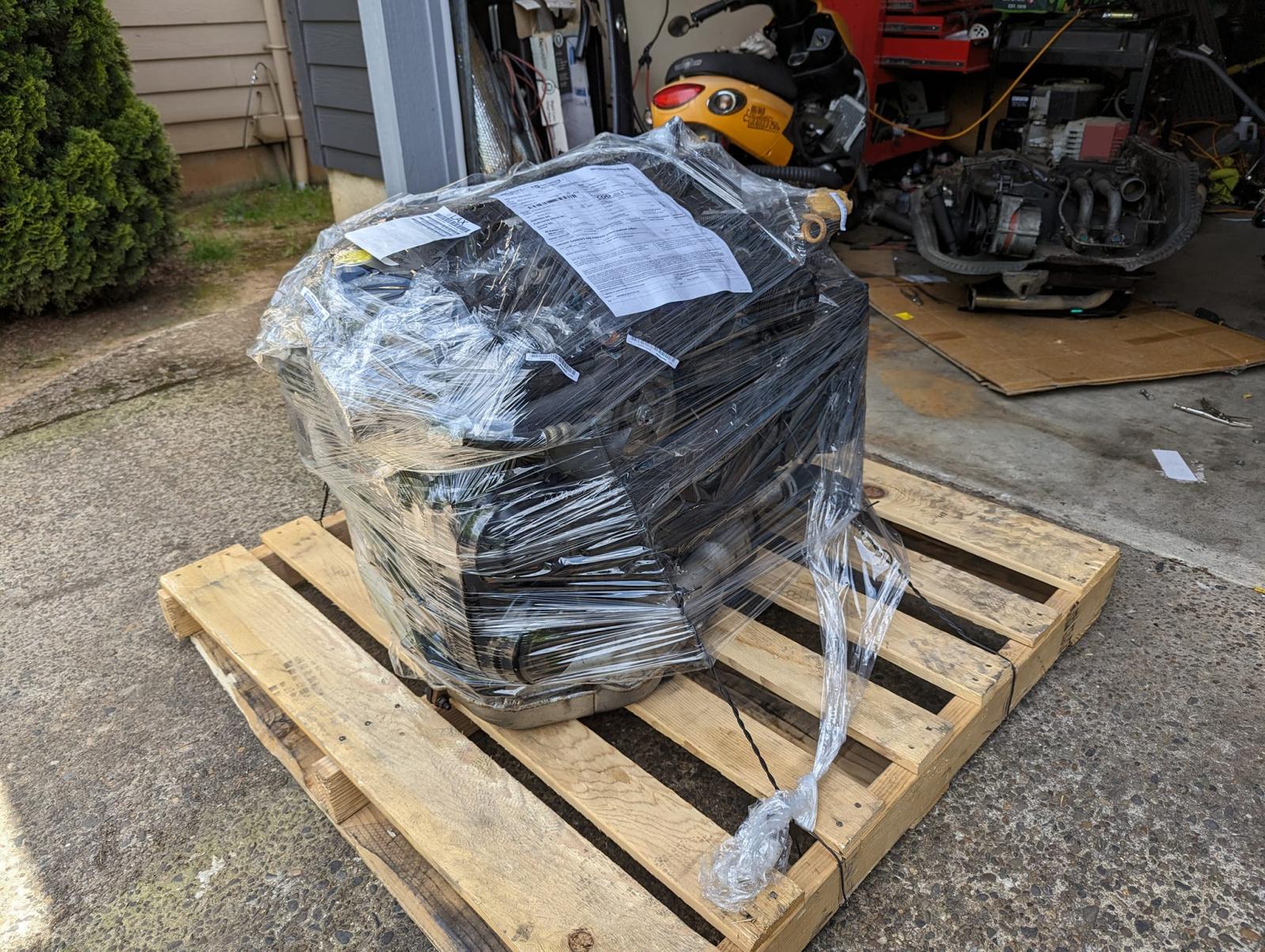

A surprisingly fast 4 days later, this showed up in my driveway...
The EJ20x has some notable differences from the American market models that were ideal for building a big power engine.
They were factory rated at 280HP, and come stock with a forged crank, rods, and piston crowns as well as big valve heads, TGV Deletes, equal length headers, all at a power producing 9.5:1 compression ratio... And the cherry on the sunday: A fancy twin scroll turbocharger capable of full boost by only 2200RPM.
I tore it down to refresh gaskets and ensure everything was good before installing ARP studs, plasma coil packs, bigger cams, and porting the heads.

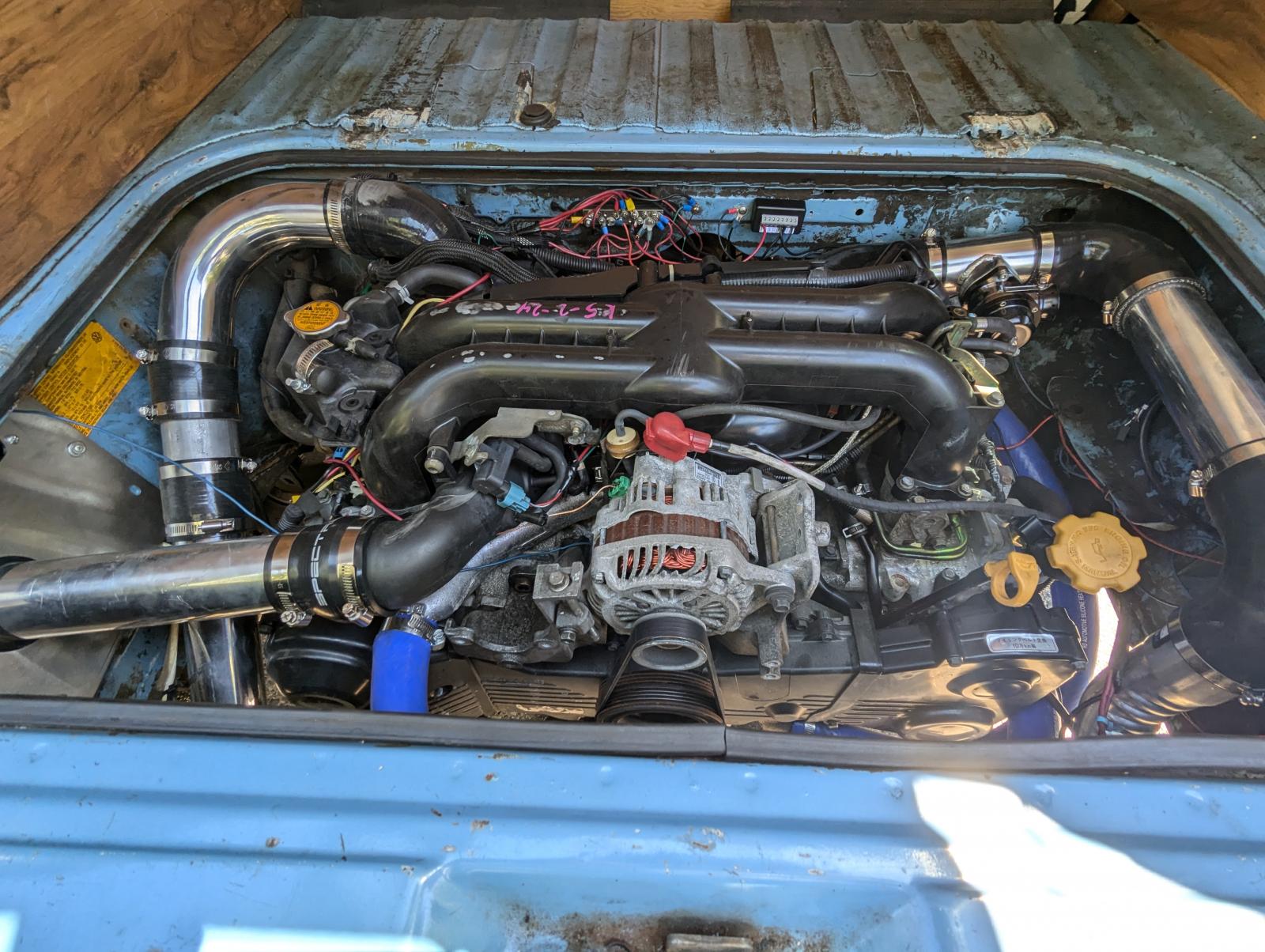

After pulling the trans and doing some upgrades to help it cope with it's new source of power in it went!
It installed like most any other Subaru engine using the RMW kit... I had to fabricate my downpipe and exhaust myself as there was nothing off the shelf that fit the JDM turbocharger. But I'm handy with a welder so no biggie!
Because my chassis was aircooled, I had to install all the watercooled piping and radiator, which wasn't terribly difficult, and has been documented elsewhere...
Finally, no turbo build worth its weight is without a front mount intercooler... Rear mount intercooler? Well, an intercooler anyway...

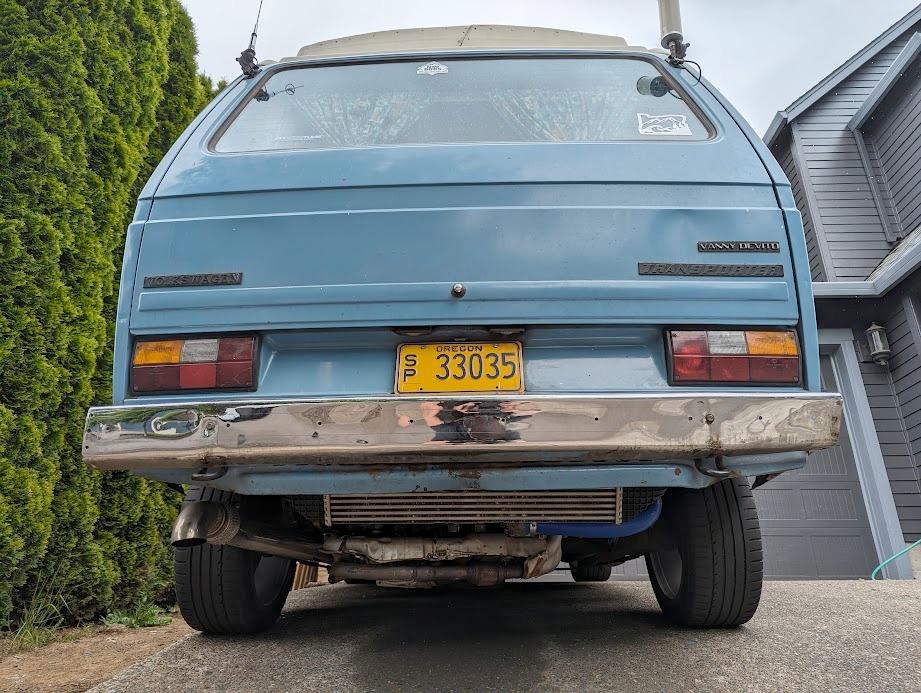

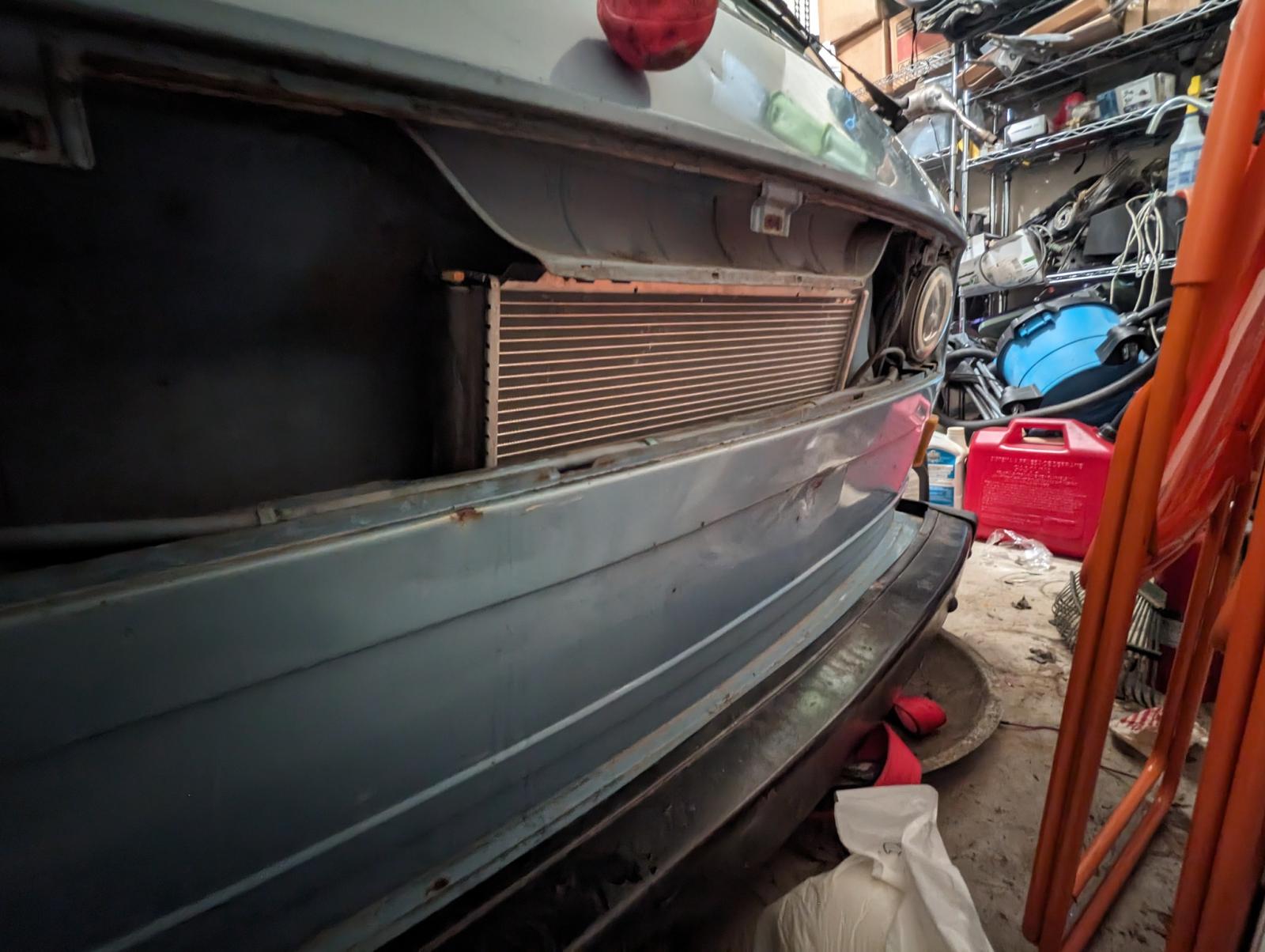

I mounted it under the rear bumper, which works. But honestly the airflow there could be better, it will heat soak on a really long pull while in boost. intake temperatures are still ok, but I'll likely switch to a air/water intercooler in the future.
And what tuner build doesn't need a cold air intake provided by SmallCar?
I opted to forgo the Subaru ECU and went straight to Megasquirt for tuning. I went slowly on my tune, first about 300HP, then slowly pushing it upwards to see how it reacted. I ran the stock 565cc injectors out of flow at about 340HP and ALMOST left it at that level, after all a 340HP Vanagon? Awesome... But then I remembered my motto. And overdid it. A set of 1000cc injectors later, and a bit more tuning and I had it at 380HP... And thats when the clutch let go!
More power than the stage 1 clutch could handle, it would just spin at RPM. So back apart it came for a clutch upgrade.... A new Kenedy Stage 3 clutch and 6 puck disc and off we went again. This time it held beautifully and it was time for another dyno pull!
I pulled a best of 407HP at 6984RPM with a peak of 354Ft/lb of torque!
Since I was told the trans should be ok till about 400HP I'm leaving it there for now... The engine very likely has more to give, but the trans doesn't. Maybe I'll go farther in the future, after all how cool does a 500HP Vanagon sound???
Finally, in celebration I added a hint of what's inside...
|
|
