 Posted: Tue Jul 08, 2025 1:38 pm Post subject: seat swivel |
 |
|
Can anyone help me out? What parts am I missing for the seat swivel? It appears that there should be a plate that mounts to the bus.
|
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52704
Location: Surrey B.C. Canada, but thinking of Ukraine
|
|
| Back to top |
|
|
Shonandb
Samba Member
Joined: January 12, 2019
Posts: 2016
Location: Vancouver, BC
|
| Posted: Tue Jul 08, 2025 6:40 pm Post subject: Re: seat swivel |
|
|

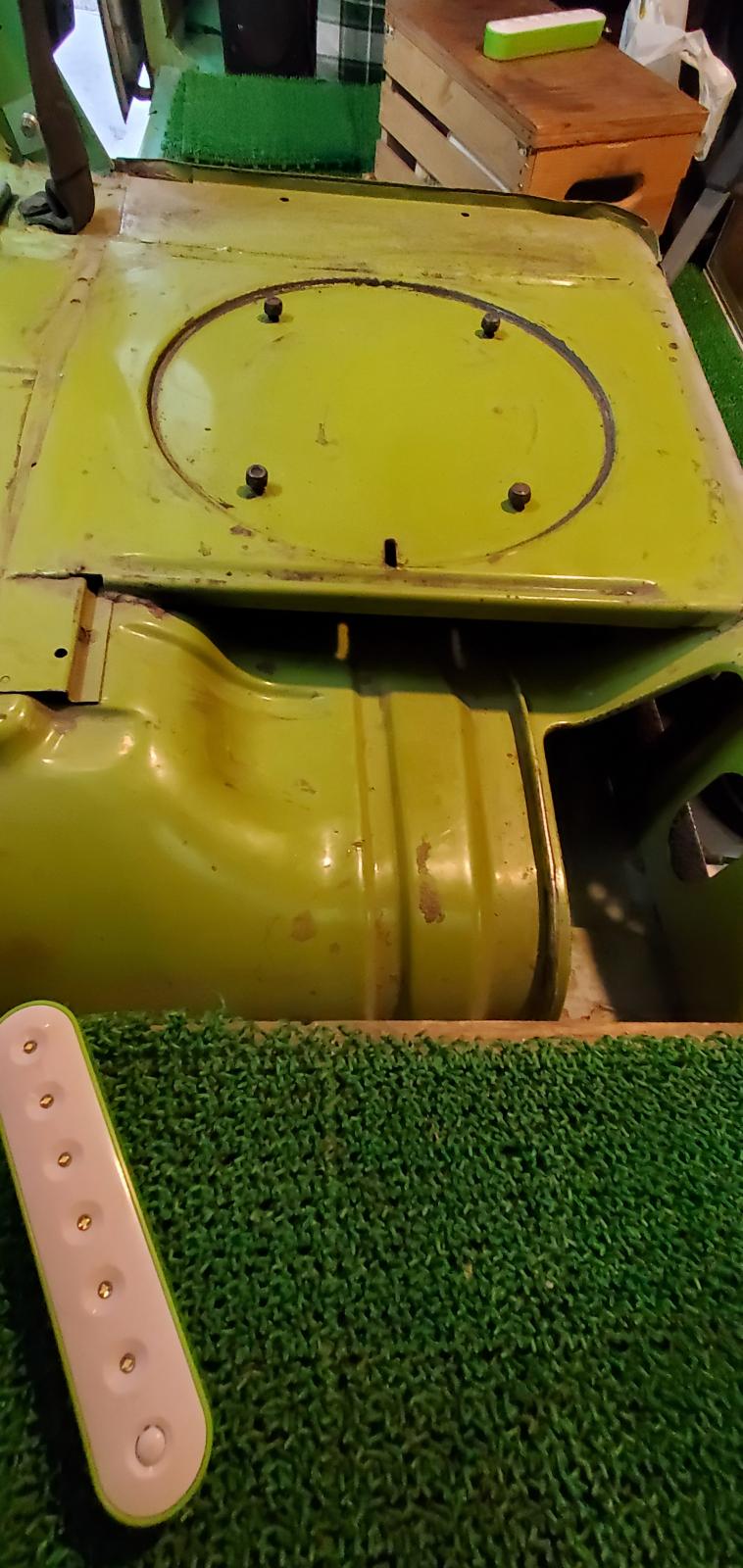

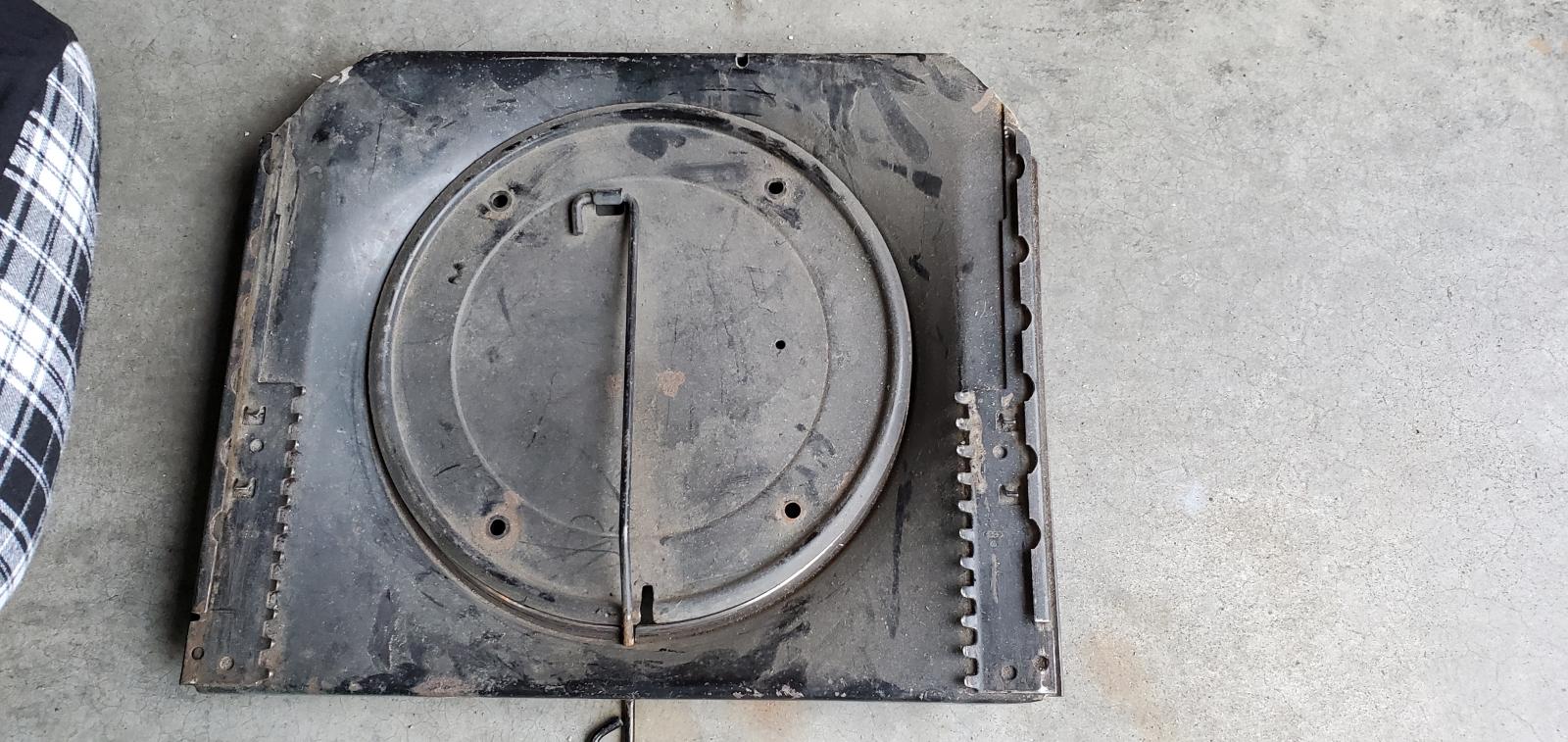

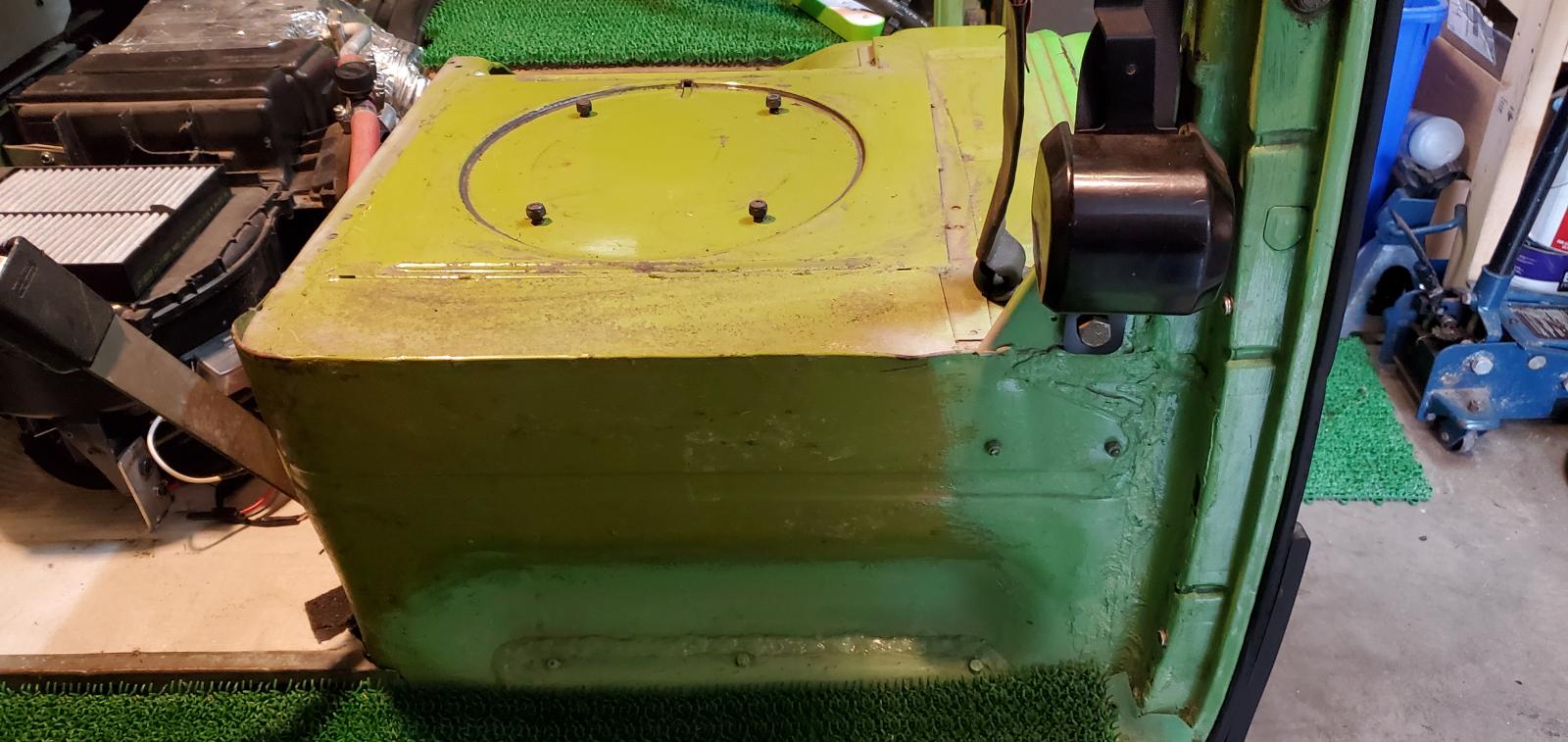

Just happened to have mine off on my 76 Westy manufactured in Feb of 76.
_________________
*******************************
76 Westy with a 2.5L Subaru SOHC + Vanagon (010) Automatic Transaxle
Build & Trip Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=758760
Previous 1973 Panel Bus:
Click to view image |
|
| Back to top |
|
|
wholenole
Samba Member
Joined: July 26, 2016
Posts: 3
Location: West Virginia
|
| Posted: Tue Jul 08, 2025 8:26 pm Post subject: Re: seat swivel |
|
|
| Makes sense now…when I removed the seat there was a rotten piece of plywood with bolts in it under the seat. Previous owner must have engineered the base plate out of plywood. Unlikely I can find a used one before I start painting. Any ideas on an aftermarket base or a good replacement kit? |
|
| Back to top |
|
|
Shonandb
Samba Member
Joined: January 12, 2019
Posts: 2016
Location: Vancouver, BC
|
| Posted: Wed Jul 09, 2025 8:54 am Post subject: Re: seat swivel |
|
|
| wholenole wrote: |
| Makes sense now…when I removed the seat there was a rotten piece of plywood with bolts in it under the seat. Previous owner must have engineered the base plate out of plywood. Unlikely I can find a used one before I start painting. Any ideas on an aftermarket base or a good replacement kit? |
Not sure on aftermarket options but there must be some. If you can weld, you could buy an appropriately thick piece of metal plate and weld it in and add the fastening bolts. Alternately, reach out to Busted Bus (google them) and see if they can remove and send you one from their donor Buses.
_________________
*******************************
76 Westy with a 2.5L Subaru SOHC + Vanagon (010) Automatic Transaxle
Build & Trip Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=758760
Previous 1973 Panel Bus:
Click to view image |
|
| Back to top |
|
|
blacka1vw
Samba Member
Joined: September 11, 2013
Posts: 91
Location: N. Central PA
|
| Posted: Wed Jul 09, 2025 9:18 am Post subject: Re: seat swivel |
|
|
| Shonandb wrote: |
| wholenole wrote: |
| Makes sense now…when I removed the seat there was a rotten piece of plywood with bolts in it under the seat. Previous owner must have engineered the base plate out of plywood. Unlikely I can find a used one before I start painting. Any ideas on an aftermarket base or a good replacement kit? |
Not sure on aftermarket options but there must be some. If you can weld, you could buy an appropriately thick piece of metal plate and weld it in and add the fastening bolts. Alternately, reach out to Busted Bus (google them) and see if they can remove and send you one from their donor Buses. |
Busted bus is where I got a piece for mine. If your buying that weld in piece separate I think there is a difference in diameter if the round plate and spacing on the studs.
_________________
64 SC truck.
71 Beetle -Skyy
71 Super -Sweet pea
73 Bus
79 Bus -Tic Tak
86 Cabriolet |
|
| Back to top |
|
|
wholenole
Samba Member
Joined: July 26, 2016
Posts: 3
Location: West Virginia
|
| Posted: Wed Jul 09, 2025 10:17 am Post subject: Re: seat swivel |
|
|
| Thank you all for the input! Greatly appreciated!!! |
|
