| Author |
Message |
pcon42
Samba Member
Joined: June 22, 2009
Posts: 11
Location: Emmaus Pa
|
 Posted: Fri Jul 11, 2025 7:24 am Post subject: 78 VW Bus no Blinkers or Lasers |
 |
|
Just got the bus back from the shop after engine work. Blinkers and Flashers don't work. Fuses are ok. Grounds and been cleaned. New flasher relay bought but din't fix it. How do I test to see if power is coming to the relay.... or another suggestions will help.Thanks  |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52717
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Jul 11, 2025 9:30 am Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
Reach up under the dash and squeeze the plastic part of the hazard switch where all the wires come out back into the switch body, and put a zip tie around it to keep it together, report back if it helped (or didn't).
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Shonandb
Samba Member
Joined: January 12, 2019
Posts: 2024
Location: Vancouver, BC
|
| Posted: Fri Jul 11, 2025 10:09 am Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
My Bus didn't come with the laser option... I wonder what code that was from the factory...?
_________________
*******************************
76 Westy with a 2.5L Subaru SOHC + Vanagon (010) Automatic Transaxle
Build & Trip Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=758760
Previous 1973 Panel Bus:
Click to view image |
|
| Back to top |
|
|
pcon42
Samba Member
Joined: June 22, 2009
Posts: 11
Location: Emmaus Pa
|
| Posted: Fri Jul 11, 2025 1:55 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
opps I guess I never check before I send. Lasers are cool... I meant flashers!

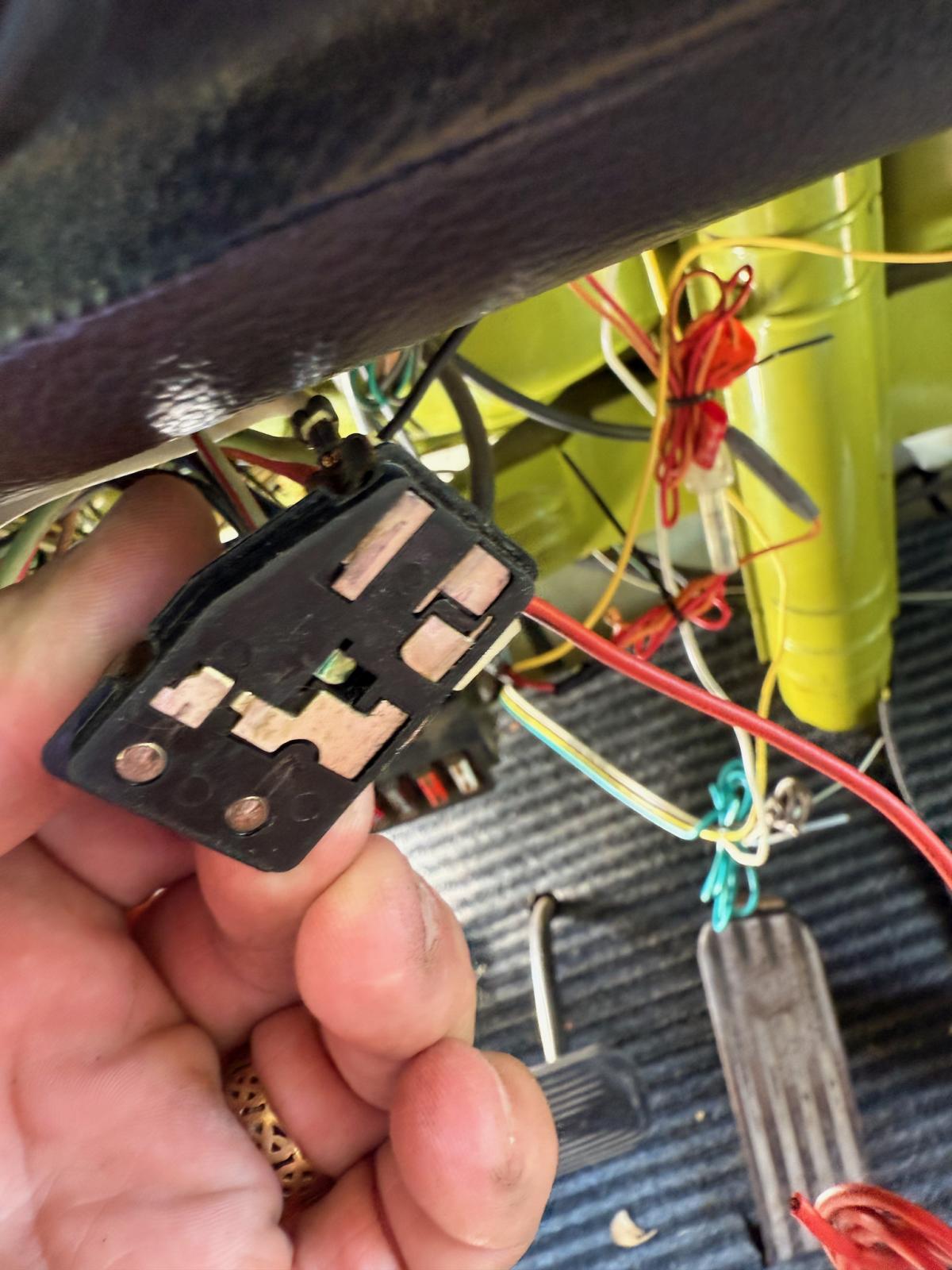

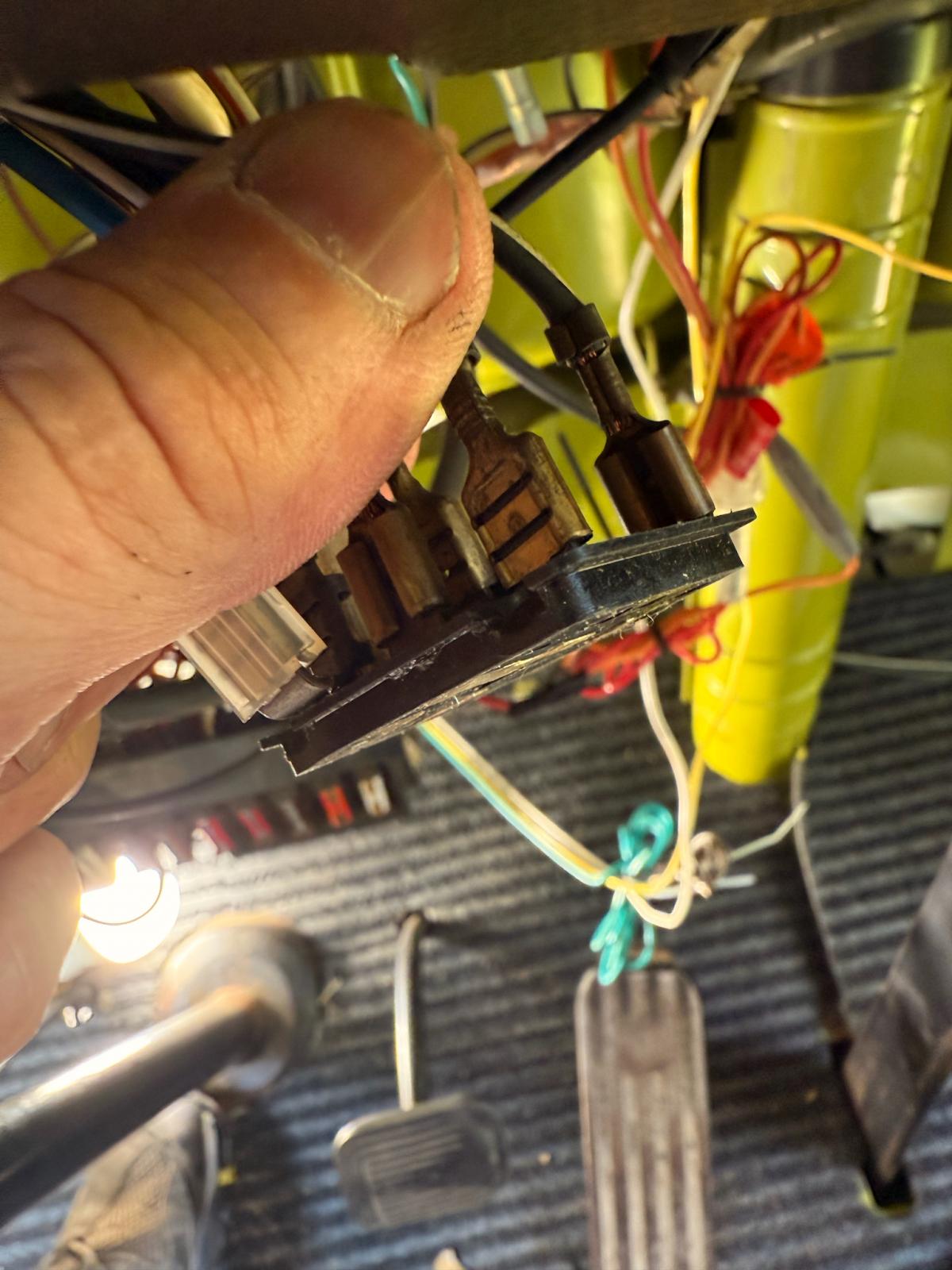

So I checked under the dash and looked where I could zip tip it and that didn't help. (Pic Attached). I found this, don't know th real name for it... But the white lead to the flasher relay on the fuse bus showed no power with the meter. SO I YouTubed some stuff and took a shot in the dark and found power on this little contraption and when I rerouted it to the white lead lo and behold the flashers stared working! Hope I didn't;t screw anything else up! Thanks for the advice or even more advice if I should not have done that! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52717
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Jul 11, 2025 2:49 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
Contraption not visible, and there's nothing in your gallery, try again please.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
pcon42
Samba Member
Joined: June 22, 2009
Posts: 11
Location: Emmaus Pa
|
| Posted: Fri Jul 11, 2025 2:56 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
Apologies I'm still getting used to picture uploads here.
[/code] |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52717
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Jul 11, 2025 6:10 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
You did it!, good job!
That contraption is the plastic part of the hazard switch, you got there too late unless both the contacts and thier springs are still stuck in the grease in the switch body.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
pcon42
Samba Member
Joined: June 22, 2009
Posts: 11
Location: Emmaus Pa
|
| Posted: Fri Jul 11, 2025 6:34 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
| Hey thanks! Going for a drive tomorrow |
|
| Back to top |
|
|
jjvincent
Samba Member
Joined: January 11, 2016
Posts: 1421
Location: Bethlehem, PA
|
| Posted: Fri Jul 11, 2025 7:09 pm Post subject: Re: 78 VW Bus no Blinkers or Lasers |
|
|
| Shonandb wrote: |
My Bus didn't come with the laser option... I wonder what code that was from the factory...?
|
Lasers were removed for the US market and they got sold to Dr. Evil. He then mounted them on ill tempered sea bass. Here's a documentary on the discussion.
https://www.youtube.com/watch?v=INFavIUmhcE |
|
