Factory M Code Ink Stamp Reproduction Ideas

[tasb]

After 68 years the factory floor ink stamps are finally fading from view on the fan shroud of my 1957 Kombi. Any ideas on how I might reproduce this image? It was found on five places on the fan shroud originally and was probably not meant to last past the assembly floor, but here we are.

I’m guessing the stamp was probably also found somewhere like the gas tank so that workers knew to pair body with engine.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059

[finster]

if there's enough there to give an outline I would retouch it using a small paint brush and modeller's acrylic paint in an 'off white' shade. other option is to make a stamp made by cutting the letter/number out of craft foam sheet or thick card stuck onto a scrap of plywood. again I'd use model paint for this. thankfully the finish of the original isn't perfect, unlike signwriting, so it's easier to achieve a reasonably authentic effect.

_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[70bus]

A listee made some templates a while back, but the ad is gone; they had done some research and the most common stamps tell factory workers what variations the motor had- voltage, smog stuff, exchange motor, etc.Most were on the back of fan shroud but some were on front.

His decals were sort of reverse die cuts - you applied the decal, painted over it, and when decal was peeled off the stamp was recreated. I found out the hard way it's hard to do with motor installed!

I'll dig up his emails about research and how to apply his decals. Maybe he'll be tempted to make more, or you can figure out how he did it...

EDIT - found his old ad with a better pic than mine.
https://www.thesamba.com/vw/classifieds/detail.php?id=2614021
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams

Raul the 65 singlecab

Karl the 70 nine-seater

[busdaddy]

I've done it before with thin craft foam sheet from the $ store, cut out the letters and glue them to a wood block just like a rubber stamp.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[Stocknazi]

With all this 3d printing technology, I'm surprised someone hasn't made some rubber stamps.
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).

"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."

Thomas Jefferson

[matthew henricks]

This is interesting to me. Do we know when VW added these codes and for what reasons? I have seen them from time to time but never stopped to wonder the when & where these were applied.

When more specifically the production era.
_________________
1964 Original Owner build Thread. https://www.thesamba.com/vw/forum/viewtopic.php?t=702135&highlight=

Ambulance Fan's. https://www.thesamba.com/vw/forum/viewtopic.php?t=627707&highlight=

Parts i am looking for:
64 bug nice used front/rear Black LHD floor mat.

[70bus]

If you look at pics from the production lines they are sometimes visible. M610 (pre-67 Beetle 12v option) seems most common, but others as well. I have a 70s FI fan shroud with Mcode for smog options stamp on the back. Buried, but I'll try to get a pic this weekend. I'm assuming an X means 'exchange' and gets that info stamped on the case, but it could easily be something else.

From what dphdo found, they alerted line workers to what parts were needed for that specific engine.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams

Raul the 65 singlecab

Karl the 70 nine-seater

[tasb]

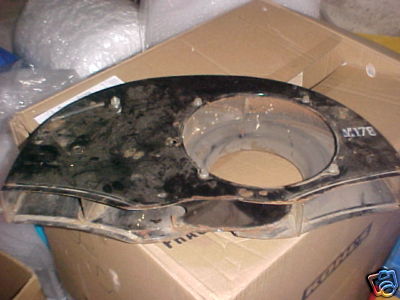

I’ve ordered an M178 ink stamp. The price was very reasonable after I spent a good 45 minutes creating the design. The M178 fan shroud was from a 1958 Bus shipped to Canada. It had M178 stamped on the front and back of the fan shroud and on both sides. I’m also guessing as above that the fuel tank got one too. These were within the first months the governor was introduced so perhaps later engines didn’t get all four?

Does anyone have a better image of an M620 stamped shroud?
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059

[70bus]

I don't think I saw an M620; I did see M610 but of course Ididn't save the photo. I guess I get to dig through thousands of pics marked 'factory' this weekend!

Stamps threads

https://www.thesamba.com/vw/forum/viewtopic.php?t=750206&highlight=stamps

https://www.thesamba.com/vw/forum/viewtopic.php?t=688216&highlight=stamps

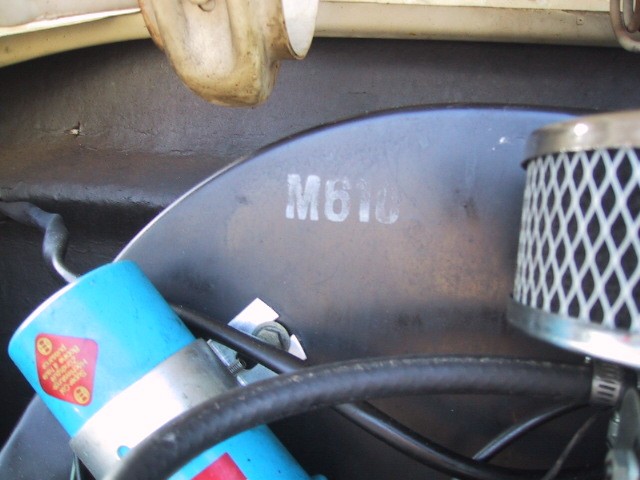

Found an M610!
