 Posted: Thu Dec 11, 2025 9:55 am Post subject: Tunnel access hole for front clutch tube , cuts and visibility |
 |
|

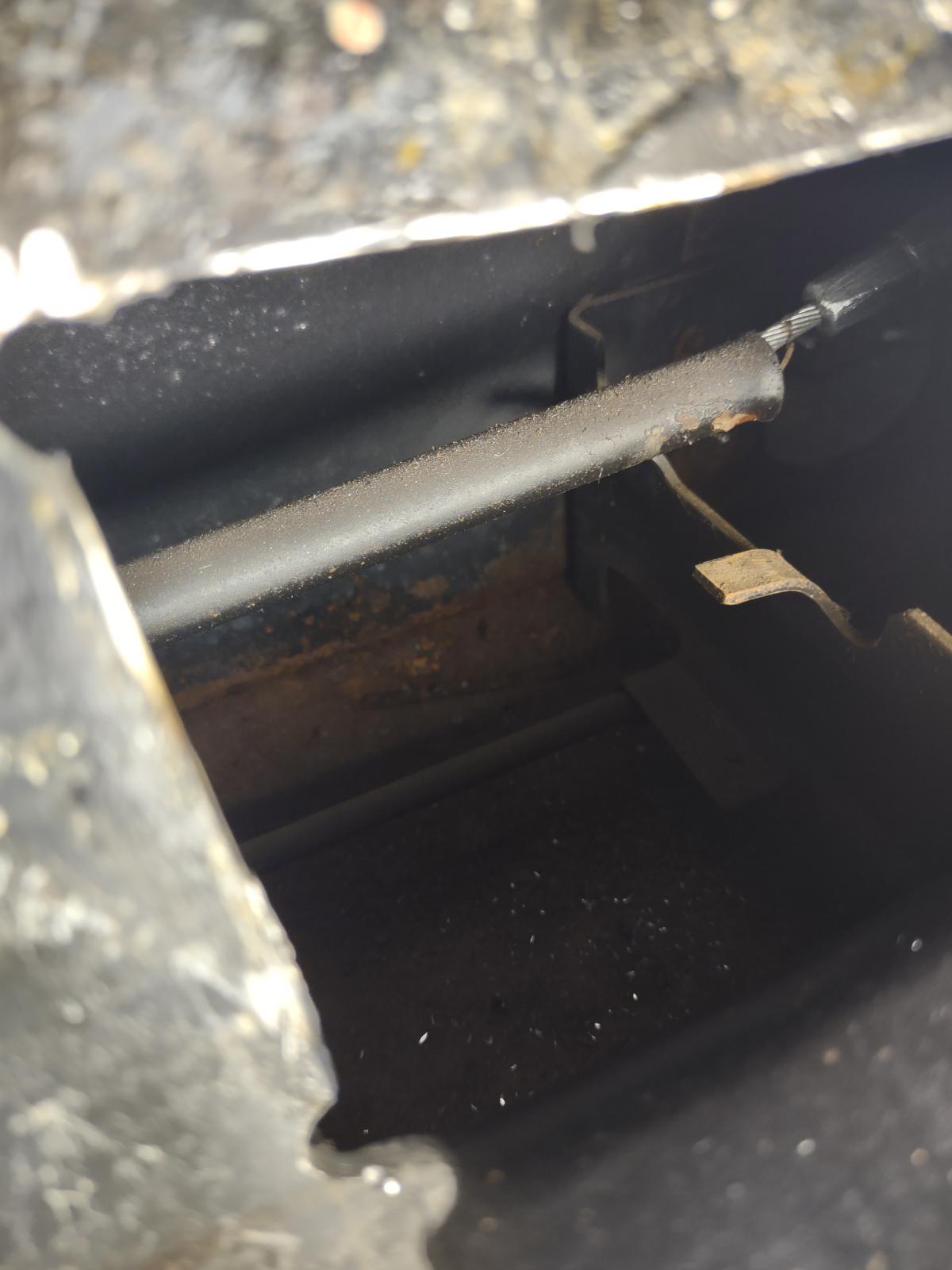

Had to cut to re weld front clutch tube mount. Here is pics of where I cut and what you can see/reach. There is a lot of conflicting info, but I was lucky to pick the best spot so I can get the weld tip inside. Its a pain but can't be avoided now
You might cut differently or wider to the front of you want cable tip and hook access.
[/u]
_________________
"A life of peace and happiness depends on your own gratefulness" |
|
| Back to top |
|
 |
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33471
Location: Hot Arizona
|
| Posted: Thu Dec 11, 2025 10:12 am Post subject: Re: Tunnel access hole for front clutch tube , cuts and visibility |
|
|
Could one use a strong hose clamp or small U-bolt to hold the clutch tube to the mount at the front?
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
doug bugg
Samba Member
Joined: March 08, 2003
Posts: 394
Location: Minneapolis
|
| Posted: Thu Dec 11, 2025 10:12 am Post subject: Re: Tunnel access hole for front clutch tube , cuts and visibility |
|
|
_________________
"Knowledge is Good" - Faber College |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33471
Location: Hot Arizona
|
|
| Back to top |
|
|
doug bugg
Samba Member
Joined: March 08, 2003
Posts: 394
Location: Minneapolis
|
| Posted: Fri Dec 12, 2025 5:46 am Post subject: Re: Tunnel access hole for front clutch tube , cuts and visibility |
|
|
| Cusser wrote: |
| doug bugg wrote: |
| |
"Asking for a friend" |
My emoticon was meant for the initial post NOT your's. Your post wasn't up yet when I typed mine in, we posted at the same time and you beat me to the punch.
I do agree with your response but still go with for the initial post.
_________________
"Knowledge is Good" - Faber College |
|
| Back to top |
|
|
BMFBMF
Samba Member
Joined: November 13, 2020
Posts: 542
Location: Swtzerland
|
| Posted: Fri Dec 12, 2025 7:21 am Post subject: Re: Tunnel access hole for front clutch tube , cuts and visibility |
|
|
Thanks for the original post, great information to have. Hope I never need it
_________________
-----Slava Ukraini-----
1971 Stock South African Beetle 1300 : My mom's european "Thin Chick" spec. Completely stock with torsion bar front, swingaxle rear, smooth hubs, single MC, 40 mm shoes, 31PICT3 carb and 5 bolt drums all round, currently Running a 1976 SF:AS engine with the original SF:AD engine overhauled in a box, waiting to go back in one day. |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16771
Location: North Florida, USA
|
| Posted: Fri Dec 12, 2025 2:38 pm Post subject: Re: Tunnel access hole for front clutch tube , cuts and visibility |
|
|
| Cusser wrote: |
| Could one use a strong hose clamp or small U-bolt to hold the clutch tube to the mount at the front? |
The above pic shows the clutch tube end floating freely and doesn't actually show you how the tube should sit. Found this pic showing the inside of the tunnel... you can see the end of the tube should be mounted to the top of that bracket as close to the left side of the tunnel as possible. It looks like it is welded to the left side of the tab on the left side.
It might work if you clamped the tubing over the top of the tab, but I would think over time the tab would flex and break free off the bracket? It doesn't look like those tabs were meant to support the tube. Maybe a criss-cross of cable ties wrapped around the entire bracket and the end of the tube could hold the tube in place ontop of the bracket?
I've not looked inside the tunnel but these pics make it seem like the end of the clutch tube rests at the top lip/edge of the bracket with little overhanging the front. If that is the case then anything other than a weld might allow the tube to slip behind the bracket??
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
