Everett's 1963 Squareback Log
Main page
| Log - Current | Log - 2001
| May 22, 2016 |
� Replaced carburetor accelerator pump � Replaced some fuel lines and fuel filter � Changed oil |
| March 1, 2013 |

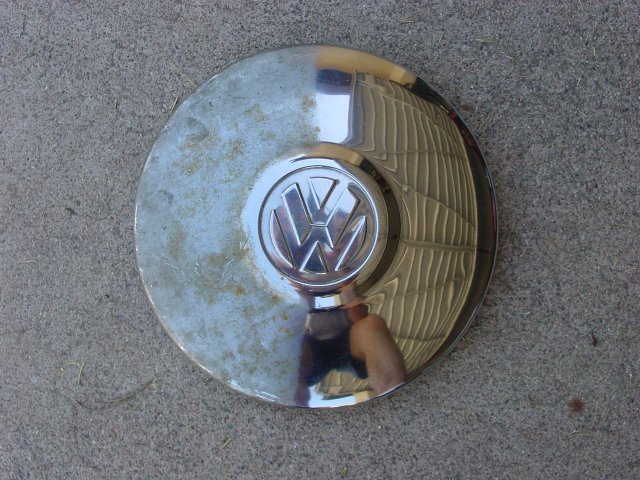

� Located nice original hubcap |

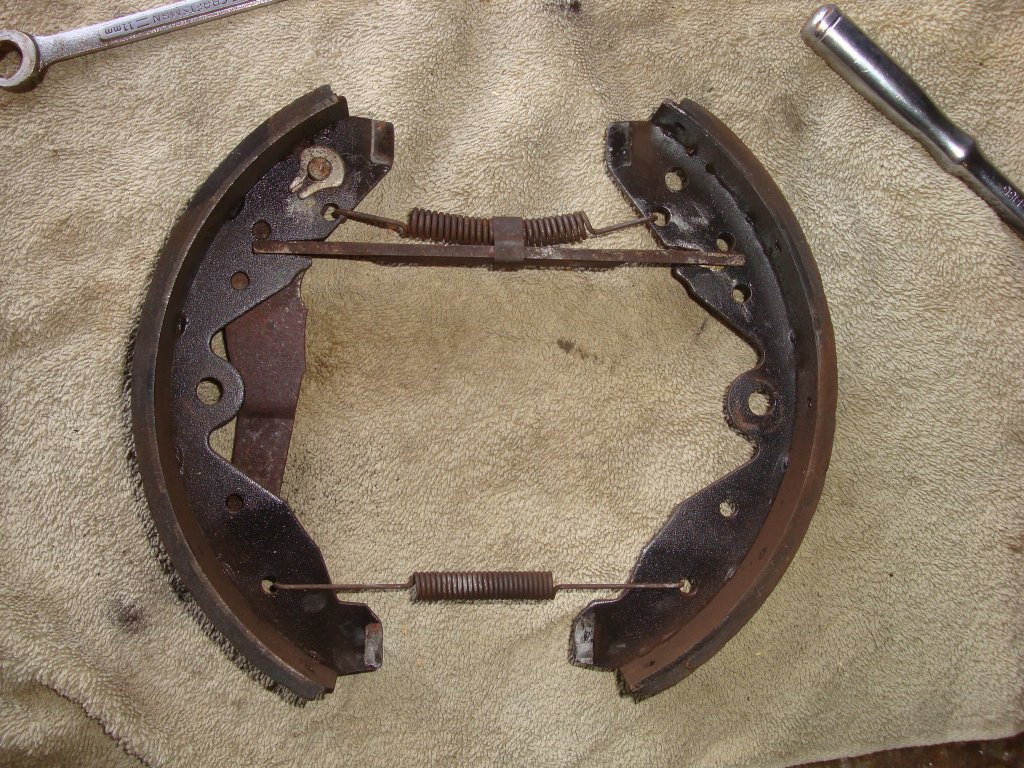

| November 8, 2012 | � Finished repairing right rear brake, installed new upper spring. |
| November 3-5, 2012 |
� Right rear wheel cylinder sticking, cleaned up wheel cylinder, trouble
shot some other rear brake issues, ordered new brake springs.
 |
| November 2, 2012 |
� Driver's front brake sticking, disassembled and cleaned up wheel
cylinders, cleaned and anti-seized adjusting stars. |
| May 10, 2012 |
� Installed original set of black-logo'd hubcaps |
| March 18, 2012 | � Lubed distributor, checked distributor advance |
| March 11, 2012 |
� Checked and adjusted valves, #1 intake and #2 exhaust were a little
tight � Check and set timing  � Installed new accelerator cable seal  |
| March 10, 2012 |
� Installed new shift rod bushing (original German) and reassembled
everything � Installed new spark plug wires |
| February 18, 2012 | � Located and installed correct exhaust clamp screw |
| February 10, 2012 |

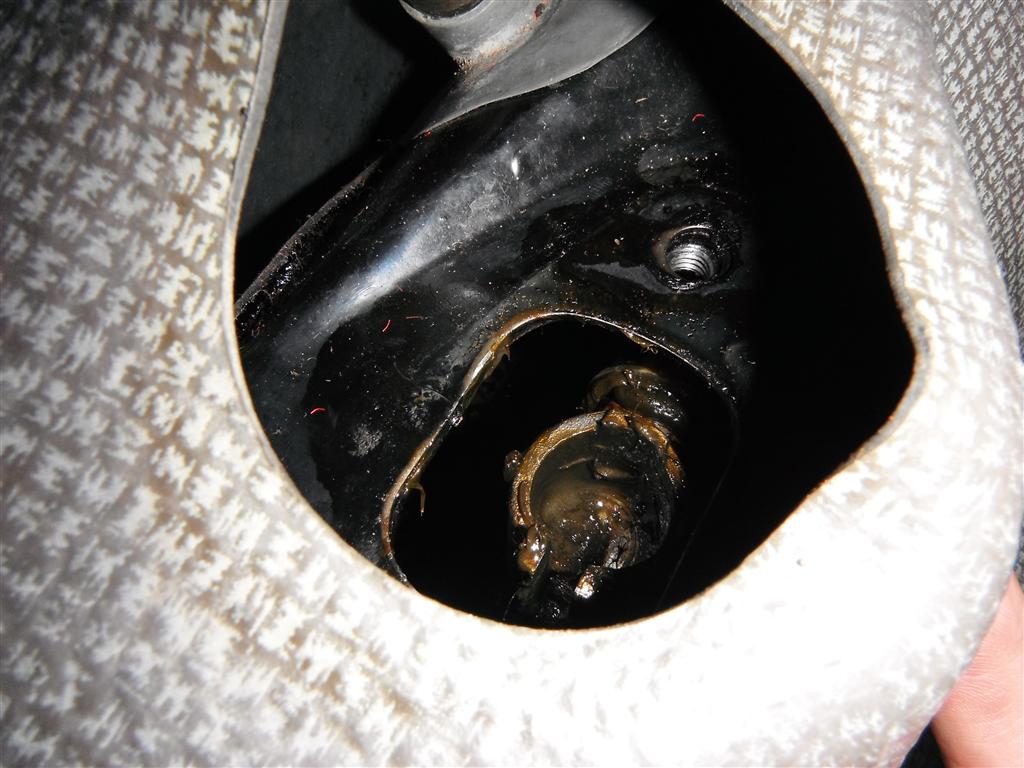

� Removed shift rod for new bushing.

 � Crappy aftermarket shift bushing tore, have to order another.  � Cleaned/polished horn grille and shift rod cover
 |
| February 9, 2012 |

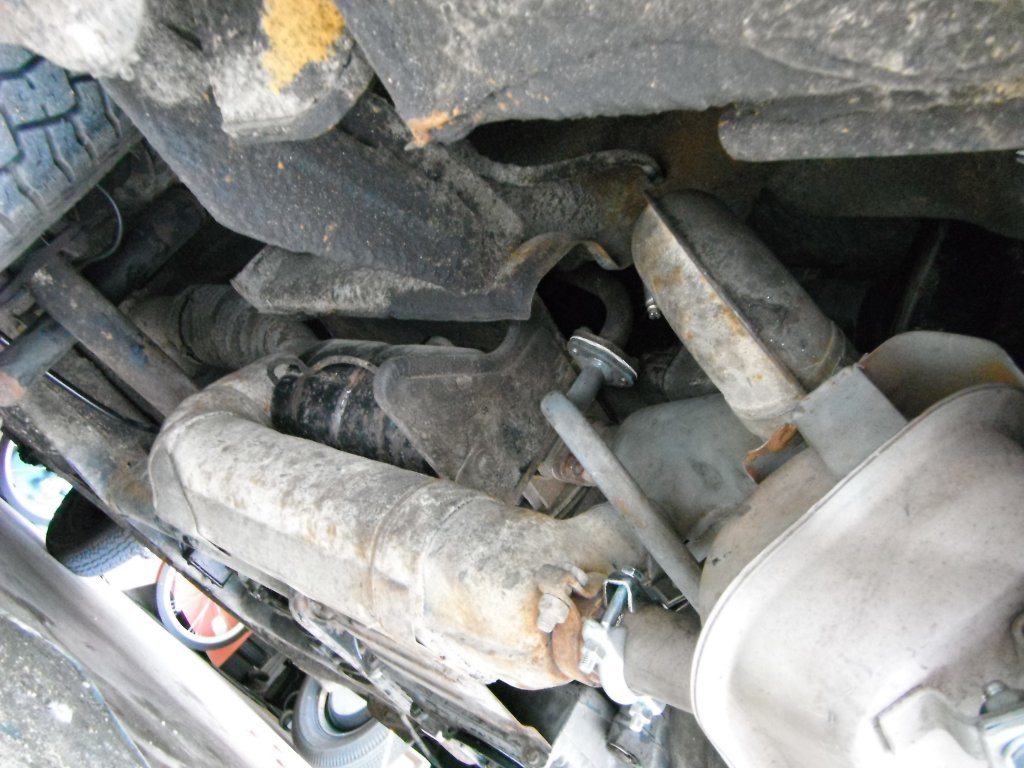

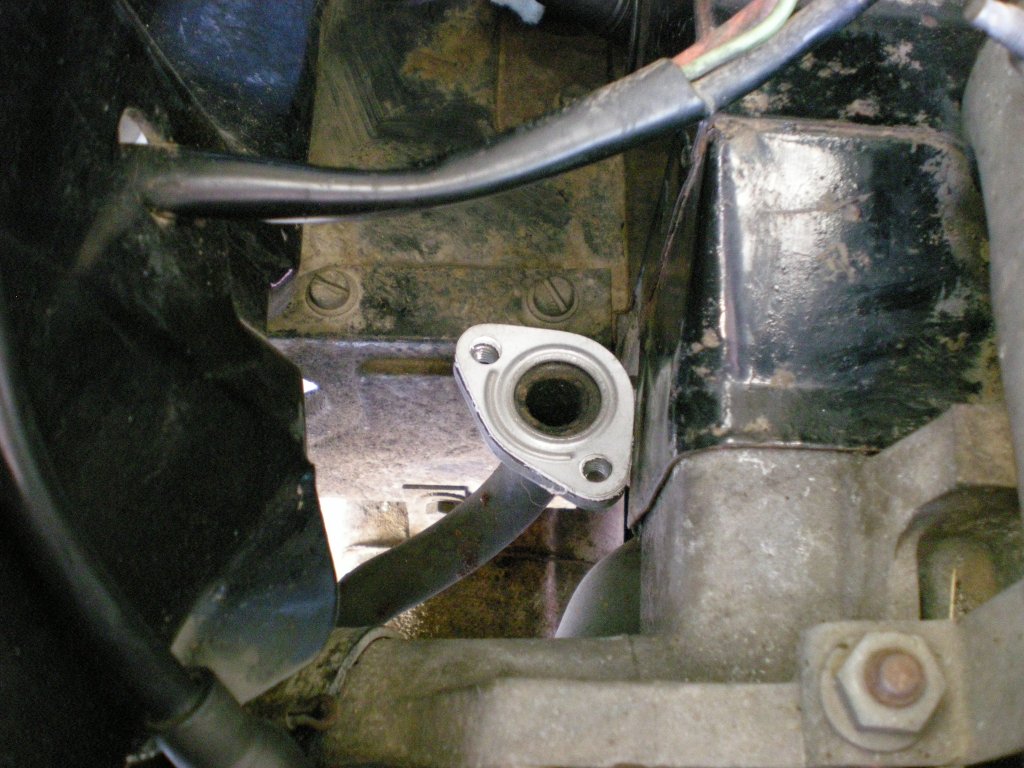

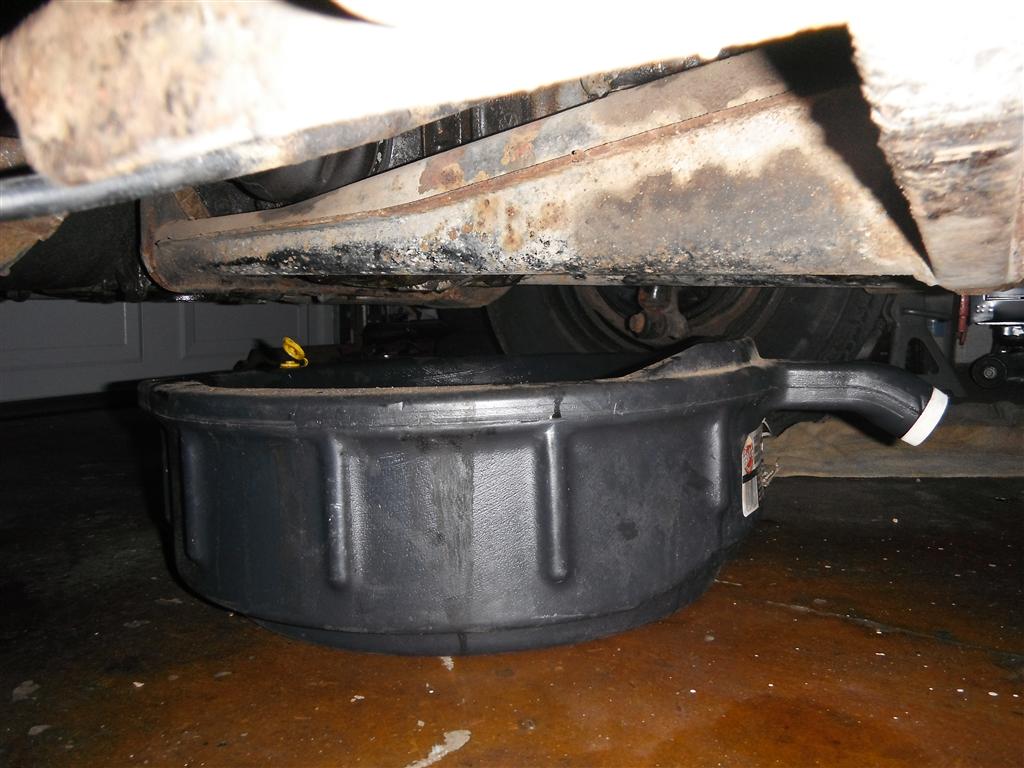

� Installed pre-heat pipe and hose � Installed new spark plugs  � Changed transmission fluid  � Changed fuel line from gas tank to body |
| February 8, 2012 |
� Got pre-heat pipe bracket welded back on, touched up paint
 |
| February 7, 2012 |
� Cleaned rear trunk area � Greased front end |
| February 5, 2012 |
� Checked and topped up transmission fluid � Replaced rear taillight housing seals
 � Replaced one taillight connector, it was cracked � Replaced fuel sender with NOS � Misc. cleaning � Cleaned idle jet, reset carburetor idle and mixture � Cruised around
 |
| February 4, 2012 |
� Cleaned and re-lubed NOS rear wheel cylinders   � Reassembled rear brakes, bled brakes, adjusted brakes and e-brake � Drove car on short drive � Checked fuel sender operation |
| February 3, 2012 |
� Bent and installed new metal rear brake lines � Misc. clean up and anti-seizing of brake parts |
| February 2, 2012 |
� Cleaned up passenger rear brake backing plate � Installed and reassembled new axle seal for passenger rear |
| January 31, 2012 | � After some trouble getting the old axle seal out, I popped it out with a plastic pipe piece from Home Depot |
| January 30, 2012 |
� Passenger axle seal was leaking, disassembled to replace seals |
| January 28, 2012 |
� Got re-lined rear brakes back |
| January 25, 2012 | � Got new rear brake lines |
| January 25, 2012 | � Located pair of NOS rear wheel cylinders |
| January 9, 2012 |

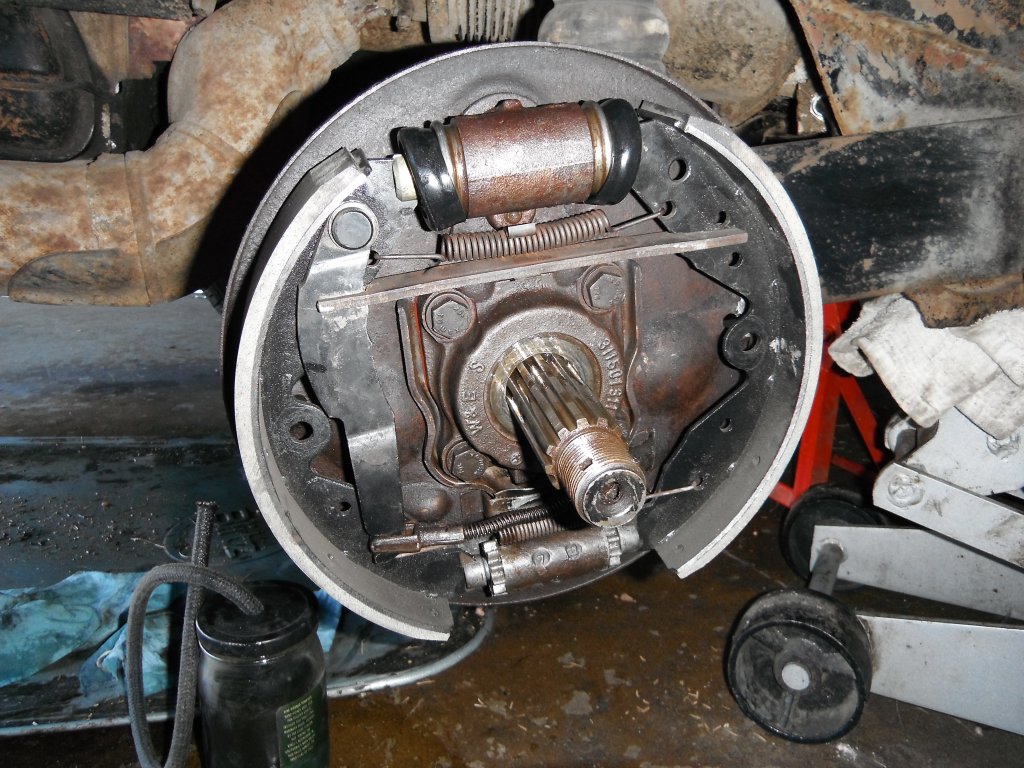

� Disassembled passenger side rear brakes to investigate.
 � Fixed bent driver's side brake parts � Cleaned up rear wheel cylinders then noticed they are the wrong size |
| January 8, 2012 |
� Rebuilt fuel pump, replaced some fuel lines � Got car started again, adjusted carburetor � Disassembled driver side rear brakes to investigate locked up wheel, twisted some parts when I had to use my drum puller |
| January 7, 2012 |
� Assembled & installed rebuilt carburetor � Reinstalled air cleaner, intake pipe, etc. for carburetor.  |
| November 10, 2011 |
� Installed intake manifold � Installed NOS exhaust and various pieces
 |
| October 2, 2010 |
� Test fit nice original intake manifold I located some time ago � Removed rotted original exhaust � Test fit all NOS exhaust pieces I located recently  |
| October 1, 2010 |
� Installed NOS wiper blades
 |
| May 2, 2008 |
� Test fit NOS manifold, NOS pre-heat valve. Realized my NOS
manifold I found is the wrong one.
 � Cleaned up carburetor a little more until I ran out of cleaner
 � While test fitting new intake manifold, the original muffler pre-heat valve broke off  � Worked on loosening up muffler connections, hosed everything down with rust breaker to sit for a while |
| April 29, 2008 | � Misc. engine compartment clean-up. |
| April 27, 2008 |
� Removed intake manifold and carburetor to prepare for installation of
NOS manifold, pre-heat valve, and carburetor clean-up. � Installed new intake manifold gaskets - copper. |
| March 15, 2008 |
� Located NOS passenger visor |
| December 2, 2007 | � Located a correct rear hatch lower latch with decent original rubber. Installed it |
| November 2, 2007 |
� Repaired decklid strap hook
 � Installed rear hatch lower latch with rubber. 67 and later style but looks better until I find a correct one...  |
| May 12, 2007 |
� Located this NOS original paint stick |
| April 23, 2007 |
� Kelley Park 2007 - Located a vintage tire pressure gauge |
| April 14, 2007 | � Installed new Optima 6v battery |
| March 29, 2007 |
• Spent some time trouble-shooting the high/low beams. Figured
out the column dipswitch wires are cut(!). � Cleaned up gas cap � Installed NOS timing light hole plug |
| February 17, 2007 | • Spent some time cleaning up the engine compartment. |
| February 15, 2007 | • Acquired a complete NOS Perfection gas heater, in the boxes. |
| August 20, 2006 | • Installed original rear hatch latch screws, changed oil |
| April 19, 2006 |
• Scored a cool VW of Canada trash bag for the interior |
| March 12, 2006 | • Replaced rear rubber brake hoses, changed/bled brake fluid |
| October 9, 2005 | • Located 4th VW of Canada bias ply tire, thanks to Dave and Scott |
| April, 2004 | • Car running crappy, had to clean out the electromagnetic shutoff valve |
| October 24, 2004 | • Located another Continental bias ply tire |
| September 14, 2004 | • Located 3 original VW of Canada bias ply tires |
| August, 2004 | • Located a set of NOS slotted rims |
| May 1, 2004 |
• Installed original SWF wiper blades
 |
| November 30, 2003 |
• Installed new gas heater intake hose |
| November 29, 2003 | • Replacement used gas heater shut-off valve not working properly, disconnected gas heater until I can find a working one. |
| November 27, 2003 |
• Determined gas heater problem, got it fired up!
 |
| November 25, 2003 | • Continued gas heater removal for repairs |
| November 24, 2003 |
• Started gas heater removal for repairs
 |
| October 24, 2003 | • Located 2 more Continental tires, thanks to Jim. |
| August 24, 2003 | • Located 2 Continental 6PR tires, thanks to Greg. |
| August 8, 2003 |
• Located NOS single carburetor manifold, thanks to Jeremy!
|
| June 10-24, 2003 | • Bad Camberg trip - Located NOS door sill trim plates and some misc. NOS spare parts |
| March 5, 2003 | • Picked up another Perfection gas heater for parts, thanks to Jason for the tip |
| February 11, 2003 |
• Played around with my gas heater some more, got it to fire up once
for a couple minutes but the electric fuel shutoff needs replacement • Tore down my parts heater a bit.  |
| February 9, 2003 | • A visitor to my site purchased an NOS Type 3 Perfection heater and says he will send me copies of the manuals. Thanks! |
| February 1, 2003 |
• Located an NOS headlight relay |
| January 25, 2003 | • Picked up a Beetle installation and operator's manual for the Perfection gas heater |
| January 24, 2003 | • Located a nicer washer bottle |
| January 22, 2003 |
• A visitor to my site sent me an Ontario CAA plaque for my
"Canadian" collection. Thanks Michael! |
| December 8, 2002 | • Scrubbed and cleaned the transmission for a while... |
| November 17-18, 2002 |

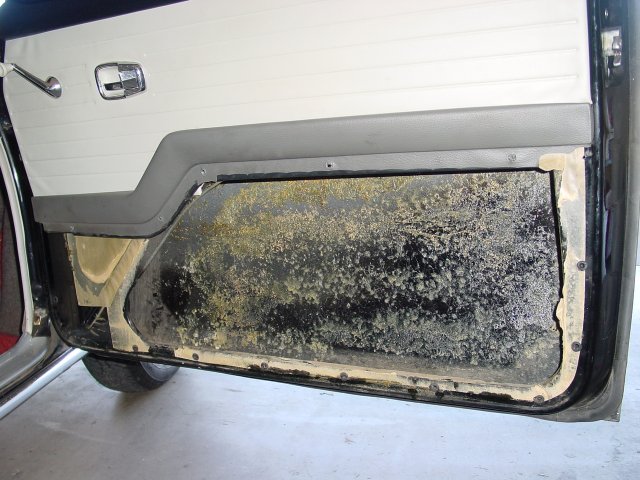

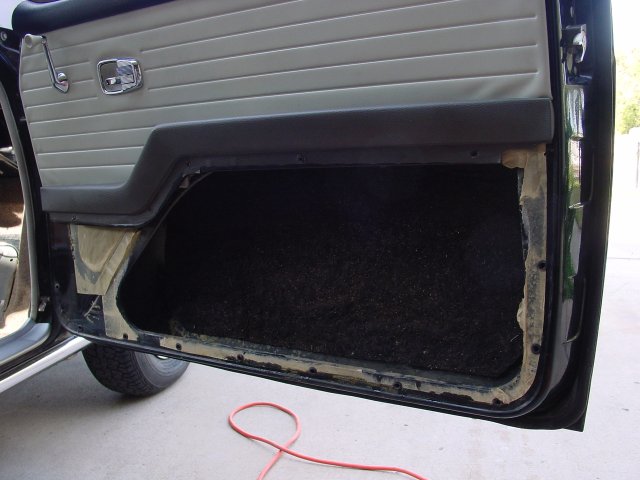

• Reassembled passenger door panels • Set brake pedal stop plate  • Completed shift bushing installation • Cleaned up original floor mats and super glued some some small tears.
 • Cleaned, super glued some small tears, and reinstalled E-brake boot  • Reinstalled rubber mats and reassembled interior • Misc. spare tire wheel well cleanup  • Reinstalled driver's side pop-out with new hinge seals and mint used pop-out latch seals |
| November 11, 2002 | |
| November 1, 2002 | • A visitor to my site sent me some 1963 Canadian license plates. Thanks Erik!! |
| October 21, 2002 |
• Borrowed a long bolt from another 5-lug front end and reassembled
everything, the problem is fixed. Long bolt installed: |
| October 17, 2002 |
• Picked up a set of new inner wheel bearings • Located an NOS wheel bearing seal to replace my damaged one:  |
| October 16, 2002 |
• Reassembled upper ball joint, it seemed to be ok • Disassembled driver's front brake again, it looks like the inner bearing is the problem, it's inner diameter is too large:
 • For some reason the leading wheel cylinder mounting bolt has been replaced with a short version, identical to trailing wheel cylinder mounting bolt. I need a long bolt:  |
| October 15, 2002 |
• Removed driver's upper ball joint, the boot was loose so I
suspected it might be damaged: |
| October 14, 2002 | • I took the car to be professionally aligned but the local mechanic looked at everything and informed me that my upper ball joints were shot and the car could not aligned. |
| October 10, 2002 | • Played with front end alignment - I noticed the lower ball joint adjustment screws were not pointing forward like they should so I straightened them then tried to do a guesstimate home alignment to see if I could get the car rolling normally until I can get it professionally aligned. Not much luck. |
| October 8, 2002 | • Replaced driver's side front wheel cylinders with NOS units, driver's front drum still heating up for whatever reason... |
| September 30, 2002 |
• Still having trouble with driver's side front brakes heating up, disassembled to check whole system. • Adjusted emergency brake, checked rear brake shoes. |
| September 29, 2002 |
• Adjusted front brakes, the driver's side is heating up for some reason. • Fixed dash trim, it was coming off. |
| September 22 and 28, 2002 |
• Repaired my front brakes with new wheel cylinder parts, new rubber
hoses new front shoes, and new lock plates. • Repacked front wheel bearings as needed • Cleaned up some original Type 3 hubcaps I have for possible usage, some of the original ones are scratched up  |
| August 28, 2002 |
•
Found a hole in the single carb. manifold, argggg |
| August 18-19, 25, 2002 |
•
Working on clearing out my single carb. manifold
 Manifold on my bench plus some carbon I got out |
| June 9, 2002 |
• Acquired
NOS passenger side arm rest to replace my damaged one, thanks to Dave. |
| March 30, 2002 | • Acquired a nice used washer bottle (still looking for Mint or NOS piece). Thanks to Jason. |
| March 10, 2002 | • Installed oil drain plug with minimal oil loss |
| March 5, 2002 | • Located replacement oil drain plug at local junkyard |
| February 17, 2002 | • Located replacement hook for my decklid strap, thanks to Bill |
| February 9, 2002 | • Located NOS fuel pump and 2-piece cover, thanks to Dave |
| January 22, 2002 |
• Factory
letter arrived, see it on the main page. • Received NOS front wheel cylinder |
| January 15, 2002 |
• Cleaned up
and installed

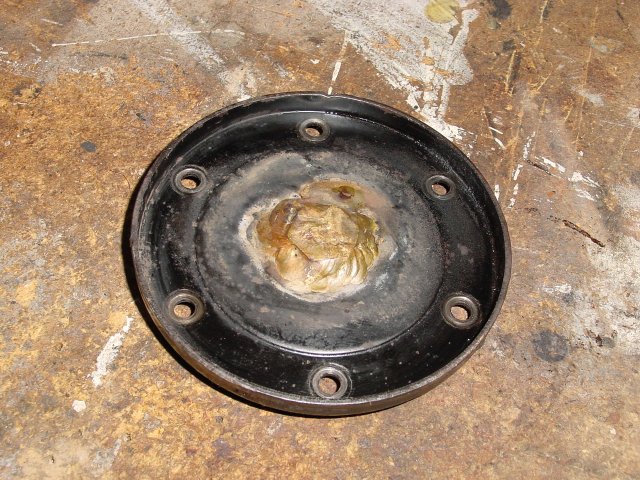

rear seat handle • Cleaned up and installed package tray • Cleaned up used drain plate and engine case. Installed drain plate and filled engine with oil. Oil pressure seems better with new Castrol 30 wt. oil. |
| January 13, 2002 |
Attended Pomona swap meet, purchased: • Rear seat handle • NOS rear hatch lock • Excellent single carb. manifold and carburetor • 2 used hubcaps • NOS driver's rear reflector housing • 1 towel-bar overrider rubber snubby to replace my damaged one Thanks to Dave for some parts.
|
| January 12, 2002 |
Attended Wolfsburg West open house: • Located used washer bottle cap. • Package tray delivered to me Traveled to Type 3 enthusiast's house that was selling off a collection of parts, purchased: • Unrestored set of "towel-bar" bumpers • New '62-'63 front brake shoes • Some used '62-'63 front wheel cylinders • NOS Coco mats • NOS taillight seals • NOS locking glove box • NOS mudflaps in box • NOS solid axle boots • Oil drain plate Thanks to Dave, Dave, and John for the parts.
|
| January 8, 2002 | •
Located new set of front brake shoes. • Purchased package tray |
| January 7, 2002 | • Got
driver's front brake drum turned, the folks on Napa liked my Bus so they did it for free • Attempted to grind all the brass off my oil sump drain plate and break the bolt free, a total waste of time. • Picked up another set of German front brake hoses, these ones look correct. |
| January 6, 2002 | • Spent
a couple hours cleaning the front end • Greased front end • Noticed my parts place gave me the wrong front rubber hoses, crap. • Cleaned inside of front fenders of packed-in dirt • Installed new Bosch Super plugs, noticed old plugs were all gapped too small • Set points gap and timing • Checked fan belt deflection, noticed fan belt is the original(?) Continental with 311 part # • Removed air cleaner, drained and cleaned air cleaner, all hardware and hoses, filled with new oil, reinstalled • Removed, cleaned, checked, and set choke • Set valves to .20mm per owner's manual, #3 and #4 were off (.25mm) • Adjusted carb. idle and mixture • Checked spark plug wires • Drained oil, it ran out like water, noticed drain plate has the drain plug welded on:  • Checked driver's side heater box flap, it sticks open a little • Fixed driver's seat do it would slide, it was stuck on a bunch of Canadian coins |
| January 5, 2002 | •

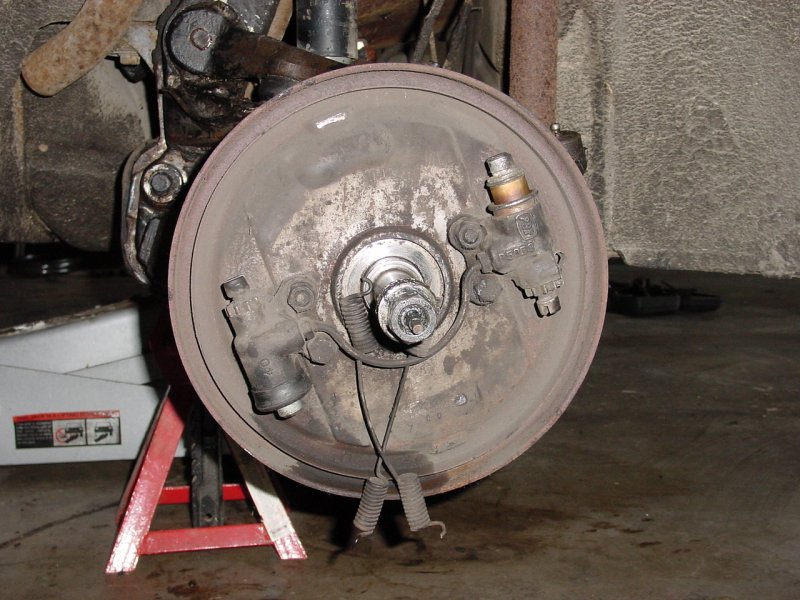

Disassembled front brakes to check things out. Noticed driver's
front already has a new rubber brake line on it, so I'm not sure why it
was locking up. On driver's front, noticed one wheel cylinder has
been replaced with some no-name cylinder. Both wheel cylinders have
been rebuilt at some time with shoddy quality parts, the rubber seals are

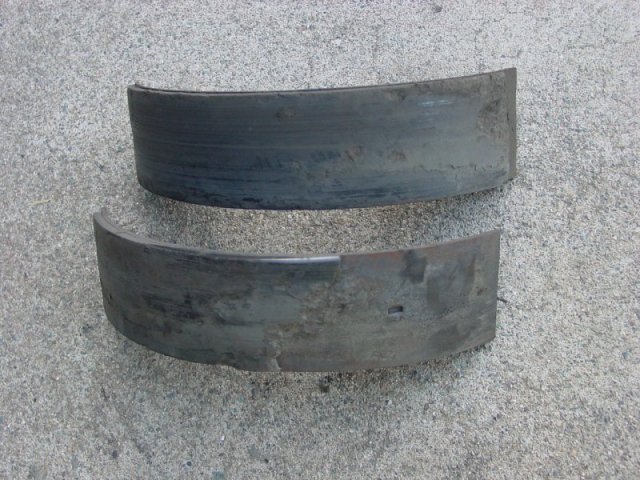

rock hard. Front brake shoes are wasted, lower shoe was running
metal-on-metal with the brake drum and brake drum is scored.
 • Replaced one wheel cylinder rubber seal with NOS unit. Plan to replace no-name wheel cylinder with NOS piece. Will try to have brake drum turned. • Tightened rear license plate and reinstalled rear hatch trim panel with original clips that I hand-polished. |
| January 4, 2002 | • Picked up new German rubber hoses |
