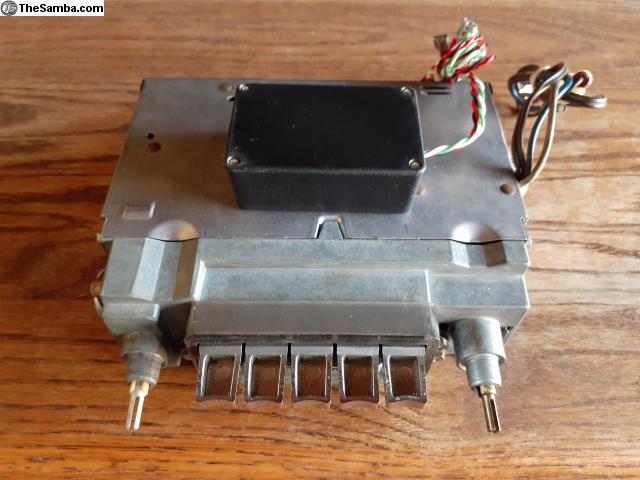

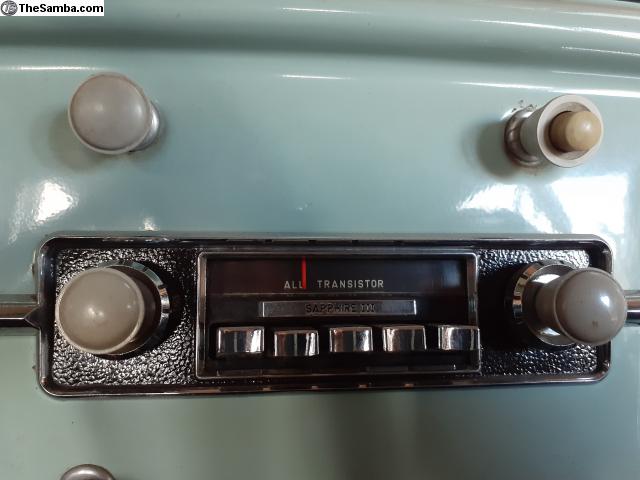

Sapphire III with internal Bluetooth Amplifier |
Working radio converted to 12V with bluetooth |

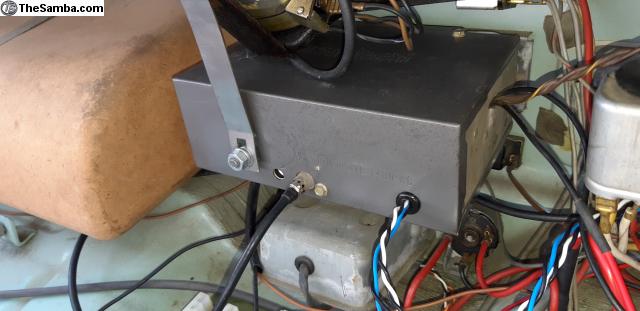

Bluetooth external and AM radio |
Bluetooth external and AM radio |
 |

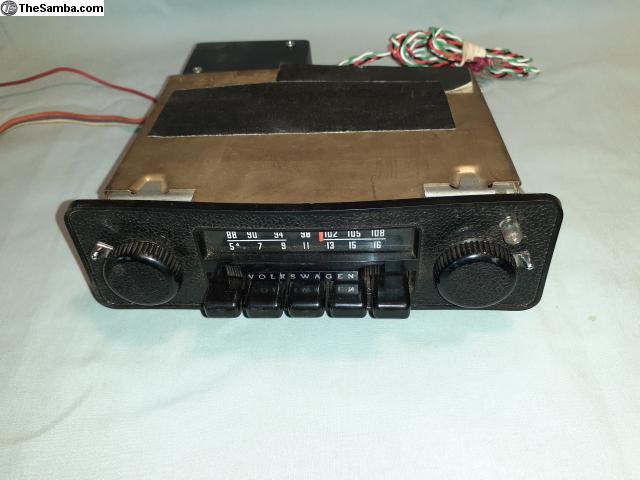

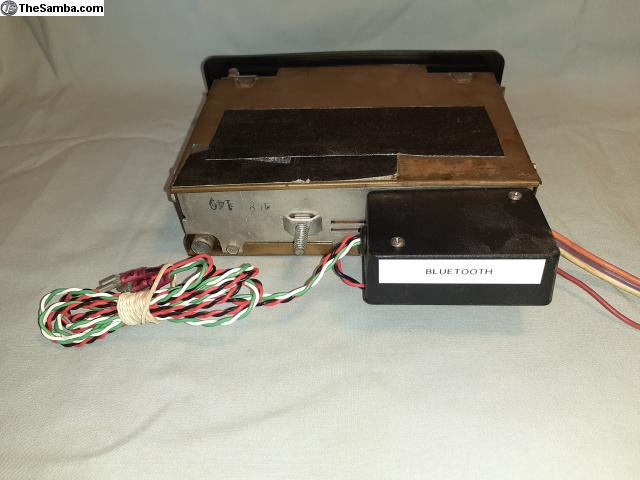

1974 AM FM WITH BLUETOOTH |
1974 AM FM WITH BLUETOOTH |

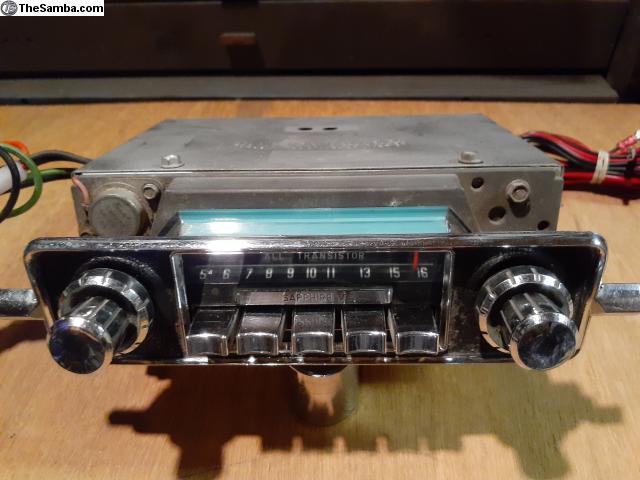

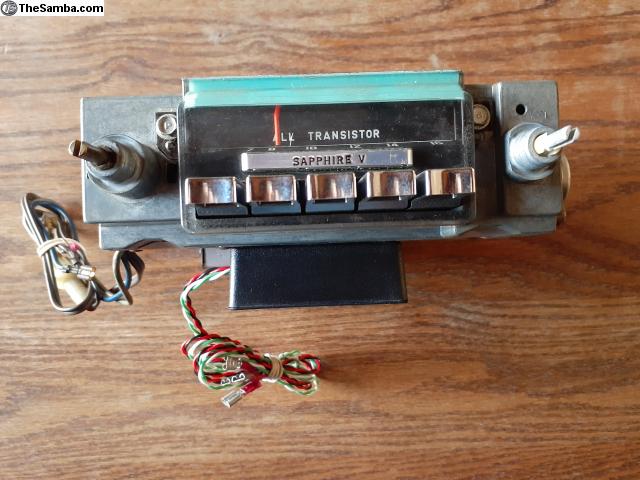

SAP V Bluetooth and radio works |

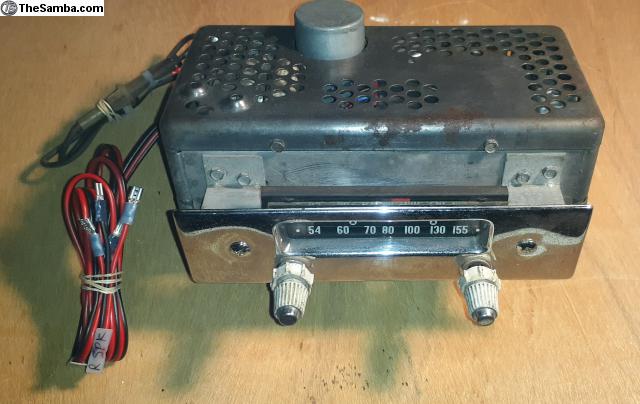

BIG M BLUETOOTH 12V NO AM |
|
|
Bluetooth 30W Amp radio upgrade AM/FM AXU input Price: $245
|
12V Radio Bluetooth 30W Power Amplifier upgrade
Optional power amplifier axillary input for CD, AM, AM/FM radio input.
I repair all types of radios, email for quote.
I will modify your radio by installing a Bluetooth stereo receiver with 2x15 W Power Amplifier. If space allows, the amplifier can be mounted inside retaining the AM radio function. Radios with insufficient space inside, the amplifier is mounted in an external enclosure. It looks just like the stock radio, except for the additional speaker wires.
Motorola or any radio with limited internal space requires the Bluetooth Amplifier to be mounted in an optional external enclosure on the bottom where it's not visible.
The Class-D amplifier is a state-of-the-art dual channel amplifier, which delivers 15 watts per channel. The amplifier is currently being used in CD players and has exceptional sound quality.
Radios that can be upgrade:
Bendix, Motorola or most other brands
Sapphire I, II, III, V, XV, IX
6V radios need to be converted to 12V for use in a 12V system.
Other 12V radios can be evaluated, contact me for Bluetooth amp. location
Email from a happy Bug owner:
Got the install completed on Thursday n it was the first ride I had in 25 years with music! It makes SUCH a difference! Took it to a car show today and blasted Frank Sinatra tunes...with a smile on my face. Good times. Thank you!!!
Videos:
https://www.youtube.com/watch?v=M8WKbchl750&feature=youtu.be
https://youtu.be/uWVe2R4XQ0c
Specifications:
Power output: 15W x 2 (4 ohms) (8 ohms with 6V)
Total harmonic distortion: (15 W, 4 ohms ) = 0.01%
Frequency response: 20 to 20,000 Hz
Minimum impedance: 4 ohms
Power supply: 12 VDC
Class-D amplifier, Over-temperature and over current protection circuits
Power on/off switch uses the original radio volume knob
Dial light: Controlled with the Power on/off switch
* Options:
1. Convert a 6V radio to 12 Volt power input: $85
2. Power amplifier CD, AM, AM/FM axillary input $85
3. External enclosure $40
Contact me for radio repair quote.
Check my 100% POSITIVE feedback:
http://www.thesamba.com/vw/forum/viewtopic.php?t=224610&highlight=wsj+garlic
Check out my other ads:
http://www.thesamba.com/vw/classifieds/search.php?username=Wayne+S.+Johnson
Contact: Wayne at 408 396-0676 in Gilroy, CA THE GARLIC CAPTOAL OF THE WORLD
Shipping, insurance and packing: $25 in USA, I accept US Postal money orders from USA buyers. I DO NOT accept PayPal.
Payment other than POSTAL MONEY ORDER will not be accepted and the radio
will be returned.
|
