Type E EZ-Stop 5x130 Disk Brake Kit 1963-1967 Bus Price: 545 shipped
|
This kit is based off our original 5x205 EZ-Stop kit, but rather than the 5x205 adapter, it uses a custom made 6061 billet aluminum, anodized adapter. This adapter bolts directly to the Camero rotor, and easily adapts your 5x130 Porsche pattern wheels.
Rather than building a kit based off custom-made or fancy race car parts, we went the other way and built our kit using super-common, easy-to-get parts. Willwood and similar "race car" calipers do not have dust seals, so they have a limited lifespan before the pistons start to wear out the bores requiring replacement. The rotors, calipers and brake pads are used on millions of American cars, and the parts are readily available at nearly every auto parts store across the USA. They are built to last for 100,000's of miles in terrible conditions. If you are 1000 miles from home, and you need a replacement rotor or pads, there is no need to wait a week or more for custom-made replacement parts. Just swing by your local NAPA with the part numbers provided in the kit.
The single best way to improve braking performance doesn't come from adding more pistons to the calipers, it comes from increasing the rotor's outside diameter. This increases the effective leverage. Some other kits use a 9.25" rotor that is custom machined even smaller to fit inside a 14" bus wheel. Or a thin 3/8" thick solid rotor that is only available from ONE company. Some of these rotors are over $150 EACH when they need to be replaced, and hopefully they are still available when you need one. The rotors to use with the EZ-STOP kit are large 10.5" diameter, 1" thick vented style, 100% off-the-shelf rotors that need NO custom machine work. They also come with the bearing races pressed in.
The calipers are used on countless GM mid-size cars that are heavier than a VW bus. These calipers have a much larger pad surface area than a Willwood caliper, and there are lots of different brands, grades, and type of pads available. The piston area of these calipers is very similar to the piston area of a Willwood, so the pedal feel, and clamping force is very similar between the two.

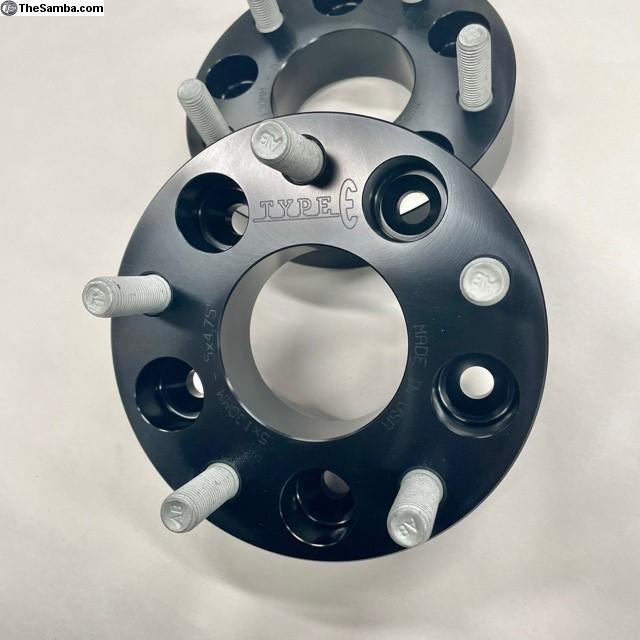

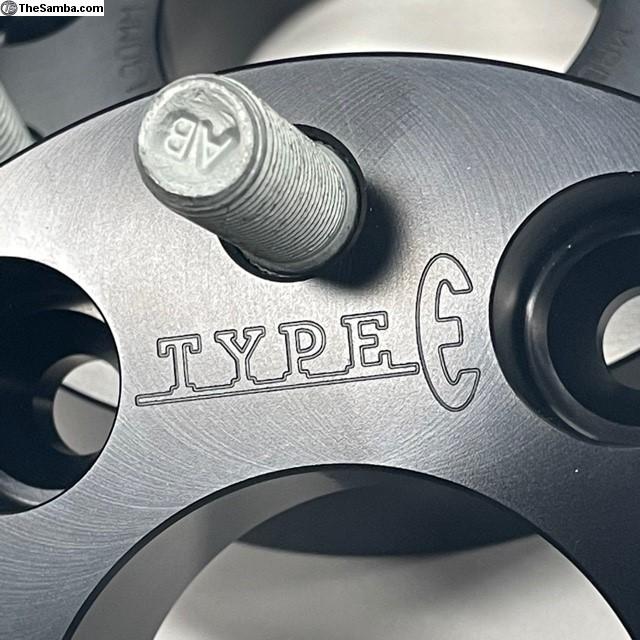

The caliper brackets are made from 3/8" laser cut steel. The adapters to 5x130 Porsche pattern are made from 6061 aluminum machined on CNC equipment here in the USA. We add custom MADE IN THE USA press-in 14mm wheel studs.

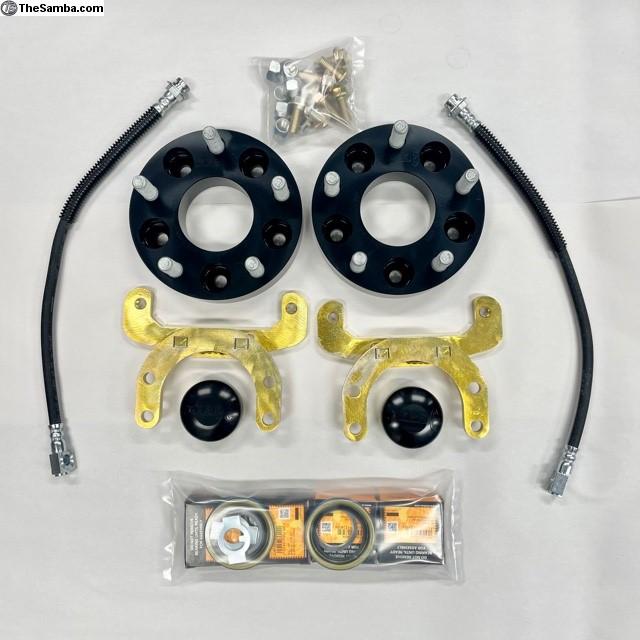

High quality Timken or National bearings, new conversion rubber brake hoses, lug nuts, wheel seals, and new billet anodized dust caps are all included in the kit.
Not included in the kit are the calipers, rotors, and brake pads. We have done this for a few good reasons. Included with the kit are all the necessary part numbers and applications that will cross-reference at any good auto parts store. Shipping heavy rotors, calipers and pads is very expensive. We figure since you own a VW you are already familiar with your local auto parts store. Take the list of part numbers into your local store and pick up the parts yourself to save the shipping. For you folks who want drilled or slotted rotors, those are available from other on-line retailers as well. Some people/shops also have connections and get good parts store discounts, saving themselves even more.
Click here for more info, complete instructions, and part numbers.
https://type-emotorsports.com/collections/type-2-b...he-pattern
$545 INCLUDES USPS shipping.
