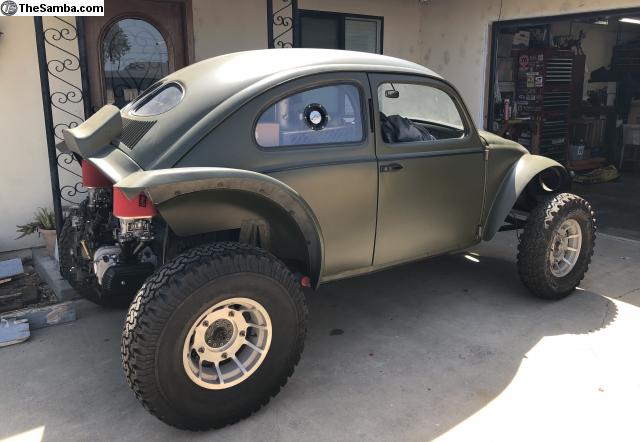

1952 Split Baja Bug   Price: 38k
Selling my split window baja
Original 1952 split body
1955 pan with new floor pans

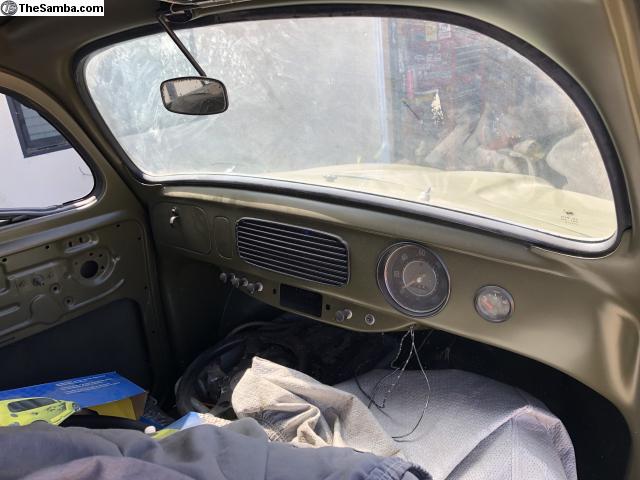

The original dash was all cut up so I installed a RHD dash from a 1954 New Zealand bug and modified it to look like a zwitter dash.

Ribbed doors are some of the nicest of any I've ever seen.
The door windows have not been installed, but i have all the hard parts, and all new seals from Wolfsburg West.
Window seals are Wolfsburg West

Has KM speedometer

Front beam is a made in USA chromoly 6" wider with adjusters & 10" shock towers.
Rack & pinion steering gear.
International & ford tie rod ends with chromoly tie rods.
Steering column is made, just needs to be mounted & welded together.
Front trailing arms are chromoly USA 1"x 1/2" longer/wider.
Spindles are old style tweeds modified for combo size inner bearing, gusseted, & reamed for ford tie rod ends.
Fox reservoir shocks.

German ATE right hand drive master cylinder.
Front brakes are Jamar 4 piston front disc brakes with Timkin bearings.
Stainless braided brake lines
All new hard lines
Rear brakes are jamar chromoly hub 4 piston wilwood caliper disc brakes.

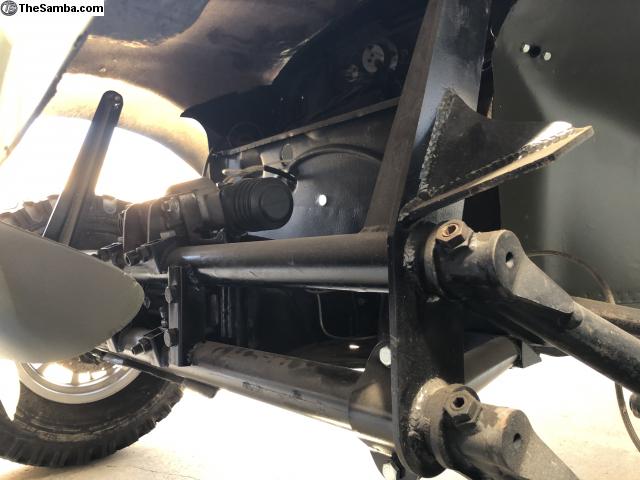

Rear 3x3 trailing arms .
Chromoly 930 stub axles.
German FAG bearings
German lobro 930 cv joints, modified for more angle, move smoother, & with undersized balls.
SAW 29mm torsion bars
SAW spring plates
Bugpack mid travel kit
Fox reservoir shocks

PRP black vinyl/tweed seats have never been unwrapped

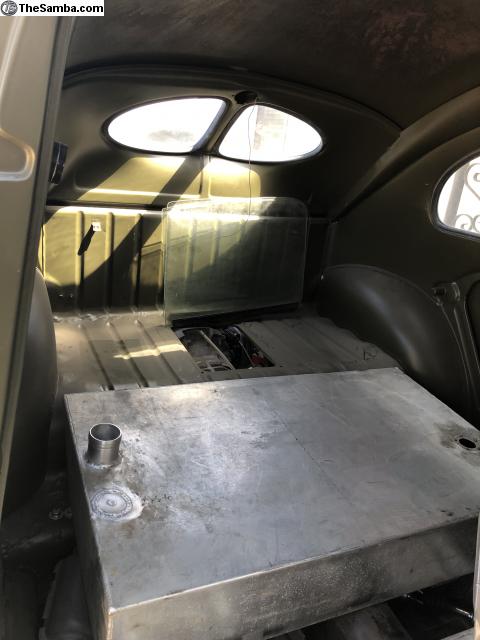

Long range gas tank with filler in the 1/4 window. Modified with anti slosh well on bottom, 8an fitting, relocated filler, fuel sender (still needs brackets to mount tank)

Main wire harness is in and dash etc is wired. Just need to connect headlights, taillights and install fuse box.

Transmission is a Pyramid bus transmission built by mike at rancho.
Every gear ratio 1-2-3-4 & r&p is aftermarket. Has gene berg mounts and bus to bug gear carrier housing.
NOS ZF limited slip differential.
Chromoly 930 cv flanges

Engine is a 2276cc
Scat forged crank
German bearings
Bugpack connecting rods
Engle 120 camshaft
Mahle piston & cylinders
Ported & polished heads with
40x35.5mm stainless steel valves
Manton chromoly push rods
Cb performance 1.3 ratio rockers
Cal custom valve covers
Gene berg sump
Gene berg oil pump
Set up to run 91 octane pump gas
Rebuilt Italian weber 44 carbs on match ported manifolds
Cb performance aluminum air cleaners with 2 stage filters
Engine has never even had the tin on it yet. I have the tins, alternator, fan, etc
No exhaust

Ultra wheels 3.5" fronts with 7.00-15 Mickey thompson tires
7" rears with BFG All terrain 33x10.50-15 tires.
Comes with a spare 7.00-15 yokohama tire (not mounted)

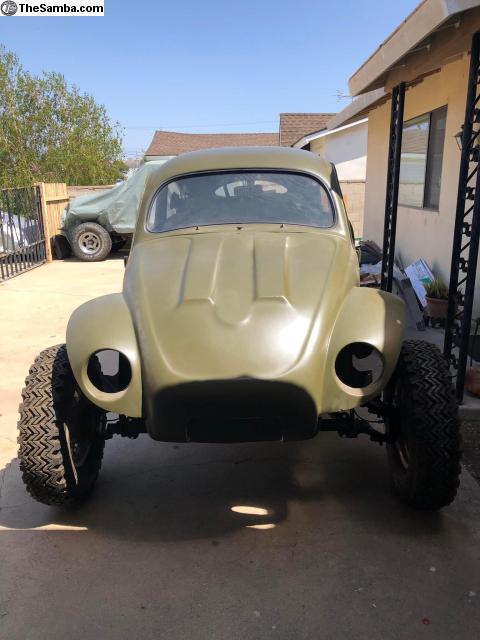

1 piece front end
Dubbers toy box Hi clearance rear fenders
Various tabs, brackets etc
Ribbed split semaphores
Split dome light
Ribbed moldings
Ribbed door handles and window cranks
Dietz headlight buckets & hella headlights
Led taillights
A gallon + of paint
Gas heater
Battery bracket
New vintage Horn
License plate light
Windshield washer reservoir and pump
Starter button
Semaphore Turn switch
An fuel filter
Engine Skid plate
Side nerf bars
& more

To finish the car you need to
install a roll cage,
make the bumpers,
Install shocks
Mount the headlights and tail lights & connect.
Mount the seats
Mount the gas tank and connect
Install engine tins & exhaust

Car is registered as non-op in California

$38k or make offer

Would consider selling it
no engine
No transmission
