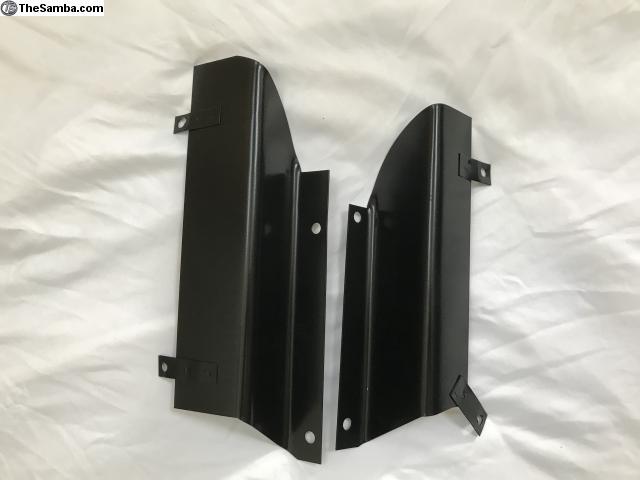

tabbed industrial shields - to prevent movement Price: 46.50
|
i have made several of these over the years and finally decided to offer them for sale to everyone. As you know, industrial shields attach to the bottom two screws on the heater box sleds, and most people are fine with that. However so people worry they may "flap in the wind" and work loose over time. Lucky for us, VW heads have 2 casting bosses on the bottom of the heads that make a perfect place to add a screw hole.
Standard color is satin black powdercoat
how?
1 - 5mm dia drill, only drill 7mm deep - you dont want to go into the head and have to worry about leaks
2 use a m6x1 flat bottom tap to put threads on
3 attach with normal engine tin screws, you will want to add 2 or 3 washers to get them to fit tight as you cant drive the screw all the way in
price is + $10 shipping
I prefer papal or cashap
I also sell the industrial shields with no tabs if you prefer
|
|
|
|
