Additional Photos
Click to load image
L & R arrow keys scroll through photos |

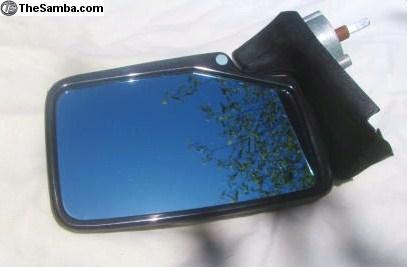

Front/trees |

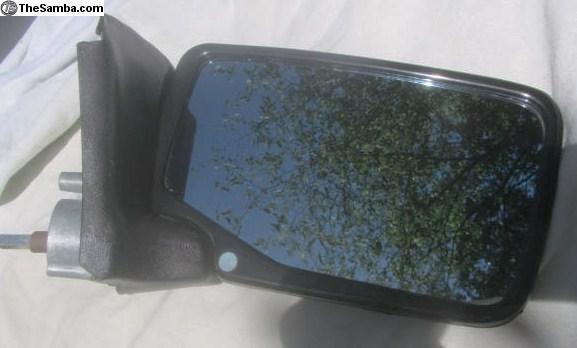

Front |
Back: 434 857 430A on mirror mounting side |

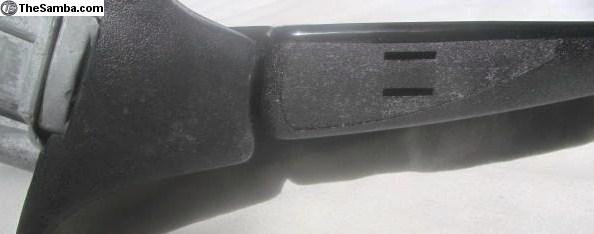

Bottom |
Back |

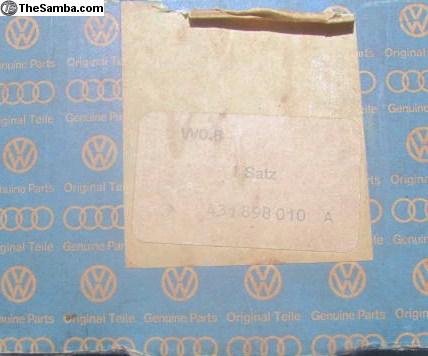

431 898 010 A |
Kit attaching parts |

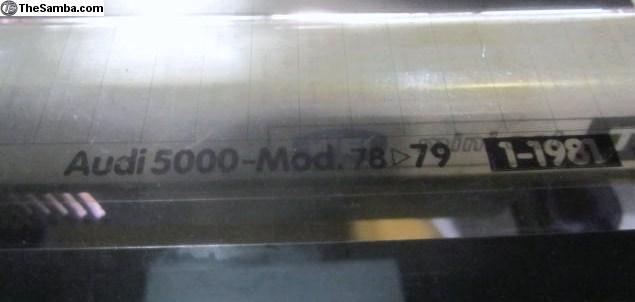

Fiche Audi 5000 78-79 |
434 857 430 A |

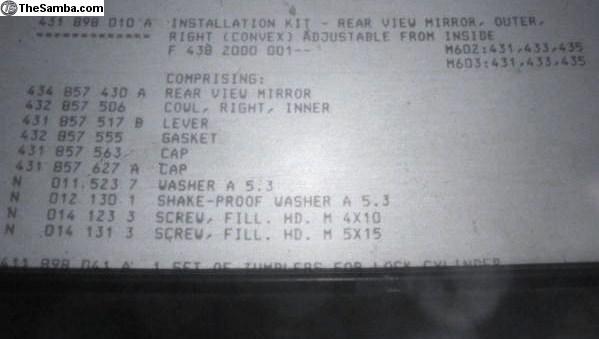

Fiche Audi 5000 80-81 |
431 898 010 A |

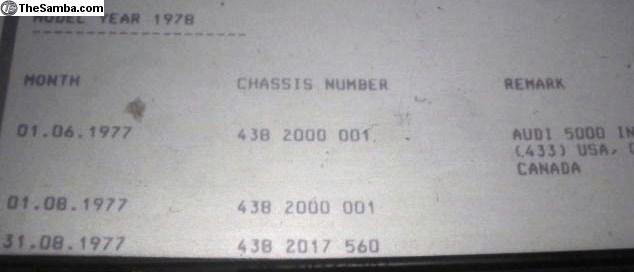

438 2000 001 |
M602/M603 |
|
|
Mirror Right Side Audi 5000 1978-1981: NOS Price: $90MailedLower48
|
|
Genuine German Volkswagen/Audi: NewOldStock NOS: One (1) Right side Outside mirror (convex) installation kit for left Hand Drive vehicles Part Number 431 898 010 A (The 898 denotes a part kit). Special options codes M602 and M603 apply. This appears to coincide with the introduction of the Audi 5000 in or about June 1977 for the 1978 Model Year from Chassis Number 438 2000 001. Applicable to/for Audi 5000 Model Years 1978-1979 as well as in parts fiche for Audi 5000 for 1980-1981. This is perhaps applicable to Chassis Number 43A 0025 875! May or may not be applicable for other models and years! This is packaged in Box from factory; just for this ad, opened attaching parts plastic for inventory. Kit is composed as following: The associated parts beginning with the mirror Part Number 434 857 430 A are as follows: Cowl right inner 432 857 506: Lever 431 857 517 B: Gasket 432 857 555: Cap 431 857 563: Cap 431 857 627 A: Washer N 011 523 7 A 5.3: Shake proof washers N 012 13 1: N 014 123 3 Screw Fillister HD M 4 X 10: N 014 131 3 Screw Fillister HD M 5 X 15. This mirror is manually operated via the Lever above, and works fine, when tested. No directions included, so if there isn’t already a location to locate this, perhaps need to check some genuine Audi manuals or bulletins. If already have a bad mirror easy replacement with this one. Ensure application. $90 MailedLwr48. US Postal Money Order. Zelle
|
|
|
|
