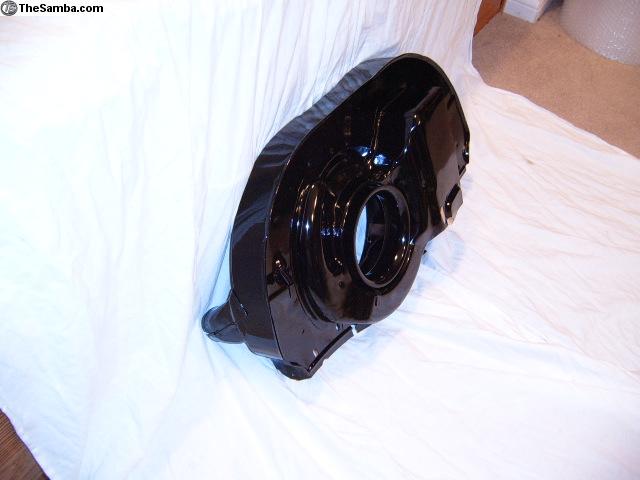

powdercoat fan shroud engine tin Price: various
|
Visit www.awesomepowdercoat.com for all your VW powdercoat needs!
What is the turn around time? That depends on how much work you need and what the current backlog is. Please plan on 2-4 weeks. I work as fast as I can, but these things take time.
Each kit is test fit on an engine to make sure it fits properly before powdercoating.
many options available include:
- add a venturi ring to the fan shroud inlet to increase air volume. This is a reproduction of the factory ring used by VW on FI motors 75-79.
- add rebuilt thermostat flaps and horizontal linkage, vertical control rod, and bracket, THE THERMOSTAT IS EXTRA
- adds air vanes to the new SCAT cylinder tin (get the air flow VW intended!)
- add a powdercoated hoover bit to your kit
- add threaded inserts to any sheetmetal (great for coil, fuel filter, etc) don't use screw metal screws in your new fan shroud!
- add holes for breather vent holes in the firewall tin
- clearance small pulley tin for aftermarket oil pumps
- modify the fan shroud and oil cooler exhaust for the wider Type IV oil cooler
- add valve cover vents, either 1/2" steel tube, or AN6 or AN8 male fittings
Don't see a color you like? I have access to over 300 colors, satin, gloss, hammertone, wrinkle, just about any color you can imagine.
Don't want this exact kit? Mix & match virtually any combination of parts you need.
I build a custom kit for whatever your needs are.
It all starts as SCAT BRAND NEW engine sheetmetal. This kit fits 1600 based engines on bugs, manx, bajas & sandrails. Don't build your engine with old, rusty, grimy, dented sheetmetal! All sheetmetal is BRAND NEW and then blasted clean. YOU CHOOSE if you want it set up for heat or no heat.
MORE COLORS ADDED ALL THE TIME!
Prism & metallic clear coats over any color for an additional charge.
Virtually any color is available, more are being added all the time!
Pick just the parts you need, such as SCAT brand parts:
- SCAT 36hp, dog house fan shroud (for late model wide fan & off set oil cooler)You choose if set up for heat or no heat
- SCAT doghouse oil cooler exhaust tins (2 pieces)
- SCAT left & right dual port cylinder covers
- SCAT alt/gen backing plate (2 pieces)
- SCAT small pulley tin
- SCAT big pulley tin (heater holes if needed, notches if needed for stock carb pre-heat tubes)
- valve covers (stock style, not SCAT)
- valve cover bails
- valve covers cork/rubber composite gaskets
- SCAT pair of super cool tin
- SCAT 1 bag engine "cheese head" screws
- SCAT alt/gen stand - no oil filler
Buyer pays actual shipping. I prefer Paypal. If you have any questions, visit our website at www.awesomepowdercoat.com or you can e-mail us at [email protected].
I can also do your used parts. sheetmetal, coil & generator straps, brackets, dip stick, just about any metal part you can think of can be powdercoated.
Powdercoat is a very tough finish made by spraying a fine coat of plastic powder onto the part & then baking the part until the plastic melts & forms a continuous surface. This is many times tougher than conventional paint. It is much more resistant to stone chips, wrenches, screwdrivers, etc. If you have ever painted an engine, you know how easy it is to mess up the finish. Also, this finish lasts for years, unlike typical off shore?chrome plating that starts to rust in a few months.
|
|
|
|
