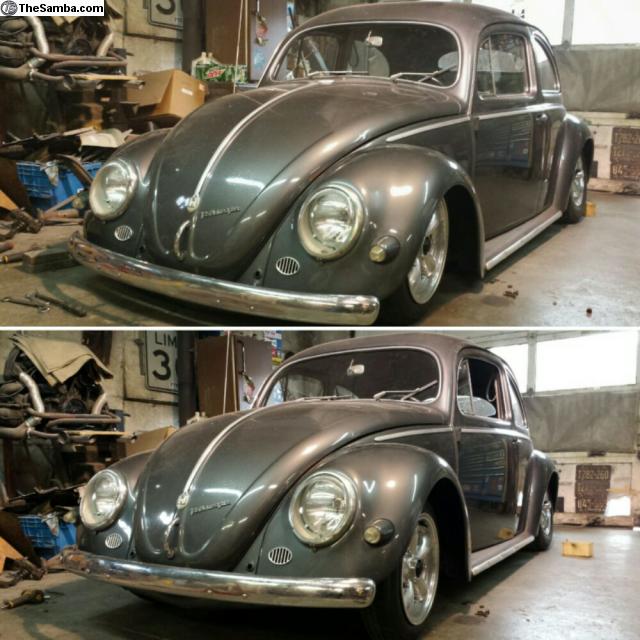

Robbie's Morning Wood '56. Complete build. |

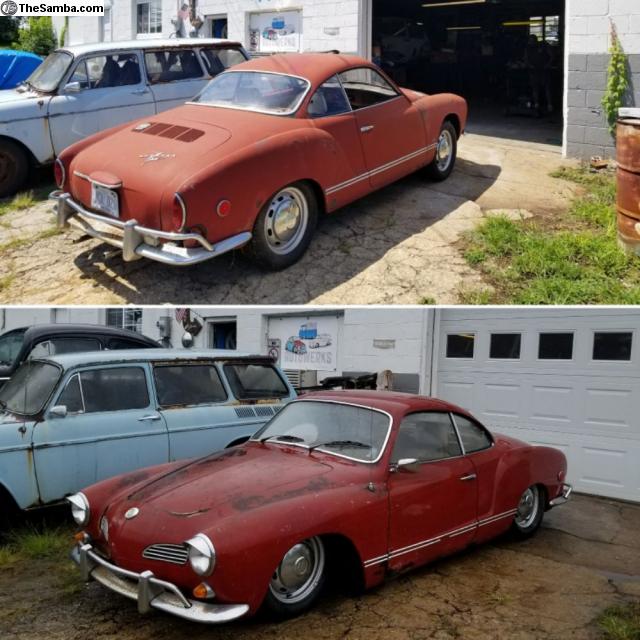

Stephen's '64 - Before and After. |
 |
55-67 Bus dropped, "Flipped" spindles. |

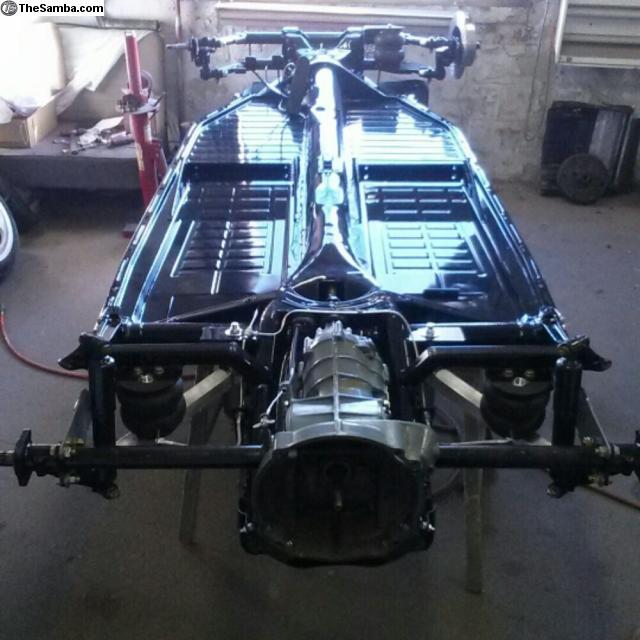

'62 chassis, base and clear, stainless everything, full airride |
My 62, the RustSlut |
Full range of adjustability! |
 |
 |
Robbie's '56 airride chassis build |
All new steel! |
 |
 |
Grey '64 with full airride build. '64 Baja with IRS swap/Bus trans and raised front setup. |
 |
Jerry's '66 |
 |
Since 2004 |
|
|
Full Suspension Services. Stock to dropped. Price: $ $ $
|
I've done strictly Aircooled Volkswagen restorations and suspension work full time since '04, not some side work afterthought like some other folks, or sprinkling them in with a mix of other cars...
This ad is for my bring it in stock, take it home dropped service. I can do a raised/offroad setup too!
This is everything you need NEW and including the labor costs to install it all. Bring your car in stock, take it home lowered the correct way!
I can do anything from a mild drop all the way to laying on the ground. Any 39-79 Volkswagen, except Type 4.
All of the installed are either New or completely sandblasted and restored OE parts.
Type 1 Beetle's, Ghia's start at $2k static/adjustable and turn key air ride builds starting at $4k
Type 2's Start at $3k for static/adjustable drop.
Type 3 - $2,500 for type I conversion static/adjustable drop.
**These costs are you dropping your car off stock and I take care of the rest...before wheels, tires and brakes.*
*** Type 1 and 3 setups include the following items, Installed! ***
- 100% New Narrowed beam, any size you like
- My in house made, Valle-Tec Beam bushings.
- New tie-rods and ends, narrowed to match.
- Adjusted and oiled steering box.
- Correctly narrowed and dimpled torsion springs to match.
- New steering coupler and damper.
- New Forged Dropped Spindles. New Kings/Links are also included for your pre-65
- New lowered ball joints ( If you have a 66+ VW)
- New Rear torsion bar bushings, inner and outer, Wolfsburg West
- New Lowered rear oil shocks
- New Wolfsburg West transmission mounts
- Notched and Extended spring plates
- Everything cleaned up, painted and necessary parts lubed/ greased up.
- All parts and labor included at this flat rate
I can also get you four new tires, for a bit more. For BJ cars I prefer the 135/165 combo, for LP cars I like a 155/60 and a 185/60 or so.. But there are other options and really it's whatever you prefer/ depends on your final ride height.
*Type 1 price and tire size!*
-- Super beetle's can also be done with the same work, but dropped struts from Topline will be used instead of beam/spindles.
**Buses**
Each Kit Includes the Following Items, Installed!
- New Narrowed Beam, whatever size you like
- New center pin and bushing
- New Tie-rods with four new ends
- New Draglink
- Raised steering box kit and install ( If desired, +$400 )
- New Shift coupler
- New shift rod bushings
- New rear torsion housing bushings
- Wolfsburg West transaxle mounts
- Fresh Dropped Spindles ( Kp & Lp replacement may be extra)
- New Shocks
- Offset spring plates (or plates on your baywindow)
* Brake work or other additional work/parts are extra. This flat rate covers the complete suspension only *
Please check my other ads for your suspension needs and check our site for several more examples of work we have put out.
www.Valleyautowerks.com
Please contact me for more info, or to get started on your car!
Thank you,
- Sam
_________________
[email protected]
Email me.
I spend my time and effort on building quality parts, not selling them to you.
If the ad says shipped, that price is within the continental US only. Please send a zip code or address for a total price elsewhere.
I've been doing nothing but Aircooled suspension, Fabrication and Restoration full time since '04!
*www.ValleyAutoWerks.com *
|
| Advertiser information |
Ad information |
Advertiser:
Name:
Member since:
|
Slowlow
Sam Manis II
March 17, 2004
|
|
|
|
Location:
Ad placed:
Ad renewed:
Ad last edited:
Views:
Category:
Payments accepted: |
Gate City, Virginia, USA Map it
Sun Apr 20, 2008 9:51 am
Mon Nov 10, 2025 11:20 am
Sat Jan 04, 2025 3:35 pm
22665
Other - Services
Cash
Paypal
Money order/Bank check
|
|
|
Watch this ad |
|
|
Watch this seller |
Share:
|
|
|
Other ads from Slowlow
See all | See ads in this category
|
Rust repair, Metal Fab, Floor pans etc!
|

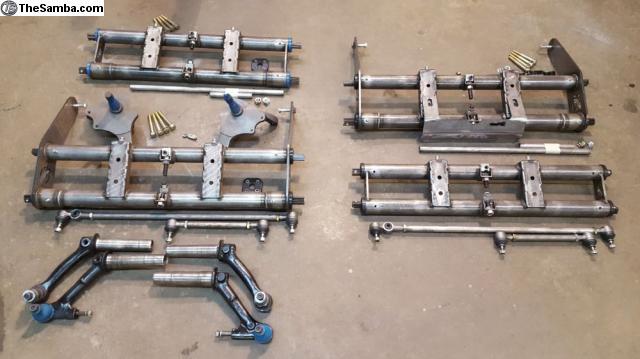

Narrowed & Adjustable Type I Conversion Beams
|
