Semaphore Controller for 12V or 6V Semaphores VW Turn on always show all large photos     Ad id: 704943
Additional Photos
Click to load image
L & R arrow keys scroll through photos
12V System with 12V Semaphors
Photo Photo
Photo Photo Photo
12V System with 6V Semaphors
Photo Photo
4X3X2

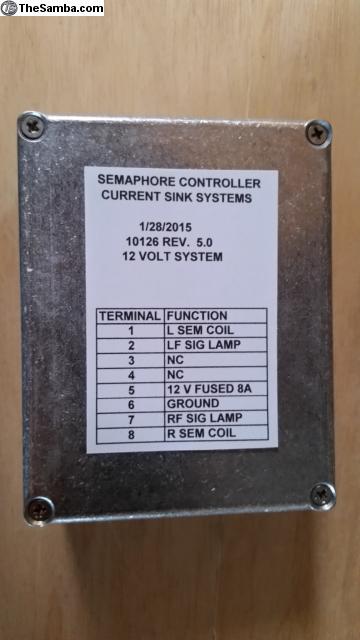

Semaphore Controller for 12V or 6V Semaphores VW   Price: $195
The SEMAPHORE CONTROLLER is designed to automatically control semaphores with flashing turn signals. The Semaphore Controller detects the flashing turn signal and activates the semaphore. The semaphore is automatically lowered a few seconds after the turn signal stops. The stock 6 Volt bulb in the semaphore will stay on as long as the semaphore is up.

The Semaphore lights can be rewired to flash with the turn signal lights. The 6 Volt bulb in the semaphore can be changed to a 12 Volt bulb and wired to the front turn signal bulb to make it flash. This modification requires adding a wire form the 12 Volt semaphore bulb to the front turn signal bulb. Another option would use the existing dash to semaphore wire to go between the 12 Volt semaphore bulb and the front turn signal bulb.

Specify 6 or 12 Volt controller.

The 12 Volt Semaphore Controller will operate with a 12 Volt electrical system and 12 Volt Semaphores. With the 12 Volt to 6 Volt option, 6 Volt semaphores can be used in a 12 Volt system.

Wolfsburg part number 113953513A
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113953513A
TURN SIGNAL SWITCH WIRING:
BLK/WHT/GRN TO FLASHER 54
BLK/GRN TO R FRONT
BLK/WHT TO L FRONT
BLK/YEL TO L REAR
BLK/RED TO R REAR
BLK/PUR TO BRAKE SWITCH 30

Check my 100% POSITIVE feedback:
http://www.thesamba.com/vw/forum/viewtopic.php?t=224610&highlight=wsj+garlic

Email From vdubhead
Wayne also built me a one of a kind custom semaphore controller that works with a six wire turn switch and allows the 6V semaphore to stay up while the 12V bulb flashes with the tail lights. Wayne is a serious engineer and a nice guy too. i took personal delivery of the controllers so Wayne could give me a demo and test my semaphores with the box, which worked perfectly. thanks again Wayne.

More emails:

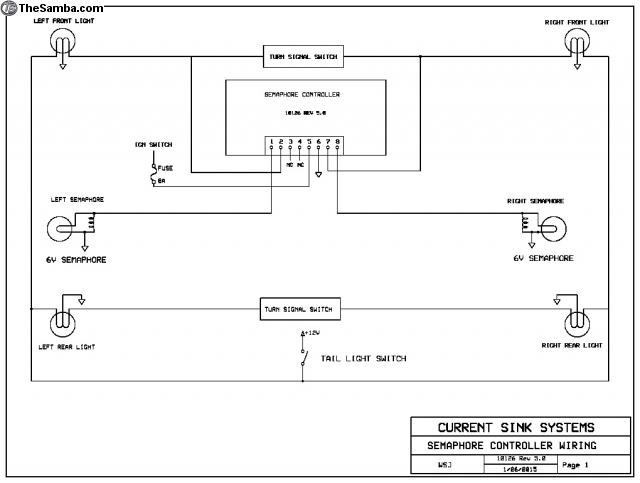

Wayne, I received the controller and wired it up per the wiring diagram. It works great, and the semaphores come on perfectly.

I mounted the controller to a mounting bracket I made from 0.06 aluminum sheet. This bracket mounts the unit over the ashtray, and also mounts the flasher and a wiring junction block. It is a great spot for it, since I do not have a radio installed. I have attached a photo of the installation, and the semaphores working!

Thanks for a great product, delivered promptly and works perfectly!

View my other ads:
http://www.thesamba.com/vw/classifieds/search.php?username=Wayne+S.+Johnson

WARRANTY:
CURRENT SINK SYSTEMS warrants products to be free from defects in materials and workmanship for a period of ONE year from the date of purchase.

Contact: Wayne at 408 396-0676 in Gilroy, CA
Shipping, insurance and packing: $18 in USA, I accept US Postal money orders from USA buyers. No PayPal, International buyers use Western Union. I answer all emails, but some emails are blocked; CALL ME if you donít receive a response in 24 hours.

Option:
1. For 6 Volt Semaphores, allows 6 Volt Semaphores to operate in a 12 Volt system. This must be ordered with the Semaphore Controller, it cannot be added later. $29.95
