Additional Photos
Click to load image
L & R arrow keys scroll through photos |
 |

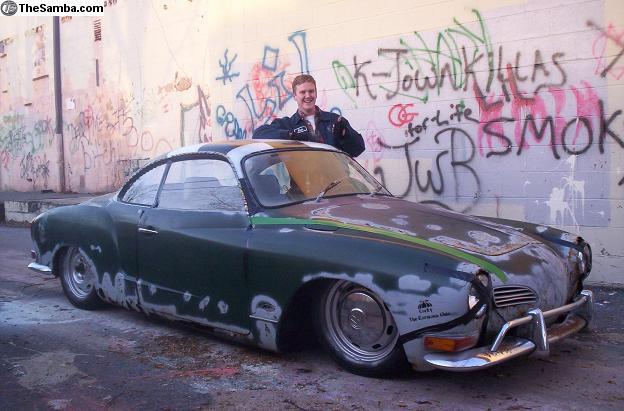

'70 Ghia w/ 6" Beam & Discs |

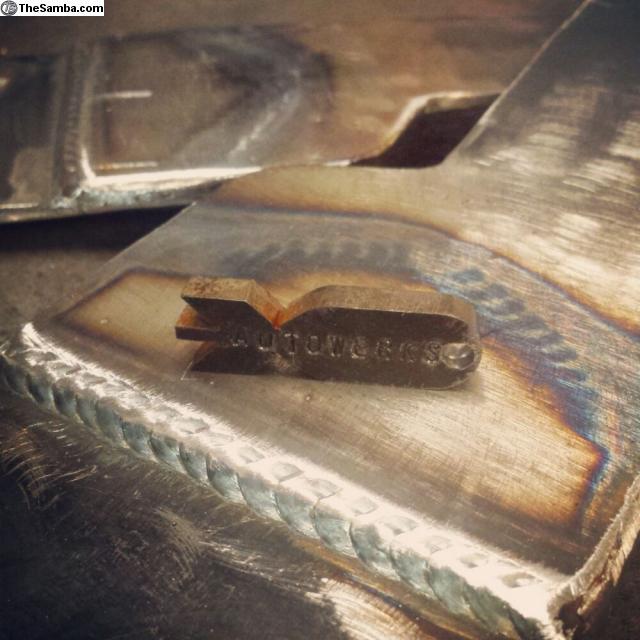

Quality! |
 |
 |
 |
 |
 |

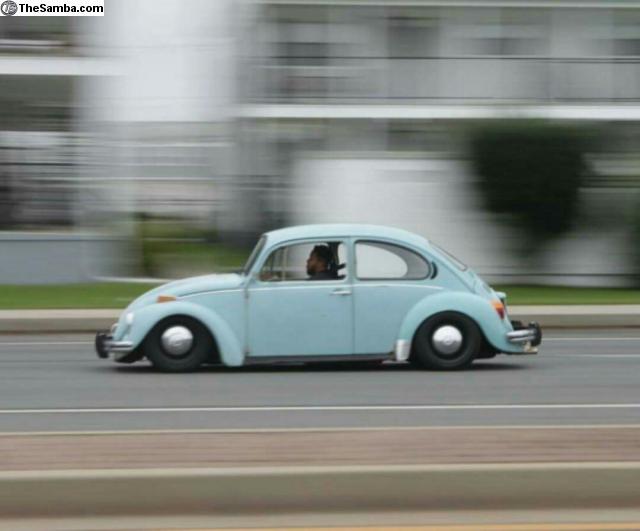

Robbie's '70 with full Autowerks drop job & theRustSlut |
My in house made, Valle-Tec bushings. |
 |
 |
 |
 |

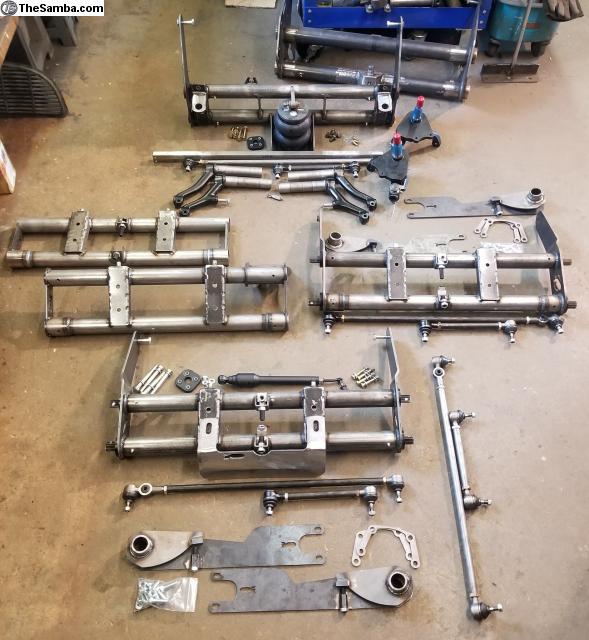

Weekly batch of bits! |
 |
 |
 |
|
|

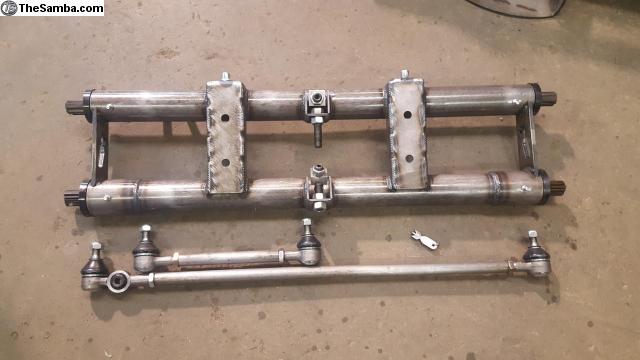

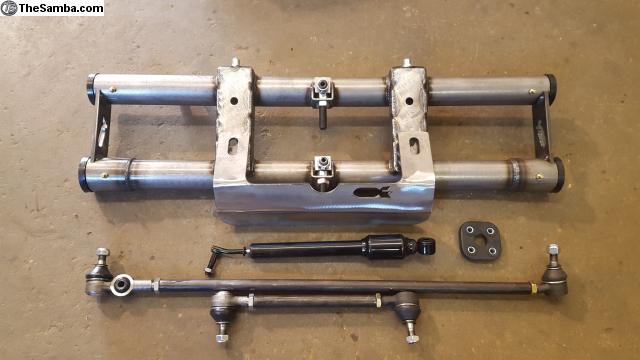

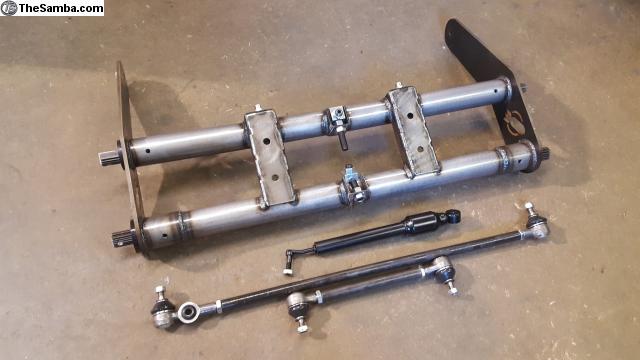

100% New, Scratchbuilt Narrowed Balljoint Beams Price: $325 and up
|
- - -100% NEW Narrowed Adjustable Balljoint Type I Beams - - - -
Narrowed 2"- 8"depending on your needs
Built here, in my shop, on my table, by me, since 2004!
See full details and order here:
http://valleyautowerks-com.3dcartstores.com/_p_18.html
These beams are 100% NEW metal and DOM tubing. Completely jig built and test fitted before shipment, to avoid headaches on your end!
No body modifications required to fit these beams up to 8" narrowed. I can also build up to 4" Narrowed beam with shock towers with NO modifications as well!
*Please note, these beams use a flat type tower and a pre 66 dual eyelet style shock. 4" beams do have stepped towers for better wheel well clearance, but if your car has been bumped in the past, it still may be tight.
- Balljoint, 66+
includes:
Parts and labor
NEW DOM Tubing Beam narrowed to your specifications
Drilled and tapped for grease fittings
CNC'd side plates
CNC'd steering damper mount
Custom made frame head mounts, with under tank bolt inserts.
Two NEW adjusters installed seamlessly, NO cut tubes!
New set of my in house made, Valle-Tec bushings. Available in various colors!
Everything is 100% Jig built and test fitted before shipment to ease headaches on your end.
New, thick Tie-rod tubes narrowed to match, one piece! Not cut and welded!
NEW set of four tie-rod ends *
Narrowed and re-dimpled torsion springs**
* Please select tie rods and/or rod ends under additional options, if you would like them included with your new beam.
*The torsion fee gets you a set of torsions, clean, cut, dimpled and installed..
Send your springs in, cleaned up and I will narrow/ dimple and install them, OR if you have a drill press you can tackle them yourself fairly easily. There will be surcharges for torsions sent up, buried in grease.
-------------------------------------------------------------
My beams are built to order, to ensure you get exactly what your after. I have nothing in stock and ready to go, and normally have a que. Each beam is a 3-5 day turnaround, but depending on work load in the shop, it can be several weeks. Please contact me about current turnaround times, as they vary!
Also, my beams come Raw to show workmanship and quality. They have a light clear coat to keep them from rusting before you get them. Nothing hidden underneath, you see what you get!
_________________
[email protected]
Email me.
I spend my time and effort on building quality parts, not selling them to you.
If the ad says shipped, that price is within the continental US only. Please send a zip code or address for a total price elsewhere.
I've been doing nothing but Aircooled suspension, Fabrication and Restoration full time since '04!
*www.ValleyAutoWerks.com *
|
