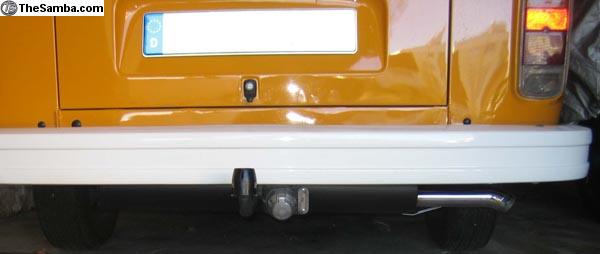

clear original tow hook |
clear original tow hook |
clear original tow hook |

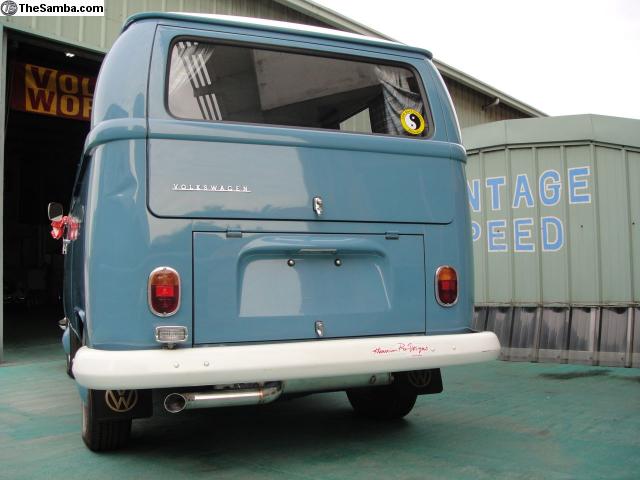

T2A muufler, 68~71 |
T2A muufler, 68~71 |
T2A muufler, 68~71 |
T2A muufler, 68~71 |

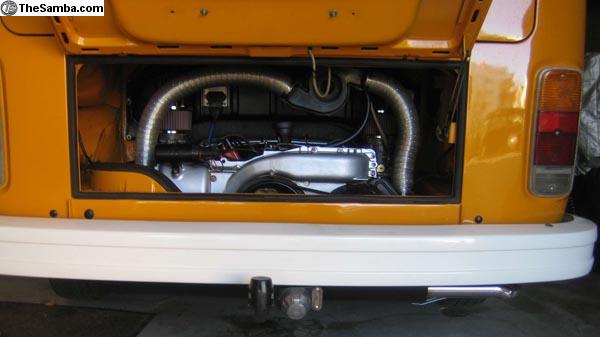

T2A & B with Type 1 engine |
155-210-05200 |
Baywindow Type 4 155-211-050SF |

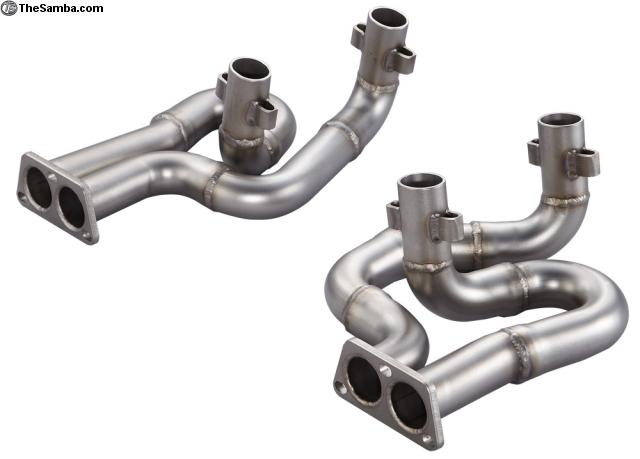

Type 4 Equal length header : 155-208-42SCU |

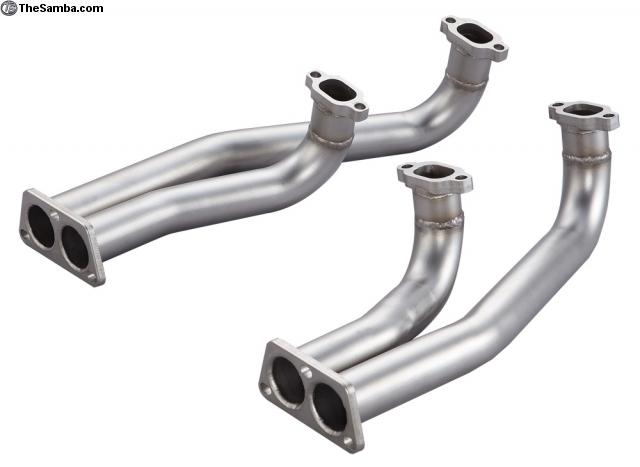

Type 4 J pipes : 155-208-42ECJ |
155-208-R3500 |
|
|
T2A T2B Lowered Baywindow VW BUS Exhaust muffler Price: 435~465
|

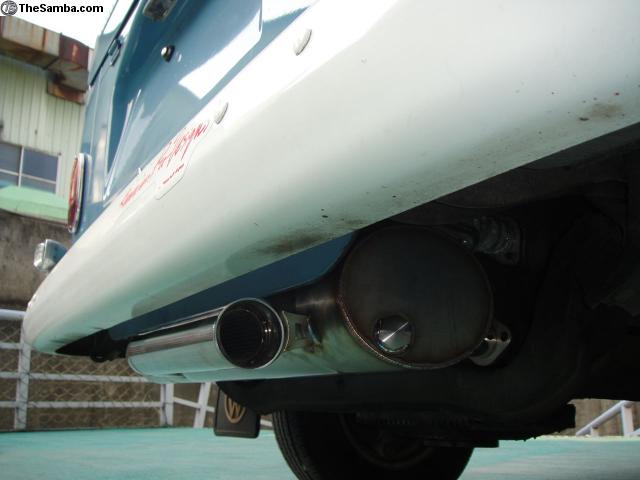

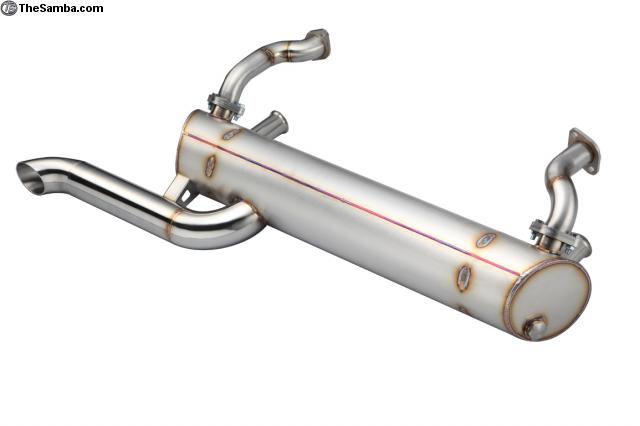

Vintage Speed Hi Performance Stainless Steel Muffler for Baywindow BUS with Type 1 Engine.
155-209-05200/SF Features:
1. Completed by CAD design,fully TIG welded.
2. Fit 1968~1979 T2A and T2B with Type 1 Engine.

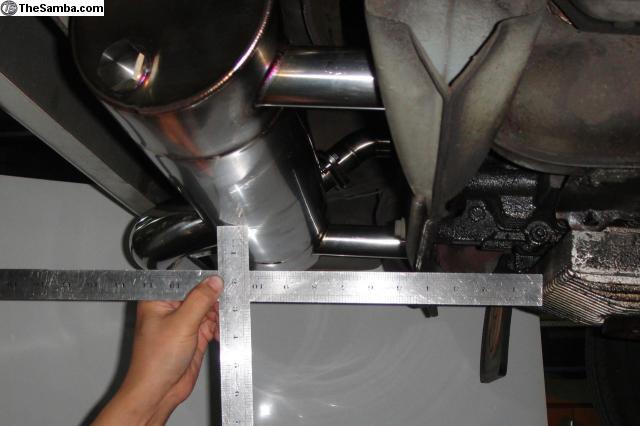

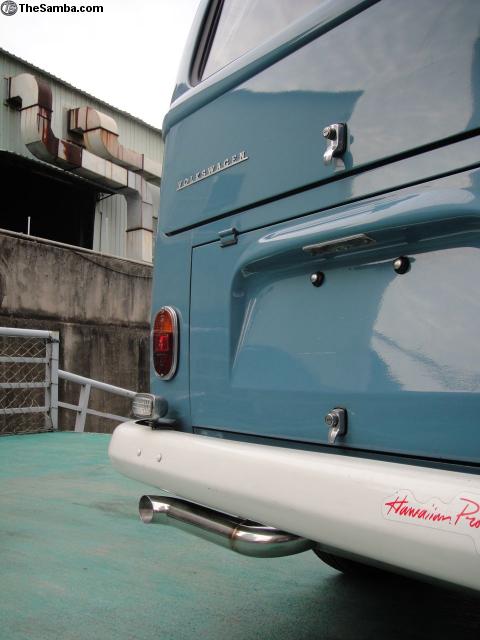

3. The baywindow muffler is 1.5" higher than engine rear support bar, Tail pipe
(63mm O.D.) is 10mm below rear bumper.
4. #304 stainless steel muffler with #304 polished tail pips.
5. Curved stainless steel header #2 and #4 cylinders, clear fresh air hose for heater box.
6. Build in M18 nuts, for tuning when use O2 sensors.
7. Flanges style from heater box to muffler available by request, 4 weeks to build.
8. Sport muffler for engine below 125 HP. Superflow for engine below 150HP.
9.Use original 111 298 051A gasket for #1 cylinder and #3 cylinder.
***111 298 051A gasket not include, sold separately***
T2A,B with Type 1 Engine:
http://shop.vintagespeed.com.tw/s.nl/sc.12/category.4/.f
T2B with Type 4 Engine:
http://shop.vintagespeed.com.tw/s.nl/sc.12/category.8/.f
****************************************************************************************************************************************
Type 4 Baywindow BUS muffler:
Sound track:
http://www.youtube.com/watch?v=noiFRPRjs-Y
Feedback:
http://www.thesamba.com/vw/forum/viewtopic.php?t=347416&start=20

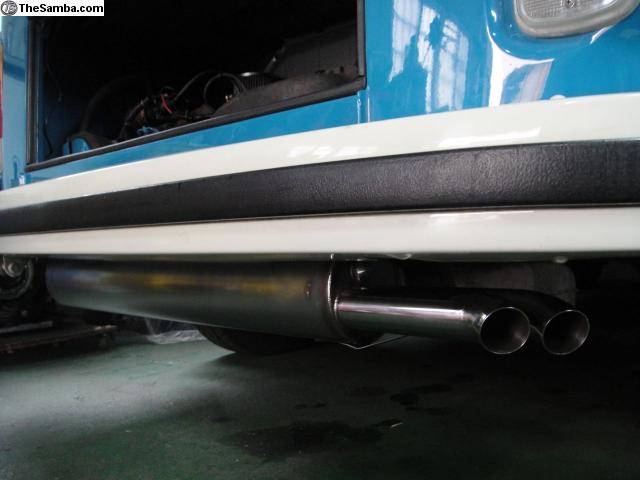

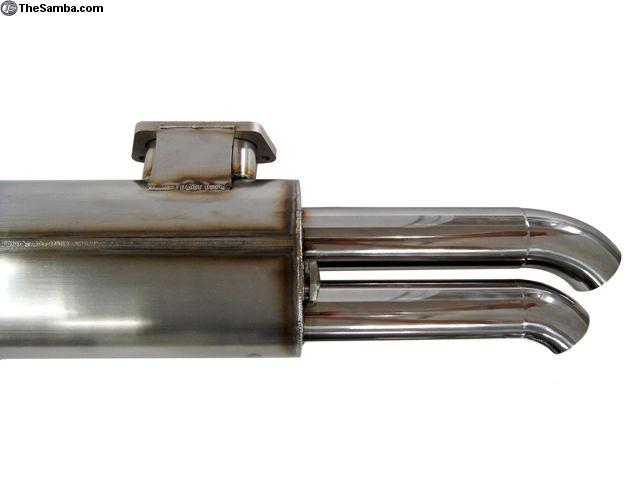

Vintage speed stainless steel high performance muffler for baywindow bus with type 4 engine.
155-208-03500Features:
1. Fully TIG welded, all flanges, no gas leaking.
2. #304 stainless steel muffler with twin #304 polished tail pips
3. Thick 304 Stainless steel Flanges can be match ported.
4. Build in M18 nuts, for tuning when use O2 sensor.
5. Fit rear apron for type 4 engine baywindow bus pre1979
6. For Type 4 engine 1700c.c. ~ 2400c.c.

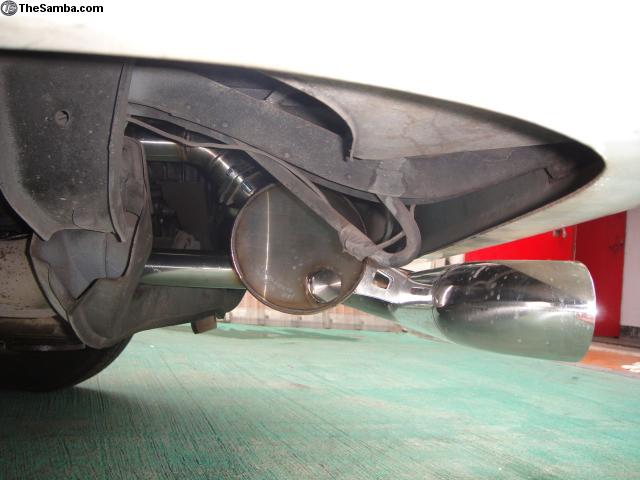

7. Muffler will clear original tow hook, please see pictures above.
order link
http://shop.vintagespeed.com.tw/s.nl/sc.12/category.8/.f
Shipping cost is 98USD worldwide by EMS (4~8dyas).
--
