Rear bumper, splash pan and plates.
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Ollie W
Samba Member


Joined: May 20, 2004
Posts: 842
Location: Portland, OR
Ollie W is offline

PostPosted: Tue Apr 08, 2008 8:09 am    Post subject: Rear bumper, splash pan and plates. Reply with quote

Hey,

So I've got my bumper repainted. I bought some splash pans off the Samba and then I bought the install kit.
Image may have been reduced in size. Click image to view fullscreen.

But I'm confused on where the backing plates go. Does anyone have a sketch or pic, even my Bentley manual didn't seem to help.

Thanks,
Chris
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Clara Premium Member
Samba Member


Joined: June 14, 2003
Posts: 12592

Clara is offline

PostPosted: Tue Apr 08, 2008 8:14 am    Post subject: Reply with quote

Here's the diagram from the 64 ed parts list, courtesy of the OACDP:
http://oacdp.freeweb7.com/5867part/349.png

#49 in diagram
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71452
Location: Phoenix 602
EverettB is offline

PostPosted: Tue Apr 08, 2008 8:20 am    Post subject: Reply with quote

They go on the inside of the corner.

The link works now.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
dreadnotmusic
Samba Member


Joined: March 04, 2003
Posts: 880
Location: Guam, USA
dreadnotmusic is offline

PostPosted: Fri Feb 26, 2010 5:25 pm    Post subject: Reply with quote

The link above doesn't seem to work anymore.

I bought the splash pan install kit from WW and I can't figure out how in the world this "bracket" is supposed to go. Anyone have good pics of it?
_________________
66 Riviera
Back to top
View user's profile Send private message Gallery Classifieds Feedback
///Mink
Samba Member


Joined: May 03, 2000
Posts: 5051
Location: Fair Oaks, CA
///Mink is offline

PostPosted: Fri Feb 26, 2010 5:36 pm    Post subject: Reply with quote

It goes inside the corner.

dreadnotmusic wrote:
The link above doesn't seem to work anymore.

I bought the splash pan install kit from WW and I can't figure out how in the world this "bracket" is supposed to go. Anyone have good pics of it?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Emeritusx
Samba Member


Joined: June 20, 2008
Posts: 2775
Location: 12 inches behind the wheel
Emeritusx is offline

PostPosted: Fri Feb 26, 2010 5:38 pm    Post subject: Reply with quote

dreadnotmusic wrote:
The link above doesn't seem to work anymore.

I bought the splash pan install kit from WW and I can't figure out how in the world this "bracket" is supposed to go. Anyone have good pics of it?


Like this?
Image may have been reduced in size. Click image to view fullscreen.

_________________
82 Westy ☢, 66 Splitty ☮, 73 Type 181 ✠
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
dreadnotmusic
Samba Member


Joined: March 04, 2003
Posts: 880
Location: Guam, USA
dreadnotmusic is offline

PostPosted: Fri Feb 26, 2010 5:48 pm    Post subject: Reply with quote

I got that far, and it's actually installed already. I have these two small brackets from the WW kit left over. The are angled as if they go in the corner in between the splash pan and body.

Also, is there supposed to be a bit of weight on the corner body bolts? I had to pull the corners of the bumper up a bit to get the bolts started. I don't want to stress the holes in the body.

Edit.....Mink, if I read you correctly you mean it goes on the inside of the body, effectively strengthening the mounting area?
_________________
66 Riviera
Back to top
View user's profile Send private message Gallery Classifieds Feedback
///Mink
Samba Member


Joined: May 03, 2000
Posts: 5051
Location: Fair Oaks, CA
///Mink is offline

PostPosted: Fri Feb 26, 2010 5:54 pm    Post subject: Reply with quote

dreadnotmusic wrote:

Edit.....Mink, if I read you correctly you mean it goes on the inside of the body, effectively strengthening the mounting area?


Yep, from the M8 bolt down to the smaller one at the very bottom of the corner. Kind of hard to explain, but pretty obvious if you look inside the corner.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dreadnotmusic
Samba Member


Joined: March 04, 2003
Posts: 880
Location: Guam, USA
dreadnotmusic is offline

PostPosted: Fri Feb 26, 2010 5:56 pm    Post subject: Reply with quote

I get it now...and you're right. It's pretty obvious Shocked

Thanks much.
_________________
66 Riviera
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71452
Location: Phoenix 602
EverettB is offline

PostPosted: Fri Feb 26, 2010 11:16 pm    Post subject: Reply with quote

Clara wrote:
Here's the diagram from the 64 ed parts list, courtesy of the OACDP:
http://oacdp.freeweb7.com/5867part/349.png

#49 in diagram

New link
http://oacdp.com/5867part/349.png

Quote:
Also, is there supposed to be a bit of weight on the corner body bolts? I had to pull the corners of the bumper up a bit to get the bolts started. I don't want to stress the holes in the body.

Yes, you may have to push up on the bumper to get it to line up.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
mstephens28
Samba Member


Joined: September 28, 2013
Posts: 49
Location: Bakersfield, CA
mstephens28 is offline

PostPosted: Sat Feb 21, 2015 3:49 pm    Post subject: Reply with quote

Does anyone know what the small, round seals that come in the WW splas pan kit are for? They look like the could fit in the smaller, bottom hole in the reinforcement bracket, but of course there is a bolt that goes there. I'm stumped.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71452
Location: Phoenix 602
EverettB is offline

PostPosted: Sat Feb 21, 2015 6:06 pm    Post subject: Reply with quote

From this guy EverettB in another thread:
EverettB wrote:
busmike wrote:

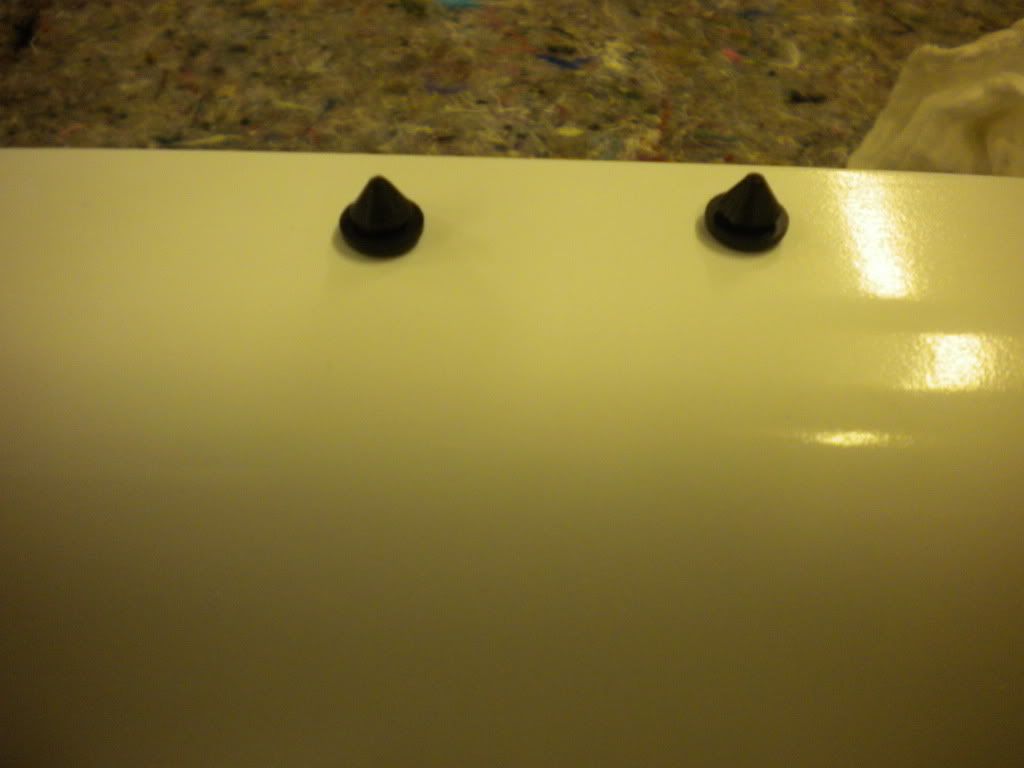

I put splash pans on my bumper using a WW bolt kit .Where do these rubber bumpers go.
Image may have been reduced in size. Click image to view fullscreen.


Bottom of the rear corners:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=753781
Image may have been reduced in size. Click image to view fullscreen.

_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
mstephens28
Samba Member


Joined: September 28, 2013
Posts: 49
Location: Bakersfield, CA
mstephens28 is offline

PostPosted: Sat Feb 21, 2015 10:29 pm    Post subject: Reply with quote

Got it, thanks!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ollie W
Samba Member


Joined: May 20, 2004
Posts: 842
Location: Portland, OR
Ollie W is offline

PostPosted: Fri Sep 13, 2024 5:58 pm    Post subject: Re: Rear bumper, splash pan and plates. Reply with quote

This is funny, I was just searching for a topic on how the whole rear bumper goes together as I'm putting my new 67 DC back together and I find that it's a thread I started the last time I didn't know what I was doing!
