ZsZ
Samba Member
Joined: December 11, 2010
Posts: 1733
Location: Budapest Hungary, Europe
|
| Posted: Sun Mar 09, 2025 7:54 am Post subject: Re: Gauges - Post Pics! |
|
|
Added coolant temp, oil temp and oil pressure gauges.

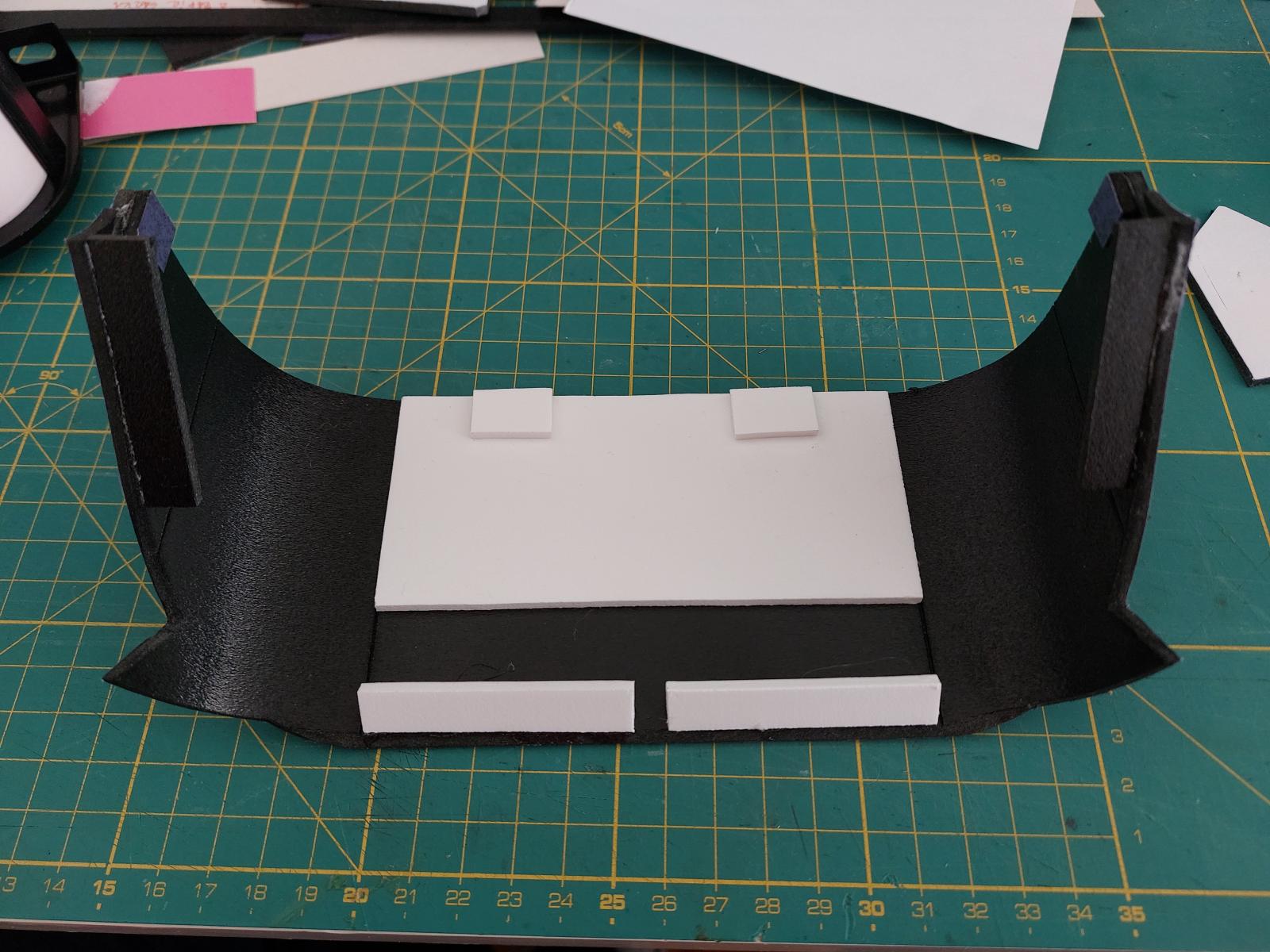

The gauge holder was part of the kit (you can buy them separately) But had to design and make a cover for the side.
Modelled in 3D, unfolded the surface to have a cut sheet and cut and glued the cover.
Will share the 3D model just have to clean it up.

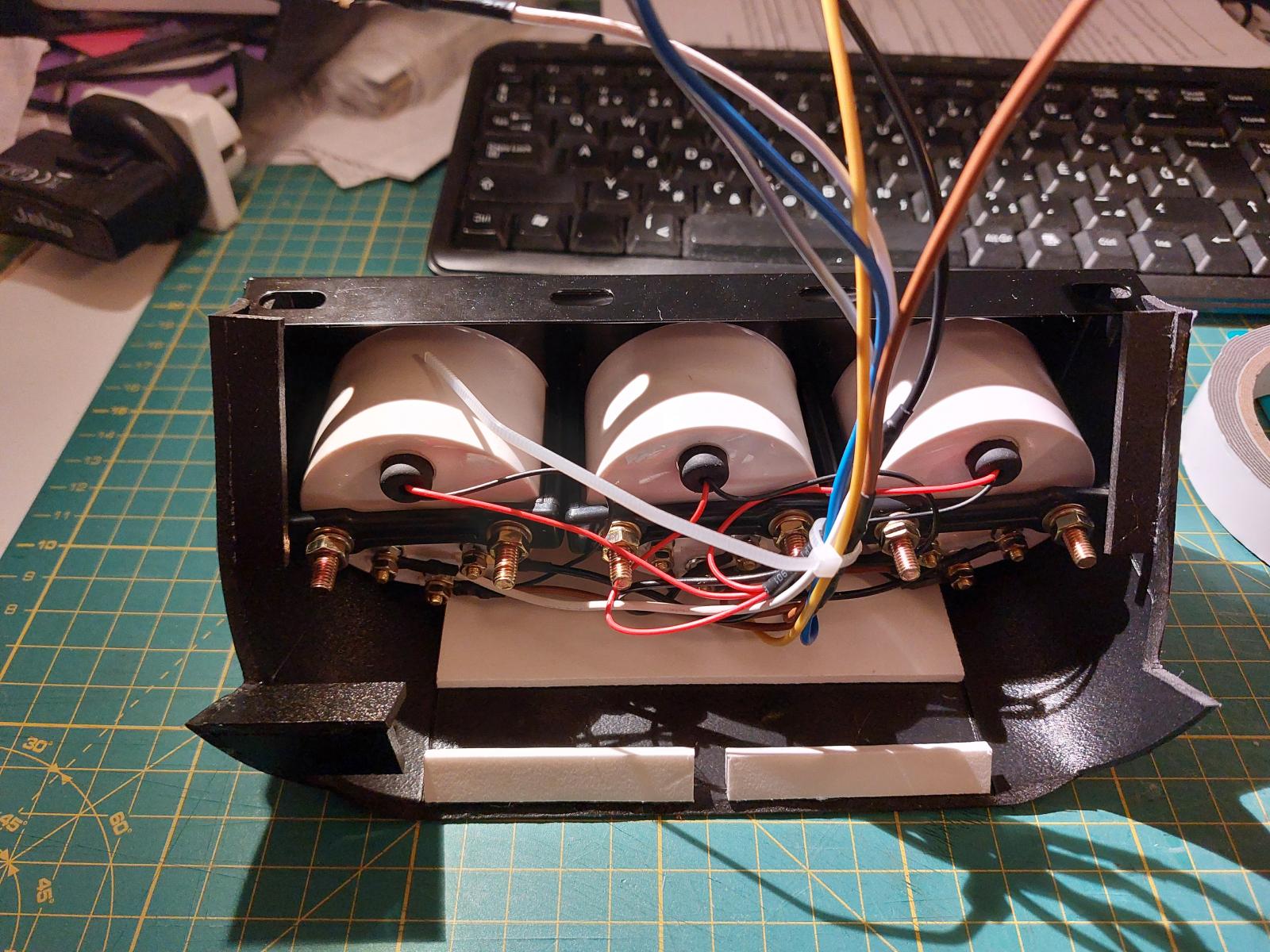

Still need to wire them up, but already installed the sensors.
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008 |
|
| Back to top |
|
|
uberaudi
Samba Member
Joined: June 24, 2013
Posts: 620
Location: Hi-top Country
|
| Posted: Sun Mar 09, 2025 8:53 am Post subject: Re: Gauges - Post Pics! |
|
|
Well done! Looks close to a factory piece now..much like a Syncro console.
_________________
'84 Adventurewagen 1Z TDI, '08 Audi Avant Quattro 6spd BHW TDI |
|
| Back to top |
|
|
ZsZ
Samba Member
Joined: December 11, 2010
Posts: 1733
Location: Budapest Hungary, Europe
|
| Posted: Sun Mar 09, 2025 11:01 am Post subject: Re: Gauges - Post Pics! |
|
|
Thanks!
Here is the 3D model:
https://www.thingiverse.com/thing:6973989
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008 |
|
| Back to top |
|
|
drj434343
Samba Member
Joined: January 31, 2016
Posts: 453
Location: Portland, OR
|
| Posted: Sun Mar 09, 2025 3:00 pm Post subject: Re: Gauges - Post Pics! |
|
|
Here's my contribution:
Typical Speed Hut gauge replacement, but with a center screen that gives lean angle, outside temp and humidity, low coolant, and check engine. The rest of the idiot lights from the center section transfer over to the gauges (coolant temp, voltage, oil pressure, low fuel, turn signal, and high beam indicators. |
|
| Back to top |
|
|
uberaudi
Samba Member
Joined: June 24, 2013
Posts: 620
Location: Hi-top Country
|
| Posted: Sun Mar 09, 2025 8:40 pm Post subject: Re: Gauges - Post Pics! |
|
|
That is rad! Did you create that center piece? Love the tilt angles...that would be so nice to level a camp spot!
_________________
'84 Adventurewagen 1Z TDI, '08 Audi Avant Quattro 6spd BHW TDI |
|
| Back to top |
|
|
drj434343
Samba Member
Joined: January 31, 2016
Posts: 453
Location: Portland, OR
|
| Posted: Sun Mar 09, 2025 9:03 pm Post subject: Re: Gauges - Post Pics! |
|
|
| uberaudi wrote: |
| That is rad! Did you create that center piece? Love the tilt angles...that would be so nice to level a camp spot! |
I gutted the center lights and added an Arduino/screen combo that has a sensor board with tilt and a thermometer probe. It is definitely used for campsite leveling. |
|
| Back to top |
|
|
|
