 Posted: Wed Apr 23, 2025 5:59 pm Post subject: Wiper Arms for 72 |
 |
|
Hi,
I'm new to the VW world and recently purchased an abandoned father son project, a 72 square back. Build date in Nov. of 71.
One of the parts missing are the wiper arms. I referenced this thread:
https://www.thesamba.com/vw/forum/viewtopic.php?t=648259&highlight=wiper+arm and bought part #311 955 407 D.

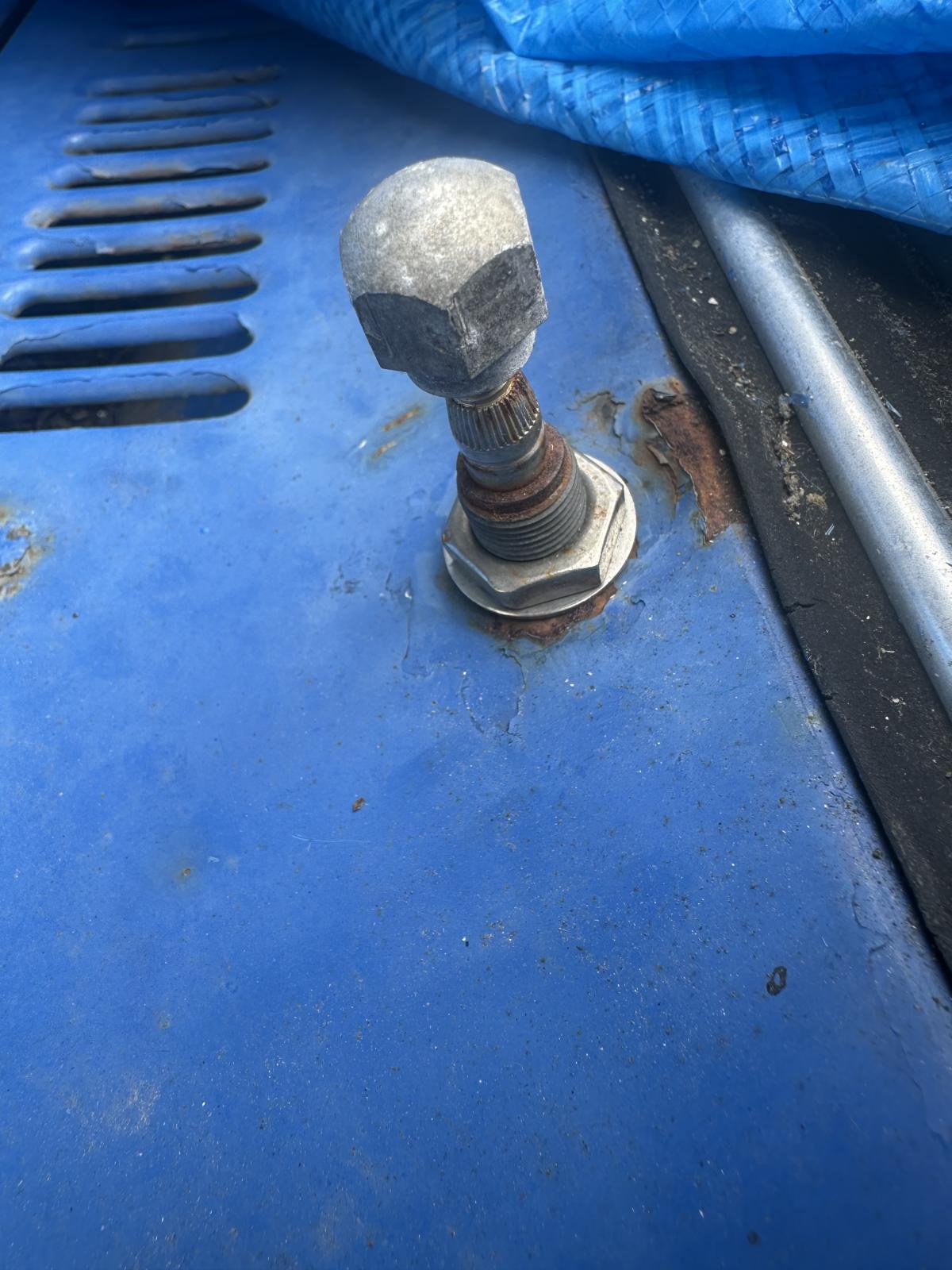

Unfortunately that is the wrong part, or my car has different arm mounts. This is what the mounts on my car look like:
What would be the part number or a reasonable facsimile be for this?
Thanks |
|
| Back to top |
|
 |
Pelle
Samba Member
Joined: February 07, 2004
Posts: 214
Location: Sweden
|
| Posted: Thu Apr 24, 2025 4:46 am Post subject: Re: Wiper Arms for 72 |
|
|
The part number is correct. They should look like these https://www.ebay.co.uk/itm/362175223934
New wiper arms are smooth inside the mounting hole. The get "splined" when installaled the first time. |
|
| Back to top |
|
|
Type3Todd
Samba Member
Joined: April 18, 2025
Posts: 21
Location: Richmond, BC, Canada
|
| Posted: Thu Apr 24, 2025 7:01 am Post subject: Re: Wiper Arms for 72 |
|
|
Thanks for your reply.

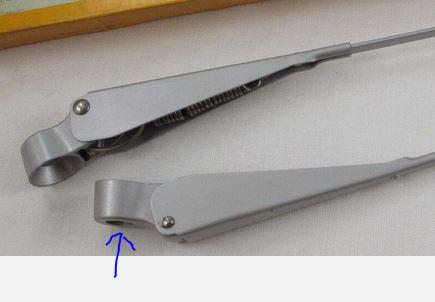

That image isn't what I received, the arms I have don't have the hole in the top of the mounting point as shown below:
|
|
| Back to top |
|
|
Type3Todd
Samba Member
Joined: April 18, 2025
Posts: 21
Location: Richmond, BC, Canada
|
| Posted: Thu Apr 24, 2025 7:45 pm Post subject: Re: Wiper Arms for 72 |
|
|
I guess I'm going to have to return the ones I got.
Is there any beetle wiper arms that will fit on a 72 type 3, or a close approximation? I'm not looking for originality, but want this car to be a daily drive so need to be able to drive in the rain. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Fri Apr 25, 2025 12:40 pm Post subject: Re: Wiper Arms for 72 |
|
|
I'd look in the Samba classifieds for them. Look for 71-73 as they should be the same. 70 was the first year for that mounting style, but they are set up backwards for the 71-73 (the 70 arms are one year only and park on the same side as the 61-69's, on the left side). I hope this helps.
P.S. Beetle arms are too short, same with super beetle and Karmann Ghia arms.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Type3Todd
Samba Member
Joined: April 18, 2025
Posts: 21
Location: Richmond, BC, Canada
|
| Posted: Sat Apr 26, 2025 8:21 am Post subject: Re: Wiper Arms for 72 |
|
|
Thanks for your help.
The reason I'm asking about a facsimile is that I'm up in the west coast of Canada. There is only one vendor up here who sells parts for Type 3 so ordering that part number will probably get me the same incorrect part. Shipping and broker fees will make it expensive to get from the US (and maybe tariffs depending on the day of the week  )
I'm going to try to source some used locally first. If not then I might have to bite the bullet and order a used one from one of the vendors advertising here. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Sat Apr 26, 2025 1:51 pm Post subject: Re: Wiper Arms for 72 |
|
|
| Type3Todd wrote: |
Thanks for your help.
The reason I'm asking about a facsimile is that I'm up in the west coast of Canada. There is only one vendor up here who sells parts for Type 3 so ordering that part number will probably get me the same incorrect part. Shipping and broker fees will make it expensive to get from the US (and maybe tariffs depending on the day of the week )
I'm going to try to source some used locally first. If not then I might have to bite the bullet and order a used one from one of the vendors advertising here. |
You might want to try a junkyard or two in your area. Maybe a good semi-complete rusty car might have them. Like I said, 71 thru 73 are the same, and park on the right side.
I think Nate modified a set of bay bus wiper arms for his Squareback years ago, but I don't know how he modified them. Just a thought.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Type3Todd
Samba Member
Joined: April 18, 2025
Posts: 21
Location: Richmond, BC, Canada
|
| Posted: Mon Apr 28, 2025 4:14 pm Post subject: Re: Wiper Arms for 72 |
|
|
| Bobnotch wrote: |
I think Nate modified a set of bay bus wiper arms for his Squareback years ago, but I don't know how he modified them. Just a thought. |
Do you know what Nate's user name is? I can search for his threads to see if he described what he did.
A thought I had was to get some a bit longer than I need and cut them to length then weld them back together to get the right length. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Tue Apr 29, 2025 12:49 pm Post subject: Re: Wiper Arms for 72 |
|
|
| Type3Todd wrote: |
| Bobnotch wrote: |
I think Nate modified a set of bay bus wiper arms for his Squareback years ago, but I don't know how he modified them. Just a thought. |
Do you know what Nate's user name is? I can search for his threads to see if he described what he did.
A thought I had was to get some a bit longer than I need and cut them to length then weld them back together to get the right length. |
Not right off hand. Everyone here called him Nate, even on Shop Talk Forums. He owned a VW Porsche repair shop in northern Washington. You might try looking up his Squareback build on here, as he put a modified 914 front end under it, along with a custom large fuel tank, a 5 speed Porsche transaxle, and a 2700cc Porsche engine into it (a large t-4 engine). His thing was to take it hill climbing, race it against the clock, and took it to Bonneville to see what kind of time he could get out of it. He had a lot of fun building it, before he closed his shop and retired.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18041
Location: Eugene, OR
|
| Posted: Tue Apr 29, 2025 2:59 pm Post subject: Re: Wiper Arms for 72 |
|
|
I think they all take 13" blades.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Fri May 02, 2025 12:28 pm Post subject: Re: Wiper Arms for 72 |
|
|
| Mike Fisher wrote: |
| I think they all take 13" blades. |
The later cars (71-73) used 15 inch blades, because they parked on the opposite side. Don't you still have a couple of late model parts cars Mike?
