56/58 steering column , steering lock hole

[splitpartsunlimited]

Hi ! Anybody knows the exact dimension where the steering lock hole should be made on the steering column ??

Thank you very much in advance !
_________________
in my Garage:

1951 crotch cooler split
1958 convertible
1971 1302 convertible
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring

[AlteWagen]

Did big window cars still use the early style steering lock? I have a 60 euro steering lock and tube I could measure but its the later slab style not the early tube type.
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet

[splitpartsunlimited]

We have up to 1961 bugs with that lock here , 58’s looks to be transition cars , oval style steering wheel and column , new dash …
_________________
in my Garage:

1951 crotch cooler split
1958 convertible
1971 1302 convertible
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring

[wagen19]

[AlteWagen]

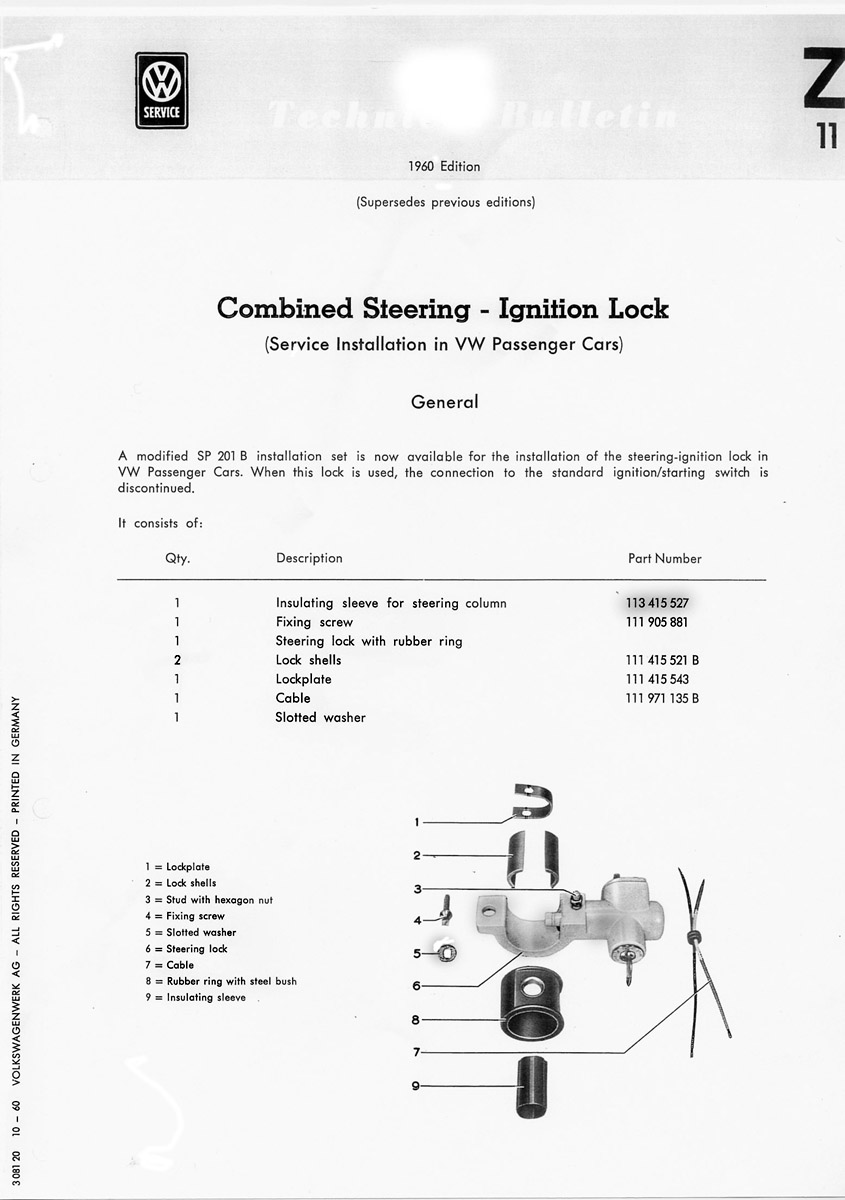

I think this means 58 model year up uses the SP 201C

Here is a pic of the oval version with the integrated start button

This looks like a transitional or replacement part with no button for starter and looks shorter to fit the square dash better

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet

[RUNKLE]

.

[AlteWagen]

For domestic vehicles, what year did steering locks become mandatory? Im guessing that it was part of an option package based on destination. For these factory installed locks (no hole in dash for ignition switch?) when did they change styles?
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet

[splitjunkie]

It was '68 in the US. This coincided with the collapsible steering column and the ignition was integral with the upper part of the steering column assembly. Before that it was a replacement for the steering column mounting bracket.
_________________
Chris

You know, a lot of these scratches will buff right out... Jerry Seinfeld

[AlteWagen]

sorry, by domestic i meant german market which required the steering lock at some point. maybe some other euro market also required it and was included in that specific m-code.

Ive had two euro type I, a 62 and my current 60. both had steering locks from the factory with no dash switch hole. not sure but did euro ovals have the hole in the dash for the switch? Ive also wondered about the shifter lock with integral ignition switch but that was later cars i believe.

All the literature around is for service install, the fact there is an m code for the lock means they were factory installed. Same for type II, factory installs had different dash setup (missing welded nut).

edit: looks like 7/61 germany required column locks, belgium 5/61. early part number for steering lock 111905851, accessory number SP201A for the long tube version.
