 Posted: Wed Jul 02, 2025 8:00 pm Post subject: Grub Screw for Sliding Door Lock |
 |
|
Does anyone know where to get a grub screw for a 1984 VW vanagon sliding door handle lock. My mechanic took my handles off to powder coat then. He remove the lock and when reinstalling the lock into the sliding door handle he broke the grub screw. Apparently it is NLA. The part number is n0130411. It is 2.6mm x 5mm and has a slot in the top for a blade screw driver. I would like to be able to use my existing lock so I can have only one key to for all the locks on the van.
The broken grub screw looks like this:
_________________
1984 Westy Wolfsburg, owned since 1987. FAS 2.0 NA engine conversion in 2022. |
|
jimf909
Samba Member
Joined: April 03, 2014
Posts: 8164
Location: WA/ID
|
| Posted: Thu Jul 03, 2025 12:53 pm Post subject: Re: Grub Screw for Sliding Door Lock |
|
|
2.6mm is a bit of an oddball where 2.5mm is standard. If it's indeed 2.6mm that limits availability.
Some local hardware stores may carry these small screws. A rural hardware store with a firearm hardware section is the best bet (they've got all kinds of small screws!).
Since they're probably the same pitch, I'd see if I can find a 2.5mmx.45 screw and try wrapping it in teflon tape to see if that fits.
Of course, all the options below require buying in quantity.
2.6mm x .45 screws at McMaster-Carr, the screw head will need to be removed and a slot added:
https://www.mcmaster.com/products/screws/length~5-mm/thread-size~m2-6/?s=metric+screws
2.5mmx.45 grub screws at McMaster-Carr
https://www.mcmaster.com/products/screws/length~5-...ric+screws
amazon lists all sorts of 2.5mmx.45 screws
https://www.amazon.com/s?k=Screws&i=industrial...bs_fst_scr

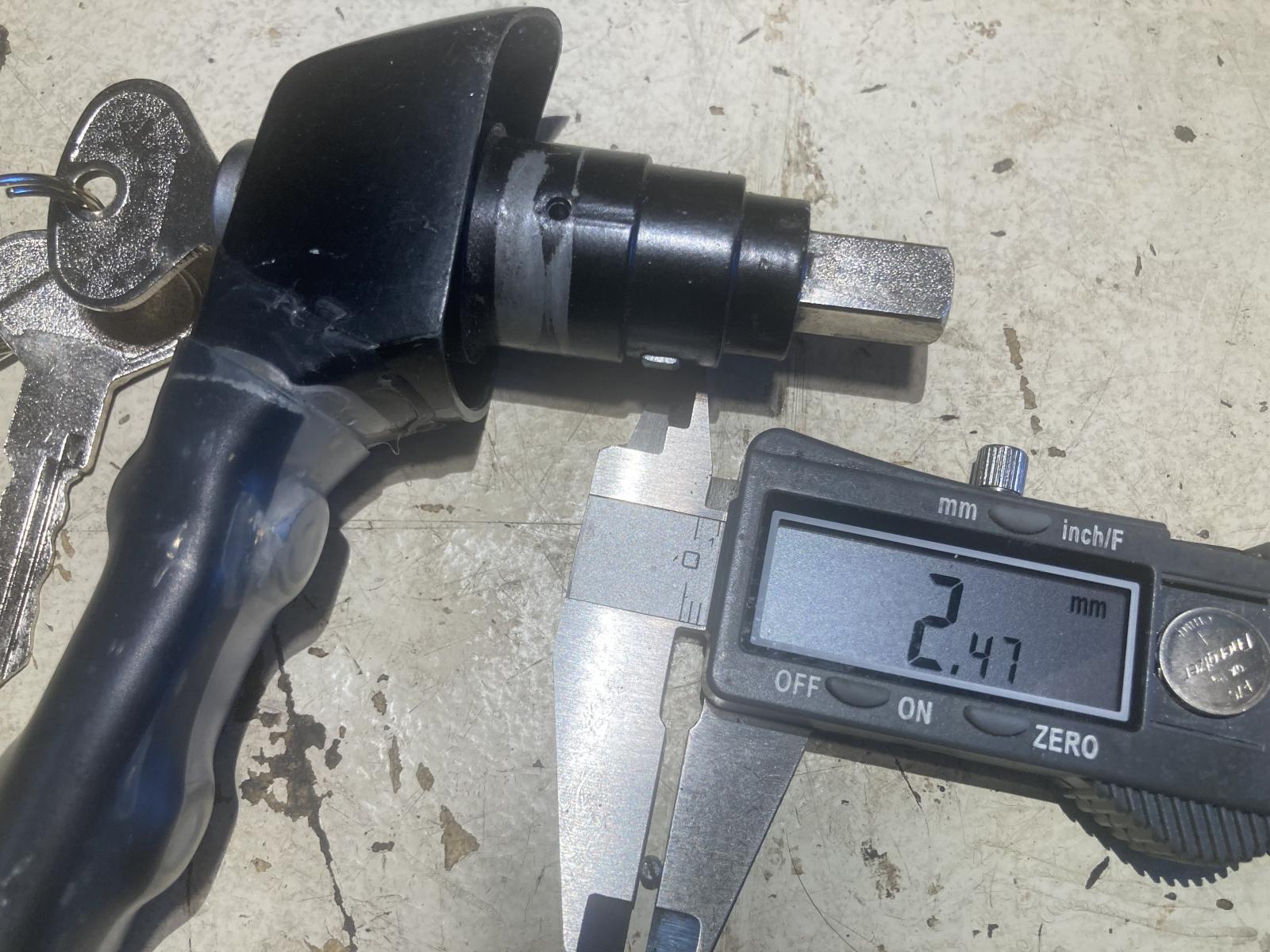

Edit: FWIW, I just measured mine from my '90 and it's 2.5mm. Also, these screws are held in place with a piece of goo from the factory. It's probably a good practice to do that on reassembly (versus over tightening).
_________________
- Jim
| Butcher wrote: |
| This is the main fault with DIY'ers, they get together on these forums and pat themselves on their backs spreading bad information. |
Guilty as charged.
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, 280 ah LFP battery, 160 watts solar, Flash Silver, seam rust, bondo, etc., etc.
Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro). |
|
Westified
Samba Member
Joined: May 01, 2012
Posts: 418
Location: Miami, FL
|
| Posted: Fri Jul 04, 2025 9:50 am Post subject: Re: Grub Screw for Sliding Door Lock |
|
|
Thank you for your response. The Carr-McMaster screws don’t have that little square end on them. Apparently I need that to seat properly and hold the lock in place. I believe my mechanic overtightened the screw and broke it. Very upsetting.
