PostPosted: Mon Jul 14, 2025 1:40 pm    Post subject: Re: The DUNGBTL Build Reply with quote
bruceo98 wrote:
I wish it was just a break. I’m thinking of writing a country song about my life lately. Radiation treatments, then finished that and got a kidney stone I still haven’t passed, my dog had a stroke, my painter had to get a gallbladder removal, so no help at the shop and my helpers daughter was pregnant and lost the baby the other day . All I need is to some way get a truck and train in there and I have the making of a hit country song. lol

So I been a lil bust needless to say .

Shocked
Don’t write that country song just yet…we’re wishing you a speedy recovery!

J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 504
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Mon Jul 14, 2025 4:41 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Drillium zurück in der Garage!

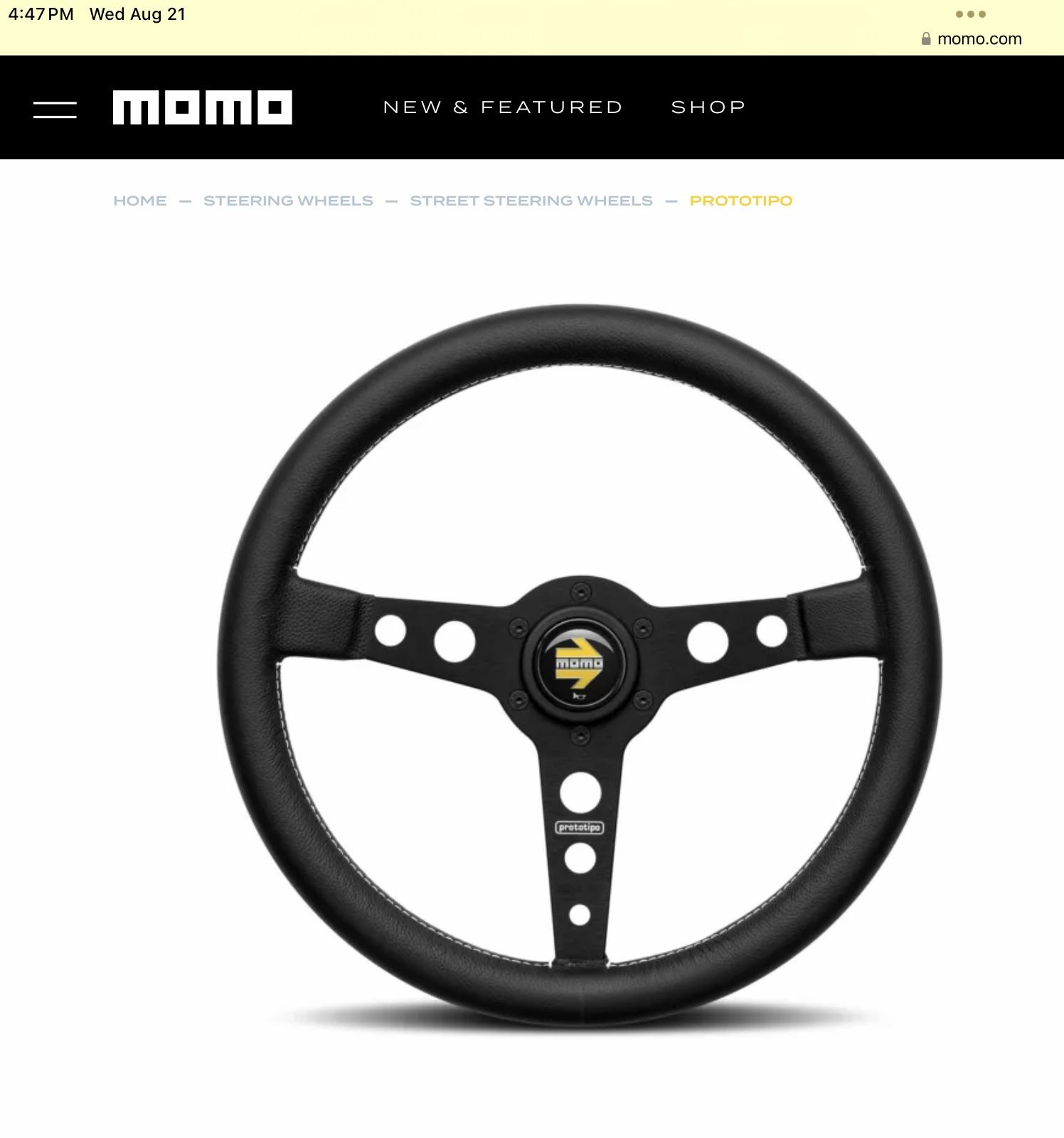

Continuing the drillium theme…
Image may have been reduced in size. Click image to view fullscreen.

…bonnet hinges…
Image may have been reduced in size. Click image to view fullscreen.

…strut tower truss brackets…
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

…roll cage rear diagonal attachments…
Image may have been reduced in size. Click image to view fullscreen.

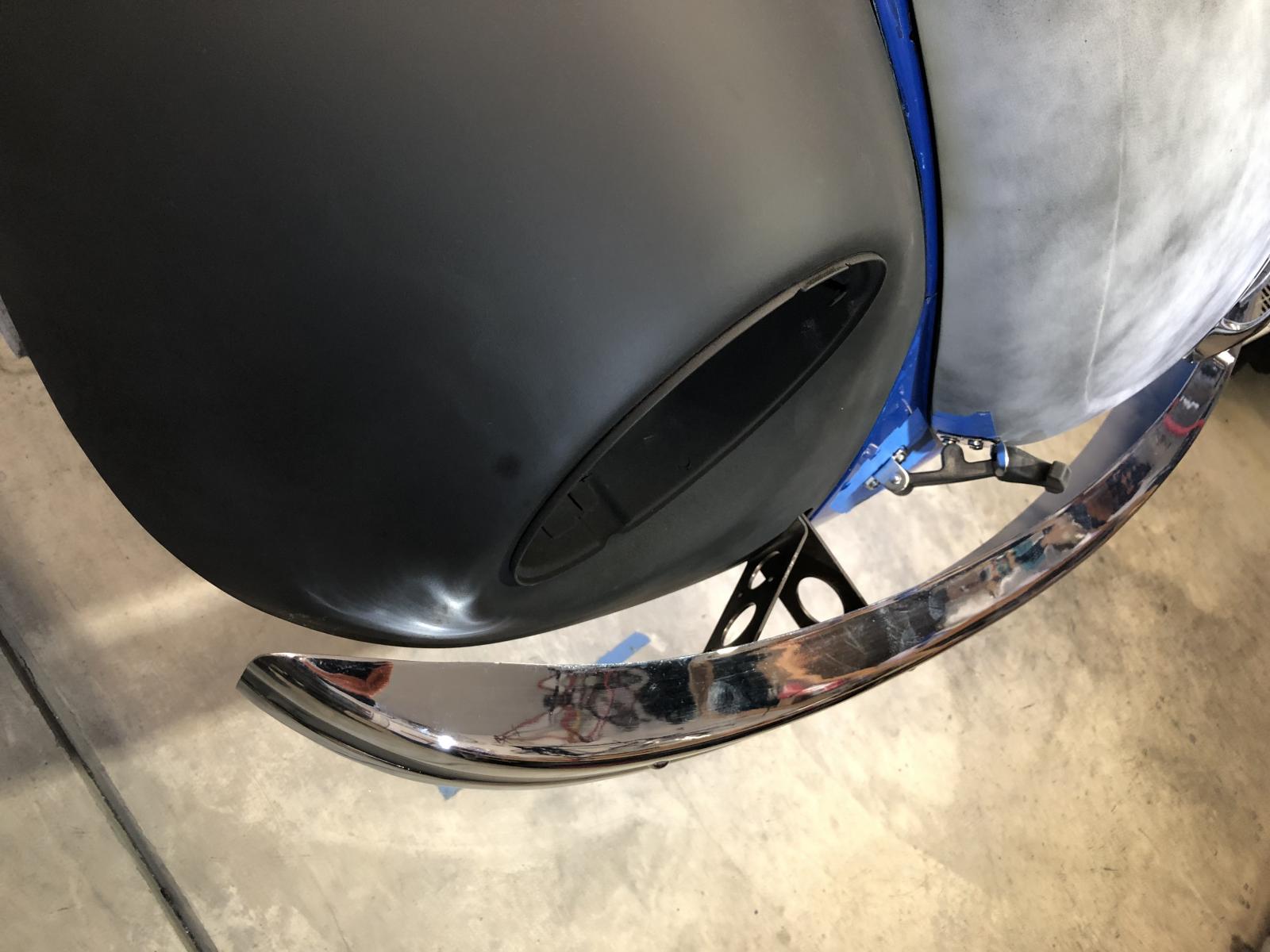

…bumper brackets…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

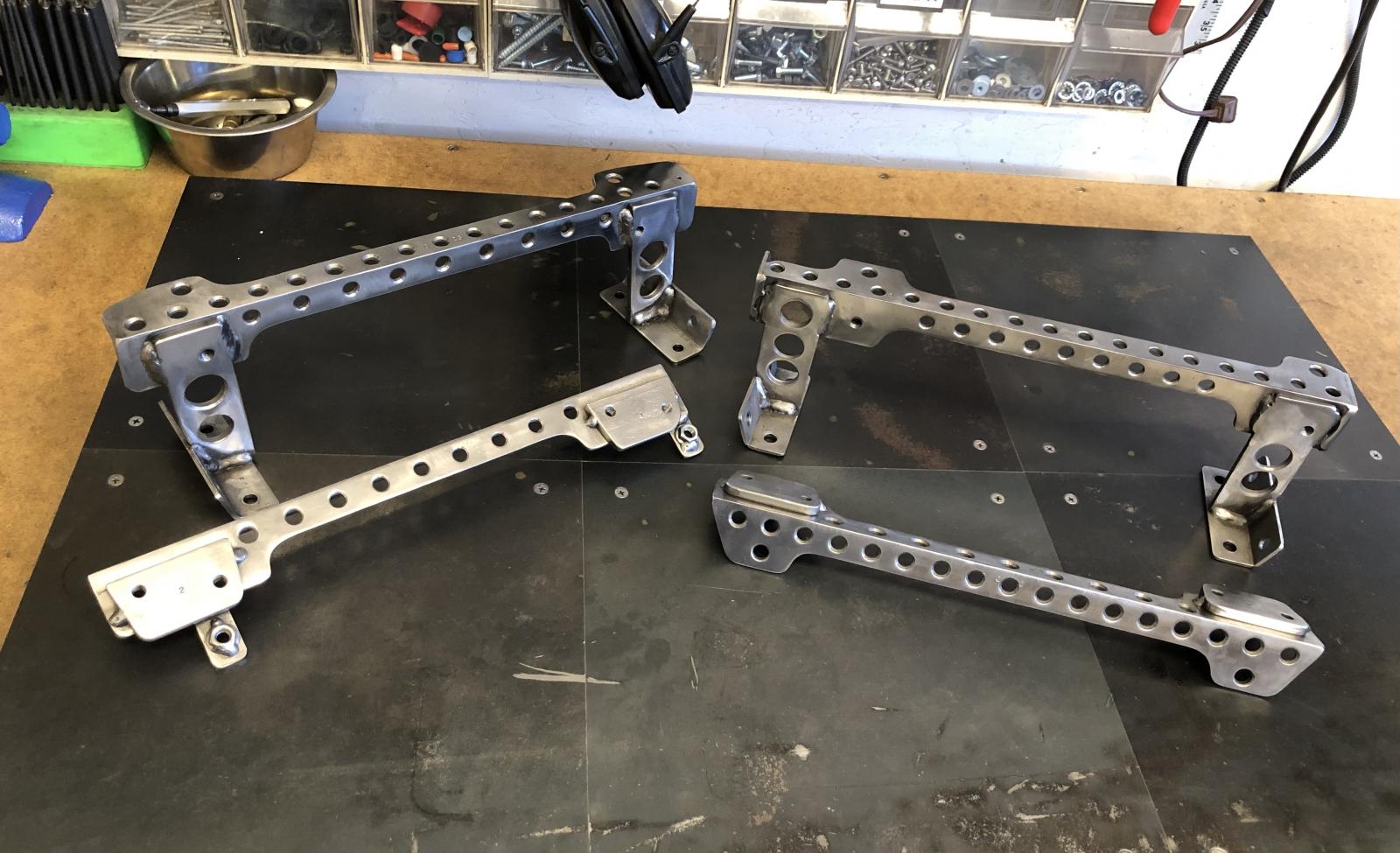

…and my custom seat brackets…
Image may have been reduced in size. Click image to view fullscreen.

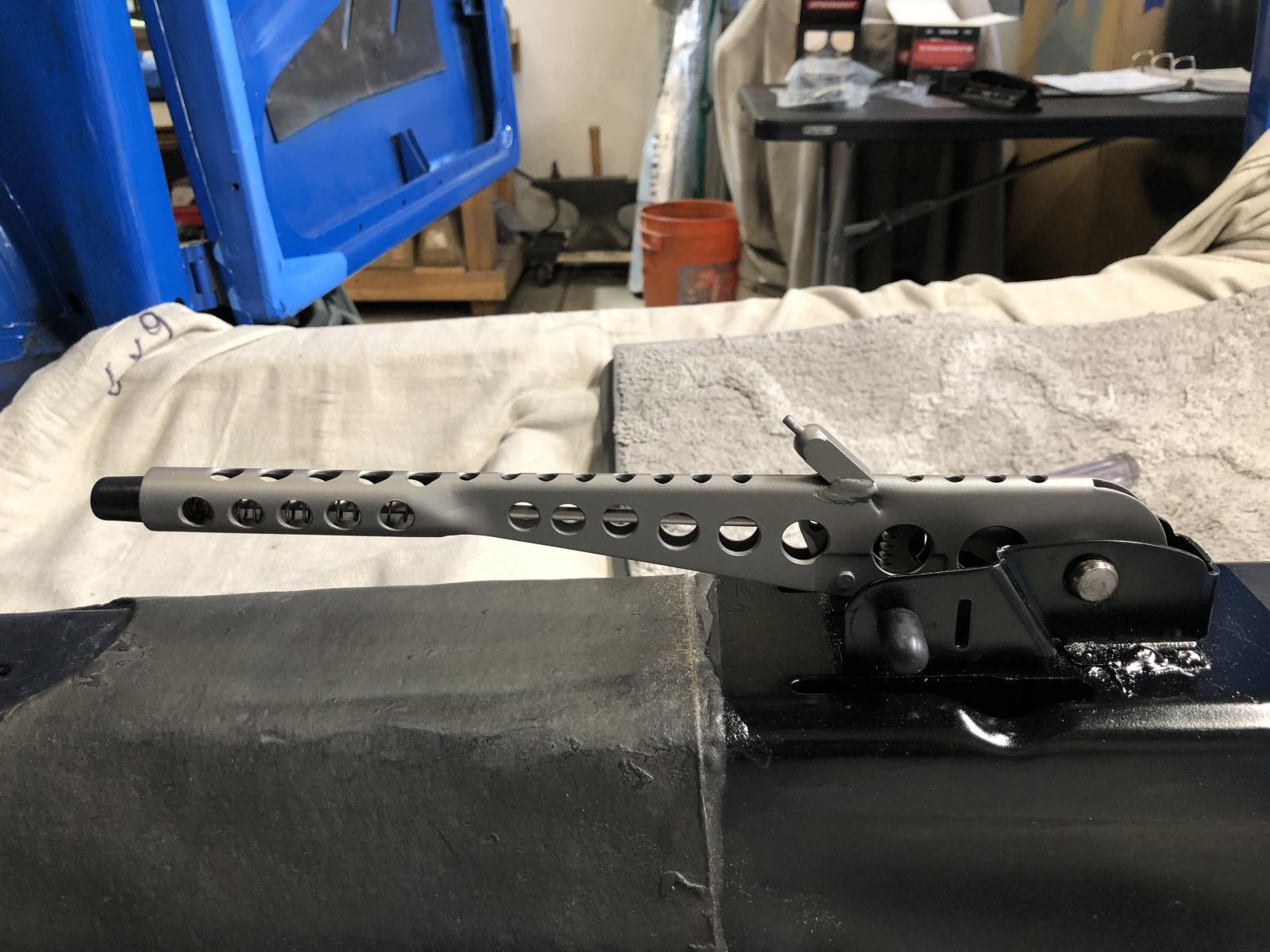

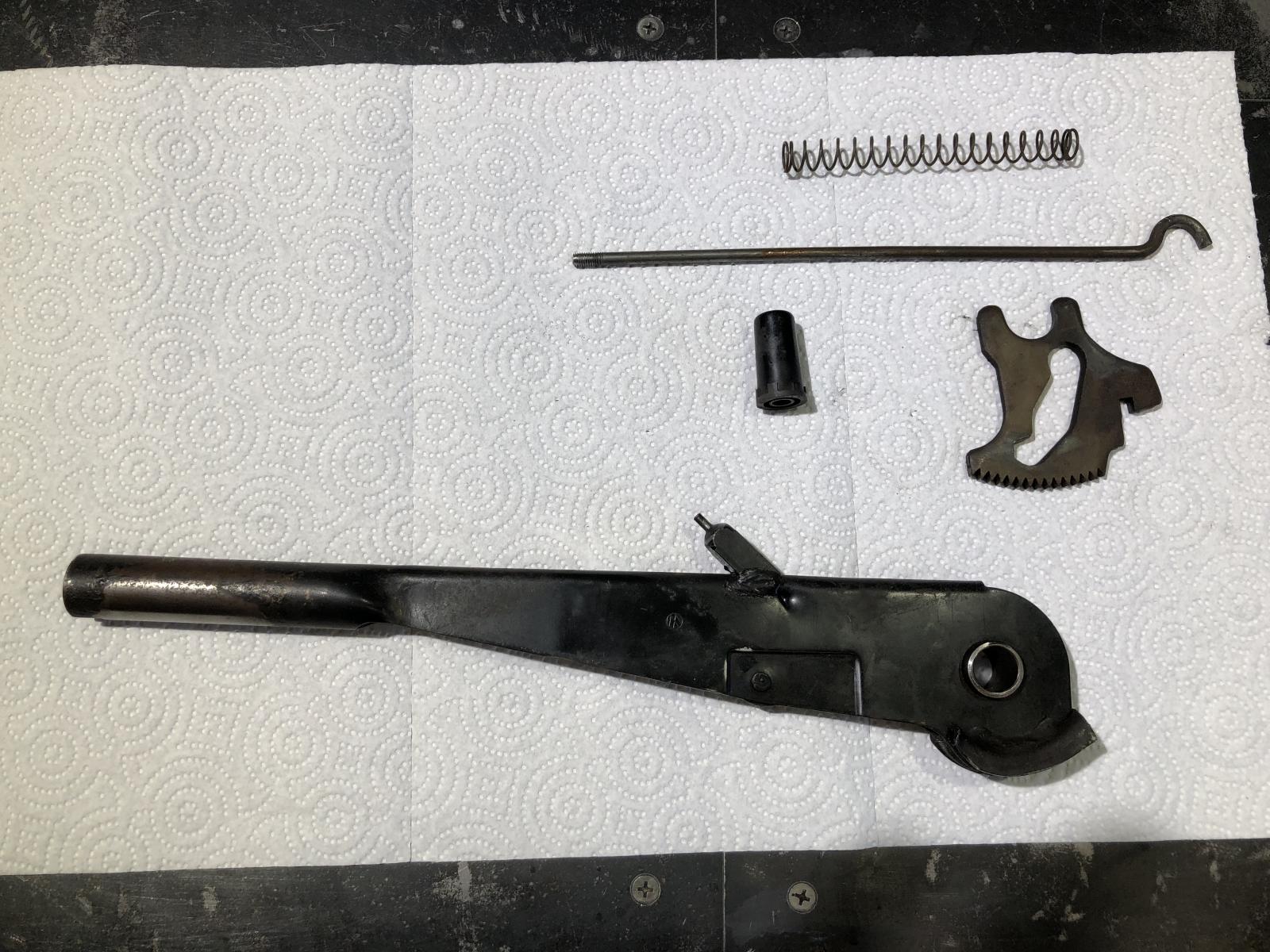

Embracing the spartan mechanical aesthetic…HOLY HANDBRAKE BATMAN!
Image may have been reduced in size. Click image to view fullscreen.

Shocked

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


I was hoping for a quarter pound reduction but will settle for an eighth…
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


I’m purposely not using the OEM rubber boot but rather letting all the mechanism and cabling hang out for all to see…so I tidied up the bracket w/some paint as it will be exposed, with carpet going around. Put some rubber caps on the heater levers studs because no heat.

Painted it the same color as the roll cage (Steel It grey)…should look great with the charcoal Perlon carpet on the tunnel. The release button’s color was inspired by the ignition switch…
Image may have been reduced in size. Click image to view fullscreen.

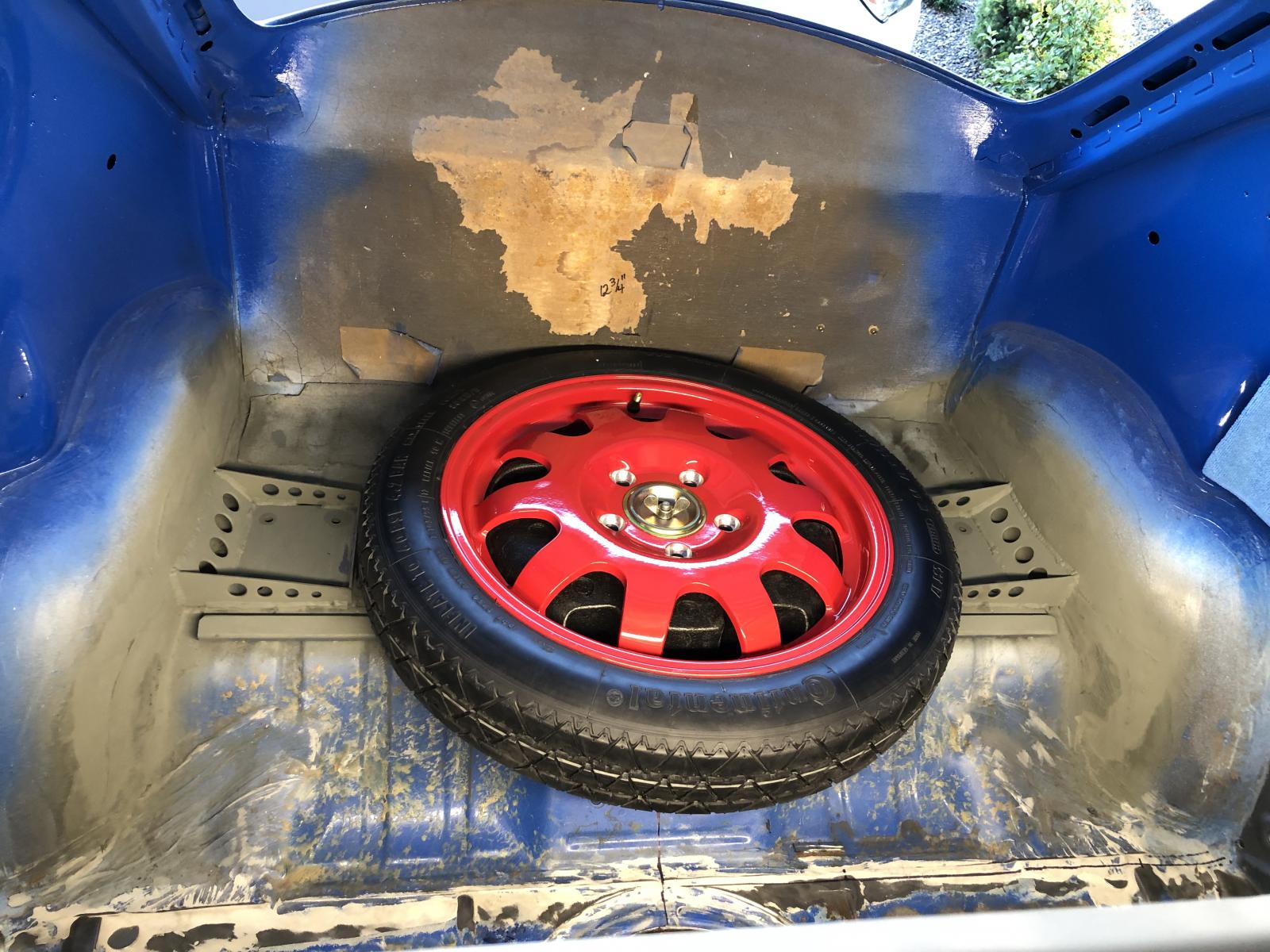

and Porsche spare…
Image may have been reduced in size. Click image to view fullscreen.


This was a fun little project while I waited for the rest of my gauges to arrive…they came today. I’ll have a post on the Speedhut gauge install soon!

Cheers,
J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
H2OSB
Samba Member


Joined: April 14, 2013
Posts: 1520
Location: Modesto, CA
H2OSB is offline
PostPosted: Mon Jul 14, 2025 8:35 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Adding lightness? Your car is going to float away. Laughing

H2OSB
_________________
(o\_i_/o) Funny thing about pigs, they're cleaner than you and me. Well....you.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EVfun Premium Member
Samba Member


Joined: April 01, 2012
Posts: 6131
Location: Seattle
EVfun is offline
PostPosted: Tue Jul 15, 2025 2:14 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Drillium is one of my favorite elements! Dancing
_________________
Wildthings wrote:
As a general rule, cheap parts are the most expensive parts you can buy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 661
Location: LA
bruceo98 is offline
PostPosted: Tue Jul 15, 2025 4:19 pm    Post subject: Re: The DUNGBTL Build Reply with quote
With all the paint work, you’re doing on the i interior you should paint the outside also. Do you think if you pull that emergency break odd enough it will bend with all the holes in it? Looks great btw
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 504
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Wed Jul 16, 2025 7:03 am    Post subject: Re: The DUNGBTL Build Reply with quote
H2OSB wrote:
Adding lightness? Your car is going to float away. Laughing

H2OSB

Very Happy “Float like a butterfly…sting like a bee!”

bruceo98 wrote:
With all the paint work, you’re doing on the i interior you should paint the outside also. Do you think if you pull that emergency break odd enough it will bend with all the holes in it? Looks great btw

Very Happy What and ruin all that cool patina! Wink

Back in black! The release button started looking weird to me in red after the fact…we’re back in black…
Image may have been reduced in size. Click image to view fullscreen.

…mo better.

No, I don’t think the ebrake handle will bend in normal use.

Thanks Bruce!
J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 504
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Wed Jul 16, 2025 10:26 am    Post subject: Re: The DUNGBTL Build Reply with quote

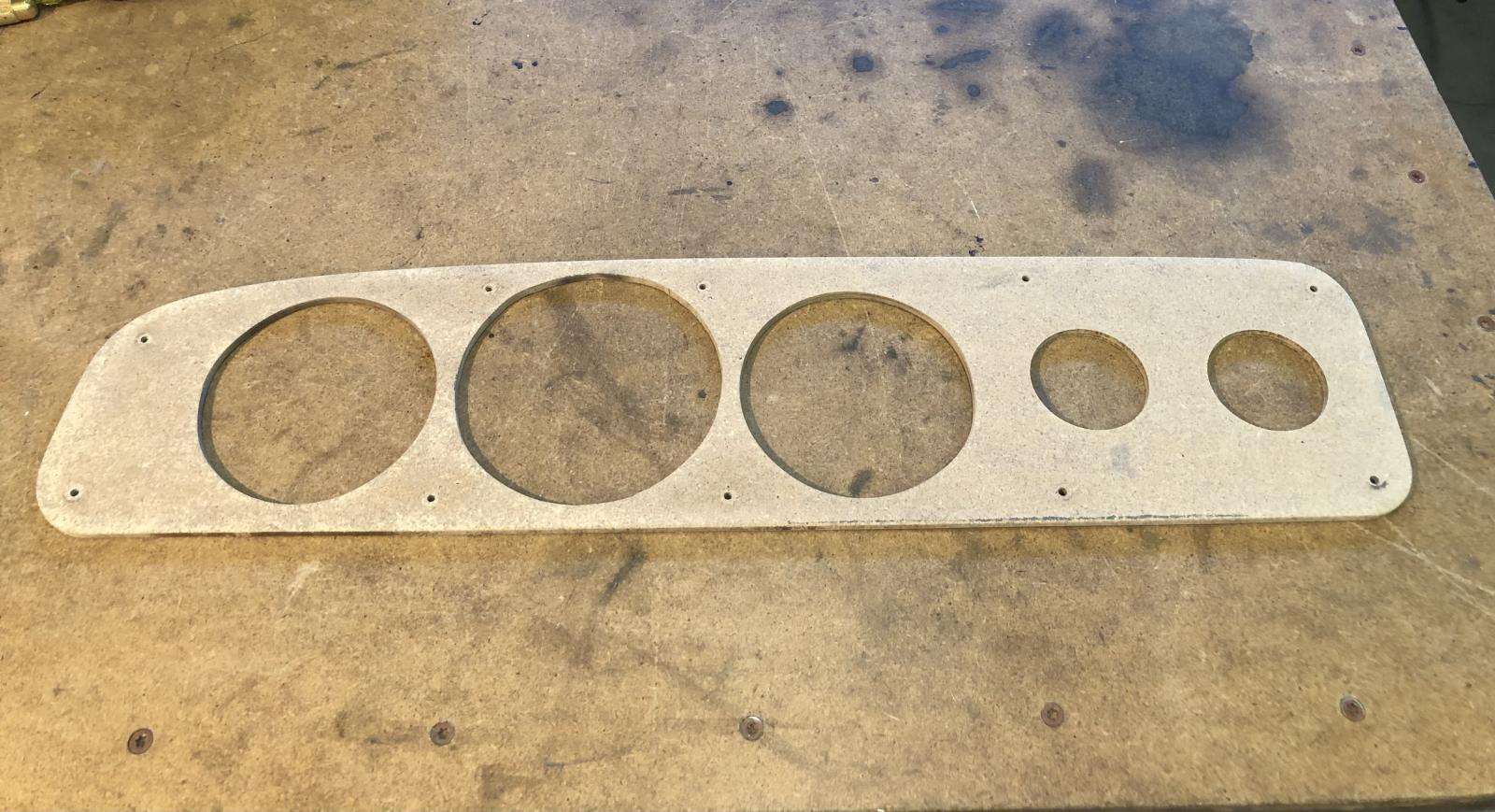

Finished the dash.

Originally I wanted to use vintage Porsche 911/914 ‘silver-dot’ gauges in my custom dash…
Image may have been reduced in size. Click image to view fullscreen.


However I decided that as cool as the old VDO clocks were, I didn’t want to restore AND modify them to function with the Subaru engine’s ECM and fart around trying to make a 50+ year old fuel gauge function properly. The speedo probably wouldn’t be much of an issue as I’m running ‘80’s 911 sized Carrera tires (16’s) which are very close to the rolling diameter of the stock SB tires.

All these adjustments can be made to the vintage VDO Porsche gauge from what I’ve read on the interwebs…I just didn’t want another hobby!

So I went with Speedhut gauges. Solid state, digital, LED gauges in the vintage Porsche 911/914 style. Lifetime warranty too. They weigh around half the weight (adding lightness) and about half the depth of the OEM Porsche units (leaves more space for wiring). Every gauge comes with simple clip in harnesses which makes install relatively easy.

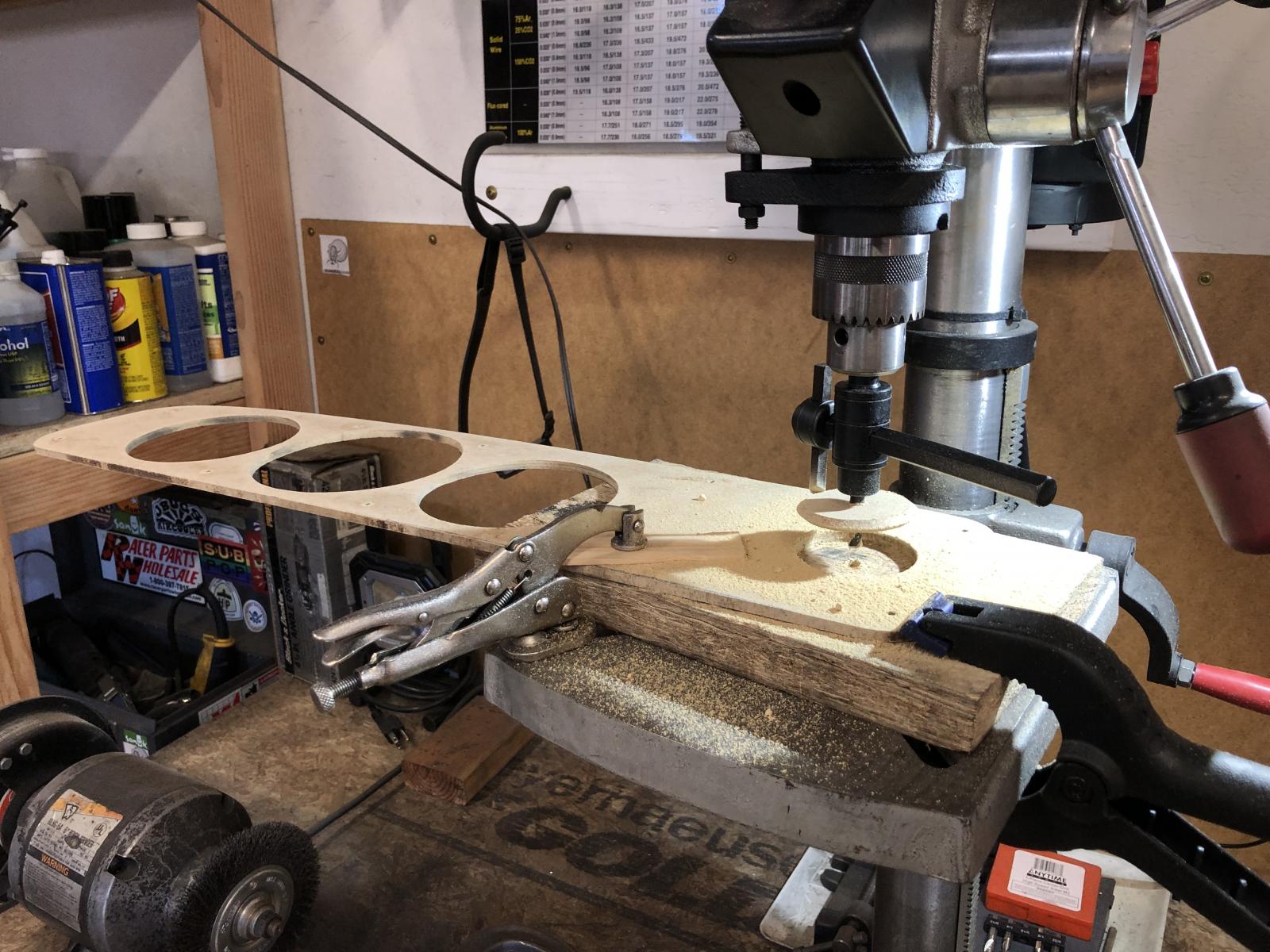

I used a 914 gauge binnacle behind my custom dash…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

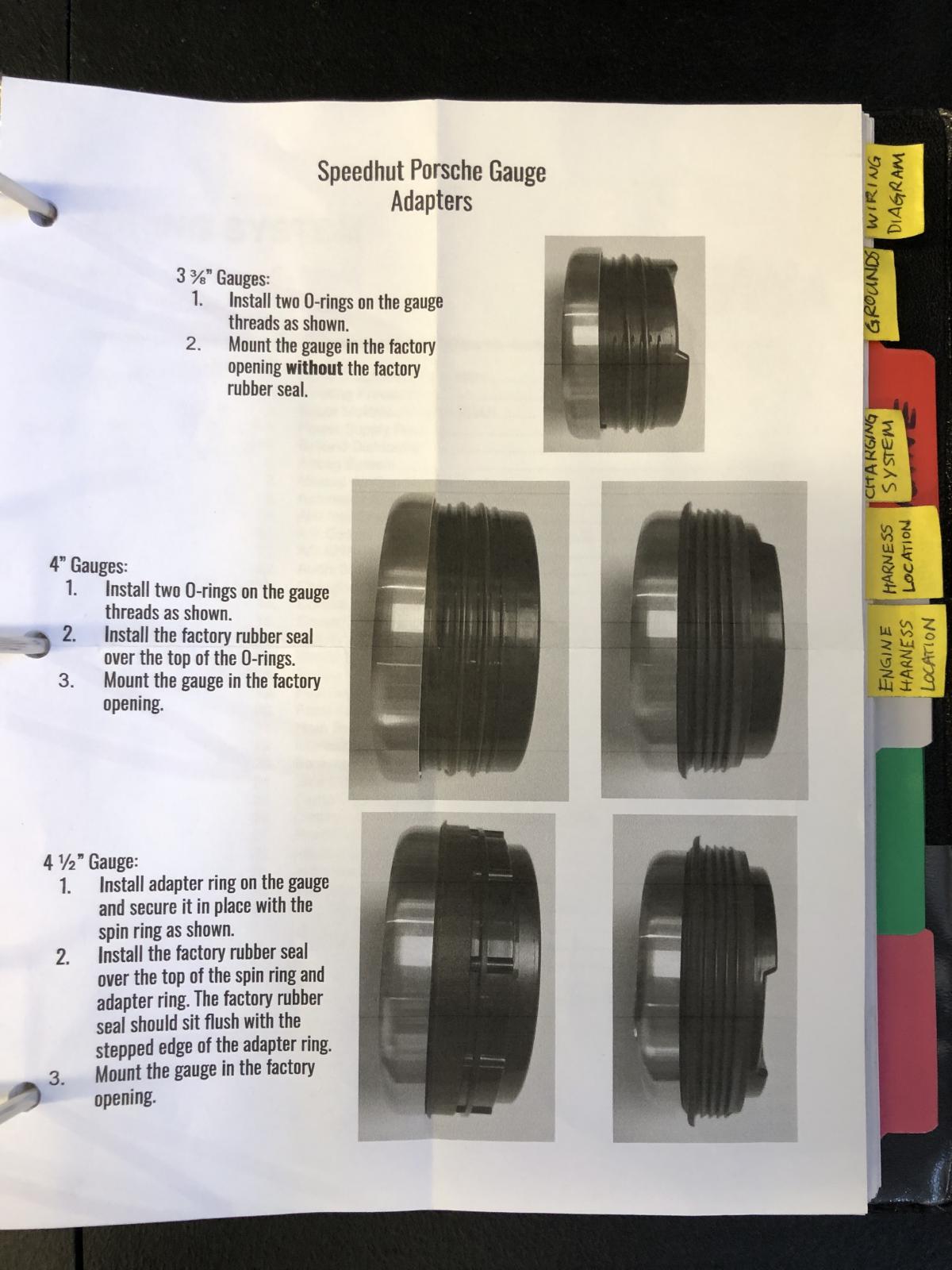

Speedhut makes adapters to fit their gauges in 911/914 style dashes…
Image may have been reduced in size. Click image to view fullscreen.

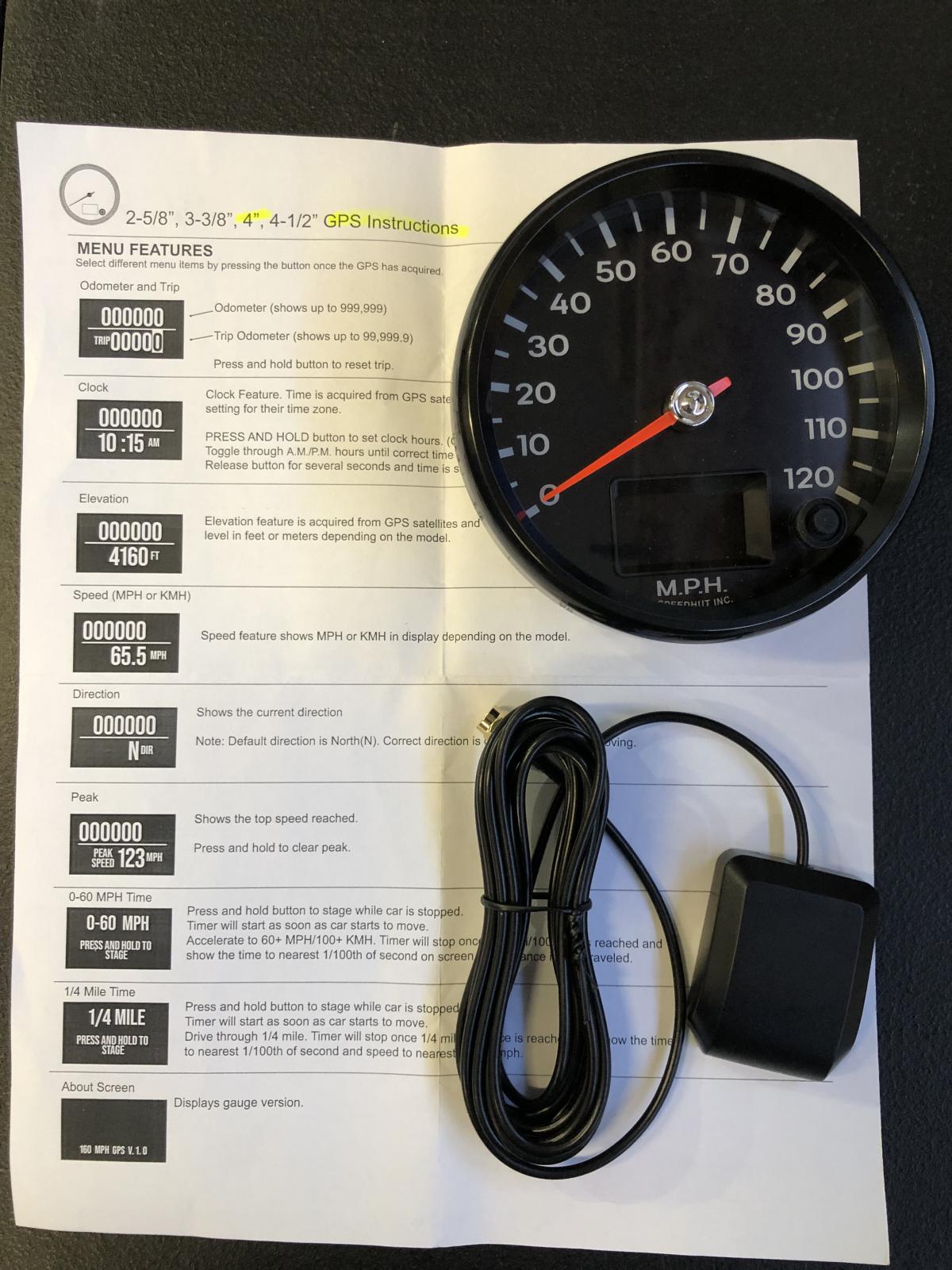

The speedometer is a GPS unit with many functions besides vehicle speed display…
Image may have been reduced in size. Click image to view fullscreen.
I’m looking fwd to doing some 0-60/quarter-mile runs with that function Very Happy

I mounted the GPS antenna on the cowl and made a custom grommet for the wire to the gauge and used the windshield squirter hole. “We don’t need no stink’n windshield squirter!”
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

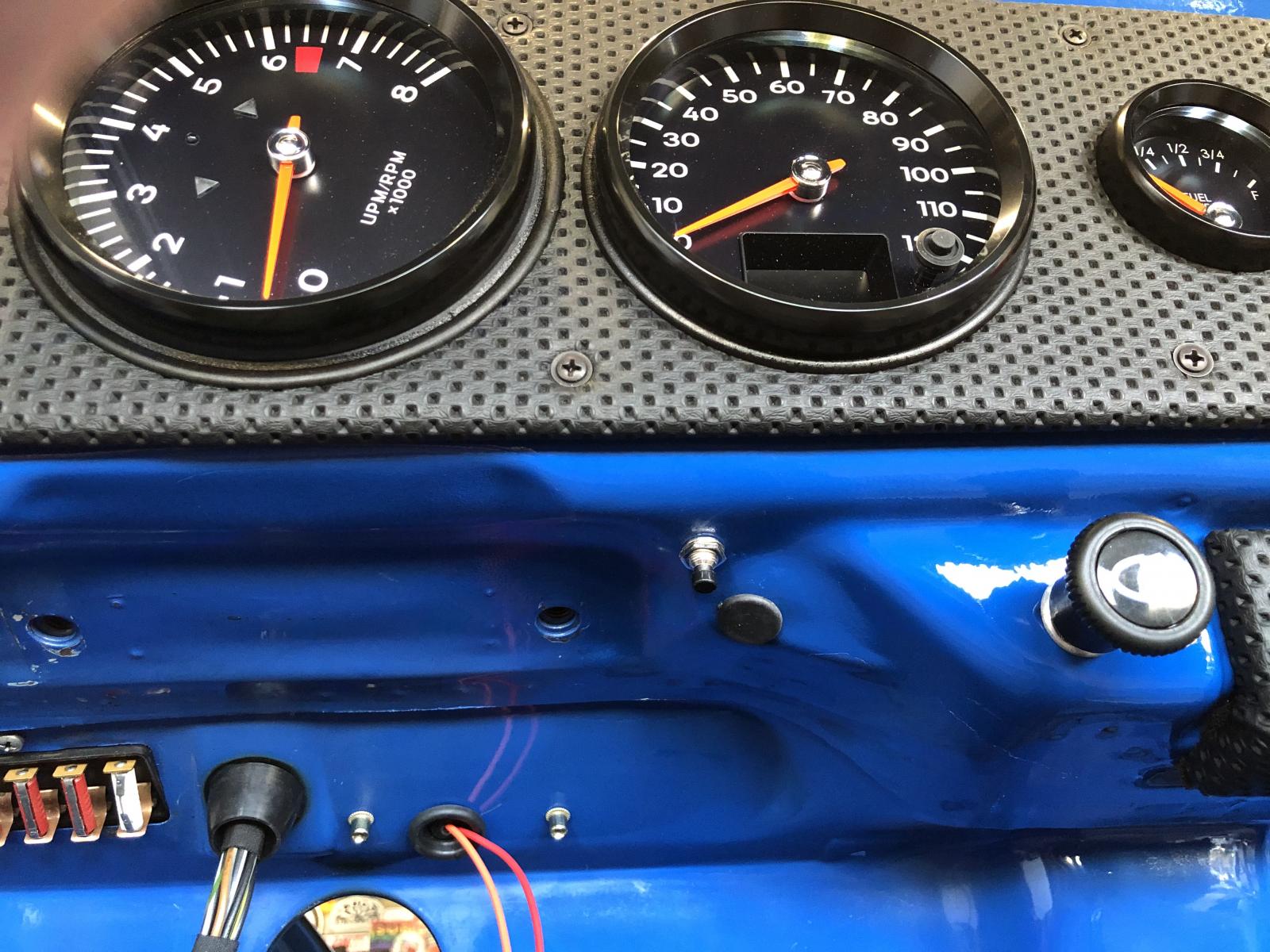

The tachometer has the turn signal and high beam indicators…
Image may have been reduced in size. Click image to view fullscreen.

I tapped into the front left and right signal wires for those signals, and used the OEM VW high beam signal for its gauge indicator.

Because I was using the factory ECM, per the Speedhut instructions, the tach requires a resistor to amplify the ECM signal…
Image may have been reduced in size. Click image to view fullscreen.

Per instructions, it was spliced into the signal wire to the tach and the key-hot 12V…
Image may have been reduced in size. Click image to view fullscreen.

The tach has a small push button to program it to work with the engine’s ECM. I located it in one of the left over holes for the padded dash…
Image may have been reduced in size. Click image to view fullscreen.

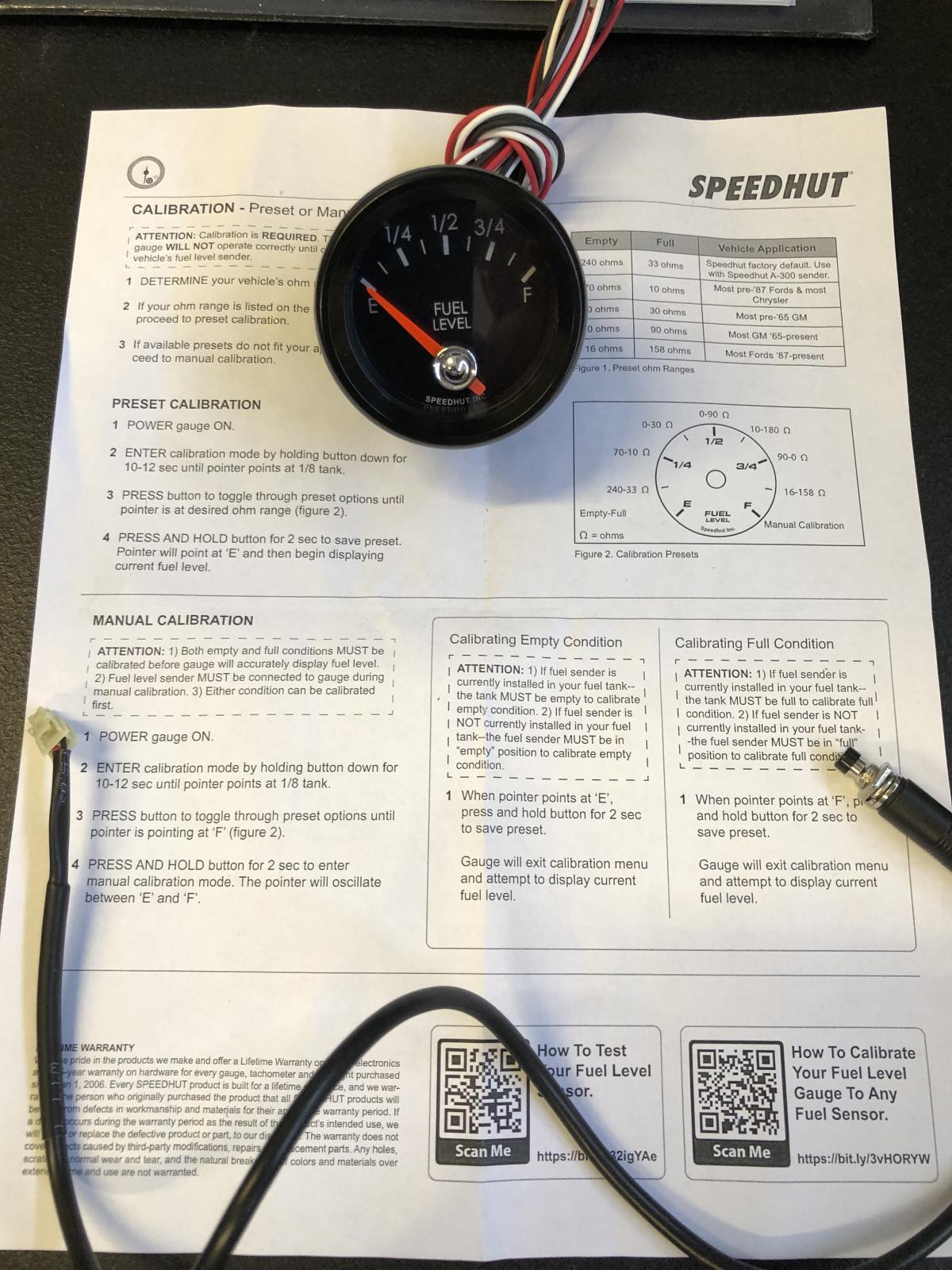

The fuel gauge can be programmed for the resistance range of the sending unit (~10-80 Ohms according to the Bentley manual)…
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

…and has a small push button to do that. I mounted it and the button to set time for the clock under the dash in two new holes I had to drill…
Image may have been reduced in size. Click image to view fullscreen.


For the water temp I added the Speedhut sending unit to the EJ25 water cross over manifold adjacent to the OEM temperature sensor for the ECM…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


The oil pressure gauge comes w/the sending unit and Speedhut sells an adapter that allows the gauge sending unit to be installed in the EJ25’s oil pressure sensor location…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


I incorporated the water temp and oil pressure gauge wire harnesses into the engine’s wiring harness…
Image may have been reduced in size. Click image to view fullscreen.


The rest of the wiring was relatively easy and straight forward. The instructions provided are excellent…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


Got to tell you, seeing the dash with gauges and wired is damn motivating! Very Happy

J.
