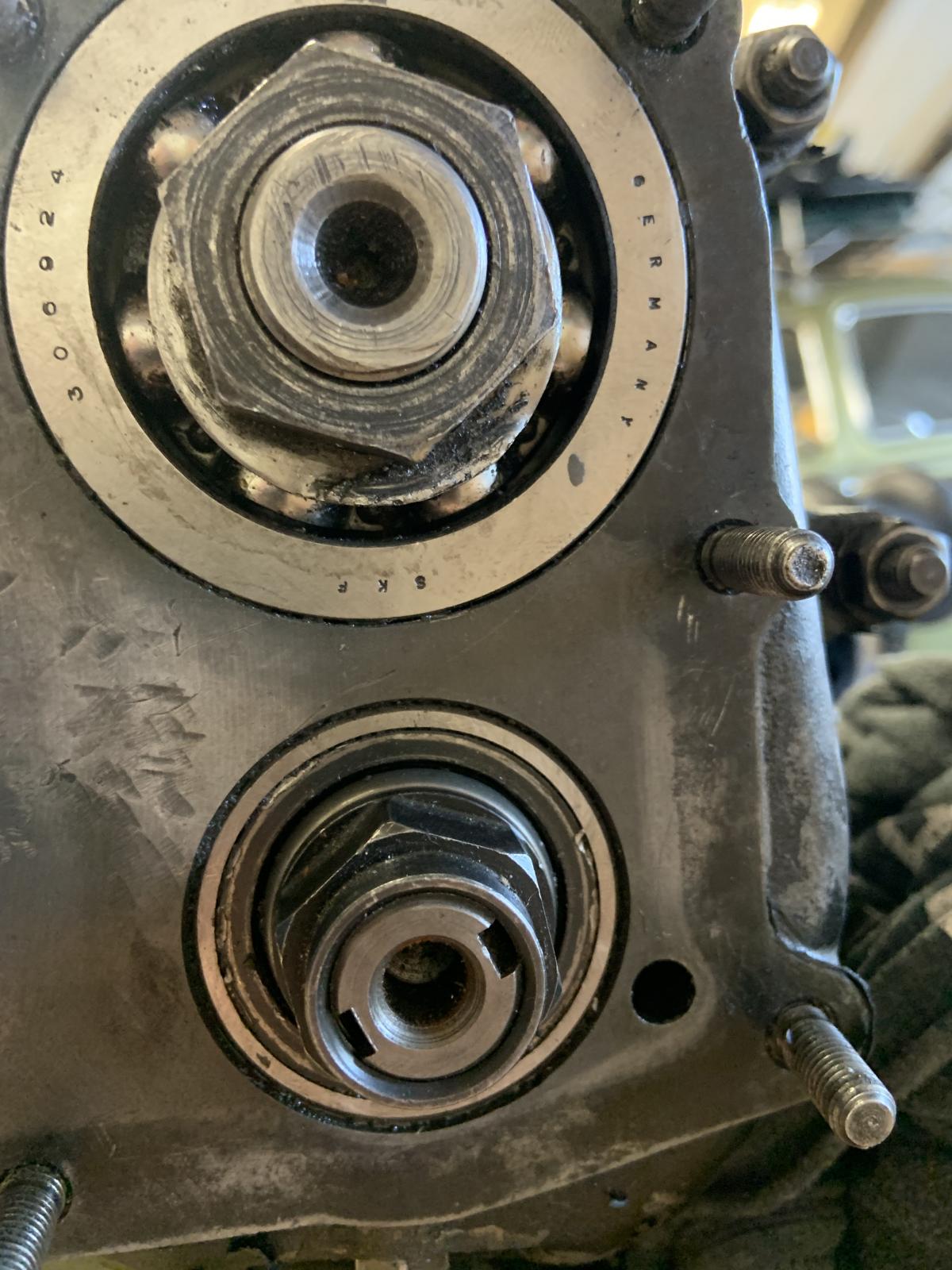

 Posted: Thu Jul 24, 2025 4:53 pm Post subject: What is the torque specs for these two nuts |
 |
|
Any guidance is greatly appreciated.
_________________
Speed Leaving Without Warning . . .
66 Bug
66 fastback (sunroof) |
|
| Back to top |
|
 |
mcmscott
Samba Member
Joined: March 12, 2010
Posts: 4936
Location: sanger ca
|
| Posted: Thu Jul 24, 2025 5:32 pm Post subject: Re: What is the torque specs for these two nuts |
|
|
Top I usually run at about 160. Bottom is an aftermarket pinion shaft and with out knowing if it was keyed or splines and the spacing between 3-4 safe bat is 100 lbs and stake the nut
_________________
There are no stupid questions, only stupid people,
68 Ghia
67 T-1
65 Notch
02 Mexican beetle
74 Thing
15 Long travel rail
07 Nomad
05 f-250 |
|
| Back to top |
|
|
doc73
Samba Member
Joined: June 26, 2004
Posts: 321
Location: Ohio
|
| Posted: Thu Jul 24, 2025 5:42 pm Post subject: Re: What is the torque specs for these two nuts |
|
|
So grateful for the info. The bottom is the pinion nut that came with the pinion I purchased from So Cal imports. Building a freeway flyer. I believe it is keyed set up. But not 100%.
_________________
Speed Leaving Without Warning . . .
66 Bug
66 fastback (sunroof) |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17621
Location: Left coast, Canada
|
| Posted: Sat Jul 26, 2025 3:53 am Post subject: Re: What is the torque specs for these two nuts |
|
|
VW says to torque the top nut to 87 ftlbs, then to loosen it off. Then torque it to 43 ftlbs. With such a low torque on a big thread, it's no wonder they need a lockplate to keep it from coming loose.
Personally, I don't see a good reason to loosen it, so I leave it at the higher number.
