| Author |
Message |
70bus
Samba Member
Joined: July 15, 2004
Posts: 1464
Location: P.O.
|
 Posted: Wed Nov 06, 2024 3:12 pm Post subject: Re: M620 M621 12v factory - parts images |
 |
|
| Quote: |
| How does that battery cover work with all those tabs? |
the tabs that hold on the masonite? I guess they are placed in a way to avoid the terminals.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
 |
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15282
Location: Casa de Oro, California
|
| Posted: Wed Nov 06, 2024 6:41 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|
| 70bus wrote: |
| Quote: |
| How does that battery cover work with all those tabs? |
the tabs that hold on the masonite? I guess they are placed in a way to avoid the terminals. |
| scvw wrote: |

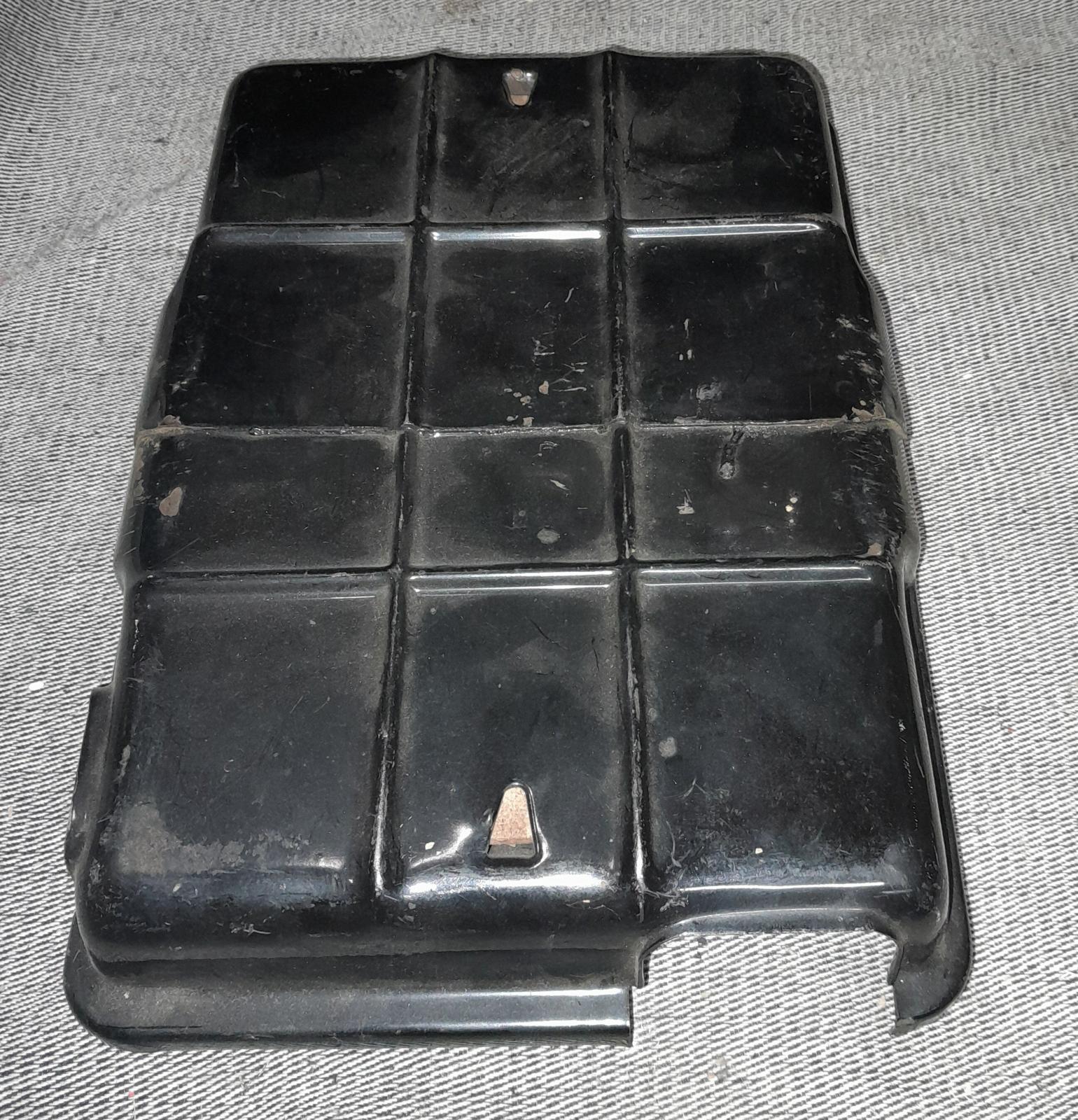

Here is the battery cover for my 1963 factory 12v SC
|
No. Those extended metal tabs on the 4 perimeter sides. |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1464
Location: P.O.
|
| Posted: Wed Nov 06, 2024 6:44 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|
I dont see those features on others ictured in thread, so no clue. I'd look at mine, if I had one!
EDIT - maybe the tasb version has something on the right, partially missing. Or just paint.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1464
Location: P.O.
|
| Posted: Wed Nov 06, 2024 6:56 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|

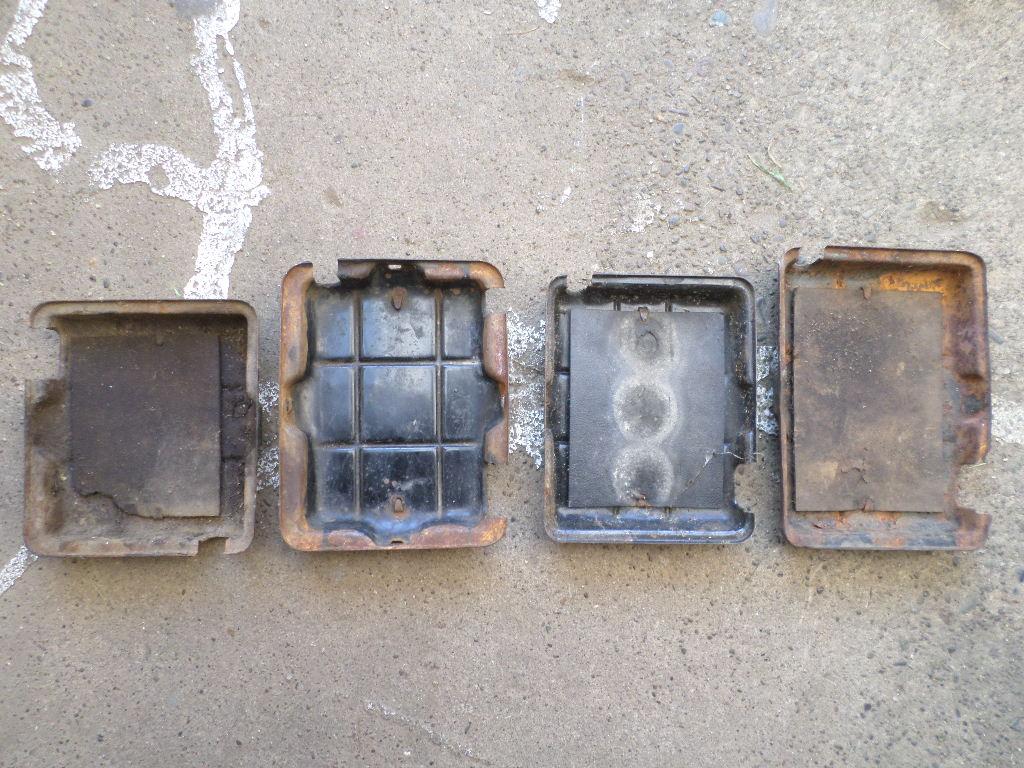

last pic EverettB tagged 'split beetle and barndoor.' Might have to ask that crowd what those little cutouts are for.
EDIT - ah, not the little 'windows' but the extended sheet metal fingers; sort of like a spring tab. i dug through several pics and didn't see them elsewhere. Not all showed the underside however.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater
Last edited by 70bus on Wed Nov 06, 2024 7:32 pm; edited 1 time in total |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10226
Location: idaho
|
| Posted: Wed Nov 06, 2024 7:01 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15282
Location: Casa de Oro, California
|
| Posted: Thu Nov 07, 2024 6:36 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|

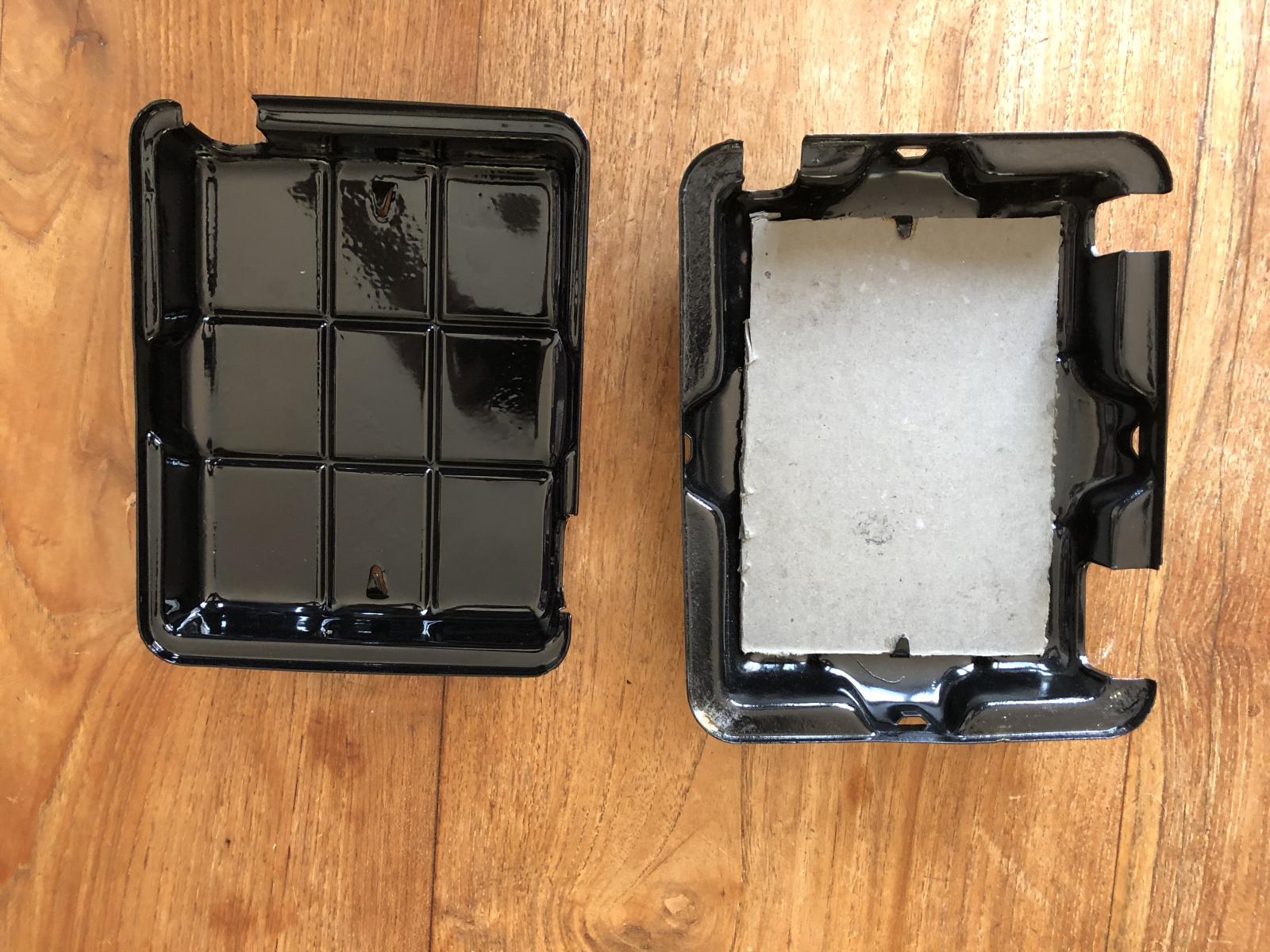

| Those ^^^ metal pieces dropping down must center and elevate it but not let it sit on the perimeter like the normal battery cover. |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6811
Location: Pentwater, Michigan
|
| Posted: Fri Aug 29, 2025 2:55 pm Post subject: Re: M620 M621 12v factory - parts images |
|
|
While not exactly parts these fan shroud stamps were a “part of the package” so to speak. I had the image reproduced with a couple of ink stamps.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
