 Posted: Thu Sep 04, 2025 4:35 am Post subject: Is there a good diagram of the undercarriage cables and pipes? |
 |
|
I’ve been doing a lot of cutting back of my panelvan. Is there a resource that explains what all the cables and pipes are?

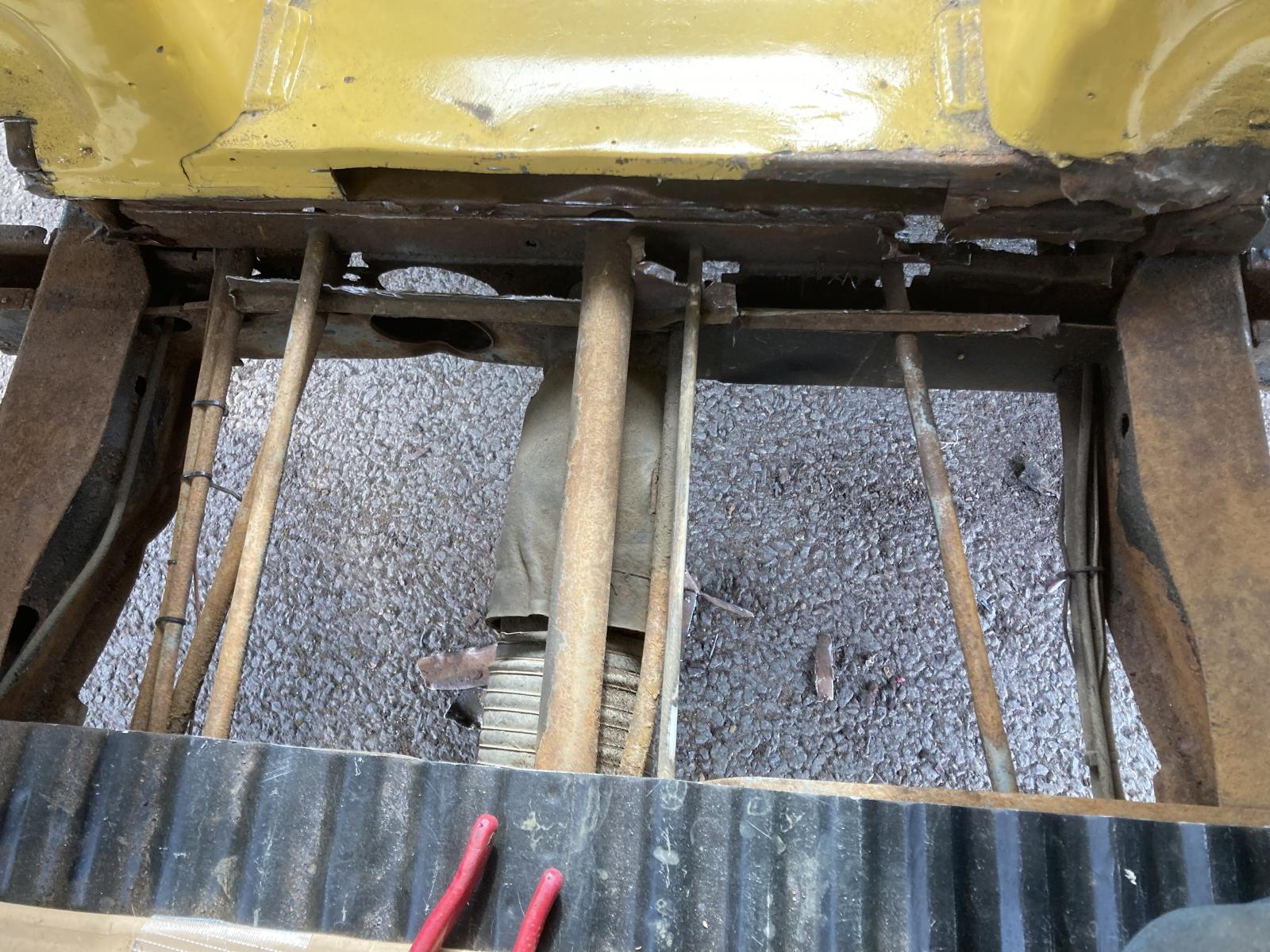

This is what mine looks like
[/s]
Also, are the pipes relatively straightforward to remove, or if im replacing the top hat front beam, would it be easier to cut around the main pole like this:
_________________
1978 Beetle, 1978 T2 Panel Van |
|
| Back to top |
|
 |
lil-jinx
Samba Member
Joined: August 14, 2013
Posts: 1653
Location: New Brunswick,Canada
|
|
| Back to top |
|
|
Bnanwel
Samba Member
Joined: November 10, 2022
Posts: 311
Location: Ft Lauderdale
|
| Posted: Thu Sep 04, 2025 9:54 am Post subject: Re: Is there a good diagram of the undercarriage cables and pipes? |
|
|
Keep in mind: the big pipe in the middle is the shift rod tunnel. It needs to be “spot on”; so if you remove it, be accurate when reinstalling.
_________________
‘72 Karmann Ghia Conv.
‘73 Karmann Ghia Coupe
‘74 Karmann Ghia Coupe
‘70 Deluxe
‘72 Deluxe |
|
| Back to top |
|
|
MountainBeetle
Samba Member
Joined: October 23, 2022
Posts: 110
|
| Posted: Sat Sep 06, 2025 1:32 pm Post subject: Re: Is there a good diagram of the undercarriage cables and pipes? |
|
|
Thanks guys.
I think I’ll play it safe and cut the beam like in the picture.
_________________
1978 Beetle, 1978 T2 Panel Van |
|
| Back to top |
|
|
lil-jinx
Samba Member
Joined: August 14, 2013
Posts: 1653
Location: New Brunswick,Canada
|
| Posted: Sun Sep 07, 2025 11:38 am Post subject: Re: Is there a good diagram of the undercarriage cables and pipes? |
|
|
the smaller tubes carry cables for the heater,park brake and throttle cable,if you must weld them ,try not to burn thru them leave a rough spot inside the tube,it can cause cable failure,and one tube is for vacuum to the brake booster,it must not leak.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy sold dec 2024
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes. |
|
| Back to top |
|
|
MountainBeetle
Samba Member
Joined: October 23, 2022
Posts: 110
|
| Posted: Sun Sep 07, 2025 12:02 pm Post subject: Re: Is there a good diagram of the undercarriage cables and pipes? |
|
|
That’s good knowledge. I noticed the smaller tubes had been lightly spot welded to the original beam. I’ll be as careful as possible.
