Adding head rests

[jens_munk]

I have a 77 European bus with no head rests and I wonder if the support for the head rests is hidden inside. I can feel through the padding that there are holes underneath but is the rest of the support there? Like to know before cutting.

Thanks,

Jens

[Tcash]

If they are VW bus seats yes. You should also be able to feel the headrest mounting tubes running down the back of the seat as so.

Good luck
Tcash

[jens_munk]

Thanks.

I am apparently out of luck then. While there are holes in the top of the frame, the welded in tubes and bracket marked as "Headrest mounts" on your photo are not there. I guess I have to look for some US seats if I want headrests.

Jens.

[Wasted youth]

Which seat frames are you looking for? Front, middle and rear bench seats or all?

[jens_munk]

Front bucket backrests 1977.

[jtauxe]

Just something to consider, here... Since it is a '77, it could accept later Vanagon seats, with no modifications to the bus. The Vanagon seats are more comfortable, and some come with armrests. If you can find them, it is a worthy upgrade!

For example:

_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD

[jens_munk]

Thanks for the tip. I will explore that.

Jens.

[onehappykombi]

Would it be possible to weld in those headrest mounts / receivers on the seat backs of an Early Bay?
_________________
'56 Early Split & '69 Early Bay

Overlanding the USA
Camper special engine build

[busdaddy]

All depends on your welding and fab skills, it's just metal.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[olafwagner]

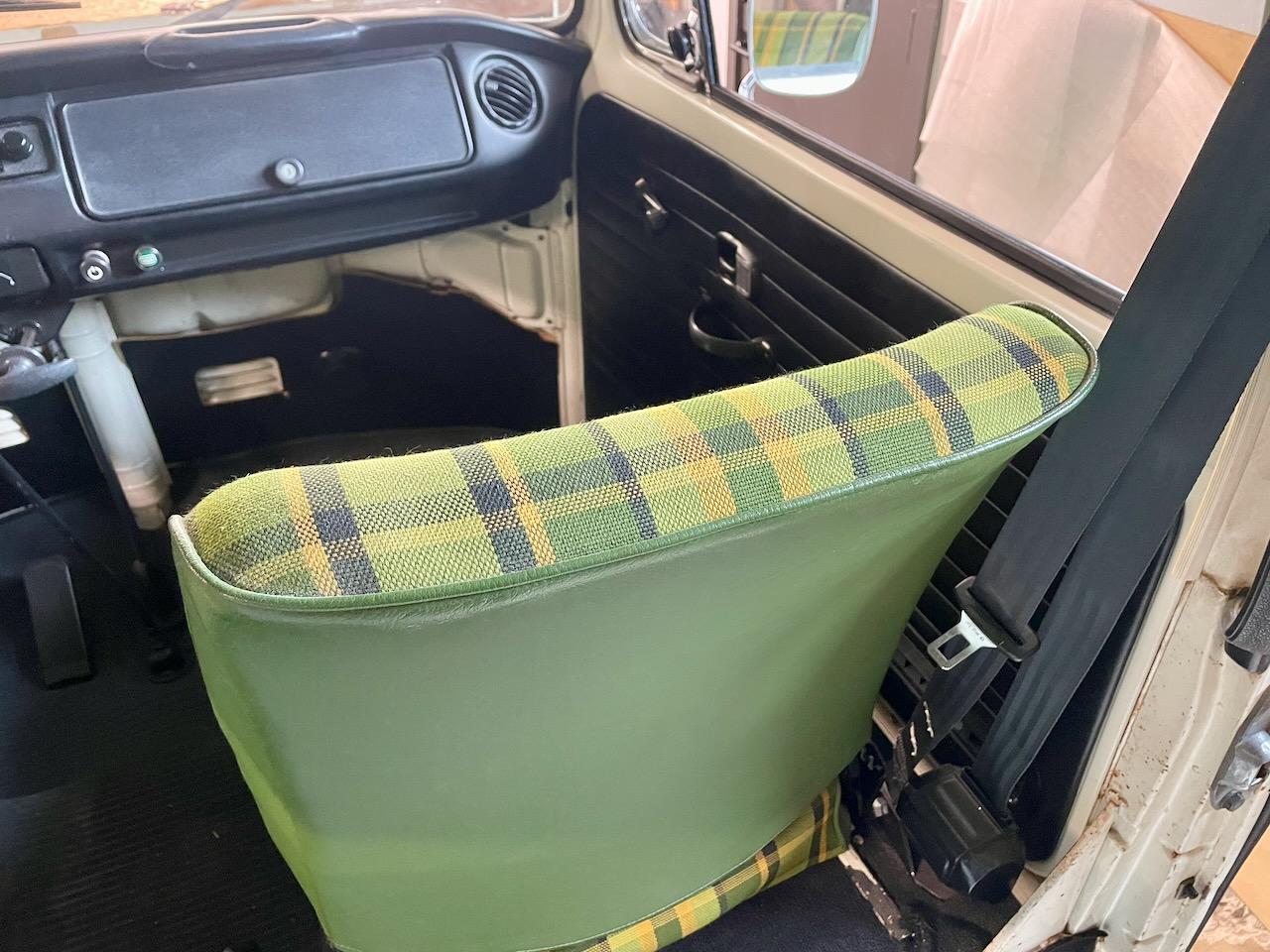

I too am very interested in adding head rests to my 1978 bus. While my bus was originally 'Canyon Brown' the front seats were previously reupholstered in Westfalia Green (which I am a big fan of).

I have 'pressed' on the back of the seats and confirmed that the 'tubes' are indeed in there.

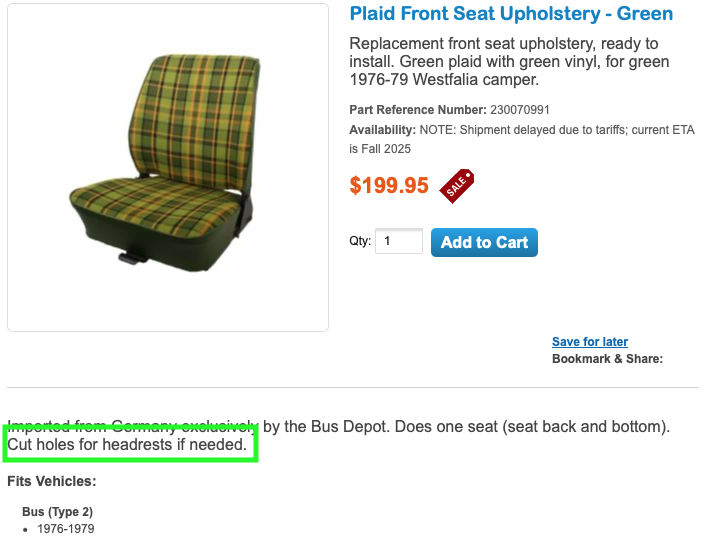

I have discovered that these exact covers are sold 'as-is' by Bus Depot, so I assume the PO purchased them there.

I also see that their description simply says "Cut holes for headrests if needed", so I was wondering how difficult this procedure is, and led me to a few questions:

- Does one simply cut circular holes through the material at the relevant locations?
- Does one do this with the upholstery installed? (to ensure the holes are in the right location?
- Or, do I need to mark the holes and remove the upholstery in order to cut this?
- What stops the material from stretching or tearing any further at the hole location?

I would love to hear from someone that has already done this procedure successfully so that I can do it right.

[richparker]

I ran into this issue with my Beetle. I’m running the one year only ‘67 front seats and you have to cut a custom hole for the seat latch release mechanism. I cut the hole and it stretched. I am/was so pissed! All that time and money and now I gotta look at that stretched hole. I’m gonna see if I can have a upholstery guy fix it for me.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab

[jrasi]

[Kudagra]

Do head rests even get used in Buses or are they just there because the government thinks it knows better?
_________________
Everything burns if you get it hot enough.

[olafwagner]

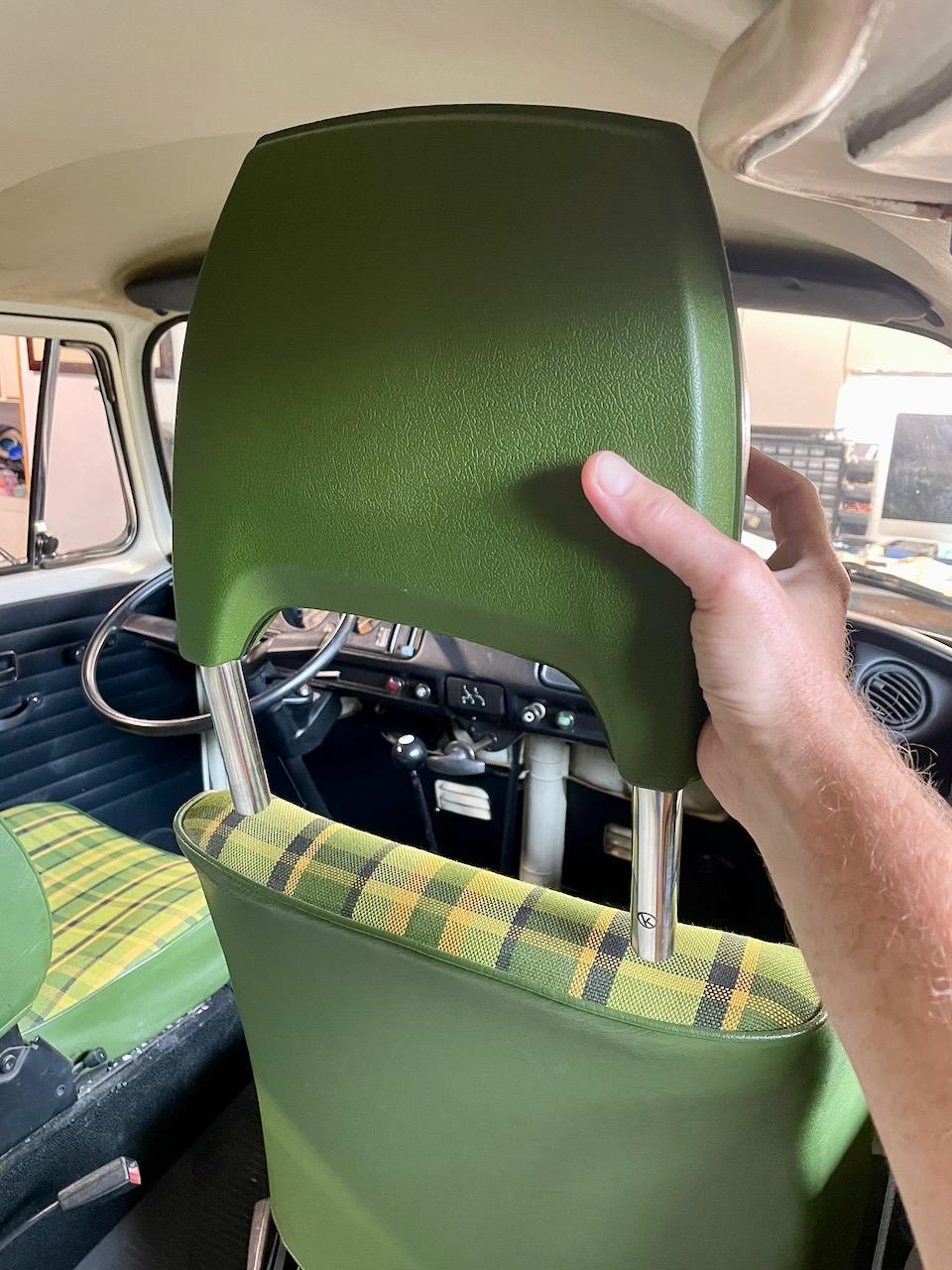

[jrasi]

Thanks!

I have the sleeves coming with new paddings.
