 Posted: Mon Aug 31, 2020 7:59 am Post subject: Re: YAKGRP: late '69 coupe |
 |
|
After viewing the fantastic quality of your work I may not be able to go back in my garage, where my Ghia sits unfinished.
_________________
----------------------
Cars Currently Owned:
1970 Karmann Ghia Coupe
1973 Karmann Ghia Coupe - Project car for sale
1970 Karmann Ghia Convertible (Body off restoration)
Timing is everything |
|
| Back to top |
|
|
69 GVert
Samba Member
Joined: October 20, 2014
Posts: 61
Location: San Jose, CA
|
| Posted: Sat Sep 05, 2020 9:26 pm Post subject: Re: YAKGRP: late '69 coupe |
|
|
| CiderGuy wrote: |
| After viewing the fantastic quality of your work I may not be able to go back in my garage, where my Ghia sits unfinished. |
Au Contraire!
Just looking at all these pictures and seeing things that I had to do to my '69 makes me realize how lucky I was to have less than half the rust that this one did. Kinda makes up for the wrong year front clip and poor attachment of that.
Makes me want to order some new rocker panels to replace the mess I made of mine back in the 90's when I first got it. It looks OK from the outside, but I know what's under there...
And all this free time has got me working on it again!  (Just found out the Blaupunkt Frankfurt radio that came with it works great after a switch cleaning and a new speaker, so now I have tunes while working!)
_________________
Aircooled? Drive one a day, that's all I ask! |
|
| Back to top |
|
|
Joostt
Samba Member
Joined: June 04, 2016
Posts: 76
Location: Noordwijk, Netherlands
|
| Posted: Mon Nov 03, 2025 7:32 am Post subject: Re: YAKGRP: late '69 coupe |
|
|
It’s been a little over five years since my last post. Back then, we had just bought a house — and if possible, it turned out to be even more of a project than this car. So most of my time went into tackling all sorts of projects in and around the house, leaving no time to work on my Ghia.
But after a few years, things have finally settled down a bit, and here’s some good news for the car: I now have a bigger garage!

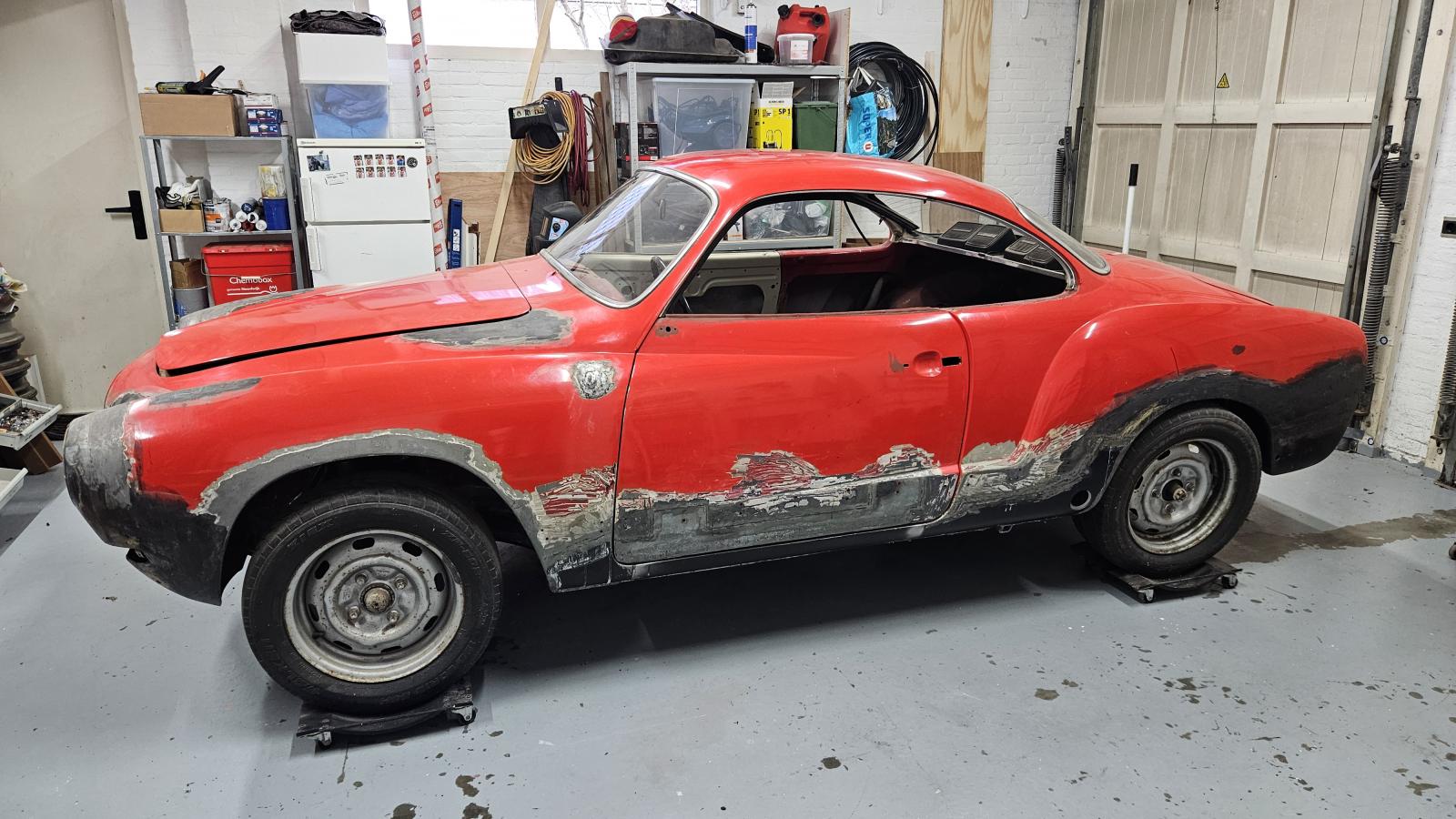

Five years ago, just before we got the keys to the new house, I welded up the rear quarter panel, assembled the rear transaxle, front axle, and fitted four wheels. Since we only moved about 500 meters from the old place, we were able to push the car to the new house. I sat behind the wheel, a couple of friends pushed — and just like that, I drove the first 500 meters in my Ghia!
A fresh start for this project — let’s see if I can actually finish it within this decade!
|
|
| Back to top |
|
|
John Moxon
Samba Moderator
Joined: March 07, 2004
Posts: 14258
Location: Southampton U.K.
|
|
| Back to top |
|
|
Joostt
Samba Member
Joined: June 04, 2016
Posts: 76
Location: Noordwijk, Netherlands
|
| Posted: Sun Nov 09, 2025 12:39 pm Post subject: Re: YAKGRP: late '69 coupe |
|
|

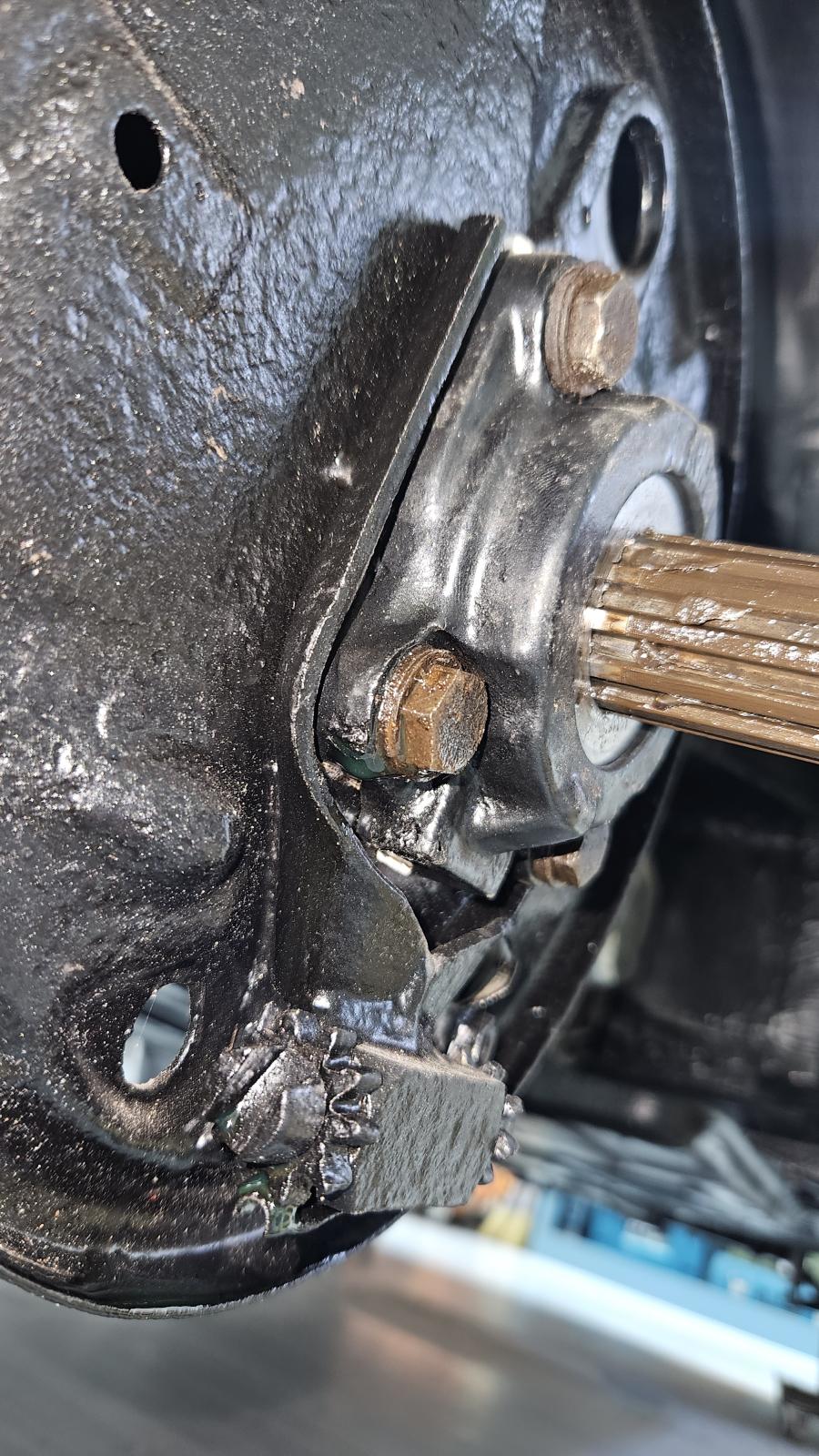

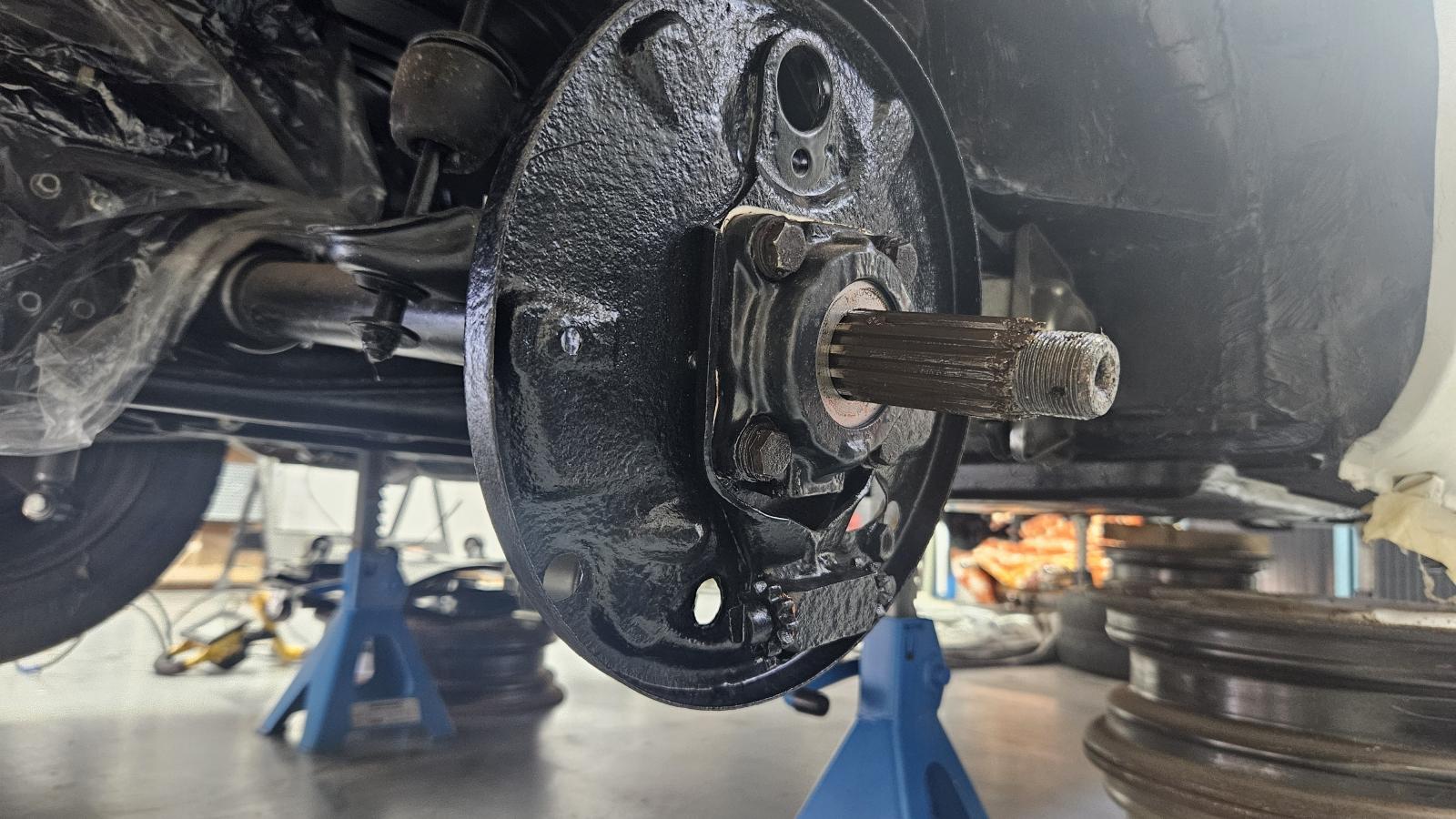

The first job is on the right rear axle. About a year ago, I noticed some oil underneath the right rear wheel. I managed to ignore it for a while, but now it’s time to fix it. I removed the wheel and brake drum, and there was oil on the inside of the brake drum. After a careful inspection, I found the source of the leak: it’s coming from the washer/bolt that holds the axle bearing cap. The gasket itself is leak-free.
Any suggestions on how to fix this? I’m thinking of removing the bolt, applying some sealant to the bolt and washer, and reinstalling it.
|
|
| Back to top |
|
|
Joostt
Samba Member
Joined: June 04, 2016
Posts: 76
Location: Noordwijk, Netherlands
|
| Posted: Wed Nov 19, 2025 2:26 pm Post subject: Re: YAKGRP: late '69 coupe |
|
|
I ordered some temperature-resistant liquid gasket and applied it around the washers and bolts to try to fix the leak from the axle bearing cap bolts. Then I refilled the transaxle with oil. Let’s see if it holds up.

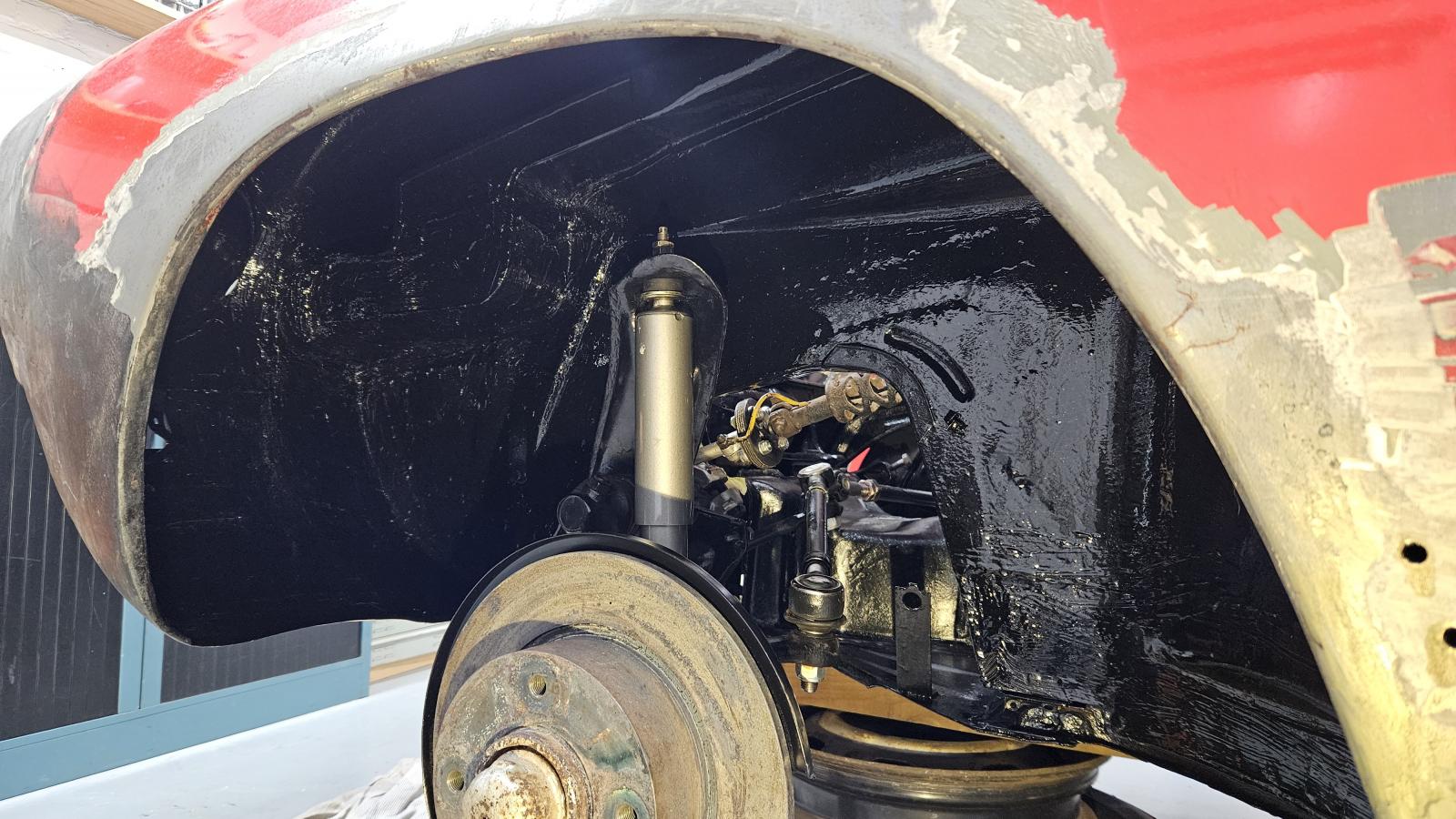

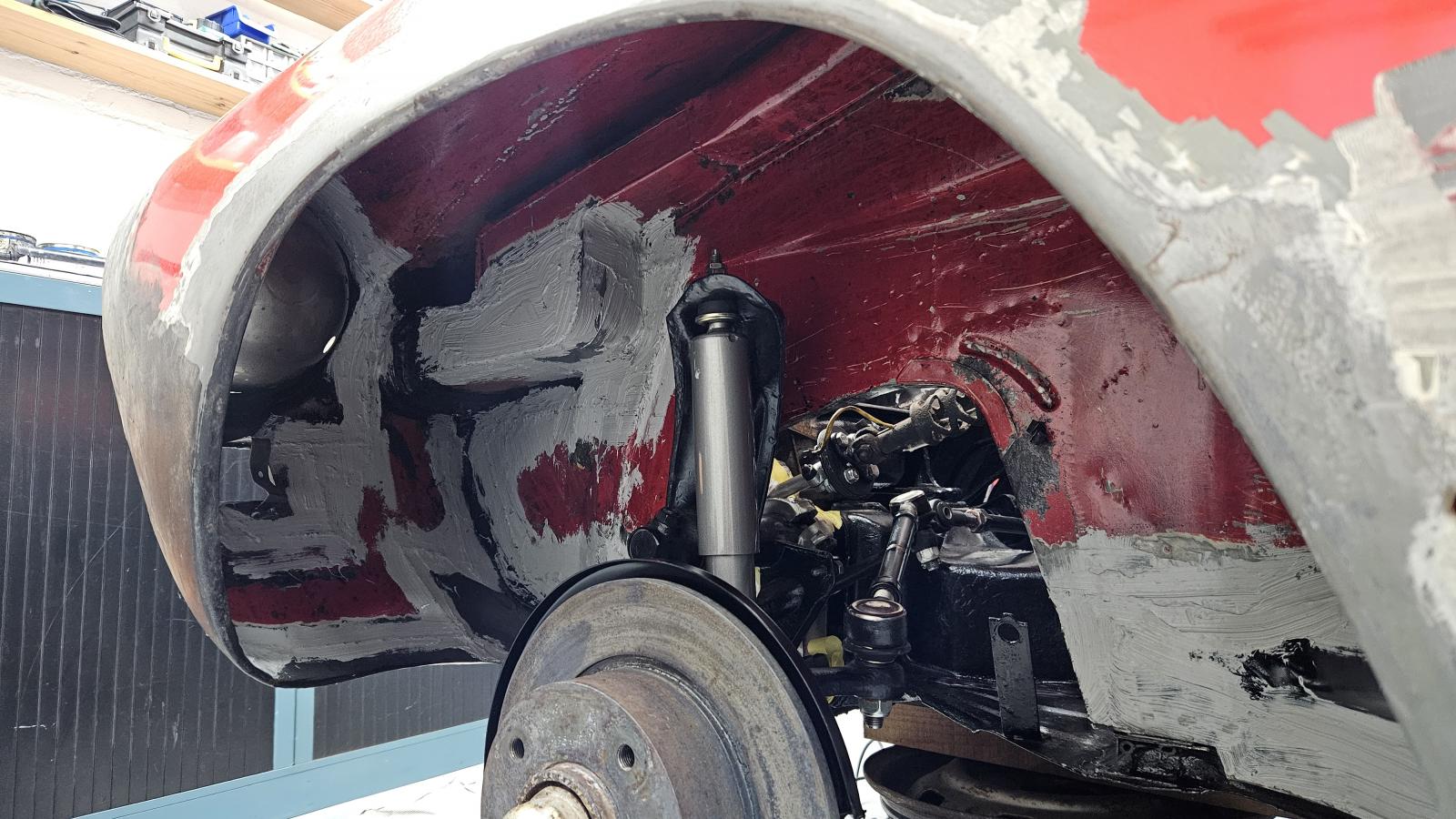

A few years ago, when my main priority was simply getting the car moving again, I reinstalled the front axle but didn’t treat the left front wheel arch with seam sealer and coating. I’ve done that now. I also ordered a can of the same coating (called RX5) in RAL 3002. The car will eventually be repainted in its original Bahia red, and this RAL color seems to be the closest match. I’ll use it to paint the spare-wheel area in the front. After that, it’s time to start sanding and filling, and sanding and filling, and sanding and…
|
|
