homemade Type IV timing scale

LeeE · Posted: Sun Nov 13, 2005 5:11 pm Post subject: homemade Type IV timing scale

Hi
I didn't have a timing scale for a while, not that easy to find so when I got one I copied it. So far so good with the cardboard prototype, just need to make a real one out of sheet metal or plastic.
Hope this works, this is the first time I've posted photos. If not they're in the gallery under Parts/Accessories Other.
I'll make a better layout and scan it if anyone is interested.
LeeE

Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

Duncwarw · Samba Member Joined: August 25, 2003 Posts: 3094

If it's accurate, not bad!

This came up some time ago and somebody (I forget who) was talking about producing them. A search should turn it up.

Keep us posted if you start producing them, the supply seemed to suddenly dry up.
_________________
“To find yourself, think for yourself”
Socrates, 470 BC - 399 BC

josh · Posted: Sun Nov 13, 2005 5:48 pm Post subject:

Your pics don't work. Before you post your reply hit preview and you will see if they will work or not.

The timing scales aren't really rare. If you need a small part like that you might want to put something like,"Wanted timing scale for type 4 bus" in your sig line. A lot of people have small parts like that but they aren't worth putting up ads for.
_________________

tellis · Posted: Sun Nov 13, 2005 6:59 pm Post subject:

Here ya go: Very Happy

Looks pretty good as a mock up if you intend to eventually fabricate it in tin or something. You can probably get your hands on a spare plastic one if you look around though.
_________________
1979 Westy
1971 Standard Beetle
1976 deluxe Westy
1974 Standard Beetle

www.dallasaircoolers.com
www.aircoolers.org

LeeE · Posted: Mon Nov 14, 2005 5:24 am Post subject:

Hi
Thanks for showing the photos for me; I'm not sure what I did wrong.

It should be accurate, I checked all the measurements against a real scale.
I had read the earlier post about reproducing the scales (when I didn't have one) and wondered about making my own.
Thanks
LeeE
_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

mightyart · Posted: Mon Nov 14, 2005 6:46 am Post subject:

Can you scan the drawing you made there?
I was the one talking about reproducing it.
I used to be employed as a thing called a manufacturing jewler.
I want to try to lay it out in bronze/brass, cut it out and then see if I can find an engraver that can engrave the numbers on the curve like that.
then fill the numbers with something black.
_________________
My Art:
http://www.instagram.com/flynn8552/

LeeE · Posted: Mon Nov 14, 2005 7:22 am Post subject:

Hi
I will re-do the layout for a cleaner copy, with notes and dimensions, and then scan it.
LeeE
_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

Amskeptic · Posted: Mon Nov 14, 2005 7:28 am Post subject:

Elwood-Bluesvan · Posted: Mon Nov 14, 2005 10:28 am Post subject:

I have a metal artist friend that can copy any shape in stainless ect. He uses laser or something of the like, really detailed. Mighty art you may look into that tecnique for the scale numbers.
Gosh I don,t need one for my '1600 but would buy one just for the cause. Good luck !
_________________
'69 westie weekender-1600 sp
" My main Man "

Looking for og steering box

Sylvester · Posted: Mon Nov 14, 2005 10:50 am Post subject:

LeeE · Posted: Tue Nov 15, 2005 6:39 pm Post subject: Homemade Type IV timing scale

Hi
Photo test...Hey Presto, it worked!
I redid the layout and it looks OK. I am not a draftsman, but I think this is very close to the original measurements.
The bends may need to be finessed a little for a proper fit, and the 10cm arc might could be slightly larger, but only about 1mm.
I forgot to round the ends of the tabs, but I think you get the idea.

I tested a cardboard prototype and it worked well, good enough to set timing, and I checked it against a real plastic scale. I may yet make one out of sheet metal if I can figure out how to cut it without warping. Maybe I could use tin snips, pound it flat and then bend it to shape.

If anyone else uses this to make one please let me know how it worked.
This layout is also in the gallery under Parts/Accessories Other.

Thanks
LeeE

_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

DurocShark · Posted: Tue Nov 15, 2005 6:43 pm Post subject:

That's a nice drawing. I miss drafting with pencil and paper. Can't get the hang of Autocad for the life of me.
_________________
No boom today. Boom tomorrow. There's always a boom tomorrow.

VWBusrepairman · Samba Member Joined: July 06, 2004 Posts: 4726

You guys talking about this timing scale? I bought one for $5.95 not long ago. Think it's from West Coast Metrics. They not carrying them any longer?

LeeE · Posted: Tue Nov 15, 2005 7:48 pm Post subject:

Hi
Them's the ones.
Maybe I didn't search enough at the time, but I though they were difficult to find. I have one, but I wondered about reproducing it. Oh well, it was fun drawing it.
Thanks very much for the WCM tip.
LeeE
_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

DurocShark · Posted: Tue Nov 15, 2005 9:33 pm Post subject:

Come on... How cool would it be to have a custom metal one???
_________________
No boom today. Boom tomorrow. There's always a boom tomorrow.

Amskeptic · Posted: Thu Nov 17, 2005 8:31 am Post subject:

mightyart · Posted: Thu Nov 17, 2005 9:00 am Post subject:

Your drawing won't go to waste, here's how you cut it out without bending.

_________________
My Art:
http://www.instagram.com/flynn8552/

LeeE · Posted: Fri Nov 30, 2007 4:28 pm Post subject:

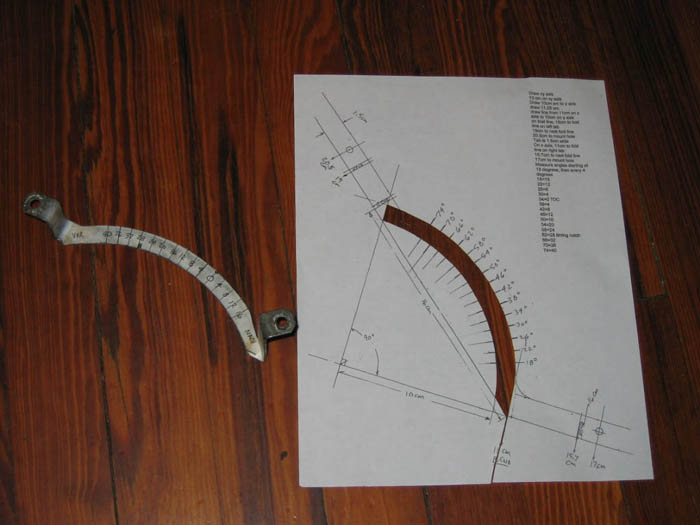

I finally used my drawing.
A metal timing scale came in a box along with some other parts. All the marks were worn off, so I printed the drawing, cut out the arc, glued it on and coated it with polyurethane. It should work, if not I can always print another.

I could clean up the lettering, make the lines heavier and and print it in reverse for a white on black scale.
_________________
1978 Westfalia stock 2.0 FI
Welcome to the Okeedokee Swamp

Bloog · Posted: Fri Nov 30, 2007 4:34 pm Post subject:

Busted Bus has CNC cut aluminum Type 4 timing scales for sale. I've seen the scales and they are very nice. the marks are laser etched and will not rub off.
www.bustedbus.com ask for Chris....
_________________

keifernet · Posted: Fri Nov 30, 2007 4:55 pm Post subject:

I have been playing around with making some of these myself... missed the conception of this thread... nice stuff...
