| Author |
Message |
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
 Posted: Wed May 03, 2006 2:20 pm Post subject: |
 |
|
That stuff is great... I think its used for setting windshields in modern cars. I got some at NAPA -- see the above post.
It comes in a box, and is on a roll. You don't need much! I used it for sealing the overhead air box (ambo fans tho), front turn signals, and even used a little to seal the sub hatch trim to the roof.
_________________
Insert random important looking club initials here. |
|
| Back to top |
|
 |
j.pickens
Samba Member
Joined: December 03, 2002
Posts: 9831
Location: Exit 7, New Jersey
|
| Posted: Wed May 03, 2006 10:06 pm Post subject: |
|
|
Mr. Mangler turned me onto this stuff.
Its also great for sealing doghouse tin on your engine cooling upgrades.
The OG rubber usually is shot, and the replacement rubber is shit.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
| BeaterBarndoor wrote: |
i wish more people would actually drive their vws rather than just talking about what they have in the garage. |
| Red Fau Veh wrote: |
If you've seen one sunroof swivel seat kombi, you've seen them all!  |
|
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15355
Location: Casa de Oro, California
|
| Posted: Thu May 04, 2006 9:09 am Post subject: |
|
|
| The butyl stuff is way more aggressive than dum-dum but that could be a good thing. It is much harder to remove, sticky and time consuming wise. I'd put dum-dum between plumbers putty and butyl on the stickyness scale. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
| Posted: Fri May 05, 2006 6:47 pm Post subject: |
|
|
I went to Napa but didn't like the Butyl stuff. First it comes in 2 thin strips where the original stuff is one wide strip. And it seemed sort of nasty. Price at NAPA was $11. They have it at Kragen/Checker/Schuck's too in a boxed roll.
The old school guy at Checker's took one look at the original stuff and directed me to local RV/Boat place for "strip caulk". It seems like a better match and is $4/roll. I went with that.

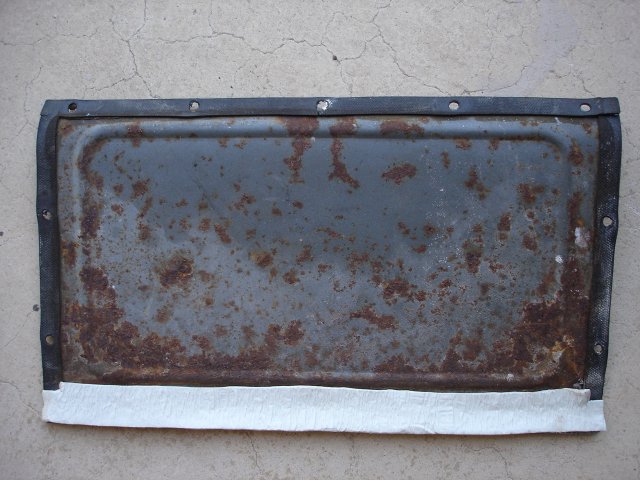

Installed on cover:
Plate installed:
It squeezed out a little when I installed the plate but the excess rolls right off with your finger.
I used new screws and re-tapped out all the screw holes.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Dave24
Samba Hack Purist
Joined: April 14, 2004
Posts: 7442
Location: Hablamos Ingles, So. Cal.
|
| Posted: Fri May 05, 2006 7:15 pm Post subject: |
|
|
| EverettB wrote: |
I went to Napa but didn't like the Butyl stuff. First it comes in 2 thin strips where the original stuff is one wide strip. And it seemed sort of nasty. Price at NAPA was $11. They have it at Kragen/Checker/Schuck's too in a boxed roll.
The old school guy at Checker's took one look at the original stuff and directed me to local RV/Boat place for "strip caulk". It seems like a better match and is $4/roll. I went with that.
Installed on cover:
Plate installed:
It squeezed out a little when I installed the plate but the excess rolls right off with your finger.
I used new screws and re-tapped out all the screw holes. |
Butyl is nasty stuff!. AND, it is always nasty to work with, old or new. Kind of like roofing tar (really!). Sounds like you found the "right stuff", or close to it. . |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5520
|
| Posted: Sun May 07, 2006 10:36 am Post subject: |
|
|
everett,
could you post the screw size for the screws you used in the overhead vent cover?
they look like stainless
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
|
| Back to top |
|
|
gatorwyatt
Samba Member
Joined: April 24, 2002
Posts: 1888
Location: Clearwater Fl.
|
| Posted: Sun May 07, 2006 12:00 pm Post subject: |
|
|
the originals are also like another kind of metal, soft like lead or something. the phillips heads stripped out real easy for me anyways and i used a good screwdriver  use the stainless lowes has them
_________________
www.blastserv.com
wanted:
Nothing! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15355
Location: Casa de Oro, California
|
| Posted: Sun May 07, 2006 12:13 pm Post subject: |
|
|
| I'm 96.2% sure they are the same screws as the popout to catch screws although the window ones are chrome and the covers were cadmium. Don't know about earlies or deluxes' platings. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
|
| Back to top |
|
|
Kelly
Samba Member
Joined: November 25, 2003
Posts: 2437
Location: Olympia, WA
|
| Posted: Mon May 08, 2006 4:39 am Post subject: |
|
|
Just found out Sunday during our cruise that I now need 1. Friction tape 2. Seam Sealer and 3. Strip Caulk
First time in 3 years I drove the bus in the rain, it was like ancient Chineese torture with the drips hitting my head during the first half of the cruise!
_________________
It's not how wide your hatch is, it's what you do with it.
Eriba Puck Sticky |
|
| Back to top |
|
|
Braukuche
Samba Member
Joined: September 03, 2004
Posts: 11228
|
| Posted: Mon May 08, 2006 5:57 am Post subject: |
|
|
| EverettB wrote: |
Installed on cover:
|
That's pretty hardcore patina. Shouldn't you have removed the rust before you installed the plate?
--Dan |
|
| Back to top |
|
|
VWBobby
Samba Member
Joined: April 21, 2004
Posts: 1537
Location: Central Oregon Coast
|
| Posted: Mon May 08, 2006 9:05 am Post subject: |
|
|

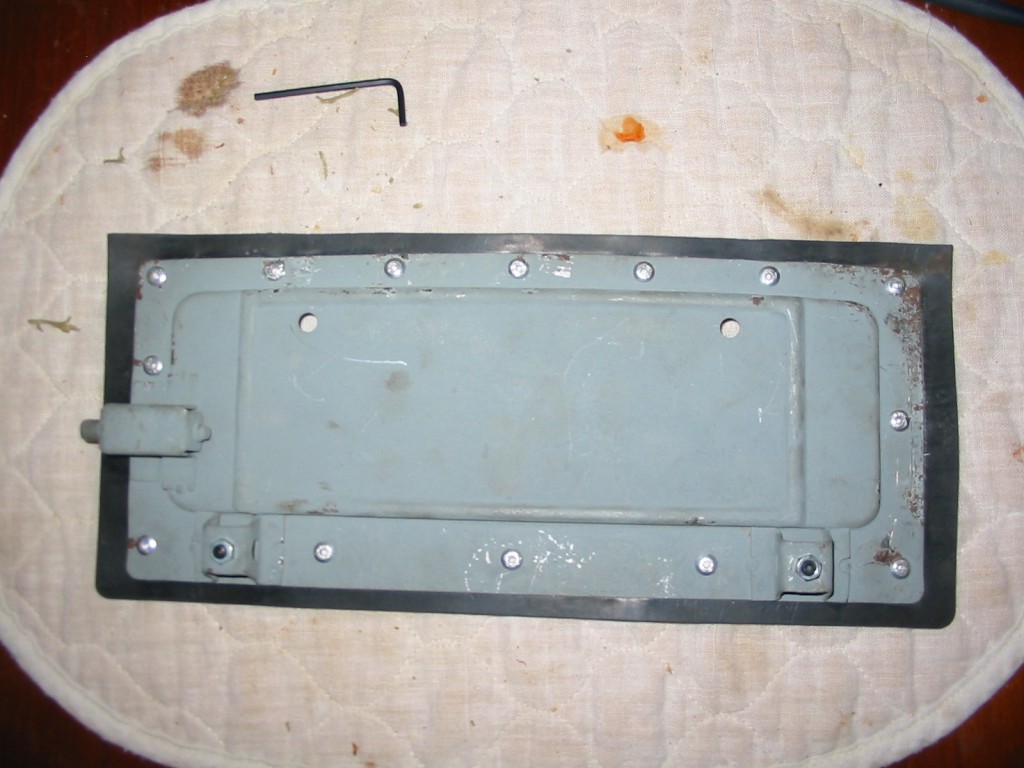

The OG cover seals are a little different than friction tape, but it will work. I media blasted the whole inside area, above the visors, and disassembled the flap, installed new seals, etc. I was tired of the chinese water torture!
While you're resealing, be sure to seal the whole air vent box and any areas the factory might have missed. The water rusted out a section Above my windsheild on the driver's side. It looks like condensation gathers above the visors and rusts the pillars/windsheild frame from the inside out. Made a nice little drain hole through the roof, and runs around the windsheild seal.
I also replace the set screws and locknuts. I used Allen head set screws so they don't strip out as easily in the future.
More pics in the gallery. |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Mon May 08, 2006 9:49 am Post subject: |
|
|
| gatorwyatt wrote: |
| the originals are also like another kind of metal, soft like lead or something. the phillips heads stripped out real easy for me |
For those messed up screws, you can fix them. Put them in a vice such that the head of the screw is resting on top of the jaw and tighten the vice just enough to hold it and not mess up the threads. Next, lightly hit the head of the screw with a hammer, mashing the metal back down. Follow this by hitting a properly sized phillips screw driver in the middle to re-shape the +. You may need to go back and forth between flattening out the top and reshaping the + to get it all back right. Realize, unless you really mangle the thing, all the metal is still there.
Never throw these away (or any hardware for that mater)... if you do, stop, put them in a small envelope and either mail them to me or wait until you see me at some VW show and hand them over.
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
|
| Back to top |
|
|
Kelly
Samba Member
Joined: November 25, 2003
Posts: 2437
Location: Olympia, WA
|
| Posted: Mon May 08, 2006 12:49 pm Post subject: |
|
|
So after the rain yesterday and this thread going, I was curious as to what's goin' on behind the scenes up above. What I ended up finding was:
3 different size screws holding the cover on
which one is correct?
backside of cover needs a little treatment
you can actually see rust streaks blown up by the wind, kinda cool really but still need some POR or equivalent
and do dry desert buses look like that up there??
and this view was a first for me, also needs treatment
_________________
It's not how wide your hatch is, it's what you do with it.
Eriba Puck Sticky |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71701
Location: Phoenix 602
|
| Posted: Mon May 08, 2006 12:52 pm Post subject: |
|
|
| JacsWagen wrote: |
3 different size screws holding the cover on
which one is correct? |
The top screw.
| JacsWagen wrote: |
you can actually see rust streaks blown up by the wind, kinda cool really but still need some POR or equivalent
and do dry desert buses look like that up there?? |
A little bit, here's mine:
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Mon May 08, 2006 12:53 pm Post subject: |
|
|
| JacsWagen wrote: |
3 different size screws holding the cover on
which one is correct? |
The top most screw is correct/.. those screws should NOT be sheet metal screws. Some PO did a bad thing!
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
| Back to top |
|
|
Kelly
Samba Member
Joined: November 25, 2003
Posts: 2437
Location: Olympia, WA
|
| Posted: Mon May 08, 2006 12:58 pm Post subject: |
|
|
man you guys are quick, didn't even have time to refill my glass of water!
so since the top screw is correct, I now know I need to find a heck of a lot more since there were only 2 of those installed, and one was pretty chewed up, both the threads and head.
also, I can now finally put this picture into perspective
_________________
It's not how wide your hatch is, it's what you do with it.
Eriba Puck Sticky |
|
| Back to top |
|
|
|
