 Posted: Wed May 26, 2010 1:51 pm Post subject: Schwimmwagen central lubrication pump |
 |
|
Since the vw166-forum is down, I'll try here...
I am trying to source the 100% correct and exact Willy Vogel central lubrication pump for my early Schwimmwagen. There are so many designs and variants...used on Mercedes, Horch, etc - I am confused. Can anybody post details and a picture of the whole pump assembly which is 101% correct down to the lid and all details for a 1943 Typ 166?
I know almost all variants can be made to fit and can be used...I am not after the function alone - I am after correctness. Does anybody know? |
|
| Back to top |
|
 |
SplitPersonality
Samba Member
Joined: September 26, 2004
Posts: 631
Location: Norway
|
| Posted: Wed May 26, 2010 2:07 pm Post subject: |
|
|

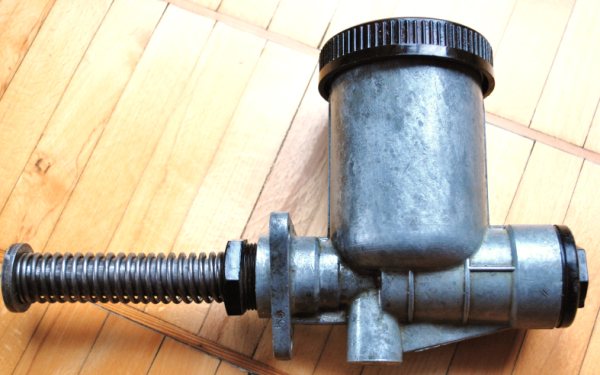

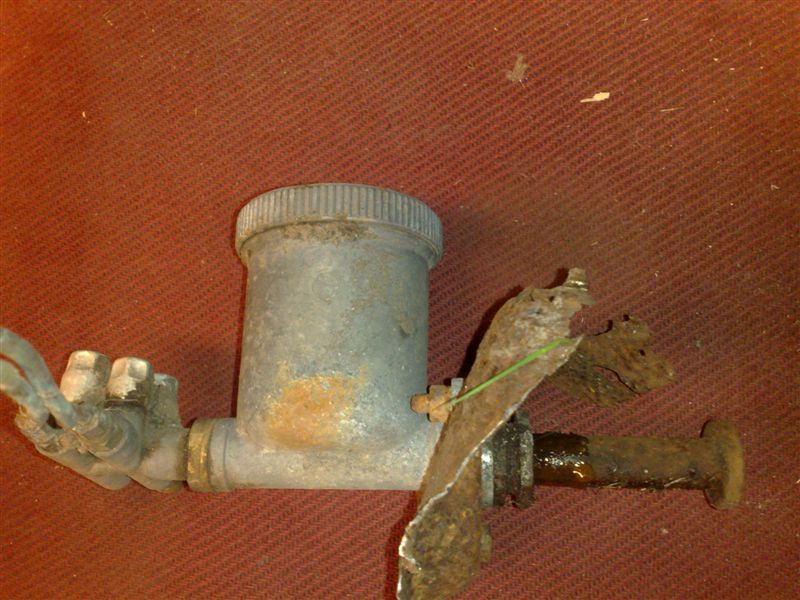

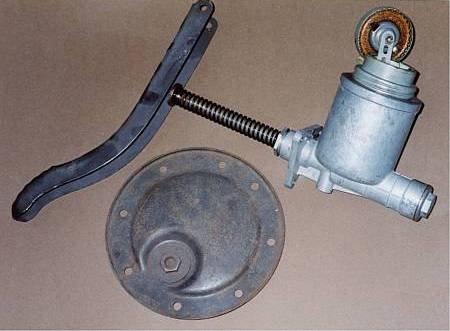

Here are 3 pictures of 3 variants that all supposively will work on the Type 166, but which - if any - is 100% period correct with regards to all details?
Does anybody have original period pictures / parts manuals or something like it? Proof of the original design and details...
Thank you in forehand.
|
|
| Back to top |
|
|
kaferspirit
Samba Member
Joined: November 27, 2006
Posts: 3
Location: France (lille)
|
| Posted: Sat May 29, 2010 2:20 pm Post subject: pump |
|
|
My Pump on my schwimmwagen(is not orignal i thing!!)
my news pump (original part's i thing)
Thank you (patrick)
_________________
http://drop-or-die.skyblog.com/ |
|
| Back to top |
|
|
79SuperVert
Samba Member
Joined: May 31, 2002
Posts: 9758
Location: Elizabeth, NJ & La Isla Del Encanto
|
| Posted: Sat May 29, 2010 4:09 pm Post subject: |
|
|
I don't know the answer to your question but I would like very much to know more about the function of this pump. I did not know that these vehicles had a central lubrication system.
_________________
Central Jersey VW Society
Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt. |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10800
Location: the past
|
| Posted: Sat May 29, 2010 4:20 pm Post subject: |
|
|
| 79SuperVert wrote: |
| I don't know the answer to your question but I would like very much to know more about the function of this pump. I did not know that these vehicles had a central lubrication system. |
you can see some of it in this thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=414670 |
|
| Back to top |
|
|
79SuperVert
Samba Member
Joined: May 31, 2002
Posts: 9758
Location: Elizabeth, NJ & La Isla Del Encanto
|
| Posted: Sat May 29, 2010 4:31 pm Post subject: |
|
|
Just enough to whet my appetite!
_________________
Central Jersey VW Society
Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt. |
|
| Back to top |
|
|
HeSa
Samba Member
Joined: January 15, 2007
Posts: 466
Location: FINLAND
|
| Posted: Sat May 29, 2010 6:18 pm Post subject: |
|
|
|
|
| Back to top |
|
|
79SuperVert
Samba Member
Joined: May 31, 2002
Posts: 9758
Location: Elizabeth, NJ & La Isla Del Encanto
|
| Posted: Sat May 29, 2010 8:43 pm Post subject: |
|
|
The way the handle's coil spring is oriented, it looks like you pull it with your hand to squirt the lubricant. What was it lubricating? The universal joints?
_________________
Central Jersey VW Society
Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt. |
|
| Back to top |
|
|
american_honda
Samba Member
Joined: January 20, 2006
Posts: 41
Location: athens-greece
|
| Posted: Sat May 29, 2010 10:08 pm Post subject: |
|
|
Its main purpose is to pop out water after the vehicle exit the lake.
Additional pumping will introduce oil into all the moving parts of front system to have them lubricated for road use. I will post some pictures when assemble the drive so you can see where what components need lubrication. |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17589
Location: Left coast, Canada
|
| Posted: Sat May 29, 2010 10:47 pm Post subject: |
|
|
| 79SuperVert wrote: |
| The way the handle's coil spring is oriented, it looks like you pull it with your hand to squirt the lubricant. What was it lubricating? The universal joints? |
The driver pushes on the handle to activate the pump.
It lube'd the suspension to purge water after a schwimm.
There are no universal joints on a Schwimmwagen.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
SplitPersonality
Samba Member
Joined: September 26, 2004
Posts: 631
Location: Norway
|
| Posted: Sun May 30, 2010 12:22 am Post subject: |
|
|
Thank you HeSa. From this drawing it looks like the top lid (no5) that pokes out through the front deck is "domed and smooth", with no logo/print on it... yet on "all" restored Schwimmers you see a printed, flat-top Willy Vogel lid. I do not understand how this really looks like.. |
|
| Back to top |
|
|
HeSa
Samba Member
Joined: January 15, 2007
Posts: 466
Location: FINLAND
|
| Posted: Sun May 30, 2010 2:29 am Post subject: |
|
|
| The part is listed as Willy Vogel Berlin in the parts book. I can send you a pdf copy of the whole catalog if interested. Just pm your email. |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17589
Location: Left coast, Canada
|
| Posted: Sun May 30, 2010 9:32 am Post subject: |
|
|
I think you may be able to post the whole catalog right here on the Samba.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
Mr Slug
Samba Member
Joined: December 06, 2009
Posts: 143
Location: United Kingdom
|
| Posted: Sun May 30, 2010 9:43 am Post subject: |
|
|
Brilliant information guys - I just bought a pump and am currently awaiting delivery. the one that came with my schwim was shaped like a puddle
I will post pictures of the replacement when it arrives.
The picture may just be 'generic' - it is just a drawing after all. If the VW motor plant was anything like the rest of the motor industry they used whatever was available.
They did have occaisional supply problems too - one must be mindful that they were trying to build these while thousands of tons of high explosive fell from the sky every single day ! |
|
| Back to top |
|
|
HeSa
Samba Member
Joined: January 15, 2007
Posts: 466
Location: FINLAND
|
| Posted: Sun May 30, 2010 1:01 pm Post subject: |
|
|
| Bruce wrote: |
| I think you may be able to post the whole catalog right here on the Samba. |
Done that with some other early catalogs. They do not appear in public due to copy right issues. |
|
| Back to top |
|
|
79SuperVert
Samba Member
Joined: May 31, 2002
Posts: 9758
Location: Elizabeth, NJ & La Isla Del Encanto
|
| Posted: Sun May 30, 2010 4:39 pm Post subject: |
|
|
| Bruce wrote: |
| 79SuperVert wrote: |
| The way the handle's coil spring is oriented, it looks like you pull it with your hand to squirt the lubricant. What was it lubricating? The universal joints? |
The driver pushes on the handle to activate the pump.
It lube'd the suspension to purge water after a schwimm.
There are no universal joints on a Schwimmwagen. |
Thanks for the info!
