PostPosted: Tue Oct 19, 2010 6:48 am    Post subject: Adding Passenger side-view mirror Reply with quote

On a '72 Super Beetle, how do you go about adding a passenger side-view mirror? The '72 that I may be buying does not have one.

I have looked at a lot of picture of Super Beetles and most of them had passenger side-view mirrors. I guess that was an option huh?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abandonhope16
Samba Member


Joined: July 09, 2010
Posts: 256
Location: NoVA
Abandonhope16 is offline

PostPosted: Tue Oct 19, 2010 6:53 am    Post subject: Reply with quote

Is it just missing? I thought it was standard equipment. On my '70 it just screws in. So if its similar on the '72, its possible that its was just removed since its so easy to put on/take off and you can get a replacement.
_________________
1970 Vert - My First
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 64589
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Tue Oct 19, 2010 6:55 am    Post subject: Re: Adding Passenger side-view mirror Reply with quote

shortride wrote:
I have looked at a lot of picture of Super Beetles and most of them had passenger side-view mirrors. I guess that was an option huh?

Actually mode do not have them and it was an option.

You need to drill a hole on the door post and mount a large nut inside to accept the mirror.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

iRide4Sue.org Please Donate to fight Cancer. $31,000 raised in 2018, hoping for the same in 2019
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
mondshine
Samba Member


Joined: October 27, 2006
Posts: 2038
Location: World's Motor Capital
mondshine is offline

PostPosted: Tue Oct 19, 2010 7:54 am    Post subject: Reply with quote

I made a paper template from the driver's door after removing the driver's side mirror. Flipping the paper over, I was able to accurately find the location for the hole on the passenger side door. The location of the hole is critical because there is a steel reinforcement piece inside the door with the hole already in place, and your outer hole must be concentric with the inner hole.
Carefully match the drill diameter to the small "step" on the mirror mount; if you make the hole too big, it will deform the rubber seal when the mirror is tightened. The correct diameter is slightly smaller than that of the pre-punched hole for the mirror inside the passenger door behind the outer skin (which adds additional support to the mirror).
I found that the common Chinese 3 sided nut made for this purpose was a flimsy item, so I took the mirror mount to the hardware store and bought a metric nut and serrated washer to fit.
To position the nut, I used a foot long piece of 1/8" steel (like a yard stick) and soldered the end to one of the flats on the nut like this:
Image may have been reduced in size. Click image to view fullscreen.

I was then able to position the nut behind the hole to start threading the mirror on. Once the nut is threaded onto the mirror mount, the solder joint is easily snapped off.
A crescent wrench can then be used to hold the nut while the mirror is reefed down tight.
The tension for adjusting the mirror angle is not established with the big nut. It is set with the 10mm nut which bears against the spring, so make the big nut tight.
Don't forget the rubber seal, and be careful of the paint as you tighten the outer mirror mount. You might consider buying a cheap open end wrench and grinding its thickness down to match that of the flats on the mirror mount.
My mirror came from WW; I think they're the best you can get these days.
Good luck, Mondshine
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shortride
Samba Member


Joined: October 10, 2010
Posts: 1322
Location: Oklahoma
shortride is offline

PostPosted: Tue Oct 19, 2010 1:11 pm    Post subject: Reply with quote

Thanks Mondshine,
I guess you normally would paint the feshly drilled hole?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
69 Jim
Samba Member


Joined: September 27, 2004
Posts: 6262
Location: Chickengeorge's Neighbor
69 Jim is offline

PostPosted: Tue Oct 19, 2010 1:18 pm    Post subject: Reply with quote

mondshine wrote:
I made a paper template from the driver's door after removing the driver's side mirror. Flipping the paper over, I was able to accurately find the location for the hole on the passenger side door. The location of the hole is critical because there is a steel reinforcement piece inside the door with the hole already in place, and your outer hole must be concentric with the inner hole.
Carefully match the drill diameter to the small "step" on the mirror mount; if you make the hole too big, it will deform the rubber seal when the mirror is tightened. The correct diameter is slightly smaller than that of the pre-punched hole for the mirror inside the passenger door behind the outer skin (which adds additional support to the mirror).
I found that the common Chinese 3 sided nut made for this purpose was a flimsy item, so I took the mirror mount to the hardware store and bought a metric nut and serrated washer to fit.
To position the nut, I used a foot long piece of 1/8" steel (like a yard stick) and soldered the end to one of the flats on the nut like this:
Image may have been reduced in size. Click image to view fullscreen.

I was then able to position the nut behind the hole to start threading the mirror on. Once the nut is threaded onto the mirror mount, the solder joint is easily snapped off.
A crescent wrench can then be used to hold the nut while the mirror is reefed down tight.
The tension for adjusting the mirror angle is not established with the big nut. It is set with the 10mm nut which bears against the spring, so make the big nut tight.
Don't forget the rubber seal, and be careful of the paint as you tighten the outer mirror mount. You might consider buying a cheap open end wrench and grinding its thickness down to match that of the flats on the mirror mount.
My mirror came from WW; I think they're the best you can get these days.
Good luck, Mondshine


Excellent Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
canvmnvw
Samba Member


Joined: September 04, 2006
Posts: 236

canvmnvw is offline

PostPosted: Wed Oct 20, 2010 12:00 pm    Post subject: Reply with quote

Take off your door panel and look inside where the passenger mirror would be mounted. I've seen later bugs that actually have the inner nut in place (from the factory) but no hole in the doorskin to mount the mirror on. If you have the nut factory installed, all you would have to do is measure carefully and drill through the outer door skin. It's worth a look, you might get lucky Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ukbaja
Samba Member


Joined: January 10, 2010
Posts: 24
Location: So Cal
ukbaja is offline

PostPosted: Tue Mar 15, 2011 5:46 pm    Post subject: Reply with quote

mondshine wrote:
I made a paper template from the driver's door after removing the driver's side mirror. Flipping the paper over, I was able to accurately find the location for the hole on the passenger side door. The location of the hole is critical because there is a steel reinforcement piece inside the door with the hole already in place, and your outer hole must be concentric with the inner hole.
Carefully match the drill diameter to the small "step" on the mirror mount; if you make the hole too big, it will deform the rubber seal when the mirror is tightened. The correct diameter is slightly smaller than that of the pre-punched hole for the mirror inside the passenger door behind the outer skin (which adds additional support to the mirror).
I found that the common Chinese 3 sided nut made for this purpose was a flimsy item, so I took the mirror mount to the hardware store and bought a metric nut and serrated washer to fit.
To position the nut, I used a foot long piece of 1/8" steel (like a yard stick) and soldered the end to one of the flats on the nut like this:
Image may have been reduced in size. Click image to view fullscreen.

I was then able to position the nut behind the hole to start threading the mirror on. Once the nut is threaded onto the mirror mount, the solder joint is easily snapped off.
A crescent wrench can then be used to hold the nut while the mirror is reefed down tight.
The tension for adjusting the mirror angle is not established with the big nut. It is set with the 10mm nut which bears against the spring, so make the big nut tight.
Don't forget the rubber seal, and be careful of the paint as you tighten the outer mirror mount. You might consider buying a cheap open end wrench and grinding its thickness down to match that of the flats on the mirror mount.
My mirror came from WW; I think they're the best you can get these days.
Good luck, Mondshine


Can you tell me the thread size of that nut please.

I think it is 16mm, but I just tried the only 16mm nut my hardware store has and it didn't come close. (Nuts threads were to coarse)

Thanks in advance
Back to top
View user's profile Send private message Classifieds Feedback
Willhelm
Samba Member


Joined: February 13, 2011
Posts: 818
Location: NY
Willhelm is offline

PostPosted: Wed Mar 16, 2011 2:57 am    Post subject: Reply with quote

M16 may have a 2 or 1.5 pitch. (if it is a m16, which I don't know as fact)
http://www.carbidedepot.com/formulas-tap-metric.htm
Back to top
View user's profile Send private message Gallery Classifieds Feedback
phmical
Samba Member


Joined: September 28, 2011
Posts: 109
Location: il
phmical is offline

PostPosted: Tue Nov 15, 2011 9:39 pm    Post subject: ghia mount and CV mirror Reply with quote

jwold is right on target , simply order a ghia / convertible mounting plate and a right side beetle convertible mirror from one of the many VW parts suppliers .
DO NOT buy one of those cheap 'non' guaranteed mirrors { the mistake i made } it looked good , but it broke as soon as i tightened it down ,
having a right side mirror really makes driving a pleasure ,
i wouldn't drive a bug with out one !
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jwold
Samba Member


Joined: September 30, 2008
Posts: 2041
Location: Portland, OR
jwold is offline

PostPosted: Wed Nov 16, 2011 5:44 pm    Post subject: Reply with quote

Here's a pic of my OG convertible mirror with the ghia mount, and the extra little "object is closer than appears" mirror. Sorry for the blurryness, no flash and it was raining, but you get the idea.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The convertible mirrors and arm are slightly rounder shaped than the driver side...I didn't mind since it's just a driver.

Forget the big bolt idea...this took me about 1/2 hour to do this add on. You have to measure and drill 2 holes, and you don't have to tear your door apart to do it, and it looks pretty good, especially since it's OG VW as well.

I taped off the door first where I was going to drill the holes, the hardest part was making sure I was putting it in the correct location, i.e. level with the other side (oh and deciding to drill into the door of my car!).

I'm pretty sure that Wolfsburg West makes mirrors for both sides, at least they did when I was researching this project.

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113857514D

I was going to get theirs but found this mirror on CL first, picked up the mount (and the advice to do it this way) at Always VW here in PDX.

Here are a few more photos I found:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
spanky324
Samba Member


Joined: September 28, 2006
Posts: 1068
Location: Greeley Pa
spanky324 is offline

PostPosted: Sun Dec 04, 2011 8:24 am    Post subject: Reply with quote

I cant seem to find this mirror from a ghia or convertible- anyone have a link dont want to order wrong one thanx
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
neil68
Samba Member


Joined: March 17, 2007
Posts: 3359
Location: Calgary, Canada
neil68 is offline

PostPosted: Sun Jan 22, 2012 1:50 pm    Post subject: passenger mirror nut installation Reply with quote

ukbaja wrote:

Can you tell me the thread size of that nut please.

I think it is 16mm, but I just tried the only 16mm nut my hardware store has and it didn't come close. (Nuts threads were to coarse)

Thanks in advance


I'm just working on this installation this weekend on my '68 Beetle, so I thought I would update this thread. The nut size is M16 x 1.5
_________________
Neil.

Der Kleiner Rennwagens
68 Beetle 2332 cc, 204 WHP
12.5 seconds @ 107 mph
Dynojet Test: https://www.youtube.com/watch?v=M9B_H3eklAo
Back to top
View user's profile Send private message Classifieds Feedback
alex857
Samba Member


Joined: December 26, 2010
Posts: 473
Location: Stuttgart/Germany
alex857 is offline

PostPosted: Sun Jan 22, 2012 11:23 pm    Post subject: Reply with quote

Hi,
if you want to have a more original look than in the previous post and you are redoing the scrapers on the door windows anyway, access is easy:

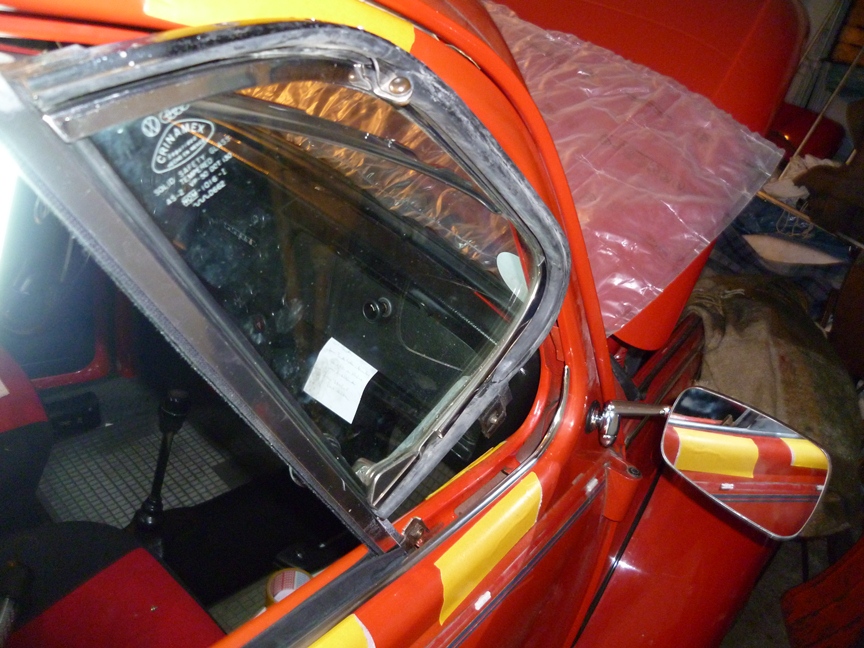

Image may have been reduced in size. Click image to view fullscreen.


I did this a couple of weeks ago, drilled the hole, enlarged it so the mirror foot went through and used the nut without any difficulties.

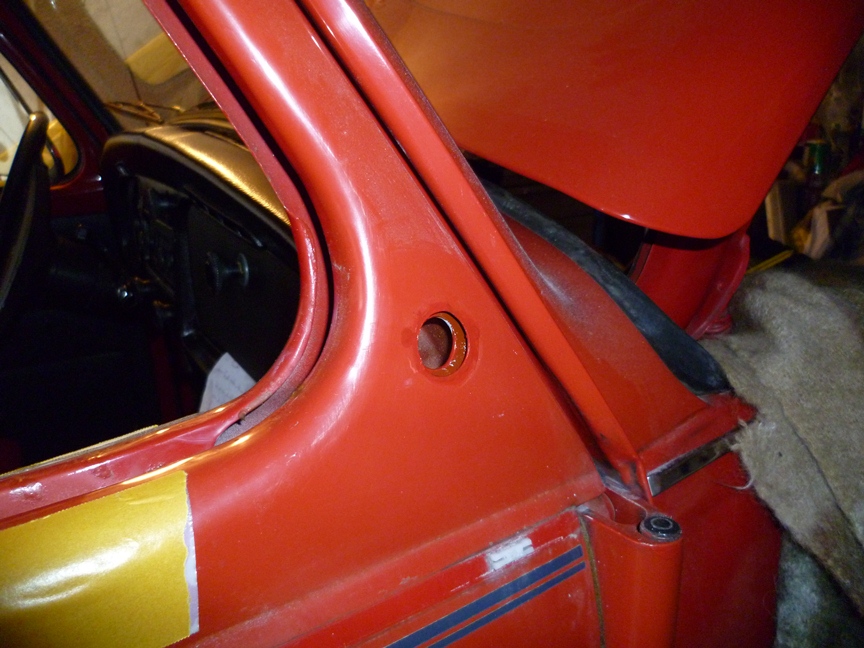

Image may have been reduced in size. Click image to view fullscreen.


The mirror installation looks the same like on the driverīs side then.
Alex
Back to top
View user's profile Send private message Gallery Classifieds Feedback
spanky324
Samba Member


Joined: September 28, 2006
Posts: 1068
Location: Greeley Pa
spanky324 is offline

PostPosted: Mon Apr 30, 2012 2:43 pm    Post subject: Re: ghia mount and CV mirror Reply with quote

phmical wrote:
jwold is right on target , simply order a ghia / convertible mounting plate and a right side beetle convertible mirror from one of the many VW parts suppliers .
DO NOT buy one of those cheap 'non' guaranteed mirrors { the mistake i made } it looked good , but it broke as soon as i tightened it down ,
having a right side mirror really makes driving a pleasure ,
i wouldn't drive a bug with out one !
Tried this today the threads are different any ideas
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cletus_zuber
Samba Member


Joined: January 08, 2010
Posts: 2201
Location: Gladstone, Ore
cletus_zuber is offline

PostPosted: Mon Apr 30, 2012 4:33 pm    Post subject: Reply with quote

yea, Bug mirrors have different threads than the ghia mirror, you have a mismatch. you need a ghia mirror to go in that mount.
_________________
1972 1302
Kadrons & 019
Back to top
View user's profile Send private message Gallery Classifieds Feedback
roostermt
Samba Member


Joined: November 07, 2011
Posts: 41

roostermt is offline

PostPosted: Mon Apr 30, 2012 6:27 pm    Post subject: Reply with quote

I did the same thing... Got the convertible mirror and the ghia adapter. The threads are sure close but not quite a fit. So Ghia Mirror?
_________________
Rooster

72 std bug
74 std bug
Back to top
View user's profile Send private message Classifieds Feedback
EVfun
Samba Member


Joined: April 01, 2012
Posts: 3355
Location: Seattle
EVfun is offline

PostPosted: Mon Apr 30, 2012 6:42 pm    Post subject: Reply with quote

Who has those nice curved back convertible mirror. My '79 had door mount mirrors at some point and some cheap "stock convertible" mirrors where installed. The bottom part that that adjusts the mirror forward/back isn't angled like the one in the pictures and as a result hits the aluminum trim strip. I will be replacing the inner and outer scrapers so I don't mind, but I want a better repop mirror to install after I do that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
spanky324
Samba Member


Joined: September 28, 2006
Posts: 1068
Location: Greeley Pa
spanky324 is offline

PostPosted: Tue May 01, 2012 2:38 pm    Post subject: Reply with quote

roostermt wrote:
I did the same thing... Got the convertible mirror and the ghia adapter. The threads are sure close but not quite a fit. So Ghia Mirror?
What did you wind up doing!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
roostermt
Samba Member


Joined: November 07, 2011
Posts: 41

roostermt is offline

PostPosted: Tue May 01, 2012 4:09 pm    Post subject: Reply with quote

I've done nothing yet... seems like everytime I go to start that project another on the bug gets priority.

My thoughts were to tap the adapter (car side) since the threads seem to be softer. Not sure if that will work.

Maybe have to break down and get a ghia mirror?
_________________
Rooster

72 std bug
74 std bug
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
