| Author |
Message |
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
 Posted: Tue Jun 23, 2015 12:34 pm Post subject: 72 VW Transporter pick up in NYC |
 |
|
Hey guys my grandfather has a 72 VW Transporter pick up. Im looking for a motor for him.
Wheres a good place to get a motor from.
Also if anyone from NewYork NYC area know of a place. |
|
| Back to top |
|
 |
72vwtype2
Samba Member
Joined: February 10, 2006
Posts: 217
|
| Posted: Tue Jun 23, 2015 12:55 pm Post subject: |
|
|
Firstly, consider yourself to be fortunate as 1972-1979 single or double cab buses are extremely rare in North America, since they were never imported here.
Secondly, you'll want to know what engine the truck had last. The original was more than likely a 1600 (upright), which is not typical on the 72 imported bus. Starting in 1972 the buses that came here had the type 4 motors (1700 pancake - 72 only). They were different so how your bus is set up will make a difference and getting the right engine will lessen the frustration of installing it.
Lastly, you will probably find the classified section on this site to be the best place to look for a motor.
Good luck! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Tue Jun 23, 2015 1:00 pm Post subject: Engine Type |
|
|
Engine Type:
Type I&II upright cooling system. Looks like this
Type III is a Type I engine with pancake cooling system. Looks like this
Type IV flat engine/spin on oil filter. Looks like this
Wasserboxer (waterboxer) water cooled Vanagon motor. Looks like this
Carb: carburetor.
Mnf. Manufacturers name will be on the body of the carburetor.
Mdl. Model number will be on the body of carburetor.
FI.: fuel injection.
Mnf. Unless injection system was changed the manufacturer will be Bosch, they like to put their name and insignia on components.
Mdl. Model, two examples D-Jetronic/L-Jetronic. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Tue Jun 23, 2015 1:04 pm Post subject: |
|
|
Welcome to TheSamba!
Post a picture of the M-Plate and someone can decode it for you?
|
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 23, 2015 1:54 pm Post subject: |
|
|
| Tcash wrote: |
Welcome to TheSamba!
Post a picture of the M-Plate and someone can decode it for you?
|
thanks for the help |
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 23, 2015 2:06 pm Post subject: |
|
|
type I or II style
|
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 23, 2015 2:38 pm Post subject: |
|
|
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52780
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Jun 23, 2015 3:32 pm Post subject: |
|
|
Something funny going on there, the VIN is for a standard microbus, yet you have a truck  From the metal surrounding the engine and the disc brakes I'll say it's really a 71 that someone's swapped VIN's on, be careful.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Tue Jun 23, 2015 3:34 pm Post subject: |
|
|
Something is not right. The decode says it is a 7 seater micro bus. When clearly it is a Truck?
Tcash |
|
| Back to top |
|
|
1967250s
Samba Member
Joined: May 02, 2007
Posts: 2137
|
| Posted: Wed Jun 24, 2015 4:54 pm Post subject: |
|
|
Are you using the VIN off the Bus, or from the paperwork? That looks like a Euro spec or Canadian Single Cab. Paperwork shows Transporter.
_________________
'72 Elm Green Deluxe |
|
| Back to top |
|
|
VWDog
Samba Member
Joined: June 24, 2005
Posts: 627
Location: Ladysmith, BC
|
| Posted: Wed Jun 24, 2015 7:13 pm Post subject: |
|
|
| 1967250s wrote: |
| Are you using the VIN off the Bus, or from the paperwork? That looks like a Euro spec or Canadian Single Cab. Paperwork shows Transporter. |
Why would you speculate "Canadian"? I am under the impression North American was USA and Canada.
_________________
1970 Lotus White Single Cab 2015- , 1979 Sage Green 2014-2015, 1978 Dakota Beige Westy 2012-2015, 1978 Neptune Blue Riviera 2012-2017 , 1970 Neptune Blue Bus 2010-2012, 1970 Deluxe Savannah Beige 2010-2012, 1985 Iltis 2010- , 1962 Single Cab 2010-2013, 1975 Brasilia? Bay/Split Kombi from Brazil 2008-2011, 1985 DoKa 1999-2009, 1971 Bus 1999-2000, 1968 Double Cab 1991-1998, 1965 Ghia 1987-1991, 1970 Westfalia-bought by Mum and Dad in 1970, sold by me in 1993 why-oh-why :_(
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42532
Location: at the beach
|
| Posted: Wed Jun 24, 2015 9:20 pm Post subject: |
|
|
weird - it says "with wing in double cab door" farther down. It also mentions sliding door.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52780
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed Jun 24, 2015 9:34 pm Post subject: |
|
|
That M code description applies to multiple models, when on a bus it means vent in slider, but when on a doublecab it means vent in door, that M plate is for a stationwagon so disregard the truck stuff.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5975
Location: Los Alamos, New Mexico, USA
|
| Posted: Thu Jun 25, 2015 7:48 am Post subject: |
|
|
What is teh actual VIN for this vehicle? You don't have to give the whole thing -- just the first 4 digits will suffice to determine model and year. Check to see if the VIN on the dash matches the one on the M-code plate, and most importantly, the one in the engine compartment.
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 30, 2015 9:58 am Post subject: |
|
|
| jtauxe wrote: |
| What is teh actual VIN for this vehicle? You don't have to give the whole thing -- just the first 4 digits will suffice to determine model and year. Check to see if the VIN on the dash matches the one on the M-code plate, and most importantly, the one in the engine compartment. |
where in the the engine compartment plate located. i found a number on the motor. vinplate on dash and door jam and m plate so far
first for of the vin is 2212
door jam plate also has date 07/71 |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8340
Location: Oceanside
|
| Posted: Tue Jun 30, 2015 10:41 am Post subject: |
|
|
71/72 still have the vin stamped in the engine compartment right? To the right of the motor, just before the battery.
The original vin should start with a 26x. Also the butt looks round so my bet is for '71.
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52780
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Jun 30, 2015 11:48 am Post subject: |
|
|
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 30, 2015 12:13 pm Post subject: |
|
|
motor number i got h224025
vin number found on the driver side dash and door jam
started with 22122 |
|
| Back to top |
|
|
213inc
Samba Member
Joined: June 23, 2015
Posts: 11
Location: Bronx NY
|
| Posted: Tue Jun 30, 2015 12:21 pm Post subject: |
|
|
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52780
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Jun 30, 2015 1:22 pm Post subject: |
|
|

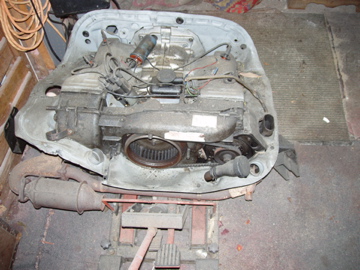

That's a 71, I can see the raised area where the number will be beside the battery just aft of the aircleaner, the number will start with 261, whatever numbers are up front are for a stationwagon, sketchy.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
|
