 Posted: Tue Jun 23, 2015 10:16 pm Post subject: |
 |
|
What happened to that cool Scotland sticker on the back window?
I took practically that same pic on the Forth Bridge.
-dasdachshund |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Wed Jun 24, 2015 2:29 am Post subject: |
|
|
I need small victories at the moment.
After several false starts, I got the throttle cable (actually, this one is a wire, which I like!) adjusted. At one stage I had it at full throttle, with kick down, when the pedal was up!  Would have been easier with two people!
The cable is the wrong length, so I don't have the thickened part to clamp on to, and the clamp struggles to hold the wire, so I've got a shonky looking 'wire bent back on itself' scenario. Seems ok though.
Then bolted back the belly pan, put back the heater accordion tubes, adjusted the heater cable properly and fitted the new idle circuit solenoid.
Yay!
Now for the 40 mile round trip to work again!
Fingers most definitely crossed!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Wed Jun 24, 2015 8:39 am Post subject: Timing |
|
|
After setting the timing at full advance and it does not idle correctly. Would lead me to believe there is a problem with the vacuum or the mechanical advance.
The distributor should be lubed every 6K miles.
Lubing the Distributor
The timing really should be checked in three places:
Set at idle
Check Mechanical advance at specified rpm's hoses off and plugged
Check Vacuum advance pulling specified vacuum with a vacuum pump
Check Vacuum retard hose off and plugged
You need to determine which distributor you have by the part number on it and look up the specifications located here.
http://www.oldvolkshome.com/ignition.htm
This is the specs for a Bus & Pickup Late 1976-1978 All States, 1979 Federal * 2000. Note the timing specs located at the bottom.
Note: This Distributor also fits Type 4 (412) 1974
Distributor: VW 021-905-205P, Bosch 0231 168 005 > 022-905-205S, 0231 170 093
Note: 0231 170 093 dist primarily used on California Late 1976-1978 and all Federal 1979 Models
Can Use:
Points: 01 011
Condensor: 02 074
Rotor: 04 033
Note: 0231 168 005 dist originally equipped with Speed Limiting Rotor 04 016 (5400rpm)
Dust Cover: 039-905-241, Bosch 1230 500 139 > 1230 500 147
Cap: 03 010
Distributor Cap Clip: 034-905-265, Bosch 1231 251 033
Parts Kit (Shims, Washers & Hardware): 059-998-211, Bosch 1237 010 007
Coil: 00 012
Vacuum Can: 07 060
Ignition Wires: 09 171
Spark Plug: W8CC
Timing specs.
Timing Set At:
7.5deg BTDC @ 850-950 rpm (Man Trans), 900-1000 rpm (Auto Trans) w/strobe, vacuum hose connected
Advance/Retard Range:
Vacuum: 8.5-11deg Adv @ 7.9 In. Hg
Centrifugal:
8-13deg @ 1600 rpm,
20.5-24.5 @ 3400 rpm
The other things that can throw off idle is.
A vacuum leak.
If the throttle plates are not adjusted correctly when closed.
Lube your distributor.
Good luck
Tcash
Last edited by Tcash on Sun Jul 05, 2015 11:04 am; edited 1 time in total |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Wed Jun 24, 2015 3:46 pm Post subject: |
|
|
Thanks Tcash, that's a really useful mine of information!
I have addressed a few of those things, but I would like to give the dist. a service (it's a shame the rebuild kits are gold dust!) and I'll have a good look at what you've posted.
The good news for now is that the Kombi ran really well for the round trip to work. Good power, cruising at 70mph on the major stretch of road with temperatures a good 10degC lower than usual.
I haven't had the chance to carefully run the dual carb tuning procedures again, but I hooked up the AFR to check I wasn't hugely off target, and the numbers are 15 at idle, 13-14 at 50mph on the flat and 13-13.5 at full throttle.
I'm happy that we can set off for the Lakes, and I'll find time to go over the other details soon.
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Thu Jun 25, 2015 9:27 pm Post subject: |
|
|
I managed to get a few things fixed yesterday for our trip away, after an early finish at work.
The heating hadn't been working great (no surprises there!  ) There was hot air coming forward, but despite the distribution controls apparently adjusted right, there was always a lot of hot air being lost into the main cabin from the vent behind the seats. So, I got underneath and blocked off the branch of tubing that goes to that vent with doubled over tin foil, and then adjusted the heat controls at the air boxes to make sure they were giving maximum heat. We'll see how it goes! Summer here usually means leaving the heat on, and adding a bit of fresh air ventilation if you get too warm!
Then I had a look at the fridge. Last time we went away, it wasn't working on 240v. I checked the power supply as far into the fridge and it all seemed ok, so I left it turned on for a couple of hours, and the heating elements seem to be working at the back so I left it on overnight to cool down. Mysterious!
We had also replaced the tent pole that had broken in the high winds last month, so we are just about good to go!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Fri Jun 26, 2015 9:11 am Post subject: |
|
|
Well under way now! We've stopped for a coffee about half an hour away from the campground we're staying in tonight.
The day started poorly. I went to collect the replacement leg for the 'roo bar from the blacksmith, and it turned out he hadn't made it up because he wasn't sure if the angle of the bend was supposed to be 90deg or not. I then had to go to our usual garage, where the rest of the bar is, and measure the other leg!
After we abandoned that, we set off South in the pouring rain. Luckily the newly adjusted heating was able to keep the screen clear of mist, but sadly once the sun came out I realised that I can't completely shut off the heat! So, windows down, fan on and on we go!
It's pretty hilly as we head to the lakes and we did have one stretch where the 'save my bus' dipstick started flashing its temperature warning, so I slowed down a bit and things eventually settled down. I topped up the oil this morning, so I was reassured by that, and the oil pressure gauge that the light wasn't oil pressure related!
Here's a couple of photos from the (very picturesque!) coffee stop!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Fri Jun 26, 2015 9:43 am Post subject: |
|
|
Wish I had a picture. But we had a old wooden child's potty training toilet, with a lid that Meow used. It was great.
Have a great weekend
Tcash
Something like this.
Little Denver |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 752
Location: Berlin, Germany
|
| Posted: Sat Jun 27, 2015 5:05 am Post subject: |
|
|
Hello,
| mcdonaldneal wrote: |
| ... Luckily the newly adjusted heating was able to keep the screen clear of mist, but sadly once the sun came out I realised that I can't completely shut off the heat! |
I have had the same problem in the Sahara, so I decide to change something - so now we have T3 heater control pods with rubber flaps - the testdrive to Persia (13.000 km - Berlin, Austria, Hungary, Serbia, Macedonia, Greece, Turkey, Iran.. and back) was successful
left new NOS T3 - right simple T2 repro:
More pictures: http://www.vw-t2-bulli.de/index.php?de-heatercontrolpod
regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Sun Jun 28, 2015 11:40 pm Post subject: |
|
|
Well, there is the world's biggest internet black spot in the English Lake District, so I was able to kick back and relax without checking Facebook and Samba every day!
It does mean that I'll have a couple of pic heavy posts to update the thread, so apologies for your download times!

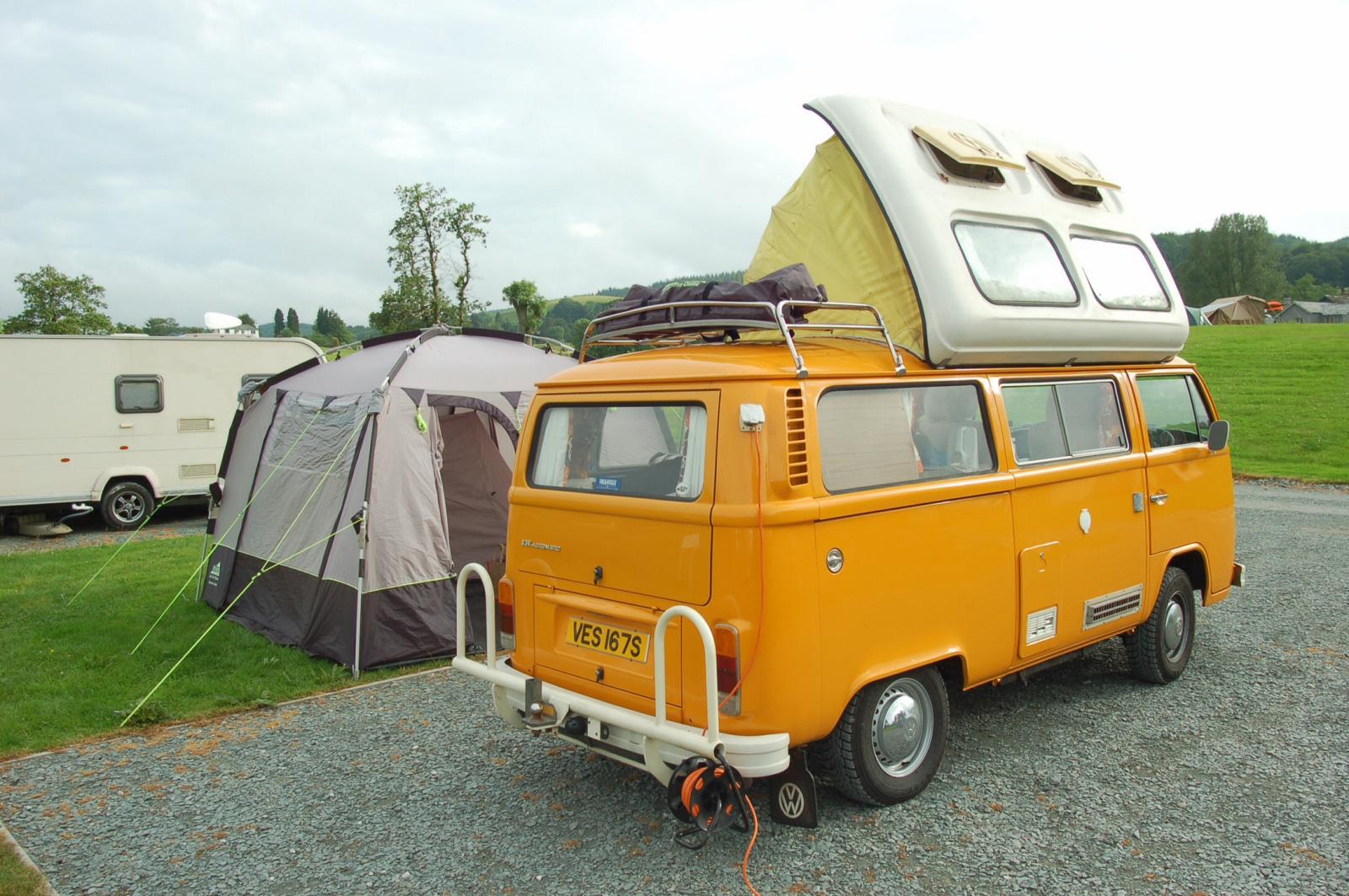

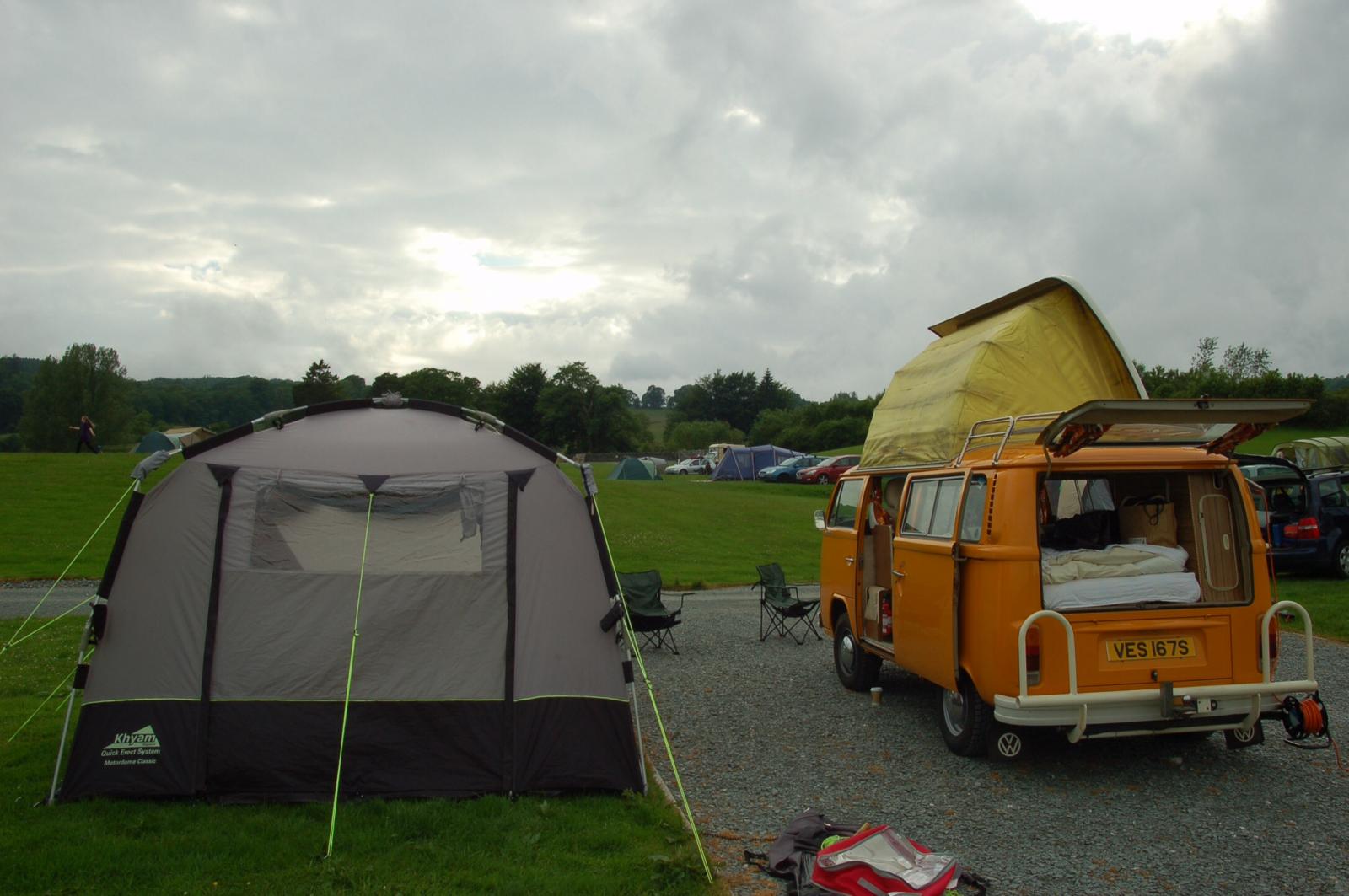

We arrived Friday evening at our little campsite near Ambleside on Lake Windermere. It was so cold that we could hardly believe it was late June! Cars of friends arrived from all directions until there were twelve of us, including kids. The biting midges were out in force, but it didn't dampen our spirits and we all sat up chatting outside until it got dark (about 11.15pm! )
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
|
| Back to top |
|
|
1961bluebug
Samba Member
Joined: November 11, 2002
Posts: 1137
Location: Czech Republic, Europe
|
| Posted: Tue Jun 30, 2015 1:12 pm Post subject: |
|
|
I checked back after some months for some more bus+cat pics and I´m not disappointed  In fact I bought an ´68 bay in the meantimeso I hoe we´ll do some light travelling with our 7 years old cat. He handles several hours long car transport very well but we will see for overnight trips.
_________________
|82x94|
1961 Deluxe beetle, 1971 type 181, 1968 T2a Baywindow, 1973 Type 147 "Swiss Fridolin"(sold), 1966 Deluxe sedan (sold), 1983 "Silver Bug" edition (sold), 1961 beetle (sold) |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2731
Location: Gullane, Scotland
|
| Posted: Tue Jun 30, 2015 2:24 pm Post subject: |
|
|
| 1961bluebug wrote: |
| I checked back after some months for some more bus+cat pics and I´m not disappointed In fact I bought an ´68 bay in the meantimeso I hoe we´ll do some light travelling with our 7 years old cat. He handles several hours long car transport very well but we will see for overnight trips. |
Good luck with that! As you can see, the cat thinks it's in heaven!
On a more disappointing note, I was speaking to the farmer who lets us use space in his shed for storing the Kombi. He's negotiating with a microbrewery for them to use all of the space in the shed, so there might not be any room for us from September!
I've been keeping an eye out for workshop/ storage space in the local area, but there's nothing on offer. Maybe I'll have to build a double garage in the garden? Any suggestions for what construction type stays driest, with least condensation, in a temperate/ rainy climate near the coast??
