 Posted: Sun Sep 06, 2015 7:08 am Post subject: Sliding Door Handle 'broke'-repair or replace? |
 |
|
a few months back I came to my bus from work and found my outer slider handle on the ground.
It appears to have broken off. Looking at my Bentley manual wasnt that helpful because it shows the earlier bay models.
I can see where the handle goes into the hole in the door etc., I can see the screw in the handle and what looks like a spring (where the handle would be interested through)in the latch assembly. But is there something missing that would the handle in place?
I didnt want to force it, or experimentally try to just get the handle in through that spring, if that spring-like part is bad (my main fear putting a huge scratch on the paint) .
Basically? how do I fix this or whats the steps to replace the handle/latch?
[img]
I apologize in advance for what is probably a stupid question. I've been puttering with it on my days off between yard work and kid duties... .
Thanks for any help/input.
[/img]
_________________
'76 L20A marino yellow Westy |
|
| Back to top |
|
 |
Brown_Bus
Samba Member
Joined: December 14, 2007
Posts: 319
Location: Roanoke, VA
|
| Posted: Sun Sep 06, 2015 8:42 am Post subject: |
|
|
I can insert the handle, but, it just pulls right back out. There has to be a missing washer or grommet that would hold the handle in place...right?
_________________
'76 L20A marino yellow Westy |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52856
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Sep 06, 2015 8:59 am Post subject: |
|
|
Something's worn off or missing, how does what you have match up with #35, #36, #39A and #49 here?
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Brown_Bus
Samba Member
Joined: December 14, 2007
Posts: 319
Location: Roanoke, VA
|
| Posted: Sun Sep 06, 2015 10:05 am Post subject: |
|
|
thanks for input busdaddy!
#35, #36, #39A and #49 are all there. When I found the handle on the ground, all of the parts (#35, #36, #39A and #49) were attached and together.
I was able to slide the handle as found (all parts together) into the opening door, but it pulls right out.
I then unscrewed 36 and 35 from 39A, 49 and 34A (handle), inserted handle through hole and through latch, then screwed 36/35 into 39A, 49 and 34A. Same result- pulls right out.

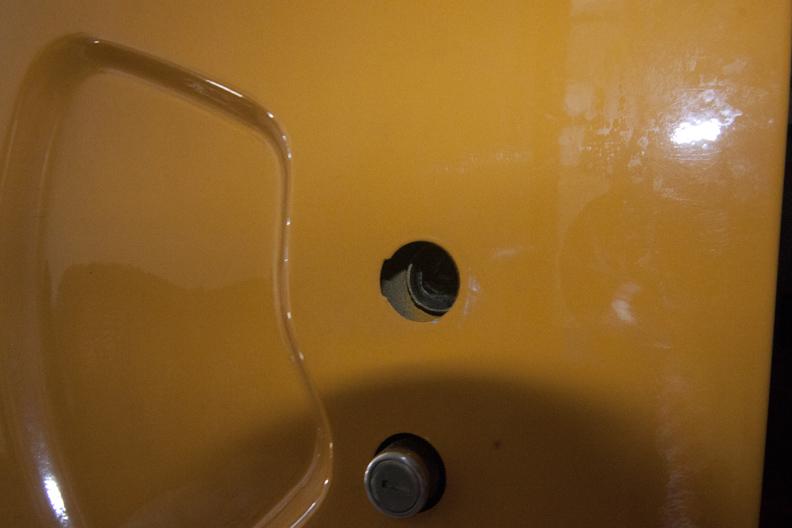

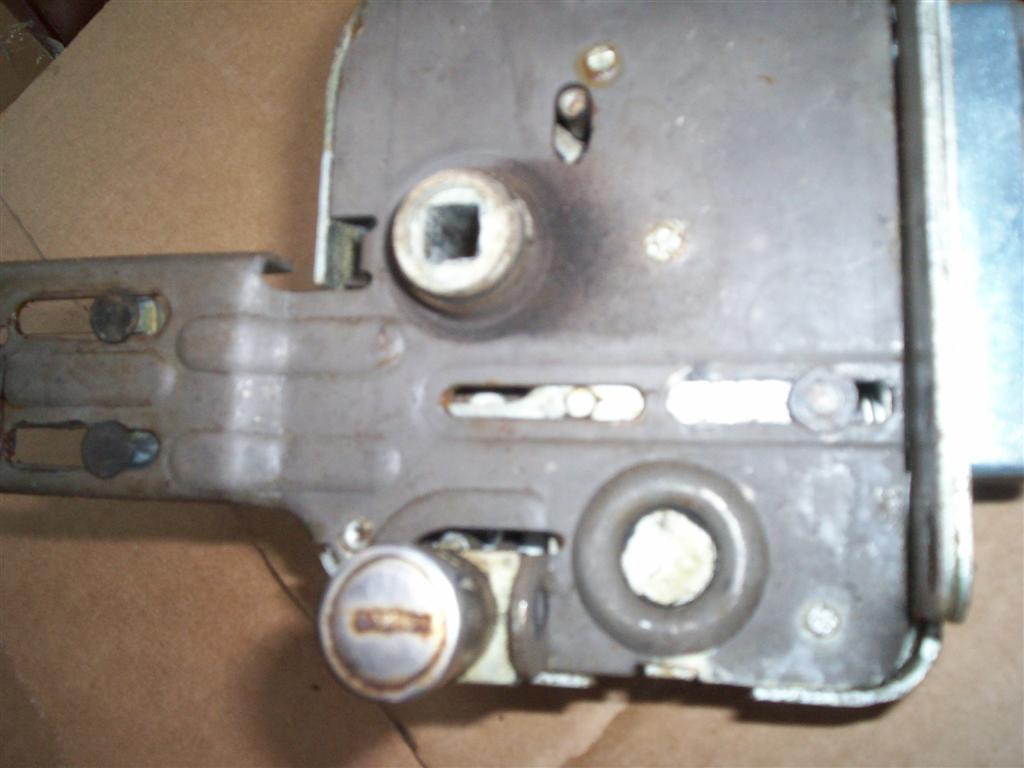

the spring inside the latch was misaligned(2nd pic down) and that may be a factor, but, how so , is still a question...
I wonder if the washer (#35) is the wrong size. That wouldnt explain why it just pulled out after 8 years though...
also #49 for me is the plastic grommet that was used when it was painted etc. in 2008
_________________
'76 L20A marino yellow Westy |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
Brown_Bus
Samba Member
Joined: December 14, 2007
Posts: 319
Location: Roanoke, VA
|
| Posted: Sun Sep 06, 2015 11:31 am Post subject: |
|
|
i love the Samba! thanks tcash and busdaddy.
_________________
'76 L20A marino yellow Westy |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42689
Location: at the beach
|
| Posted: Sun Sep 06, 2015 5:32 pm Post subject: |
|
|

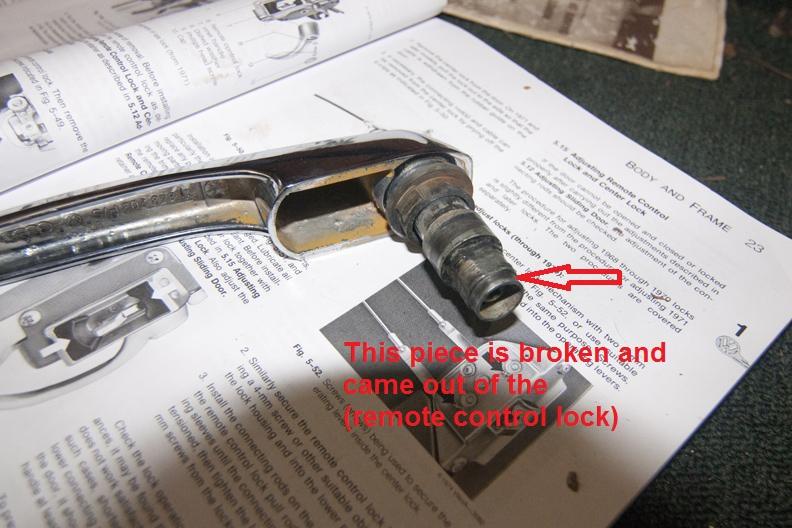

In gallery as 1978 lock. Handle should slide thru it and be held in by plastic handle on other side. It looks like the silder lock mechanism is broken on yours. The handle should come out of the piece it is in. That piece belongs in the door mechanism, Maybe someone tried to pull the door handle to open the bus while you were gone and broke it.
