Fuel pump cutoff switch
Page: Previous  1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
This page may contain links to eBay where the site receives compensation.
Author Message
[email protected]
Samba Member


Joined: April 29, 2015
Posts: 704
Location: Berkeley Ca
ahmed.aboudan@gmail.com is offline

PostPosted: Tue Dec 12, 2017 6:25 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

He he thanks, I'll read up. I think all I am stating is than rather than put the switch on the hot how someone asked it would be beter to put on ground.

dhaavers wrote:
^^^ Sorry to say, but your responses here indicate that you are still working on
understanding basic electrical theory. Please stop before someone gets hurt... Sad

Check it: http://www.autoshop101.com/forms/elec11.pdf

- Dave
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Tue Dec 12, 2017 6:50 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

If you install your switch in the main current path to the pump you will need a switch and wire rated to handle 8 amps or more, whereas if you install your switch in the trigger circuit for the fuel pump relay you will be dealing with a much smaller current so can use a smaller gauge wire and a lighter rated switch.

Another way to go would be to add a relay in the ground path for the fuel pump. This would allow for a small gauge wire running forward and a switch with a low current rating. It would also be very easy to bypass should the system fail, as all you would need to do is hook the original ground wire back up. If you left the original ground wire in place, but disconnected from the pump, it would only take seconds to be running again.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Tue Dec 12, 2017 6:53 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

Wildthings wrote:


Another way to go would be to add a relay in the ground path for the fuel pump. This would allow for a small gauge wire running forward and a switch with a low current rating. It would also be very easy to bypass should the system fail, as all you would need to do is hook the original ground wire back up. If you left the original ground wire in place, but disconnected from the pump, it would only take seconds to be running again.


This is exactly what I did on my previous bus.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fxr
Samba Member


Joined: December 07, 2014
Posts: 2288
Location: Bay area CA
fxr is offline

PostPosted: Tue Dec 19, 2017 8:44 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

dobryan wrote:
Wildthings wrote:


Another way to go would be to add a relay in the ground path for the fuel pump. This would allow for a small gauge wire running forward and a switch with a low current rating. It would also be very easy to bypass should the system fail, as all you would need to do is hook the original ground wire back up. If you left the original ground wire in place, but disconnected from the pump, it would only take seconds to be running again.


This is exactly what I did on my previous bus.

Late to the party (been off-grid for a week at Jalama beach. Smile ) - and this is also exactly what I did.

A relay interrupting the ground feed for the pump, installed right beside the pump so an easy swap of wires should the relay or its control fail. A small guage wire (again in the ground side) to a tiny slide switch installed in a very inconspicuous place - no, no pics, it's my secret.... Razz

OK, it could be foiled by a thief with some electrical savvy, but as it stands it works very well as a kill-switch, but very easily bypassed when in the know. The fact it catches out both myself and Mrs fxr about 30% of the time shows it isn't an obvious thing to engage. Wink
_________________
Jim Crowther
1984 1.9l EJ22 Westy Wolfsburg Edition
Vespa GTS 300
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jamo7
Samba Member


Joined: September 25, 2014
Posts: 124
Location: Seattle
Jamo7 is offline

PostPosted: Tue Dec 19, 2017 11:47 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

Ok, I'll play...
I have this switch interrupting the ground wire directly from the fuel pump.
https://www.superbrightleds.com/moreinfo/installation-supplies/mini-onoff-toggle-switch/1353/3111/
It is rated to 10 Amps. I have been using this switch in this configuration for sometime between 1.5 and 2 years.
I have learned some valid points about interrupting the pump relay instead of the pump itself. If the need arises, I will likely rewire my kill switch. However, I just put my dash back together last week, and while I know i get better at it every time, I'm not inclined to rewire my switch now.
James
_________________
'84 Westy 2.1 wbx
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Wed Dec 20, 2017 8:47 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

I just posted this is another thread but this is a better place for it.


Image may have been reduced in size. Click image to view fullscreen.

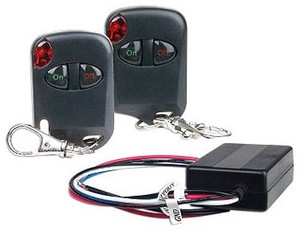

I like this idea for a hidden switch. With a remote, you have better options where to hide it. Less than $20.
https://www.ebay.com/itm/Logisys-RM02-Wireless-12V...35cb22971e
Back to top
View user's profile Send private message Gallery Classifieds Feedback
drj434343
Samba Member


Joined: January 31, 2016
Posts: 397
Location: Portland, OR
drj434343 is offline

PostPosted: Wed Dec 20, 2017 9:16 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

I have two Vanagons with switched ground interrupts for the fuel pump.

1. 1983 Westfalia, 16 AWG wire run all the way from ground at the pump to the rear heater fan control switch on the dash all the way back to the chassis ground next to the pump. ~25 ft additional wire in the ground path. Only 1 of the 4 possible switch positions will allow the pump to run. Rear heater was deleted, so this switch was available. Can be bypassed at the pump or at the switch in case of failure. Running 1 year without issues.

2. 1990 tintop, 16 AWG wire run same as above but to a hidden switch. Running 6 months without issue.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paulbeard
Samba Member


Joined: July 10, 2015
Posts: 2604
Location: Seattle
Paulbeard is offline

PostPosted: Wed Dec 20, 2017 9:47 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

drj434343 wrote:


1. 1983 Westfalia, 16 AWG wire run all the way from ground at the pump to the rear heater fan control switch on the dash all the way back to the chassis ground next to the pump. ~25 ft additional wire in the ground path.


Why not to a local ground under the dash?
_________________
Currently -> Frida: 87 Tizian Red (mostly) Vanagon GL Westfalia w/ 2.0L ABA conversion
Formerly -> Steward of a 73 Super Beetle (Beater) and 67 Beetle 1300 (Little Max) both names by POs

Quote:
Git 'r DONE!
— dhaavers
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
pomfritz
Samba Member


Joined: December 18, 2014
Posts: 477
Location: Folsom, CA
pomfritz is offline

PostPosted: Wed Dec 20, 2017 9:59 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

Great ideas, thanks for the input. Being a visual learner, can some kind soul post a simple drawing of how a relay next to the pump and run to a switch in the cab would be wired? I’m sure it’s simple but a picture for us non-EE folks....
I would probably use the generic relay GW sells, think I have one on hand.

Thanks
_________________
83.5 233K. GW 2.3, SS exhaust, My German Frau named her Stefi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shagginwagon83
Samba Member


Joined: February 07, 2016
Posts: 3771
Location: VA/TN
shagginwagon83 is online now

PostPosted: Wed Dec 20, 2017 10:19 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

pomfritz wrote:
Great ideas, thanks for the input. Being a visual learner, can some kind soul post a simple drawing of how a relay next to the pump and run to a switch in the cab would be wired? I’m sure it’s simple but a picture for us non-EE folks....
I would probably use the generic relay GW sells, think I have one on hand.

Thanks


I am wanting to do this soon also, so i sketched up my interpretation
Image may have been reduced in size. Click image to view fullscreen.

_________________
Brandon
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram @joannthevan
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
pomfritz
Samba Member


Joined: December 18, 2014
Posts: 477
Location: Folsom, CA
pomfritz is offline

PostPosted: Wed Dec 20, 2017 10:52 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

Thanks Brandon,

On the relay you use the 87 to 30 contacts?
_________________
83.5 233K. GW 2.3, SS exhaust, My German Frau named her Stefi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 16972
Location: Retired South Florida
MarkWard is offline

PostPosted: Wed Dec 20, 2017 11:04 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

To wire it proper, the fuel pump would ground through 30 and 87. You could also run power through 30 and 87. It just depends how you want to wire it. If you look at the relay you can see the electromagnet with pins 85 and 86. You would add power to one leg and ground to the other. You would then toggle either 85 or 86. When the relay electromagnet is energized, 30 and 87 are connected.

All of this explained, if you go back and read my posts and compare against the wiring diagram. You don't need to add a relay, you can simply add a toggle to the power relay ground to interrupt the engine running.
_________________
☮️
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 4697
Location: Bemidji, MN
DanHoug is offline

PostPosted: Wed Dec 20, 2017 11:16 am    Post subject: Re: Fuel pump cutoff switch Reply with quote

i wonder if it would be more mysterious if the ECU relay was disabled. Vanagon theives, used to Vanagons, may listen for the fuel pump sound with key on just as a natural part of starting one. i do.

either way, i think it is a great feature to add... "Hey, this van doesn't start. Stupid Volkswagens."

-dan
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
drj434343
Samba Member


Joined: January 31, 2016
Posts: 397
Location: Portland, OR
drj434343 is offline

PostPosted: Wed Dec 20, 2017 1:31 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

Paulbeard wrote:
drj434343 wrote:


1. 1983 Westfalia, 16 AWG wire run all the way from ground at the pump to the rear heater fan control switch on the dash all the way back to the chassis ground next to the pump. ~25 ft additional wire in the ground path.


Why not to a local ground under the dash?


I had a length of sheathed 2 wire cable so I really only ran 1 cable. Part of the reason was an experiment; would the added path to ground resistance of that loop affect the pump? The answer after 1 year is that I haven't noticed a difference.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
candyman
Samba Trout Slayer


Joined: December 20, 2003
Posts: 2694
Location: Missoula MT
candyman is offline

PostPosted: Wed Dec 20, 2017 3:41 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

Can someone post a link of switches that would work? All I can find in toggle switches etc... are rated inAC not DC.
Thanks
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
fxr
Samba Member


Joined: December 07, 2014
Posts: 2288
Location: Bay area CA
fxr is offline

PostPosted: Wed Dec 20, 2017 4:05 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

pomfritz wrote:
Great ideas, thanks for the input. Being a visual learner, can some kind soul post a simple drawing of how a relay next to the pump and run to a switch in the cab would be wired? I’m sure it’s simple but a picture for us non-EE folks....
I would probably use the generic relay GW sells, think I have one on hand.

Thanks

Below is the circuit of what I did. It just needs one wire running from the relay to the switch - wherever you might put that. Here's a link to the switch I used, almost invisible when installed on a black background:

https://www.frys.com/product/1945881

Image may have been reduced in size. Click image to view fullscreen.

_________________
Jim Crowther
1984 1.9l EJ22 Westy Wolfsburg Edition
Vespa GTS 300
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9770
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Wed Dec 20, 2017 6:34 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

candyman wrote:
Can someone post a link of switches that would work?...


Almost any ordinary toggle will work fine, rating on most will be much higher than needed (irrespective of whether it says AC or DC).

Or you could use a blank spot in the dash pod for one of these:

https://www.ebay.com/itm/VW-Volkswagen-Vanagon-Rea...mp;vxp=mtr
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9889
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Wed Dec 20, 2017 6:37 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

That is how I would prefer to do it. To be clear, the +12 wire is just the existing power wire to the pump?

Mark
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fxr
Samba Member


Joined: December 07, 2014
Posts: 2288
Location: Bay area CA
fxr is offline

PostPosted: Wed Dec 20, 2017 7:20 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

crazyvwvanman wrote:
That is how I would prefer to do it. To be clear, the +12 wire is just the existing power wire to the pump?

Mark

Yes. I cut off the original spade connector to the pump and fitted a new one incorporating an extra wire to go to the relay coil.
_________________
Jim Crowther
1984 1.9l EJ22 Westy Wolfsburg Edition
Vespa GTS 300
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jamo7
Samba Member


Joined: September 25, 2014
Posts: 124
Location: Seattle
Jamo7 is offline

PostPosted: Wed Dec 20, 2017 9:28 pm    Post subject: Re: Fuel pump cutoff switch Reply with quote

That’s a really helpful diagram Jim. I am used to using relays switched from the power side, not the ground side.
Thank you Mark and Jim especially for taking the time to clarify all of this.
James
_________________
'84 Westy 2.1 wbx
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
