Posted: Sun Dec 09, 2018 4:40 pm Post subject: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
RUBBER FLOOR MATS
At the end of the LOWLIGHT era, in August 1st of 1959, the ALL rubber 8 pieces mat set, that included the Bulkhead mat, the left and right Sill mats, the Tunnel mat and the 4 Floor mats, was replaced by a combination of carpet and a 4 pieces rubber FLOOR MATS set.
The part numbers for the 4 Floor Mats remained the same until 1971!
In those 12 years VW introduced 16 different colours!

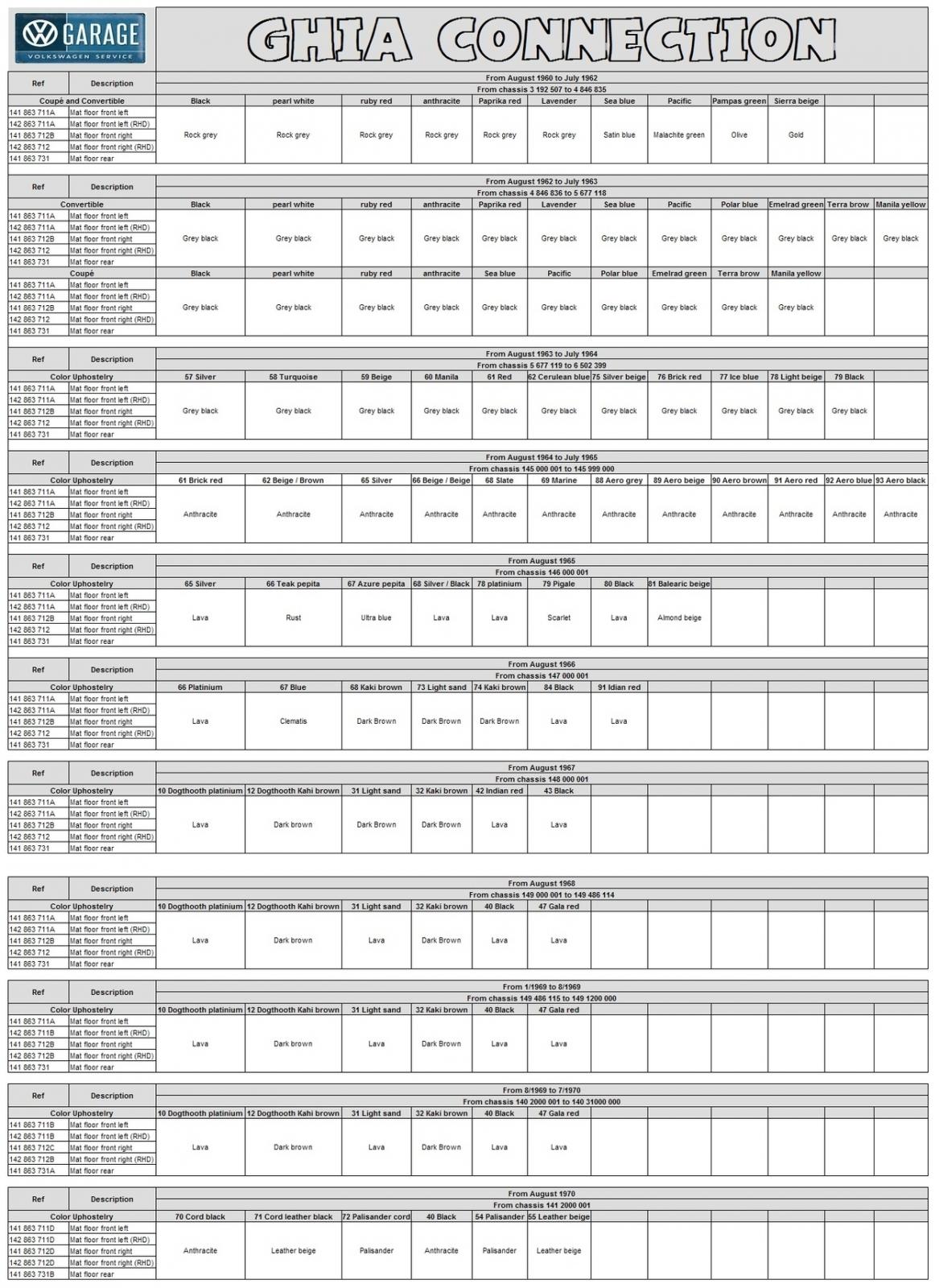

Here is a detailed document showing Part Numbers, Introduction Dates & correct Upholstery combinations: (Thank you Cyril! )
As many of you are aware, with the amazing Ghia Community support, I started LOW LIGHT WERKS to develop the manufacturing process to reproduce the 8 rubber pieces. The biggest challenge was to reproduce the Front BULKHEAD MAT!
Today more than 20 guys in 10 different countries have one in their hands! And more are coming every week!
The project was a lot more complex than I ever expected, it took a lot more time and effort that I had planned for and it cost a lot more that I forecast!
The history of the related The Samba forum topic started over 15 years ago, on May 2003! Here is the link:
https://www.thesamba.com/vw/forum/viewtopic.php?t=155849
As that topic was Low Light exclusive, I am starting this new topic that covers the Floor Mats for Karmann Ghias, starting in the Model 1960 (official begging is in August 1st, 1959) until the Model 1971.
It was mentioned that after that year, no more rubber mats were included with the cars, until the End of Production 1974 Model. I don't know for sure. If any of you has additional information from 71 to 74, please share that with us.
During the development of the Low Light project, many members asked that if the floor mats would be available for later years. Well, the answer is YES!
The experience I gained and a production line running, makes this new project implementation plan simpler and with a quick turn around!
One thing I learned, is that the reproduction parts are as good as the models from where the molds are made. If the model has any minute imperfection, it will show in the reproduced part!
So, before commitment to offer the later years FLOOR MATS, I have been searching for a nice set of mats. After few months, the search is over, I got a set that is almost perfect!

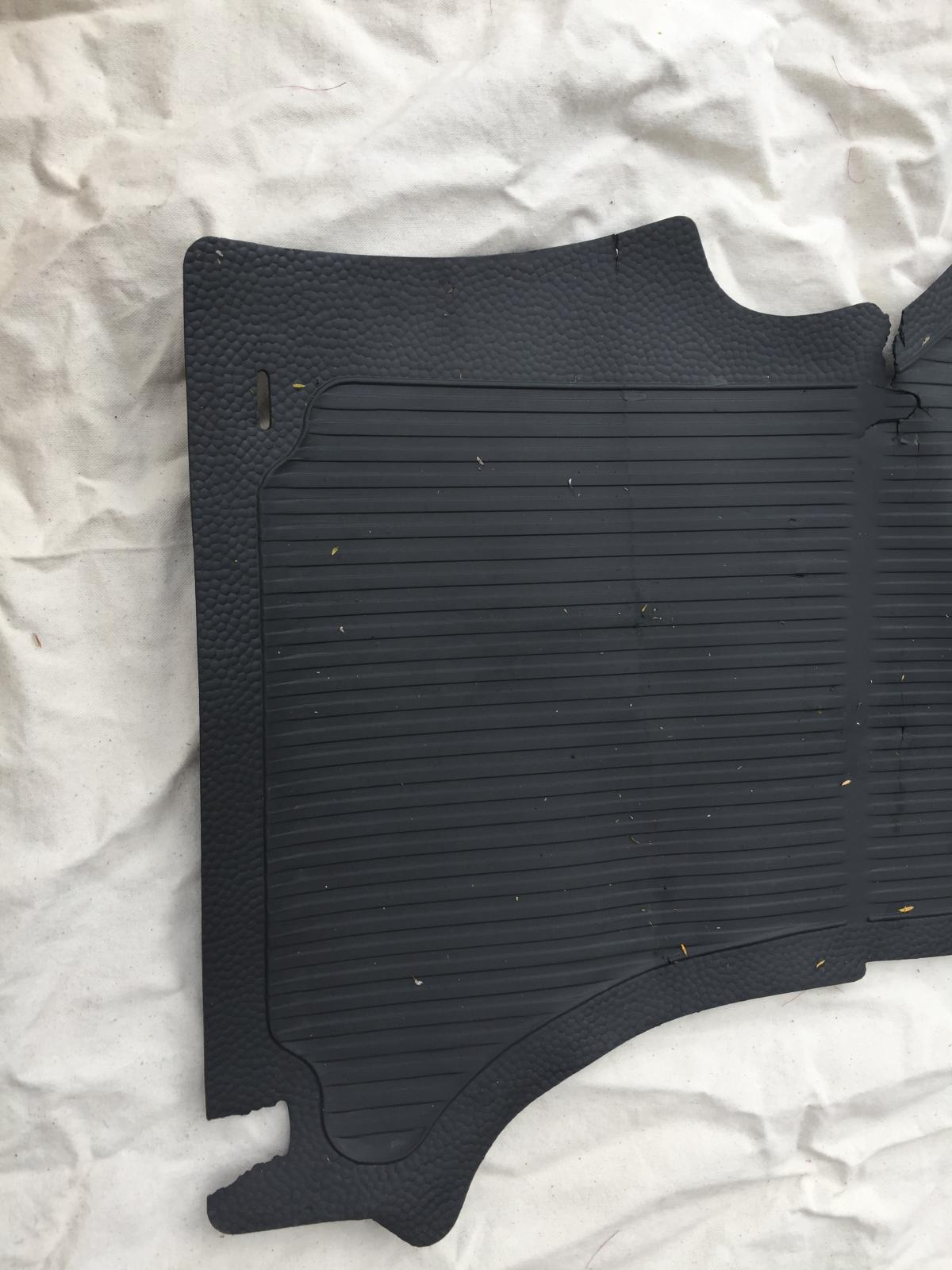

The mats were stored rolled. in this picture they are not totally flat, as the picture was taken right after they were unpacked. But now they are flat and beautiful!
It took me almost 6 months to have a practical manufacturing production line. Now I can produce a complete 8 pieces Low Light set in one day, as the mold curing time is 16 hours. The good news is that we can start production of the new mats right away, after making the molds, as I can use the same technique and production line, while the other daily set is curing!
Our good friend Cyril, from France, compiled the information I included. I was surprised to learn that in 12 years, 16 different colours were brought out by VW!
ALL Colours will be available in the store. The challenge is going to be able to match the colour options spot on. I have some pictures and references that give a close idea of the colour options, but the best way to be spot on, is to have an original sample.
Here is a table relating colors and years:
MODEL YEAR* COLORS
1960-1962 Rock Gray/Satin Blue/Malachite Green/Olive/Gold
1963-1964 Gray Black
1965 Anthracite
1966 Lava/Rust/Ultra Blue/Scarlet/Almond Beige
1967 Lava/Dark Brown/Clematis
1968-70** Lava/Dark Brown
1971*** Anthracite/Leather Beige/Palsander
* MODEL YEAR ends on July 31st of MODEL YEAR and start's In August 1st of the presiding MODEL YEAR
** Part Numbers Last Letter changed
*** Part Numbers Last Letter changed again
While a launching plan is set and the molds are designed and made, I propose to start a list of COLOR SAMPLES, to provide SPOT COLOR reproductions!
If you have a mat (even a piece will do the job!) that can be donated or borrowed, please send me a PM (Private Message) and I will email you the shipping labels needed! If you need it back, I'll return it to you after the Professional COLOUR MATCHING is done!
As a token, I'll send you KARMANN KEY FOB as soon as they are available!
(It took time to locate the same snap bottom design the original had. Key Fobs are been made as we speak, I hope to have the first batch before I go to Mexico!)
I will update this COLOUR CHART as frequently as needed, until all colours are matched. Initially, COLOURS will be set from pictures and available documents.
If you are interested in owning a NEW 60's KARMANN GHIA MATS set, please start participating in this forum!
I will start a campaign to benefit Founder Members! The more Founder Members, the better the special price will be!
So, let's start!
Luis _________________ http://www.lowlightwerks.com |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
CiderGuy Samba Member
Joined: December 23, 2013 Posts: 1351 Location: Bucks County, Pa
|
Posted: Sun Dec 09, 2018 5:18 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Was this an option ? I own 3 1970 Karmann Ghia and none have the above. _________________ ----------------------
Cars Currently Owned:
1970 Karmann Ghia Coupe
1973 Karmann Ghia Coupe - Project car for sale
1970 Karmann Ghia Convertible (Body off restoration)
Timing is everything |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
xzener Samba Member
![](/vw/forum/images/avatars/10624678645ba6c108826ba.jpg)
Joined: June 03, 2006 Posts: 1777
|
Posted: Sun Dec 09, 2018 5:38 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Very excited for this! Can't wait to see them rolling off the production floor. _________________ My 70 beetle was totaled Now to build the Ghia I always wanted. Rest in peace Ruby, I will miss you. Hello <insert Ghia name here>! |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
jason_hamilton Samba Member
![](/vw/forum/images/avatars/195375889242ced2d3dbc00.jpg)
Joined: February 07, 2003 Posts: 1118 Location: Abbotsford, BC
|
Posted: Sun Dec 09, 2018 6:38 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
CiderGuy wrote: |
Was this an option ? I own 3 1970 Karmann Ghia and none have the above. |
Your 1970 came with the four mats shown in the photo.
If I wasn't already one of the unicorns with a set of Lemke mats I'd be all over this. _________________ Jason Hamilton
1969 Karmann Ghia coupe
@MiddleAgedHoon |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
csc23 Samba Member
Joined: March 27, 2016 Posts: 61 Location: nebraska
|
Posted: Sun Dec 09, 2018 8:53 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Great news... I am interested. Thank you. |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
Onceler Samba Member
Joined: May 28, 2010 Posts: 1647 Location: Indiana
|
Posted: Sun Dec 09, 2018 9:53 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
I own a 72, but have no idea what it came with originally, however it has the fasteners in the floor pan and I would be very interested in your floor mats whether original for my year or not. Thanks! _________________ 1972 Karmann Ghia |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
kiwighia68 Samba Member
![](/vw/forum/images/avatars/163964947852814dc725847.jpg)
Joined: October 20, 2013 Posts: 2892 Location: Auckland, New Zealand
|
Posted: Sun Dec 09, 2018 10:28 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Would there be a demand for Right Hand Drive mats? I'd be interested in a set for my '68 RHD Ghia. _________________ Festina lente - hasten slowly
1968 Ghia named Emiko
Resto completed Dec 2015 |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
TRS63 Samba Member
Joined: December 17, 2017 Posts: 1050 Location: Stuttgart - Germany
|
Posted: Sun Dec 09, 2018 10:57 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Hi,
Wow, now that's a good news! I would like to get one for my early 60 ghia (OG paint is strato blue, don't know the mat color as I jever got them). No hurry in my case, I have a lot of work on the body prior to thinking about the mats..
I will follow it, thanks for your dedication!
Antoine - Germany |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
sputnick60 Samba Moderator
![](/vw/forum/images/avatars/12587494035adbd4d05c051.gif)
Joined: July 22, 2007 Posts: 3973 Location: In Molinya Orbit
|
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
Srecko Samba Member
Joined: August 03, 2009 Posts: 160 Location: Adelaide - South Australia
|
Posted: Mon Dec 10, 2018 5:48 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
I know this is another thread, however I'm waiting for the numbers for RHD lower light mats to increase so such production can be undertaken. |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
bnam Samba Member
Joined: July 02, 2006 Posts: 3088 Location: El Dorado Hills CA/ Bangalore, India
|
Posted: Mon Dec 10, 2018 8:42 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Thanks for making this!!
I'm interested in a set for a 65LHD. (I had posted in the low light thread as well). _________________ 1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
awini Samba Member
Joined: May 26, 2012 Posts: 1 Location: New Delhi, INDIA
|
Posted: Mon Dec 10, 2018 9:31 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
I have a LHD 66 KG coupe and the original mats were a shade of grey, i don't know what VW called the colour. I too need a set. Im also in for a set of RHD Beetle mats if they are ever made. |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
GHIA Samba Member
![](/vw/forum/images/avatars/11609398914324358f493f4.jpg)
Joined: August 27, 2005 Posts: 347 Location: FRANCE
|
Posted: Mon Dec 10, 2018 11:22 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
lajs57 wrote: |
Here is a detailed document showing Part Numbers, Introduction Dates & correct Upholstery combinations: (Thank you Cyril! Wink ) |
Nothing Luis
I will look if I have pictures of floor mat colors in my photo archive in supplement
lajs57 wrote: |
It was mentioned that after that year, no more rubber mats were included with the cars, until the End of Production 1974 Model. I don't know for sure. If any of you has additional information from 71 to 74, please share that with us.
|
Here is pics from 1972 US VW Karmann Ghia Sales Brochure, there isn't floor mat
Idem august 1973 from owner manuel from august 1972, we clearly see that there isn't floor mat
Idem 1974 VW Karmann Ghia Sales Brochure
lajs57 wrote: |
Our good friend Cyril, from France, compiled the information I included. I was surprised to learn that in 12 years, 16 different colours were brought out by VW! |
I hope I haven't forgotten anything. If any of you have a doubt I can do a check |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
cool karmann collected Samba Member
![](/vw/forum/images/avatars/211323619851f832f898b17.jpg)
Joined: November 23, 2008 Posts: 631 Location: Oxford, U.K.
|
Posted: Mon Dec 10, 2018 1:33 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Could be interested in a set of grey (Lava?) mats for a LHD 69... Basically exactly what's shown in the photo of the 'new' ones above.
Is it too early to put even a vague price on these including shipping to UK ? |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
GHIA Samba Member
![](/vw/forum/images/avatars/11609398914324358f493f4.jpg)
Joined: August 27, 2005 Posts: 347 Location: FRANCE
|
Posted: Mon Dec 10, 2018 2:16 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
In supplement for August 59 to july 1960
Colors floor mat, green, grey, beige.
I will update the table tomorrow ![Very Happy](images/smiles/icon_biggrin.gif) |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
GHIA Samba Member
![](/vw/forum/images/avatars/11609398914324358f493f4.jpg)
Joined: August 27, 2005 Posts: 347 Location: FRANCE
|
Posted: Tue Dec 11, 2018 11:01 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|

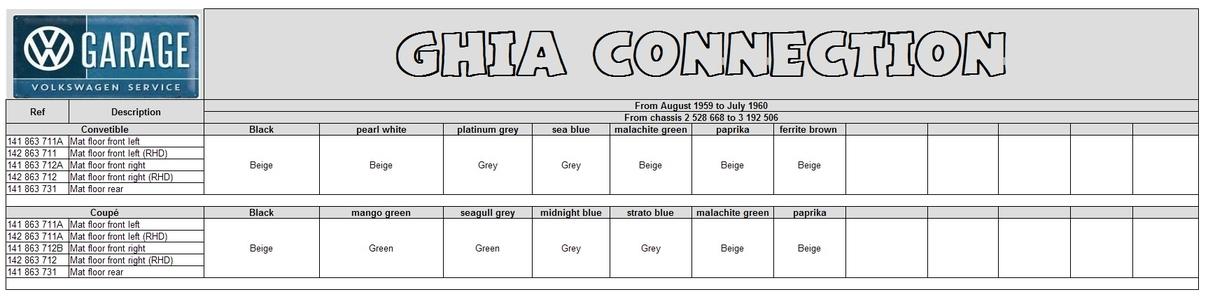

Update for from August 1959 up to july 1960
Thing interesting the rubber floor mat of the 1960 model year looks a little different passenger side
The fixing holes on the top aren't round.
Who owns a 1960 with still the original floor mat? |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
lajs57 Samba Member
![](/vw/forum/images/avatars/15312278065ad1a4eb2175b.jpg)
Joined: August 03, 2005 Posts: 326 Location: New Hampshire
|
Posted: Tue Dec 11, 2018 11:18 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Thank you ALL for your Participation!
Well,there are few thinks to update:
1. From the 1972 magazine Ad, and the posting from Onceler, for Model '72, Mats were an option and the cars maintained the fasteners in the floor pan.
I will think this was also the case for Model '73 & '74 Karmann Ghias. If any of you have one of this Models, please confirm. Thanks!
2. RHD Mats. I will commit to make molds for RHD mats, as soon as an original sample in good conditions is available. ( Same for the LOWLIGHT set!)
3. Updated COLOUR CHART:
(Adding Beige in 1960. I'm assuming Gray is Rock Gray and Green is Malachite Green, please let me know if this is incorrect)
MODEL YEAR* COLORS
1960-1962 Rock Gray/Satin Blue/Malachite Green/Olive/Gold/Beige
1963-1964 Gray Black
1965 Anthracite
1966 Lava/Rust/Ultra Blue/Scarlet/Almond Beige
1967 Lava/Dark Brown/Clematis
1968-70** Lava/Dark Brown
1971*** Anthracite/Leather Beige/Palsander
I already got 2 PM for color samples! THANK YOU!
Please participate here to manifest your desire to buy a set, or send me a PM. We need at least 25-30 Founding Members to launch the project. I am working in the Store and the special price.
Cheers!
Luis _________________ http://www.lowlightwerks.com |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
johncocke356 Samba Member
Joined: December 07, 2007 Posts: 33
|
Posted: Wed Dec 12, 2018 9:43 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
1960 mat. Footrest also unique?
|
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
GHIA Samba Member
![](/vw/forum/images/avatars/11609398914324358f493f4.jpg)
Joined: August 27, 2005 Posts: 347 Location: FRANCE
|
Posted: Wed Dec 12, 2018 11:45 am Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
Thanks for the confirmation for the 1960 floor mat passenger
Here is pics colors floor mat. I put color matches, for the floor mats according to the vehicle colors or upholstery but it must be confirmed by the other members
60 black - floor mat rock grey
61 anthracite - Floor mat grey black
66 pigalle - Floor mat scarlet
1966 sea blue- lava
1969 oriol yellow - Dark brown
Luis you can count me as anyone wishing to buy a set |
|
Back to top |
|
![](/vw/forum/templates/subSilver/images/spacer.gif) |
Caddy_KC Samba Member
Joined: October 11, 2006 Posts: 5 Location: Kansas City, MO
|
Posted: Wed Dec 12, 2018 9:40 pm Post subject: Re: Sixties (and early seventies) Karmann Ghia Floor Mats |
|
|
I would be interested in buying a set for my 1969 Ghia Coupe. I have been wanting some nice floor mats for my car ever since I got my Ghia. I missed out on the Lemke mats so hopefully this time I have a chance to get a set.
Thanks for taking on this project! |
|
