PostPosted: Tue Jan 14, 2020 2:57 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

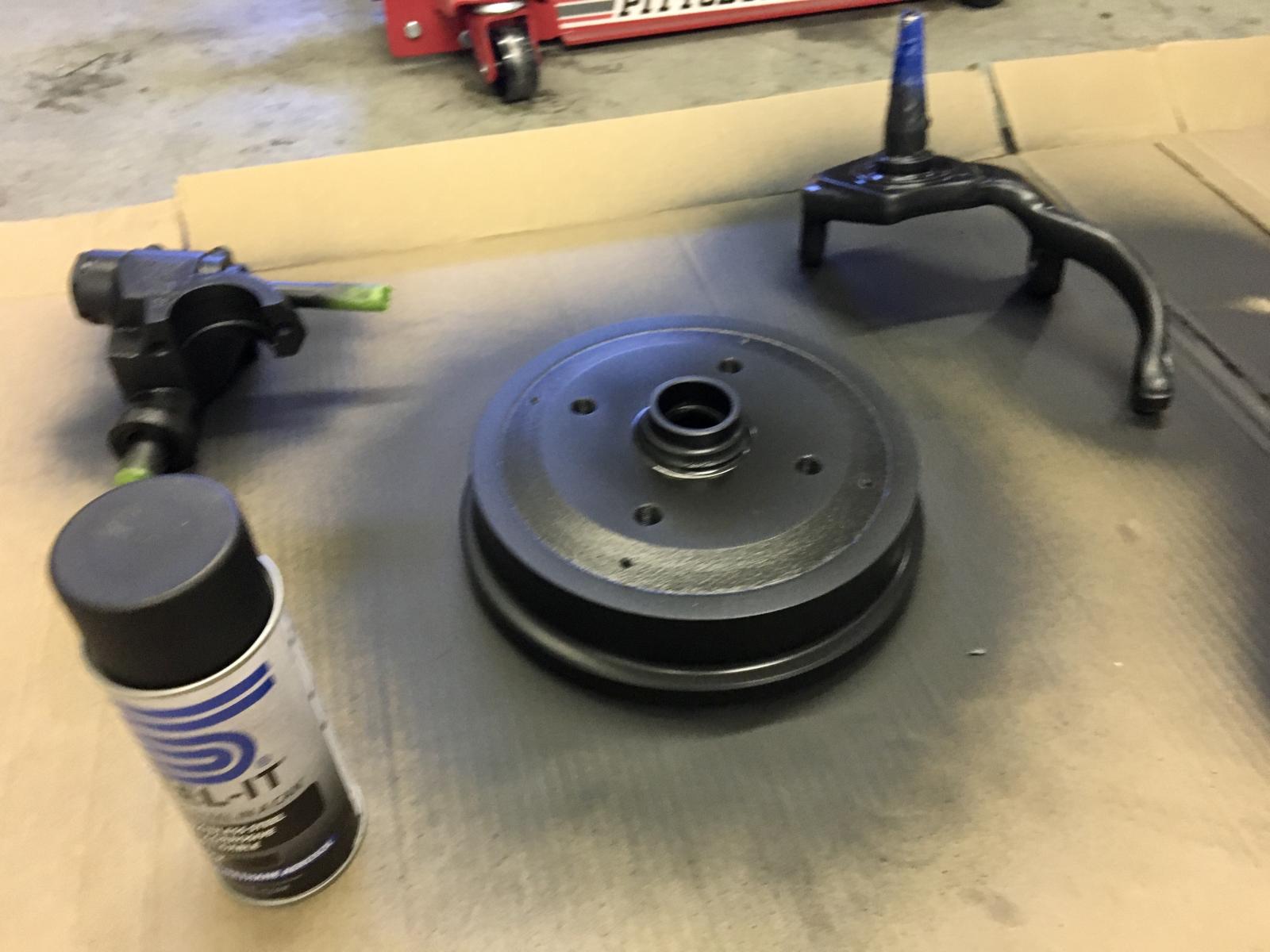

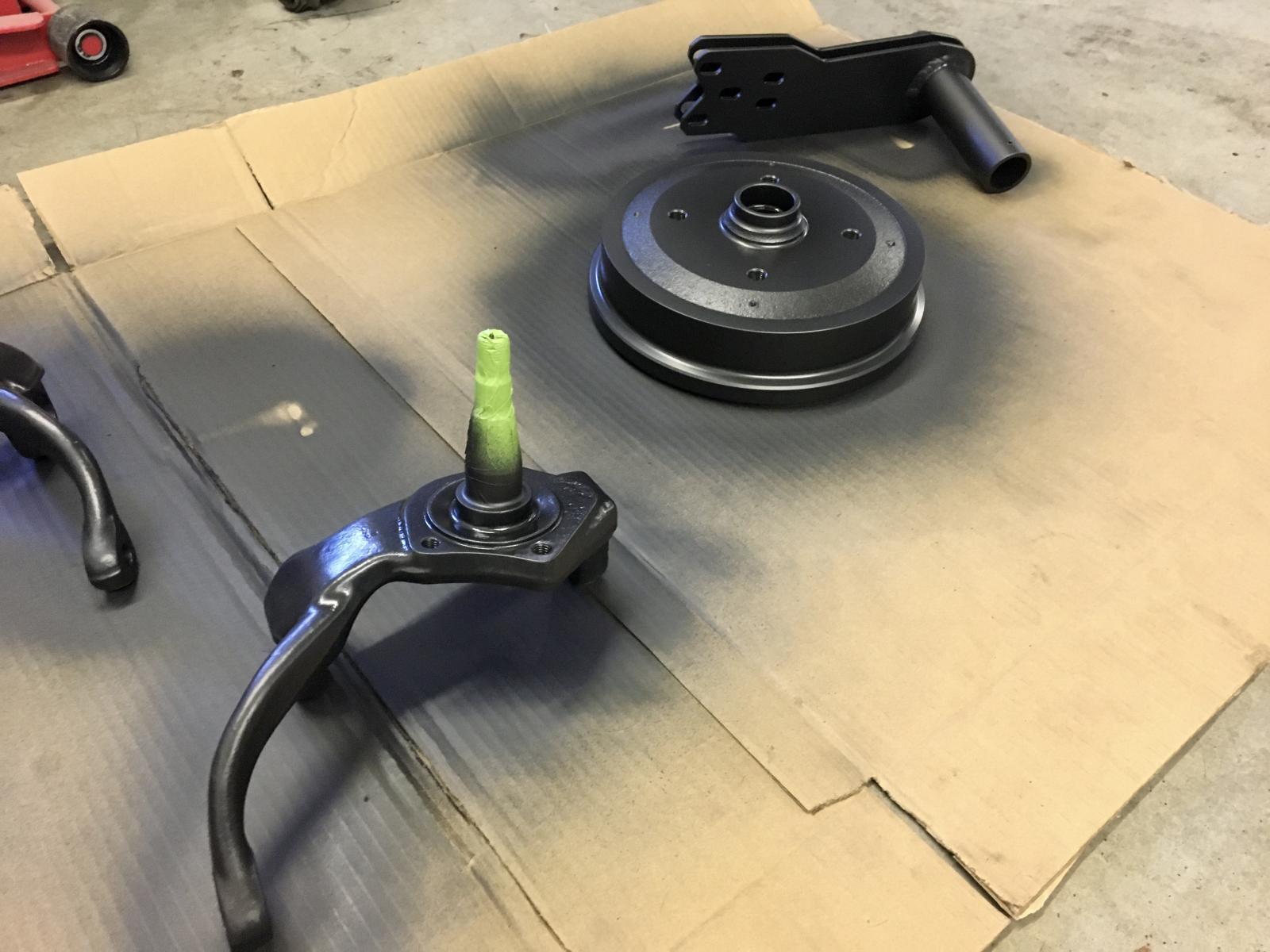

Started painting some of the moving suspension pieces with the Steel-It black paint. It goes on very very fast. It really squirts out of the can a lot more than most of the paint that I am used to so that took a little bit of a learning curve to get right. It goes on very shiny black but inns up drying a semi gloss black so that will look very good with the raptor liner paint that I will be painting the rest of the chassis in. Anything that can move will be painted with the Steel-It and anything that is nomove-in will be painted with raptor liner. I am excited to finally get some cleanup done on pieces after this long of a time.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Thu Jan 16, 2020 8:39 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

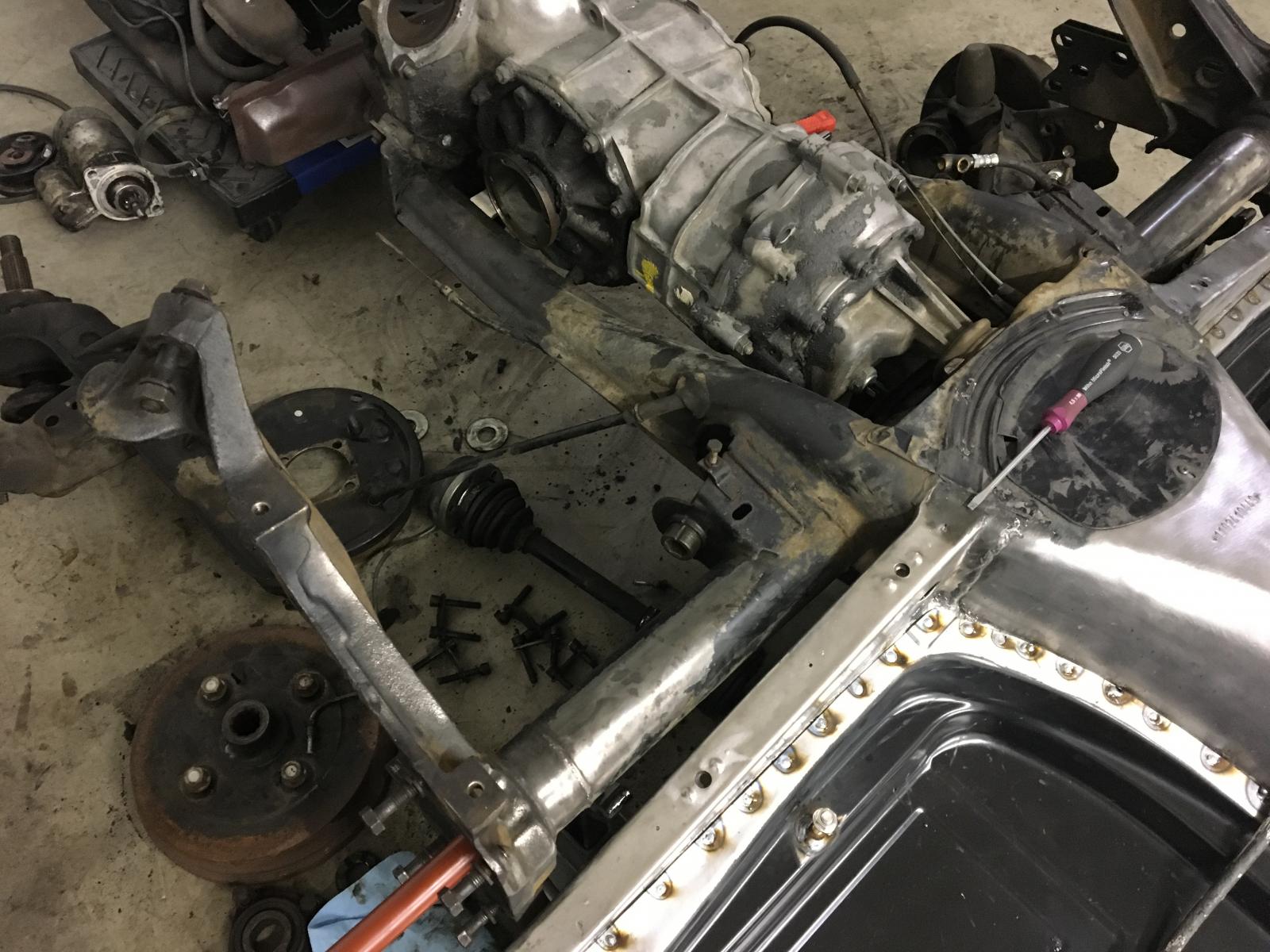

Got a majority of the rear end tore down today. Had to cut a hex socket down to fit the 17mm axle bolt. Also did a bonehead move and disconnected the emergency brakes before I took the rear drums off so it was being difficult to take the cv axles off. I ended up using a ratchet strap around the drum as a friction pad and would do a couple bolts at a time and loosen it up and rotate and then two more. Other than that it mostly went smoothly other than the tool I was provided I believe was for a swing axle because I could not get it to fit on my IRS and reach the spring plates at the same time. Oh well. I ended up loosening the spring plate bushing cover plate and hitting the spring plate with a dead blow hammer until it came off the spring perch and then took it the remainder of the way off.

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by Double-Double on Fri Jan 17, 2020 11:08 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mkparker Premium Member
Samba Member


Joined: October 12, 2004
Posts: 295
Location: Sherman, Tx
mkparker is offline

PostPosted: Fri Jan 17, 2020 11:49 am    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Looking good! How are you liking the Steel-It? Looks like it goes on well.
_________________
Michael

Driver 1061 TDRA and BITD
Pit Boy 6163 Spec Trophy Truck
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 17, 2020 12:08 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

mkparker wrote:
Looking good! How are you liking the Steel-It? Looks like it goes on well.


I like it a lot. Kinda goes on fast compared to rustoleum or krylon but it lays down smooth. Stinks real bad though. I would definitely recommend a respirator since it has the stainless steel particles in it. I thought I would do a quick coat and run back inside. It gave me the worst migraine so itís very potent stuff.

I havenít had a chance to test itís durability but if itís as good as the silver I have no worries about that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dark Earth
Samba Member


Joined: December 22, 2015
Posts: 861
Location: Nevada
Dark Earth is offline

PostPosted: Fri Jan 17, 2020 2:07 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Double-Double wrote:

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.


You need to take off the little clip that holds the cable to the backing plate. Then you can twist that clip out of the backing plate. It's kinda tricky, but it will come out.
_________________
My Build: '69 Baja - Dark Earth Version
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 17, 2020 2:29 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Dark Earth wrote:
Double-Double wrote:

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.


You need to take off the little clip that holds the cable to the backing plate. Then you can twist that clip out of the backing plate. It's kinda tricky, but it will come out.


Cool! I will try that when I get back from the vets office. Thanks for the help!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dark Earth
Samba Member


Joined: December 22, 2015
Posts: 861
Location: Nevada
Dark Earth is offline

PostPosted: Fri Jan 17, 2020 3:05 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Double-Double wrote:
Dark Earth wrote:
Double-Double wrote:

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.


You need to take off the little clip that holds the cable to the backing plate. Then you can twist that clip out of the backing plate. It's kinda tricky, but it will come out.


Cool! I will try that when I get back from the vets office. Thanks for the help!


No sweat. If I remember correctly, I took the backing plate off the trailing arm to make it easier to get the clip out.
_________________
My Build: '69 Baja - Dark Earth Version
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4739
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Fri Jan 17, 2020 7:23 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Dark Earth wrote:
Double-Double wrote:
Dark Earth wrote:
Double-Double wrote:

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.


You need to take off the little clip that holds the cable to the backing plate. Then you can twist that clip out of the backing plate. It's kinda tricky, but it will come out.


Cool! I will try that when I get back from the vets office. Thanks for the help!


No sweat. If I remember correctly, I took the backing plate off the trailing arm to make it easier to get the clip out.


I've removed and installed the parking brake cables on swing axle and IRS a great many times. Taking the clip on the end of the cable out of the backing plate and re-installing it in the backing plate can definitely seem to be a sort of a Chinese puzzle. But it can actually be done easily, once you get the hang of it. I find it easier to do with the backing plate still on the hub. But on or off is not a big deal.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 17, 2020 9:38 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

For those asking about the Steel-It, here is what it goes on looking like (the brake drums) and what it looks like dried. I thought it was gonna be semi-gloss but it definitely ended up being more of a matte black which is fine with me. I think it will look pretty good when itís all done and should be easy to touch up if the need should ever arise.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 17, 2020 9:40 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

dustymojave wrote:
Dark Earth wrote:
Double-Double wrote:
Dark Earth wrote:
Double-Double wrote:

I am assuming you have to take the emergency brake cables off by the e-brake lever first and pull it all the way out the tube? Because I canít figure out how to get the actual cable out of the backing plate so far, but I had to quit to run errands before I could really get into it today.


You need to take off the little clip that holds the cable to the backing plate. Then you can twist that clip out of the backing plate. It's kinda tricky, but it will come out.


Cool! I will try that when I get back from the vets office. Thanks for the help!


No sweat. If I remember correctly, I took the backing plate off the trailing arm to make it easier to get the clip out.


I've removed and installed the parking brake cables on swing axle and IRS a great many times. Taking the clip on the end of the cable out of the backing plate and re-installing it in the backing plate can definitely seem to be a sort of a Chinese puzzle. But it can actually be done easily, once you get the hang of it. I find it easier to do with the backing plate still on the hub. But on or off is not a big deal.


I didnít see the clip because my car was dealer under coated and it looks like they put seam sealer over the clip so I will have to chip that away to get to it. Thank you everyone for the help in figuring it out. I have new cables for everything so I can take a good look at this one before I reinstall everything with new parts.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4739
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Sun Jan 19, 2020 12:21 am    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

That clip is held to the backing plate with an 8mm bolt. (13mm hex head)
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Tue Jan 21, 2020 6:05 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Didnít get much done today other than some more part painting, but I did manage to get my tires mounted on my rims!

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Wed Jan 22, 2020 4:17 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Got some work done today on the bug. Got the drivers side suspension finished tore down, and transmission out. Thanks to everyone for the tips to remove the emergency brake clips, I got those off after digging them out of the undercoat.

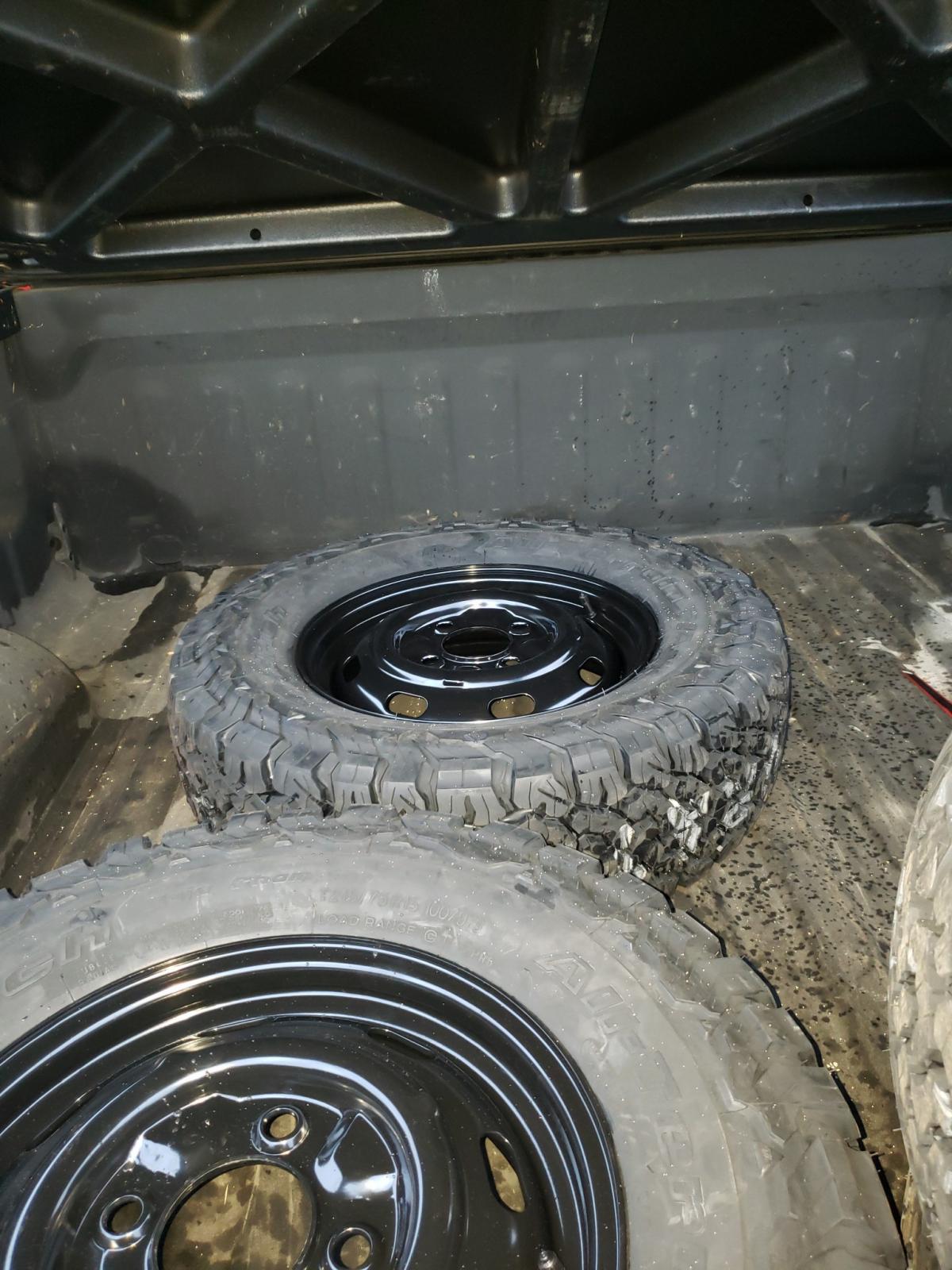

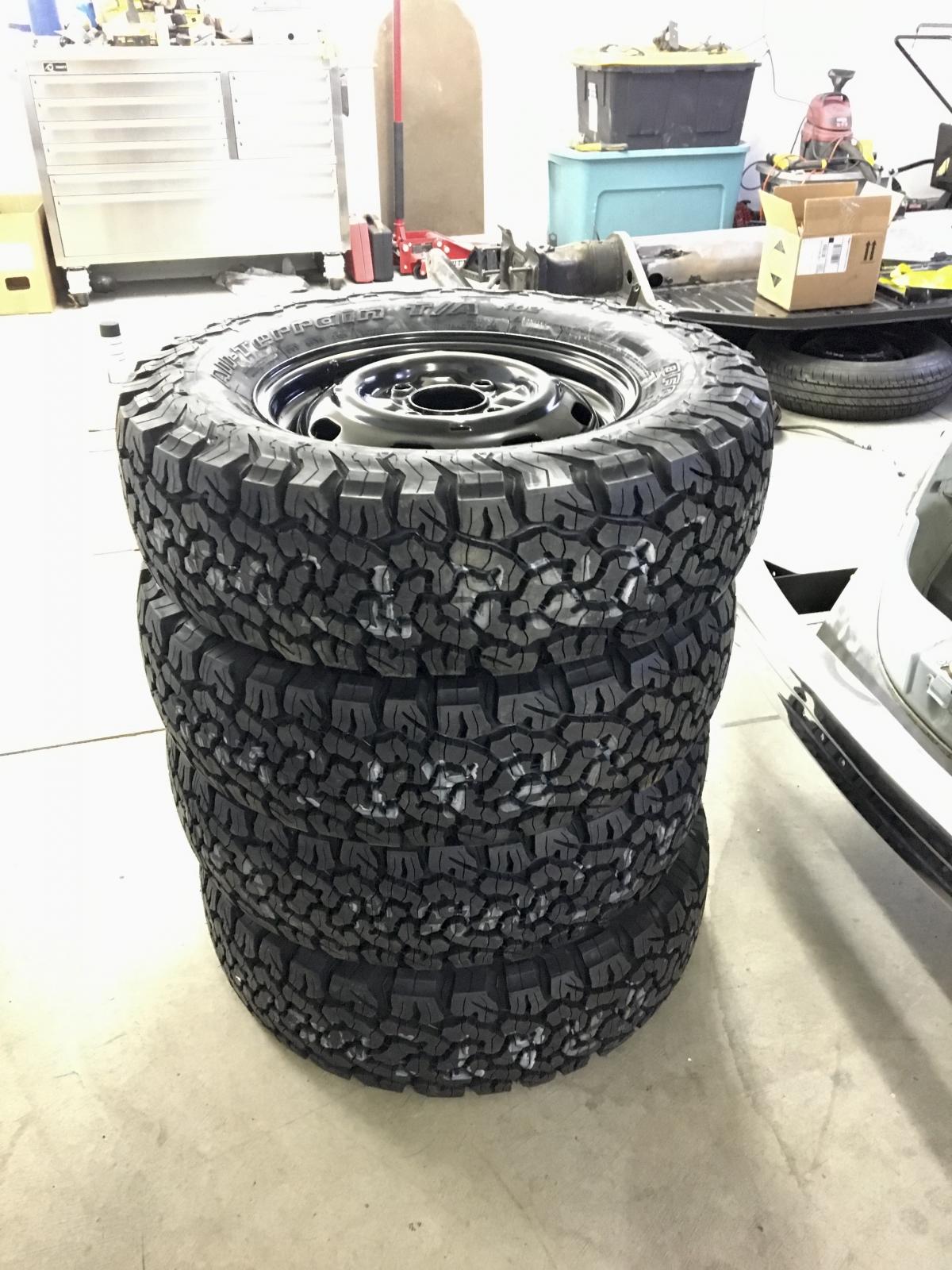

I got my new wheels and tires home and ordered the Wolfsburg crest chrome hubcaps to finish them off. I think that will look pretty nice!

Still trying to figure out exactly what color to paint the car and I am really trying to figure out if it is worth rebuilding my transmission right now or trying it and saving my money for down the road. I only drove the car about fifty miles before I parked it and started taking it apart and I didnít notice anything weird while driving it, but the paranoid part of me says just get it done while itís out so everything is fresh and ready to go.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4739
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Fri Jan 24, 2020 3:26 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Are you planning on reinforcing the rear arms?
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 24, 2020 5:25 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

dustymojave wrote:
Are you planning on reinforcing the rear arms?

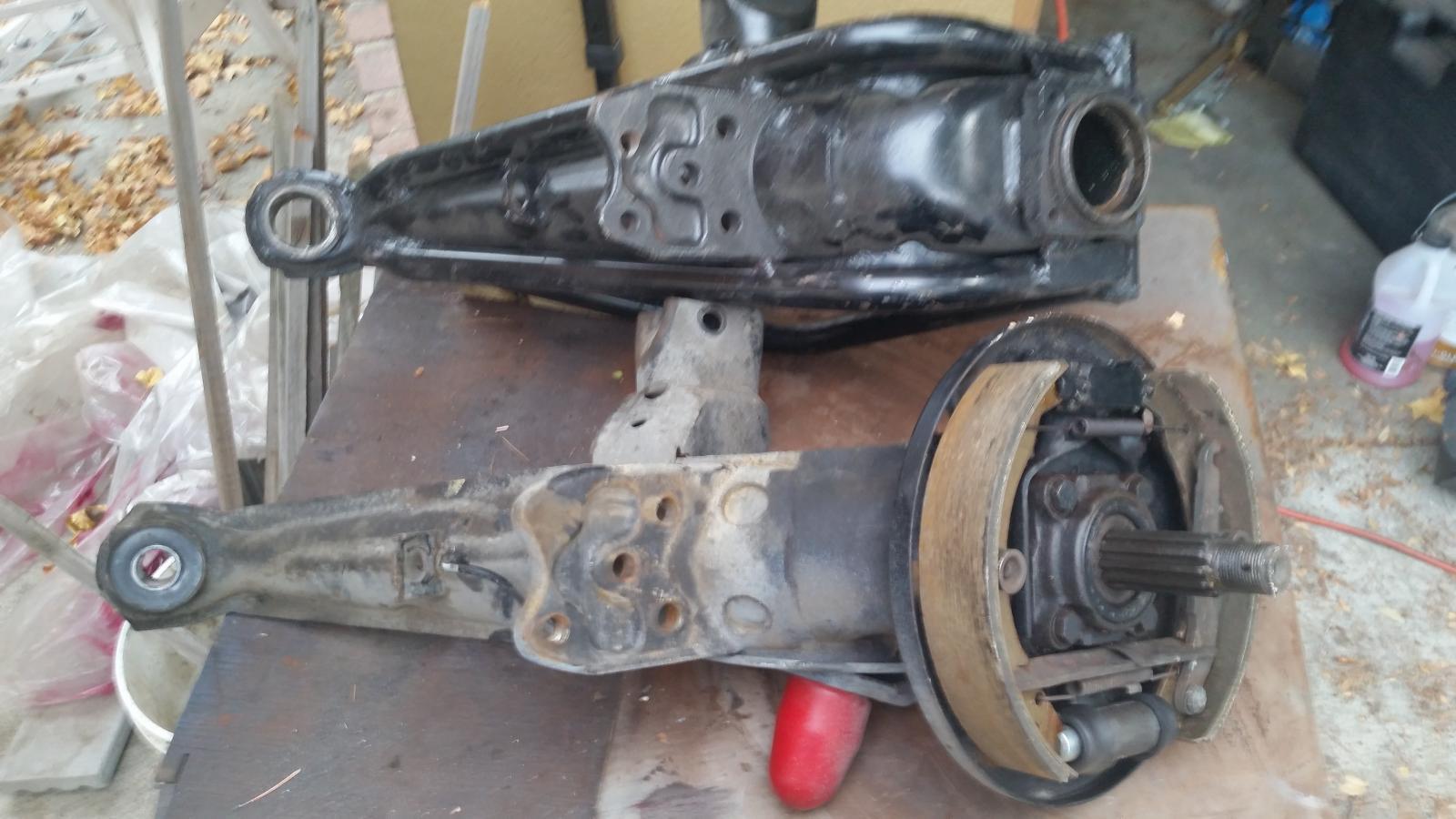

Richard, Iíd like to but I am still trying to find the right kit. I want to retain my stock shock mounts as I am not running a roll cage right now, so I have to do some more research on that aspect of the build. I also need to get a trans strap kit as well before I start putting anything back together.

I spent the day today cleaning up the transmission and getting most of the 50+ years of road grime and grease off it with a wire brush. Itís clean enough now I can use degreaser and get it really clean at the car wash with hot water. I am still trying to figure out what I want to do with the trans as far as if I should get a super-diff and what size ring and pinion for my tire size (215/75R15).

Also my Wolfsburg chrome hubcaps came in and they are just too cool looking in my opinion.

Other than that got the master cylinder cleaned up and painted to prevent rusting.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4739
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Fri Jan 24, 2020 10:30 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Look for tubular trailing arm beef-up kits. Kaddieshack used to offer them for use with stock shock mounts.

I'm not finding any at Kaddieshack or with a real quick search. Here is what they look like.


This one has shock mounts on the top and the tops mount to the cage inside. But it has some cool design features. From toph900

Image may have been reduced in size. Click image to view fullscreen.

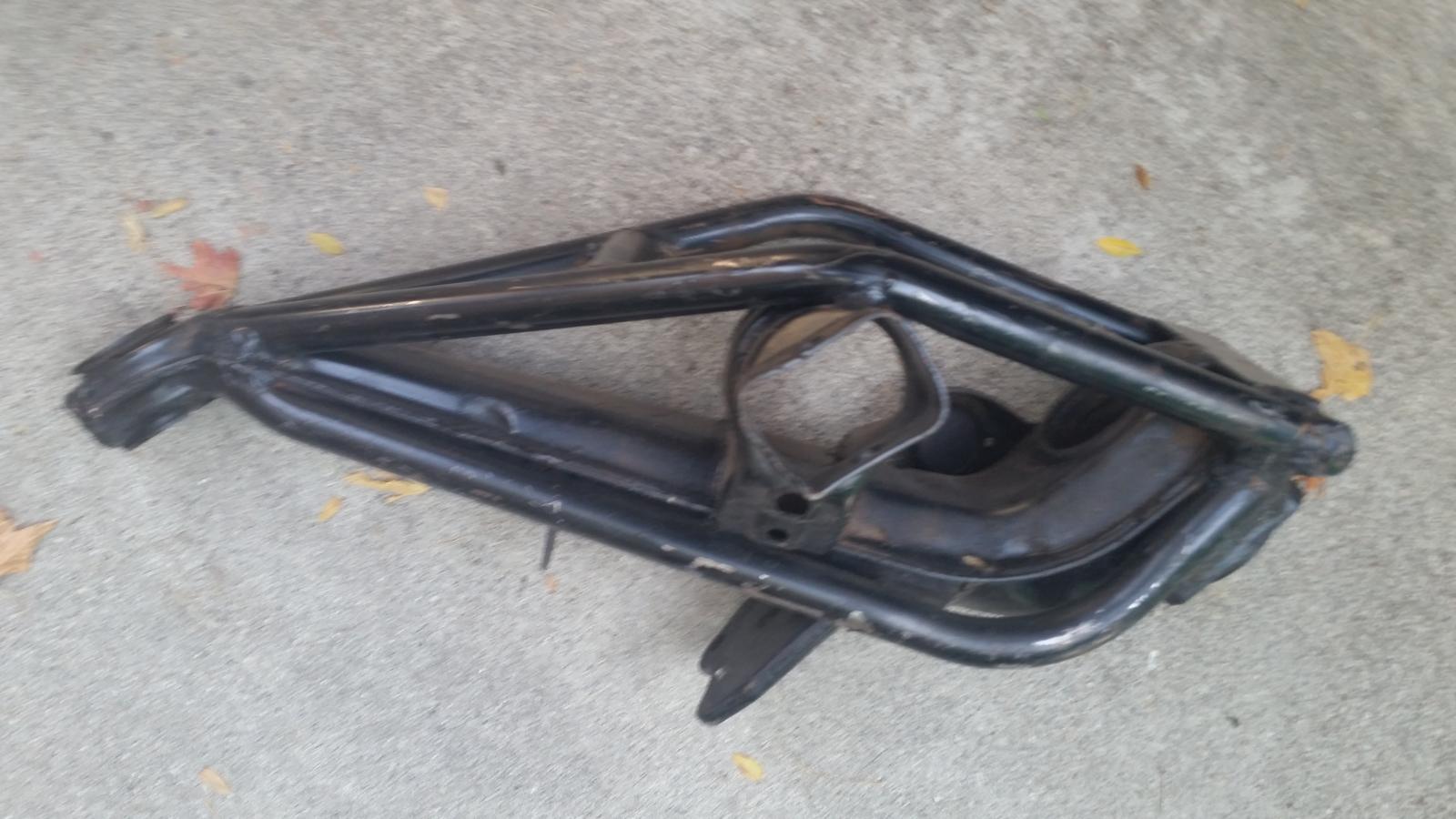

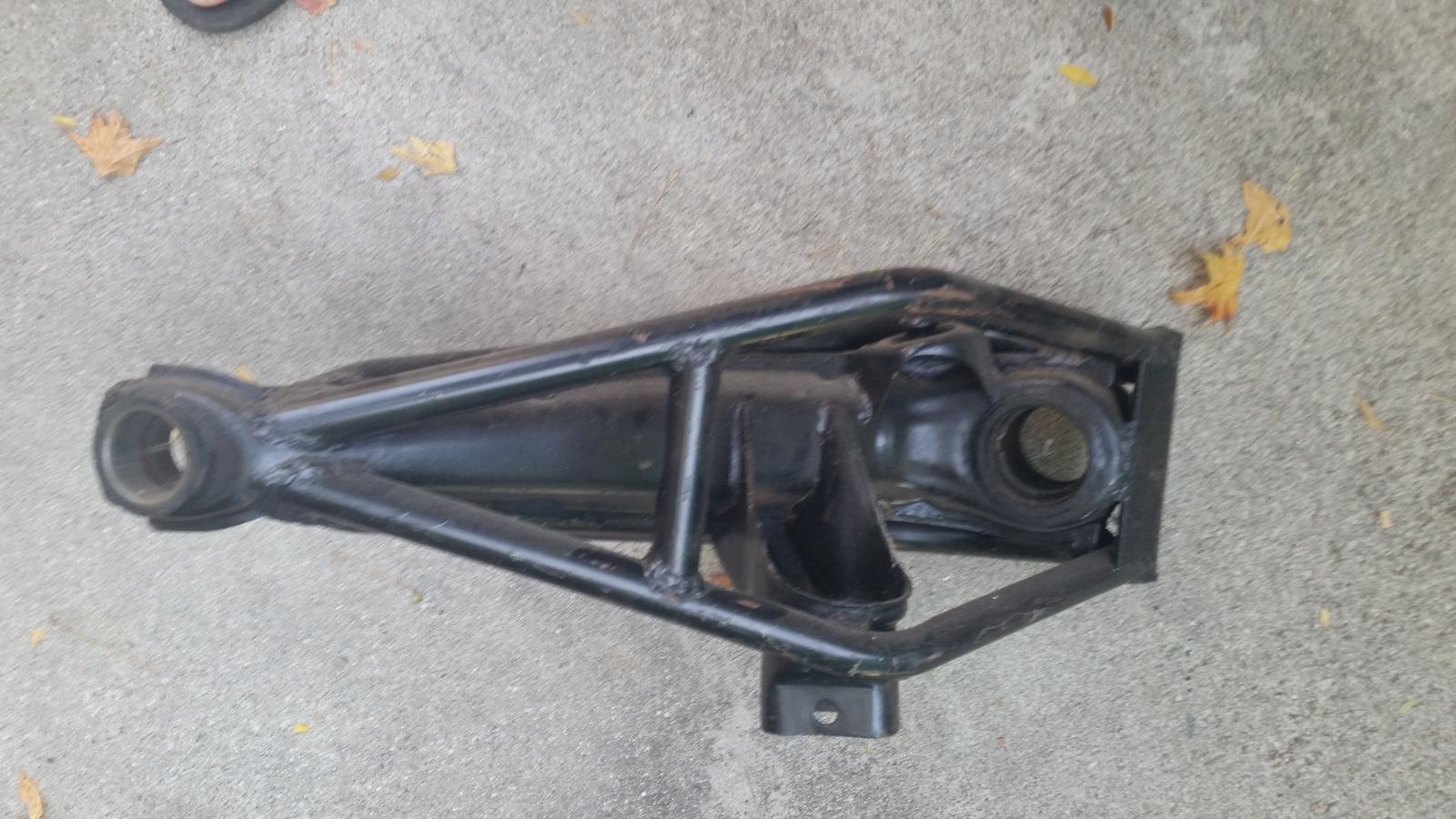

These following are from joemama. This is actually more what will serve your project with stock shock mounts and what Kaddieshack was selling a while back.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I'm not sure where Kaddieshack was getting them or if anyone is making them these days. Maybe you can find someone to fabricate them for you.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 24, 2020 10:42 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

I tried to get the nectar labs kit but apparently they are out of business so I will keep looking for the tube style. Thanks for the pics, now I know what I should be looking for.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4739
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Fri Jan 24, 2020 11:13 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Cool
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Double-Double
Samba Member


Joined: October 25, 2019
Posts: 156
Location: Oregon
Double-Double is offline

PostPosted: Fri Jan 24, 2020 11:20 pm    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

If anyone does have a lead on the tube style reinforcement kits please feel free to send me a PM or share a link. I am having a hard time finding anything right now including on the classifieds. I will try calling Kaddie Shack on Monday if they have any idea who made them.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NAZglen
Samba Member


Joined: October 07, 2019
Posts: 24
Location: Prescott Valley, AZ.
NAZglen is offline

PostPosted: Sat Jan 25, 2020 7:28 am    Post subject: Re: Double-Doubleís '70 Class 11 Style Trail Runner Build Reply with quote

Hey DD
i have been looking for these also. Here are two links on Chirco's website. Upper and lowers.

https://www.chircoestore.com/product/baja-bug-upper-front-axle-tube-beam-supports/

https://www.chircoestore.com/product/vw-baja-bug-lower-front-tube-beam-supports/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> HBB Off-Road All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 7 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
