Double-Double’s Adventure Bug Build

[Double-Double]

Well..... I did a thing again.

Needs rebuilt but good core material.
_________________
“If anyone desires to come after Me, let him deny himself, and take up his cross, and follow Me. For whoever desires to save his life will lose it, but whoever loses his life for My sake will find it.”
—Matthew 16:24–25

[hetrickmatthew]

Did you get longer brake lines or do the factory length work?

[Scott SD]

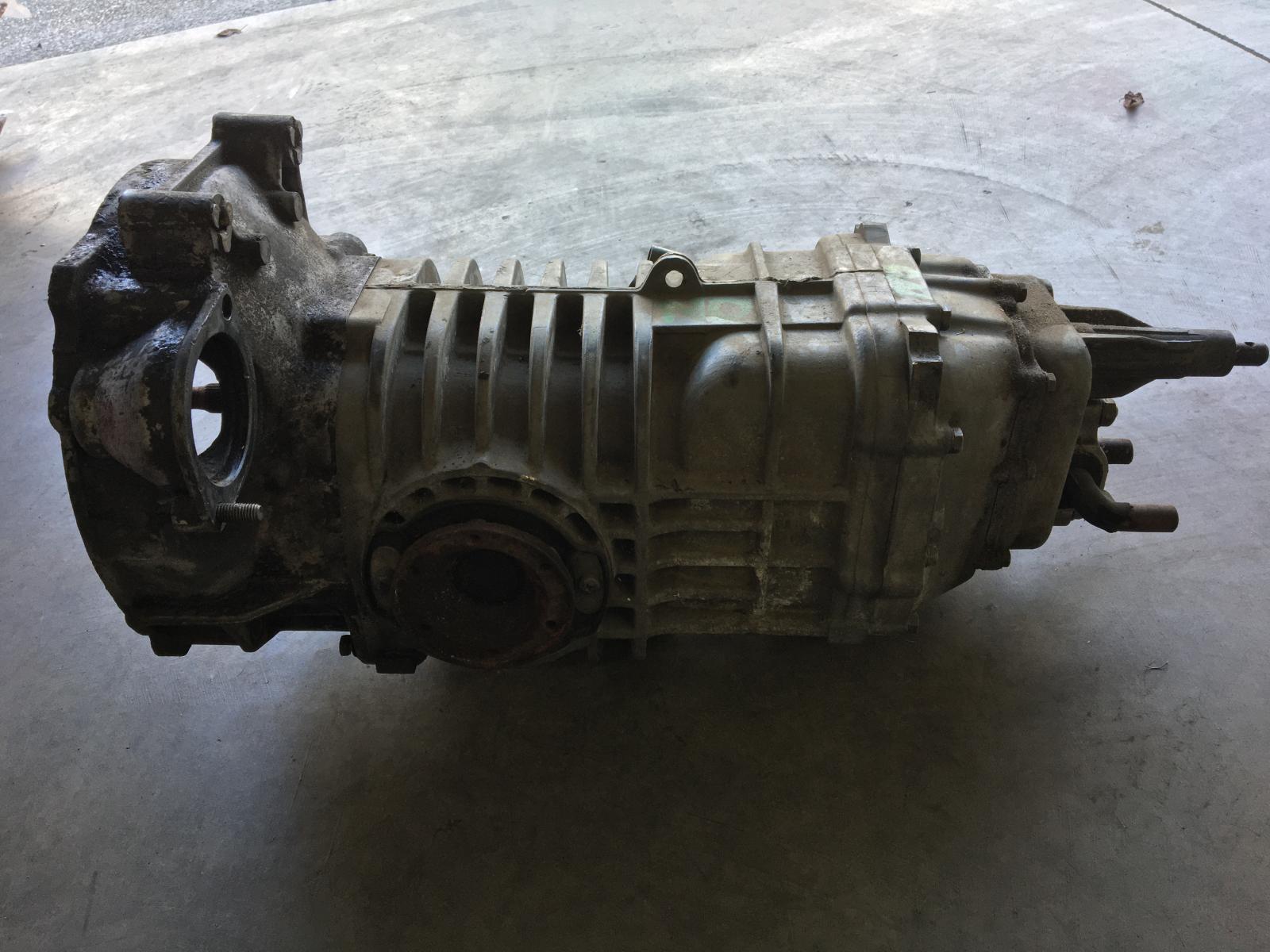

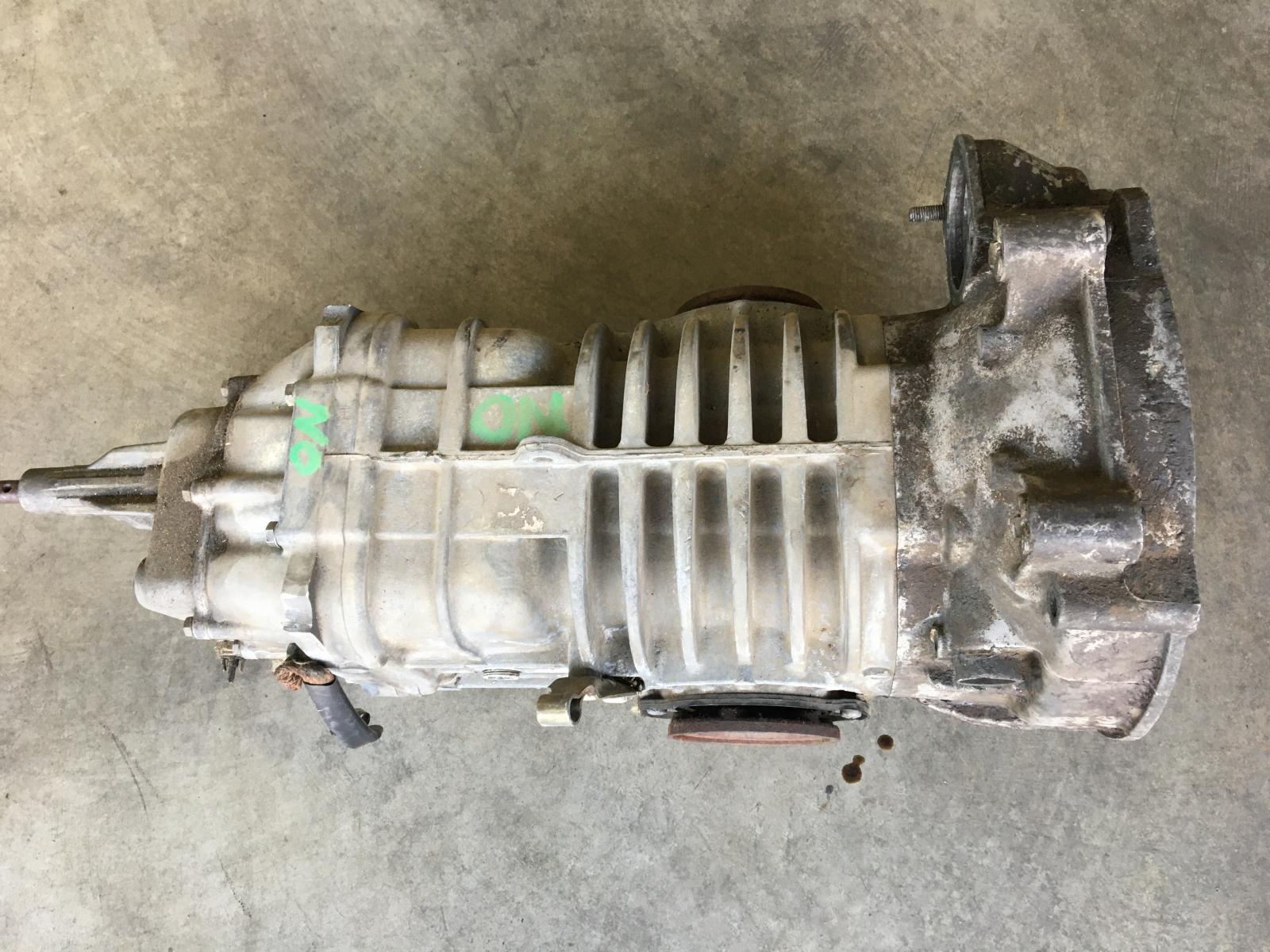

Good score. 091s are hard to find. Did you look at the R&P? Check if it has the factory 4 spider diff?

[Double-Double]

[Double-Double]

[Double-Double]

Guys, I am so burnt out of this project. The only thing that will keep me going is if I can find a clean straight body with good heater channels and no cancer and straight aprons. It’s like a needle in a haystack around here in Oregon. I will do a few small projects to use up the parts I got left but after that I’ll probably either sit on this for a while or sell it at a loss. I have been putting off neck surgery to take care of my daughter and I don’t know how much longer I can and it makes me honestly not want to work on this anymore.
_________________
“If anyone desires to come after Me, let him deny himself, and take up his cross, and follow Me. For whoever desires to save his life will lose it, but whoever loses his life for My sake will find it.”
—Matthew 16:24–25

[Gr0unded]

[Double-Double]

[mkparker]

Best thing I can suggest is put the project on pause. We all get burnt out at times. My personal projects usually take at least two years, mainly due to budget, but also, sometimes ya just need a break. Then all of a sudden, you look out in the garage and smile and think, "I'm feelin' it, let's do this"!
_________________
Michael


Pit Boy 6163 Spec Trophy Truck

[Double-Double]

[Double-Double]

Did more cutting on the Baja body today. My plan remains the same hopefully to get this finished, clean it up, paint it in epoxy primer and sell it out of my garage. Find a nice Pre-67 body that is crispy from the sun and slap it on my chassis and redo the interior and have fun. Waiting on the right body to come along is probably going to be a test of patience but I can do it.

Slowly working my cuts down to the luggage area and will use the grinder then sand it down to smooth and flush.

Will probably hold onto this body and the 091 6-rib until I find the body I want and then let them go. Otherwise I’ll have to get into the 3x3 game and long travel and things will get real interesting, and real expensive, real fast.

_________________
“If anyone desires to come after Me, let him deny himself, and take up his cross, and follow Me. For whoever desires to save his life will lose it, but whoever loses his life for My sake will find it.”
—Matthew 16:24–25

[Double-Double]

Sold the body today on Facebook and the gentleman came and picked it up, so now I will focus on selling the accoutrements and whatnot. Now I will work on small projects like finalizing the front beam with hook and rod stops, getting the electrical system wired on the chassis, the stainless brake lines, bleeding the brakes, possibly upgrading to disc brakes, finishing up the motor and exhaust, upgrading the shocks, etc.... I will just be patient and wait for a nice patina Pre-68 body to put on this chassis and redo the interior and call it a day. Overall, I learned a lot working on the body, would rather not do that again. I have a lot of time now that I'm not in a rush and will just work on it slowly. Feels good to finally be able to park my daily in the garage again and this next week will probably be focused on cleaning up the garage.
_________________
“If anyone desires to come after Me, let him deny himself, and take up his cross, and follow Me. For whoever desires to save his life will lose it, but whoever loses his life for My sake will find it.”
—Matthew 16:24–25

[Double-Double]

Received my carb base gaskets today finally so I installed the carb, and much to my surprise realized that the throttle would hang open. What happened was the accelerator pump linkage would catch on the body of the alternator and stick open.

I had two choices get the spacer kit (yuck) or make it fit. So I chose the later and accomplished it in a manner of ways. I used a roloc disc to get the flashing off the alternator on the area where it was making contact, smoothed out the pump arm and trimmed it down with the same disc, rotated the alternator clamp 90 degrees, and doubled stacked my base gaskets with some Permatex gasket maker like I do on all paper gaskets anyways. These procedures gave me enough so that the linkage moved freely just enough, and left me in the stock carb location so I wasn't cutting a hole through my fan housing with my HD Scat throttle cable or having to buy a different air filter than the K&N I just purchased.

Here is the accelerator pump linkage all the way open, has clearance now and I didn't have to take a chunk out of my alternator like I've seen in other threads regarding this problem. This is all the amount I had to take off the linkage also, maybe 1/2mm.

Also got the motor static timed, the wires ran into the holders and put into the proper firing order on the distributor. I am going to purchase a remote start button so I can fire it up weekly or monthly with a small gas can since I won't be driving it until I find a donor body for the project. Seeing as I have plenty of ground clearance, I am now considering picking up a CB Performance Thin Line Oil Sump 1 1/2 Quarts to install on my rebuilt motor so I have more oil capacity and cooling. I really don't think it will hang below the exhaust anyways. May even act as a sort of skid plate too, JK.

https://www.cbperformance.com/product-p/1770.htm

Overall, a decent easy late night job while the family was out. Then I decided to tackle my EMPI trigger shifter...... well, regardless of when I have that shifter or the stock one on, I can't get the car to roll in any gears at all except 1st. I don't know if I am just having a brain fart or something is up with my rebuilt transmission? I know it should be good to go, I have zero miles on it since rebuilt. It's a Super Street Freeway Flyer with the super-diffs. I really am at a loss for what to do, until I can call the rebuilder on Monday and pick his brain, but I am open for any suggestions. Only thing I could think of it's the compression on the motor holding it back?
_________________
“If anyone desires to come after Me, let him deny himself, and take up his cross, and follow Me. For whoever desires to save his life will lose it, but whoever loses his life for My sake will find it.”
—Matthew 16:24–25

[Mike E.]

[Double-Double]

[Scott SD]

For my 1641, I started it, completed the initial break in. After I was happy with it, I pulled the rockers off. I will turn in over every once in awhile.

No need for a sump on a baja. All the class 11 and 5/16 guys don’t run them. The engine stays at 6k for hours.

[Double-Double]

[Scott SD]

We have raced CODE events out of Mexicali at 110 degrees. Flat out at 6k for 2 hour heats. But, ya I understand. For a street driver a sump is nice. I had 3.5 on my 1776 and drove cross country. I wasn’t worried until I was in the middle of the Mojave.

[PDX_VW_Erik]

[Double-Double]
