72 1700. Original engine to the bus. 299,4xx miles and going up.

[chimneyfish]

I tried to edit my 2015 post to add the following photos, but the site won't let me as too much time has lapsed since I posted them.

I was back in Wolfsburg in August 2017 and made another visit to the VW Automuseum whilst there. I just now found these additional photos I took of the Type 4 cutaway engine I shot whilst back there, so am posting as they are a good reference point.

The original main 2015 photos of the cutaway engine can be viewed on page 31 of this thread here:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...;start=580

[riverside66]

Thread revival!

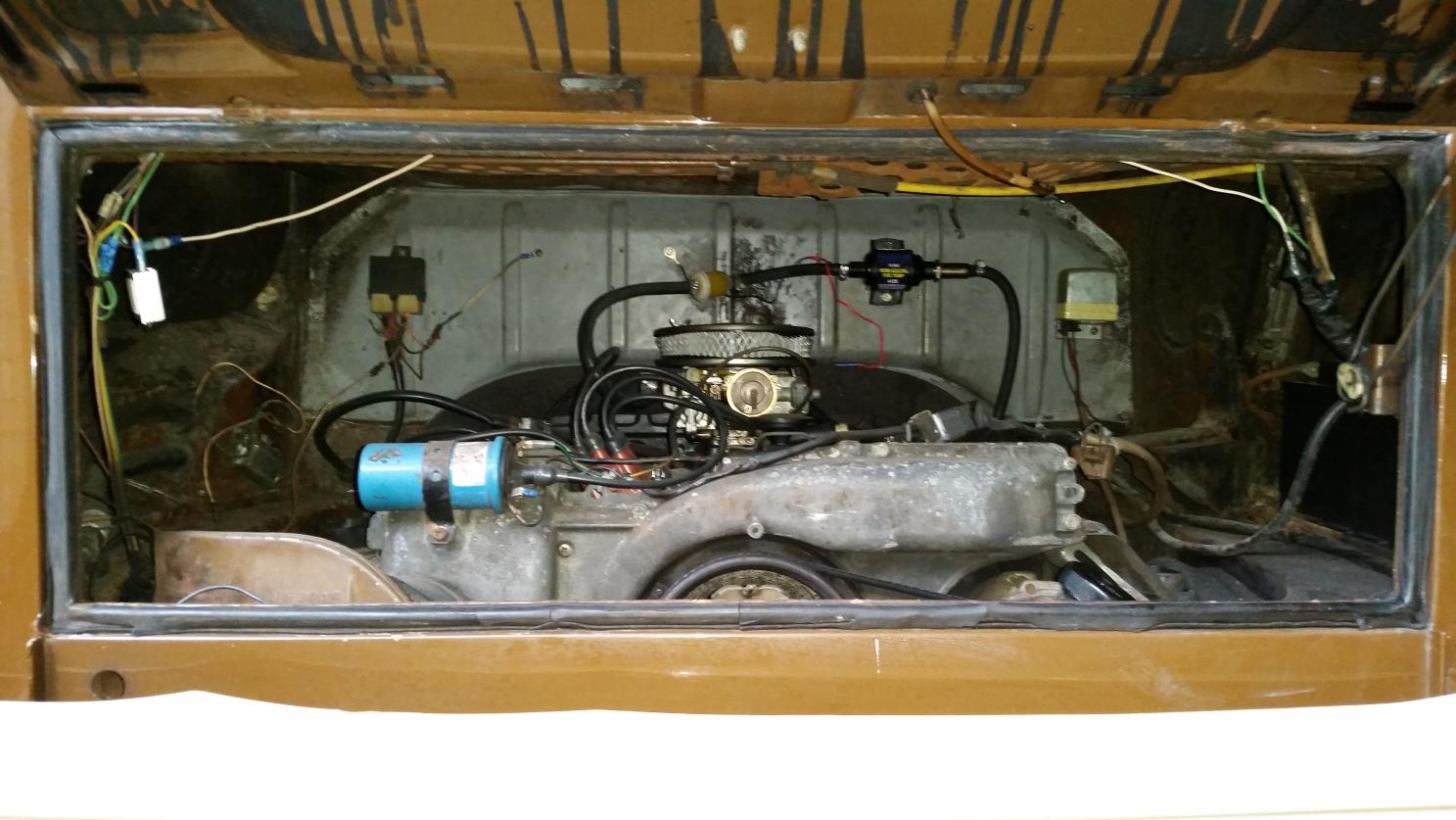

When I bought the bus:

to now (after full rebuild):

"Stock" rebuild: HAM heads, Mahle 94MM pistons, stock rebuilt rods, AA Cylinders, Web Cam 142, solid lifters, chromoly push rods, 10MM swivel feet adjusters, dual Weber 40 IDF's, Malpassi Filter King, Bosch 205S dizzy w/Pertronix ignition, all tin replaced, and running @ 7.4/7.5 compression.
_________________
1977 Standard Beetle -Sold-
1979 Transporter - "Wheatbread" -Sold-

[The Dubbernaut]

For the guys who have painted/coated their engine parts, is there any pieces you DONT want to paint? Or that you wish you would have used a different coloring process on? ie paint instead of powdercoat or ceramic instead of paint?

Curious because Im having some parts powdercoated and ceramic coated for my rabbit pickup build. May as well double up and have both engines done all together!
_________________
2012 Tiguan 4motion
2 Corrado's
3 Beetle's
76 Bus
2 Baja's
66 Pigalle Squareback
80 Rabbit
80 Rabbit Pickup
and still collecting!

[1970fun]

My 1776 stocker with a 37mm carb.

[Wasted youth]

1977 Type 4 2000cc California Emissions before refresh:

After, nearing completion:

New Emico Catalytic Converter not set right and missing tailpipe, but ready to reinstall:

Misc interior shots:

1970 Type 1 bus complete rebuild:

Before:

After:

[tymbo]

'74 1800 before and after

_________________
A smooth sea never made a skilled sailor.

Rust is time consuming

[wcfvw69]

A 71' bus dual port engine in a 70' bay. It's missing the pulley cover tin.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc

40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.

**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**

[notchboy]

Ive waited to post my motor here. Ive wanted it to be clean and all flashy to do so. Its not perfect but its nicer than it was.

_________________

[canes5time]

Kinda, next to stock, engine bay....

[richparker]

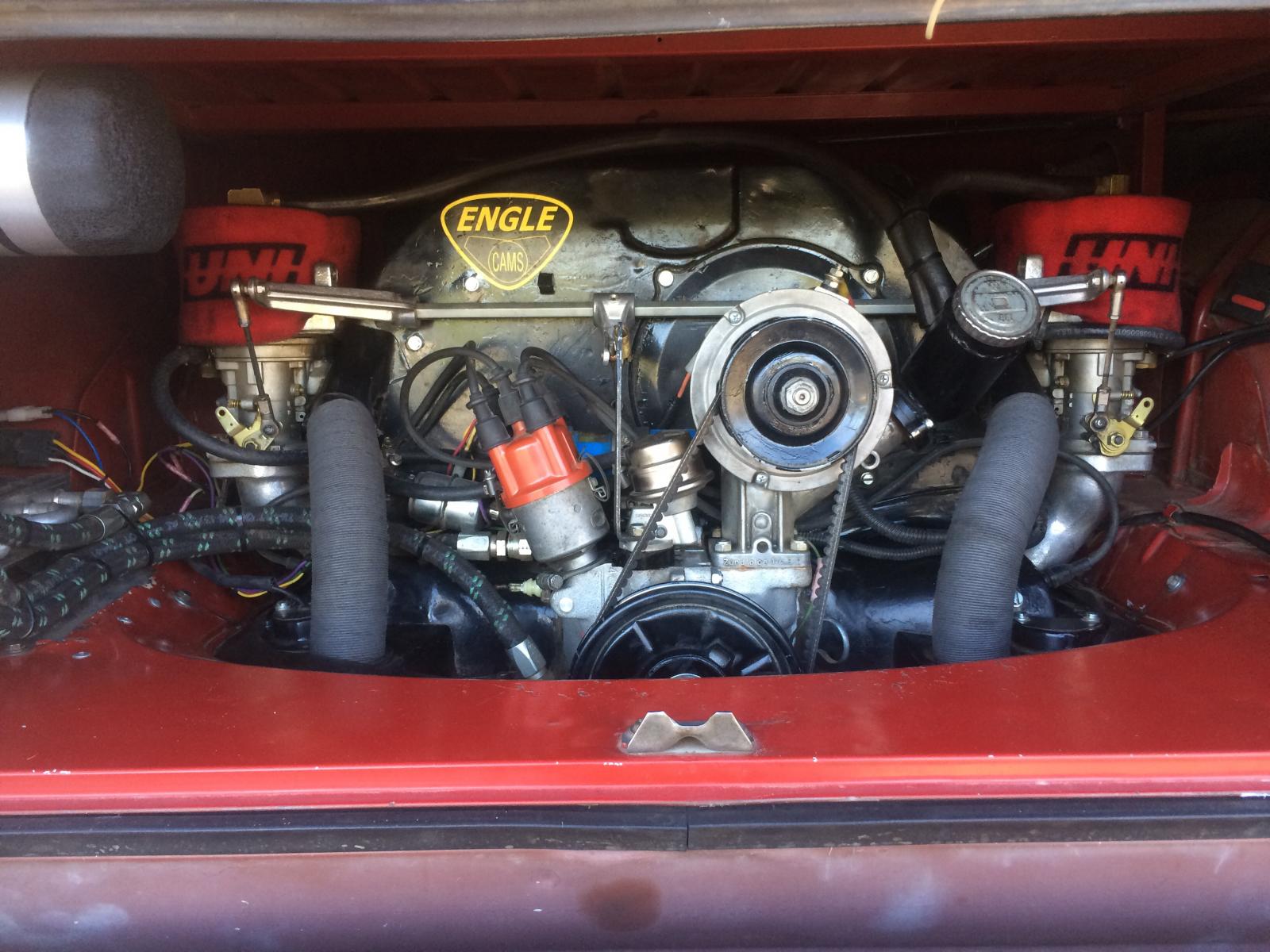

JAD Machine built 2175cc. Aluminum bubble top case, 94mm Mahle B P&C, CB 044 heads, CB 78.4mm crank, CB Hbeam conecting rods, Engle 110 cam, Silverline main bearings, Mahle HD cam bearings, chromoly push rods, solid rockers w/swivel feet adjusters, Weber IDF40s, real 009 w/pertronix Bosch 55 amp alternator, 1.5qt deep sump, 180* oil t-stat, oil filter, 6 pass cooler w/fan, Parker hoses and fittings, stock heater boxes, Bugpack merged header and an EMPI Phat Boy muffler. That's attached to a '73 002 with a Sachs clutch disc and a heavy duty pressure plate.

_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab

[AirKooledGarage]

Brothers built 2L, Pertronix distributor, Kaddie Shack carbs, still a bit of tidying up to do before it goes back in

[1967250s]

Looks like trash. Is that a cutaway engine? Any more pics?
_________________
'72 Elm Green Deluxe

[obieoberstar]

what is with this seal at the dipstick?

[rusty busty]

Since these pics I've put about 6,000 km on her. At least 500 km on some remote logging roads. Gone to 2 music festivals. Gotten stuck in the mud and had to rev the engine up and pop the clutch a half dozen times to get unstuck.

I've also changed the coil, distributor, and wires since these pics were taken, just for fun.

Great summer with the bus. I think I'm feeling one more road trip before my insurance runs out in 6 weeks.

_________________
1978 CEII Get-away hightop

[notchboy]

Very true - yes indeed their were 2 liter dual carb versions out there. I made a funny in the respect that there are many a story on how wrong the tags in the VW museum are. Ive never heard a reason why this is? So it just looks like the factory is wrong on their own product in their own museum.

This motor is either wrong or a combination of things. We may never know. But I would still love to own it and have in my collection!
_________________

[chimneyfish]

[obieoberstar]

2.0 L
Stock Cam and mechanical lifters (Web Cam)

RAT HAM improved heads (10 years old)

Dual Kadron carbs with modified Scat linkage (Kaddie Shack)

SS fuel line kit (Kaddie Shack). FYI, they don't sell a pre-made kit, only the straight lines and fittings. You have to do all the bending and fitting.

Type4Store solid rocker shaft spacers.

Empi breather box

Winterburn CD Ignition box. Using stock points.

Aircooled.Net anti-pulse valve (visible near passenger side carb)

Runs pretty good after some time getting the jetting correct. Probably should have kept the FI, but that is a story for another day.

[notchboy]

[cliveawn]

Here are some pics of the transformation and upgrade of my engine room.

From this:

To this:

_________________
---------------------------------------------------------



Green 78 Westfalia Helsinki,

2056 with 41 x 34 valves,ported heads
Fully balanced
8,5:1CR
JPM Custom made cam
JPM 7075 dual taper pushrods
IDF 40's with 28mm venturi's
Python CSP 42mm exhaust.
