| Author |
Message |
Lind
Samba Member
Joined: November 06, 2000
Posts: 10269
Location: idaho
|
 Posted: Tue Sep 23, 2025 5:06 am Post subject: Re: VW Bus air cleaners |
 |
|
| EverettB wrote: |
Added to the first reference post in this thread.
Here's a large image of the sticker only from that ad
|
So even on this NOS air cleaner the decal is damaged. They didn't stand a chance.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71896
Location: Phoenix 602
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Sep 22, 2025 8:22 pm Post subject: Re: VW Bus air cleaners |
|
|
Found an NOS 1963 thru early 1964 air cleaner in the classifieds here:
https://www.thesamba.com/vw/classifieds/detail.php?id=2685486
Big thing about this is it shows the water decal that is always missing today.
Figure best to let EverettB insert the images he thinks will work on page 1.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Mar 04, 2025 7:14 pm Post subject: Re: VW Bus air cleaners |
|
|
| BarryL wrote: |
| Eric&Barb wrote: |
| Here shown on a 22 mile original 1964 VW beetle. |
Stupendous. What is the red mark at the air cleaner tube clamp? |
Have no idea. Lots more great info and tons more images in this thread here: https://www.thesamba.com/vw/forum/viewtopic.php?t=657206
Even though that is a beetle engine it would have been just the same as the 1964 40 HP bus engine and very close to the 1961-63 40HP and 1500 bus engines. With the exceptions of the beetle air cleaner, muffler, and a little different jetting in the carb.
So neat to see the spark plug cable colors that only show up as grey in the B&W owners manuals of that time. Plus the white (nylon?) holders for the spark plug cables, that are now only sold in a black plastic.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6852
Location: Pentwater, Michigan
|
| Posted: Tue Mar 04, 2025 7:14 pm Post subject: Re: VW Bus air cleaners |
|
|
A light reflection on the shiny new paint?
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15452
Location: Casa de Oro, California
|
| Posted: Tue Mar 04, 2025 6:48 pm Post subject: Re: VW Bus air cleaners |
|
|
| Eric&Barb wrote: |
| Here shown on a 22 mile original 1964 VW beetle. |
Stupendous. What is the red mark at the air cleaner tube clamp? |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Mar 04, 2025 10:33 am Post subject: Re: VW Bus air cleaners |
|
|
Correct. Have no idea about the type 4 filler size.
Here shown on a 22 mile original 1964 VW beetle.
Takes a special pair of pliers (Swivel Jaw Wire Clamp Plier) to work that clamp without hassles.
https://duckduckgo.com/?t=lm&q=pliers+for+wire...252C5074.1
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5553
|
| Posted: Tue Mar 04, 2025 8:28 am Post subject: Re: VW Bus air cleaners |
|
|
Was there a "squeeze type" clamp used on the pre-heat hose for 40hp or 64-67 style air cleaners?
Here is what WW has:
https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113255737
Same size as a Type 4 engine oil filler clamp?
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Wed Jul 17, 2024 8:16 am Post subject: Re: VW Bus air cleaners |
|
|
| von_hansel wrote: |
I hope this helps someone else down the road. |
Great info, but bracket would be turned around so the bottom is flat to the wheel well.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
zuggbug
Samba Member
Joined: June 17, 2008
Posts: 3505
Location: Anderson SC
|
| Posted: Wed Jul 17, 2024 4:00 am Post subject: Re: VW Bus air cleaners |
|
|
great information - thanks for sharing
_________________
SOUTHERN INTEGRITY AIRCOOLERS
58 15 window
56 westy |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 844
Location: Inland Empire
|
| Posted: Tue Jul 16, 2024 2:07 pm Post subject: Re: VW Bus air cleaners |
|
|

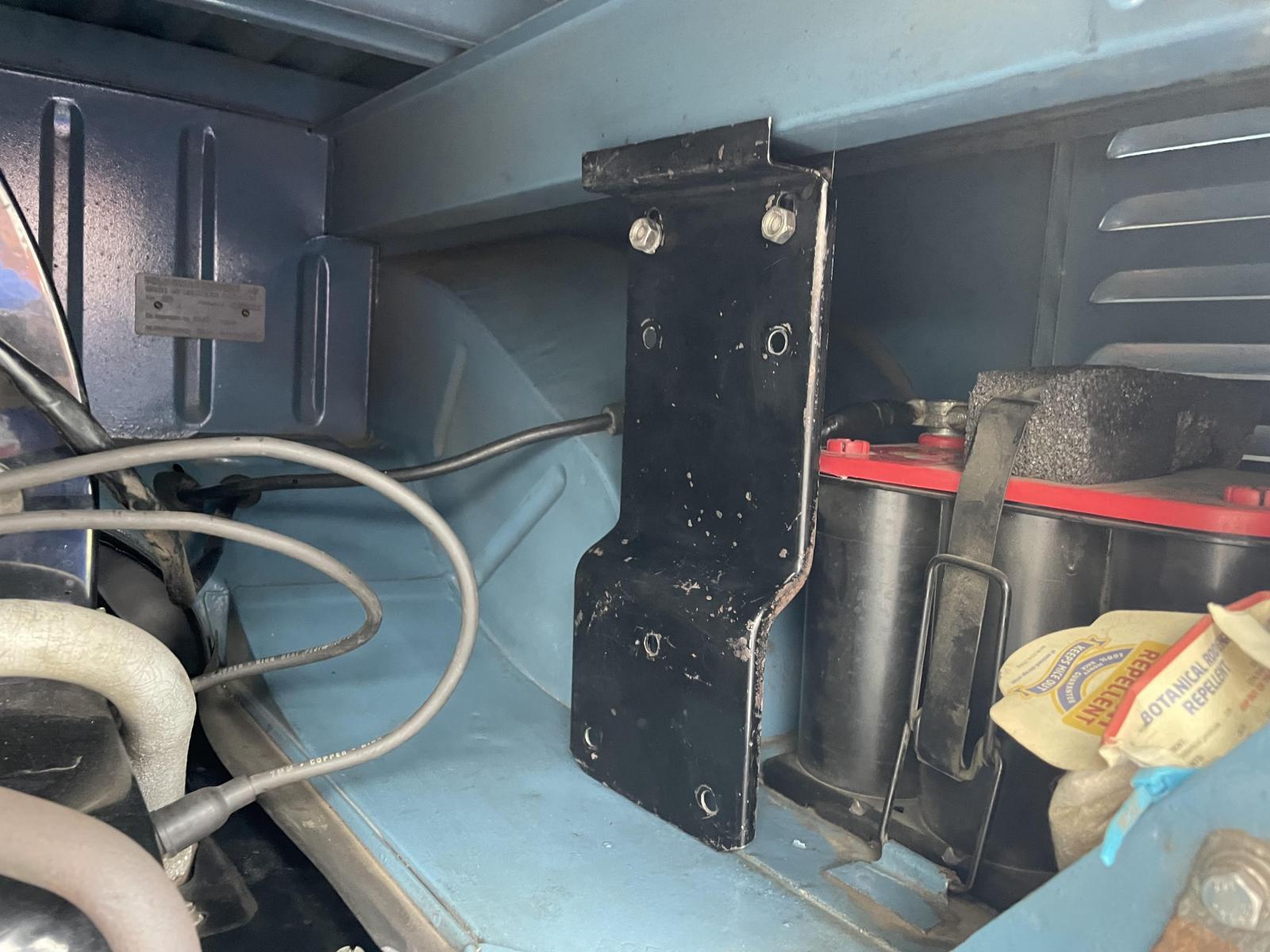

I recently purchased a Dusty Condition Air Cleaner (Mcode 156) for a 1500. When I went to install it, I kept scratching my head because the bracket was 10mm short of where it should fit on a passenger bus.
Then it dawned on me that it was made for a Truck (Single and/ or Double Cabs) as the bed rails sit lower in the engine bay on trucks.

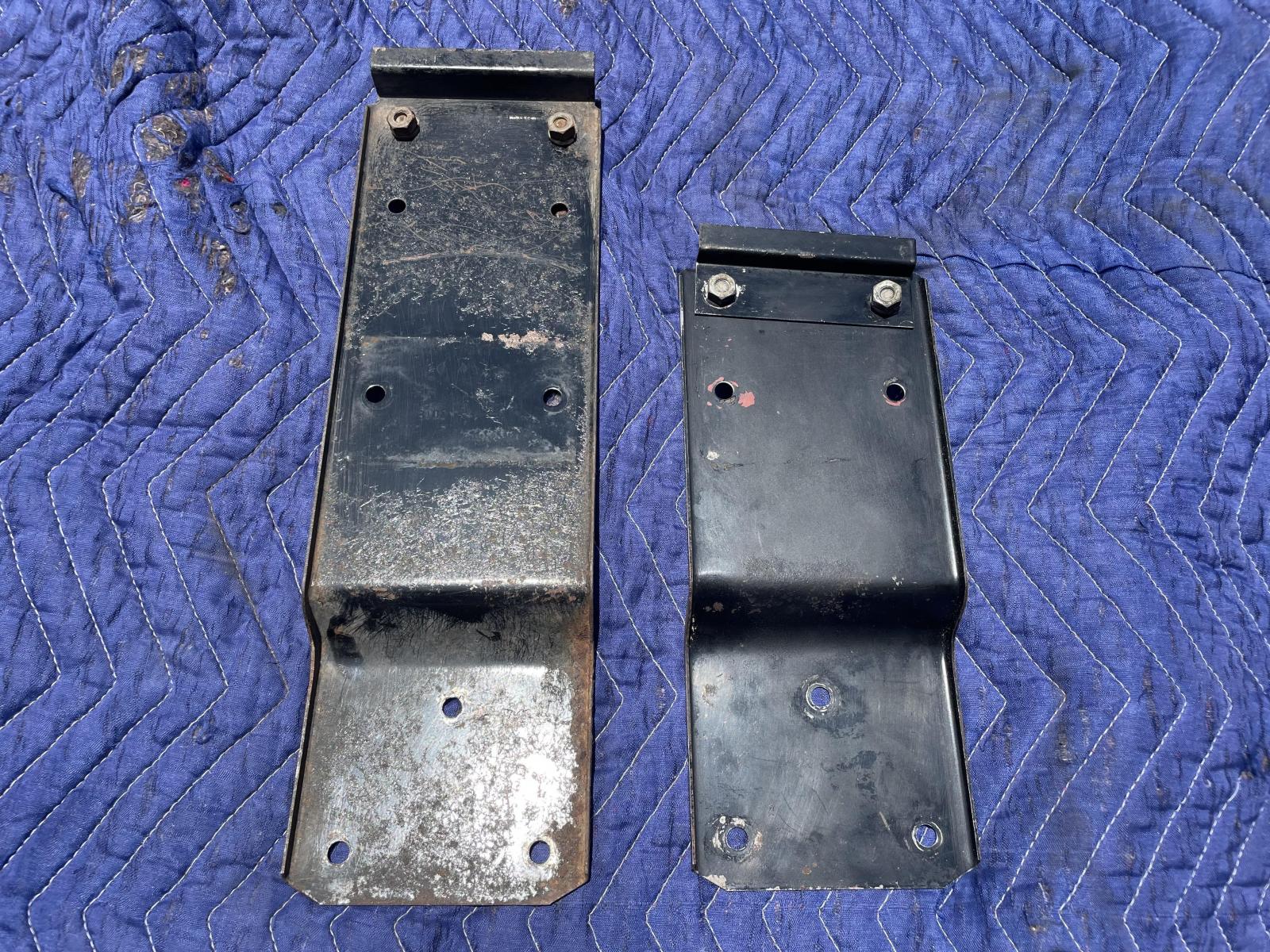

Below is some comparison photos. On the left is the passenger/ non truck commercial bracket and right is the Truck bracket
Non Truck Bracket = 40cm
Truck Bracket = 29.3cm
I hope this helps someone else down the road.
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Dec 12, 2023 10:33 am Post subject: Re: VW Bus air cleaners |
|
|
| Chewie Baker wrote: |
| thanks for replies and apologies for not knowing the forum rules |
No worries, we all step in dog doodoo now and then.
Go up to the top of any TS webpage and hover your mouse cursor over the "Classifieds" button there. In the pop up list that pops up left click on the "Rules" there. That will take you to the rules. Good to refresh oneself now and then.
Lots of other very cool need to know VW stuff through those buttons.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Chewie Baker
Samba Member
Joined: April 10, 2005
Posts: 102
Location: West Midlands, England
|
| Posted: Mon Dec 11, 2023 11:57 pm Post subject: Re: VW Bus air cleaners |
|
|
thanks for replies and apologies for not knowing the forum rules
_________________
'67 S042 - BETTER THAN BEING MARRIED! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53188
Location: Surrey B.C. Canada, but thinking of Ukraine
|
|
| Back to top |
|
|
EVfun
Samba Member
Joined: April 01, 2012
Posts: 6353
Location: Seattle
|
| Posted: Mon Dec 11, 2023 3:39 pm Post subject: Re: VW Bus air cleaners |
|
|
This popped back up on my “unread” list and I see I never never provided an installed picture. I found the Bus 40 horse elbow here in theSamba classifieds. This is a good shot showing the fit.
With an aftermarket 36 horse style fan shroud I’d guess a stock oil bath would fit, and the filter I installed would clear a stock fan shroud. I used a K&N RG-1003RD-L air filter and an Outerwears 20-1570 filter cover. In this picture the homemade support bracket off the coil mount was installed backwards so the pipe is slightly angled down. The bracket is very close to, but not quite, symmetrical. I’ve since painted it black and flipped it over.
_________________
| Wildthings wrote: |
| As a general rule, cheap parts are the most expensive parts you can buy. |
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Dec 11, 2023 2:49 pm Post subject: Re: VW Bus air cleaners |
|
|
| Chewie Baker wrote: |
| Looking to buy an original air cleaner for my ‘67 bus… can anyone out there help please? |
Do a search in the classifieds. Putting up a WTB advert in the forums is against the rules.
If no luck in the classifieds doing a search, put up a "WTB" titled advert.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Chewie Baker
Samba Member
Joined: April 10, 2005
Posts: 102
Location: West Midlands, England
|
| Posted: Mon Dec 11, 2023 2:14 pm Post subject: Re: VW Bus air cleaners |
|
|
Looking to buy an original air cleaner for my ‘67 bus… can anyone out there help please?
_________________
'67 S042 - BETTER THAN BEING MARRIED! |
|
| Back to top |
|
|
blacka1vw
Samba Member
Joined: September 11, 2013
Posts: 100
Location: N. Central PA
|
| Posted: Sun Oct 31, 2021 8:04 am Post subject: Re: VW Bus air cleaners |
|
|
But both of those brackets are different from the split bus one shown on page one. Maybe they are both bay window parts.
_________________
64 SC truck.
71 Beetle -Skyy
71 Super -Sweet pea
73 Bus
79 Bus -Tic Tak
86 Cabriolet |
|
| Back to top |
|
|
blacka1vw
Samba Member
Joined: September 11, 2013
Posts: 100
Location: N. Central PA
|
| Posted: Sun Oct 31, 2021 7:51 am Post subject: Re: VW Bus air cleaners |
|
|
| rjelli wrote: |

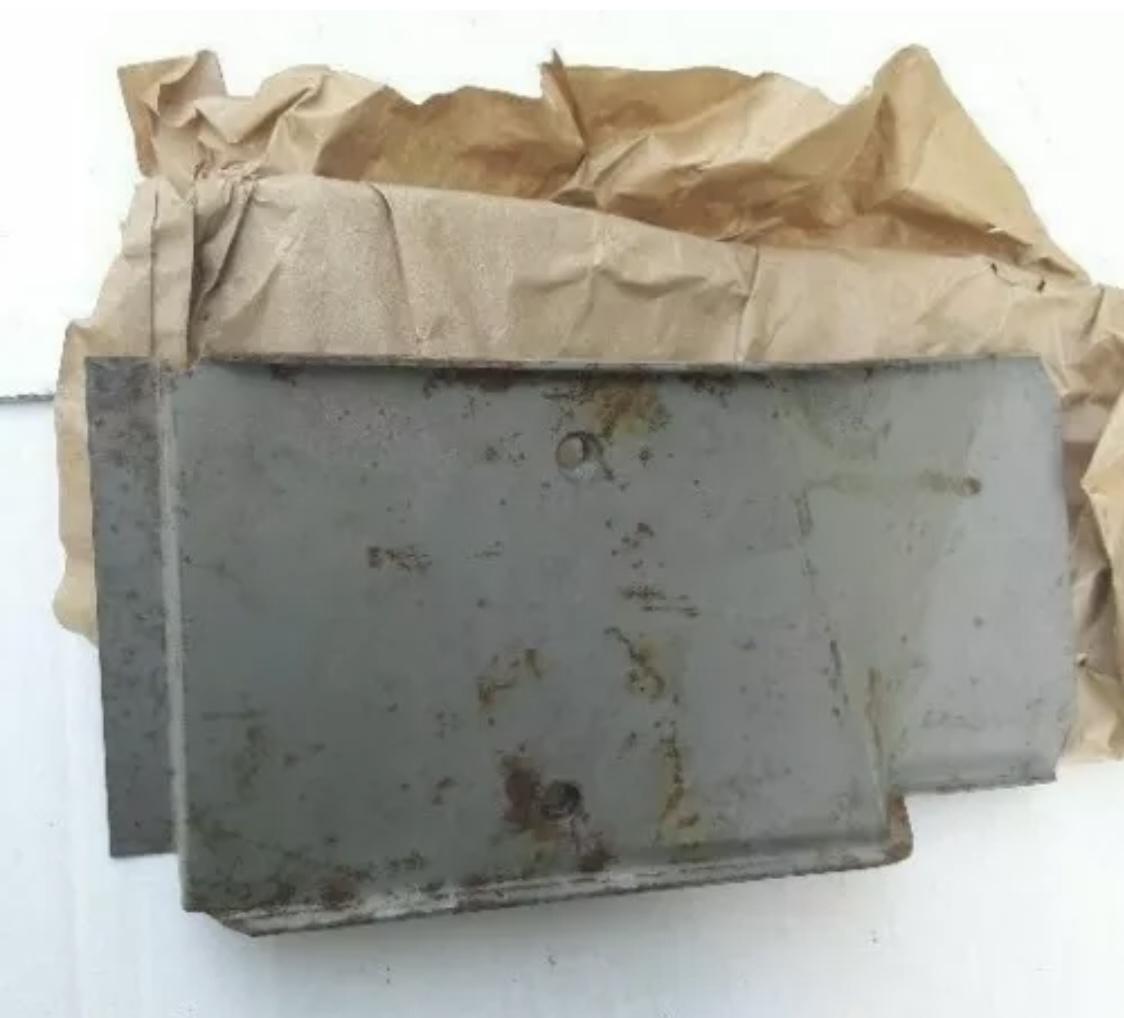

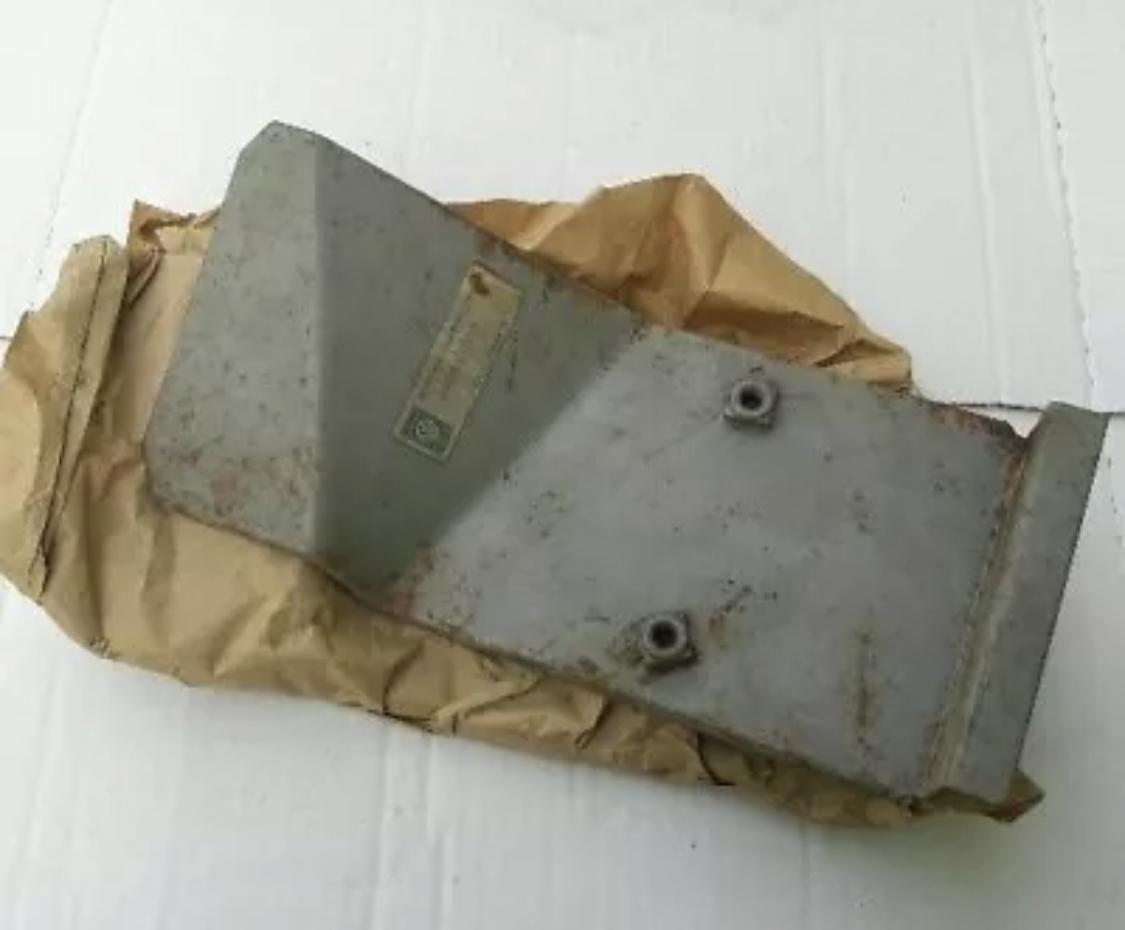

Just found this NOS mount - I hope it's for my dusty oil bath filter. Could not find any information based on the part number: 261 613 503. Think it's for welding in. Anyone seen this before?
|

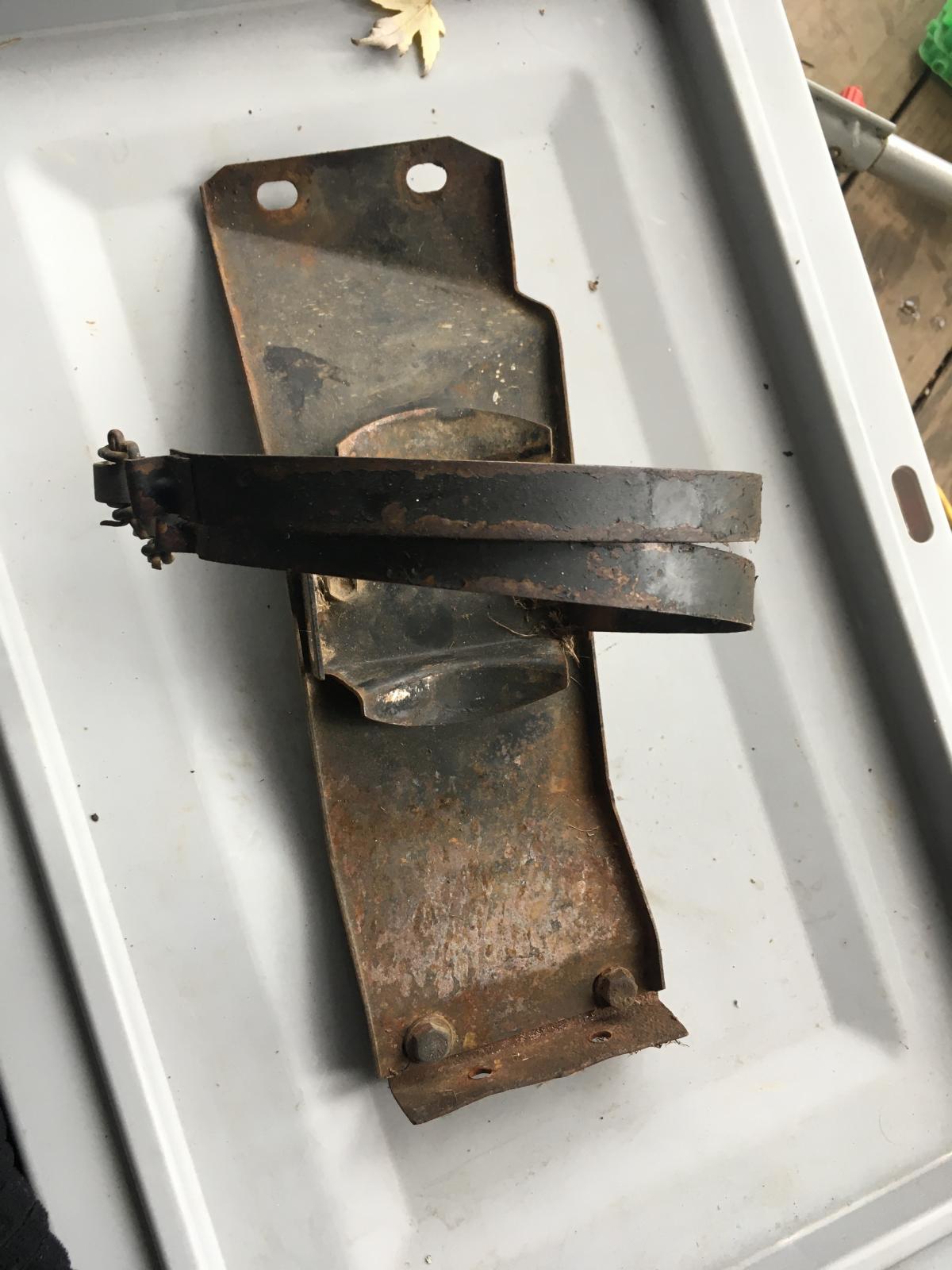

Your bracket looks very similar to a bracket I got on a bay window bus that has spent much of its life in South America. It has the dusty conditions air cleaner with the part number ending in 612e 71 date stamp. My bracket is the same shape at the bottom and longer at the top with an additional angle in it. I may use this oil bath in my s/c. I could possibly make a shorter bracket like yours. I’ll take some measurements.
_________________
64 SC truck.
71 Beetle -Skyy
71 Super -Sweet pea
73 Bus
79 Bus -Tic Tak
86 Cabriolet |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26267
Location: Olympia Wash Rinse & Repeat
|
| Posted: Fri Aug 20, 2021 5:00 pm Post subject: Re: VW Bus air cleaners |
|
|
| Who.Me? wrote: |
The air cleaner touches the fresh air outlets, but it fits. |
Exactly, touching means rubbing a hole thru the air cleaner.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
|
