| Author |
Message |
supersuk
Samba Member
Joined: December 20, 2010
Posts: 958
Location: Honolulu, Hawaii
|
|
| Back to top |
|
 |
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
 Posted: Mon Jan 23, 2012 12:17 am Post subject: |
 |
|
just wondering
on a carb car the gen is just for spark and stuff like lights at night or windshield wipers when it rains
on a F.I. car if its running its using more power than just coil and spark
an alternator and a cap for the amp and ill be Golden!
well ... if i just get off my ass and put them in.....
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
dirtsandwich
Samba Member
Joined: April 25, 2008
Posts: 625
Location: SW Oregon
|
| Posted: Sun Jan 22, 2012 9:39 pm Post subject: |
|
|
| Bobnotch wrote: |
| sharkskinman wrote: |
yup
i have the generator out of my 67 that im going to just swap the pully
and turn it around
i have never had a problem putting a single wire lat in a bug
the 66 baja had it
and when i put the T1 in the 67 fasty
Same thing
just taped the wires together
Just have to get to someone that can shave it like its needed
Again... anyone done this conversion with a F.I. engine??? |
I thought dirt sandwich (from Idaho) did it a year or 2 ago on his Square. |
yep I did on my FI 71. worked fine. Maybe I'm naive but why the FI/carb questions?

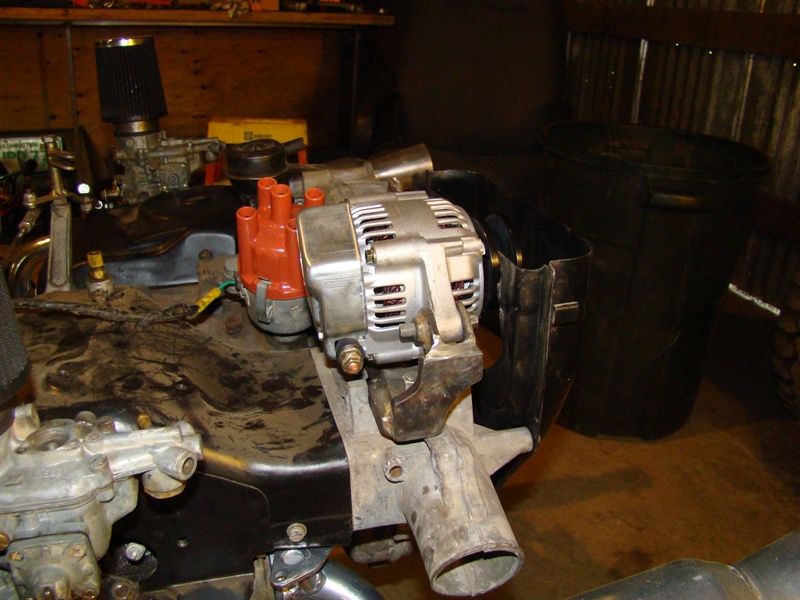

I swapped it out for a geo metro alt because I like the fit more.
My next T3 I'm going to use a T1/T2 alt flipped 180 degrees.
_________________
71 Squareback
77 Bus |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23381
Location: Kimball, Mi
|
| Posted: Sun Jan 22, 2012 9:33 pm Post subject: |
|
|
| sharkskinman wrote: |
yup
i have the generator out of my 67 that im going to just swap the pully
and turn it around
i have never had a problem putting a single wire lat in a bug
the 66 baja had it
and when i put the T1 in the 67 fasty
Same thing
just taped the wires together
Just have to get to someone that can shave it like its needed
Again... anyone done this conversion with a F.I. engine??? |
I thought dirt sandwich (from Idaho) did it a year or 2 ago on his Square.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
| Posted: Sun Jan 22, 2012 7:30 pm Post subject: |
|
|
yup
i have the generator out of my 67 that im going to just swap the pully
and turn it around
i have never had a problem putting a single wire lat in a bug
the 66 baja had it
and when i put the T1 in the 67 fasty
Same thing
just taped the wires together
Just have to get to someone that can shave it like its needed
Again... anyone done this conversion with a F.I. engine???
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
Bill Jacobs
Samba Member
Joined: February 21, 2004
Posts: 102
|
| Posted: Sun Jan 22, 2012 1:47 pm Post subject: |
|
|
| thanks, I have never really seen the workings of an alternator other than having a shop swap pulleys when buying a new one and just bolt on replacement after returning home. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23381
Location: Kimball, Mi
|
| Posted: Sun Jan 22, 2012 10:05 am Post subject: |
|
|
| Bill Jacobs wrote: |
| I like the flipped alt. no cutting or fan issues but how do you flip the pulley? |
You pop it off, and put it on the other end.  Actually, you'll want to use the T-3 pulley on it, so it'll fit inside the belt housing.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23381
Location: Kimball, Mi
|
| Posted: Sun Jan 22, 2012 9:59 am Post subject: |
|
|
| supersuk wrote: |
Mike,
Its pretty easy to do. I was able to finish the mod in about 3 hours. Since I used the 75amp unit, it was a lot bigger which required more cutting on both halves of the fan shroud.
All I used was a jig saw with a fine metal cutting blade, drill, rivets and rivet gun, and some sheet metal. |
The OP used a 75 amp alt too, this IS why he had to cut the fan housing. With the 55 amp unit, it fits in the "flipped" position without any cutting. Note; it does need a little grinding to clear the 3-4 side sheet metal.
The only issue with this style of conversion, is no cooling air for the alt, and that shround will forever be a 75 amp t-1 alternator shroud (can't go back to a generator). I don't know IF the 75 amp unit is the same size as the "super 100 amp" unit though. I think they're even larger (the 100 amp unit).
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Bill Jacobs
Samba Member
Joined: February 21, 2004
Posts: 102
|
| Posted: Sun Jan 22, 2012 5:18 am Post subject: |
|
|
| I like the flipped alt. no cutting or fan issues but how do you flip the pulley? |
|
| Back to top |
|
|
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
| Posted: Sat Jan 21, 2012 11:15 pm Post subject: |
|
|
yes i have a single wire 55a T1 im so wanting to put it in
i would love to do it the front way it Does look OG
but it simpler to put it in backwards
and i dont have an avenue to cut my fan shroud
I NEED my car as its my Daily Driver
just have to get up the nerve to put it in
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
captainphil
Samba Member
Joined: December 18, 2011
Posts: 25
Location: United States
|
|
| Back to top |
|
|
Fabinstein
Samba Member
Joined: April 11, 2009
Posts: 257
Location: brawltimore
|
| Posted: Sat Jan 21, 2012 12:08 pm Post subject: |
|
|
i need to do this swap
_________________
!DCIVW!
+SLOWRIDERS+
69 sunroof square. |
|
| Back to top |
|
|
sharkskinman
Lateral Lunatic
Joined: April 26, 2006
Posts: 4045
Location: Deep In My Own Psyche
|
| Posted: Fri Jan 20, 2012 10:15 pm Post subject: |
|
|
do you have any BARE pictures of AFTER the cut and before the sheetmetal additive?
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10
| Me of Course wrote: |
| Extremity is relative to how far your willing to jump |
| Ward Cleaver wrote: |
| You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards |
PS4 "NKOGNEATO" |
|
| Back to top |
|
|
supersuk
Samba Member
Joined: December 20, 2010
Posts: 958
Location: Honolulu, Hawaii
|
| Posted: Fri Jan 20, 2012 3:09 pm Post subject: |
|
|
Mike,
Its pretty easy to do. I was able to finish the mod in about 3 hours. Since I used the 75amp unit, it was a lot bigger which required more cutting on both halves of the fan shroud.
All I used was a jig saw with a fine metal cutting blade, drill, rivets and rivet gun, and some sheet metal.
_________________
68 Fastback Build: http://www.thesamba.com/vw/forum/viewtopic.php?p=5396323#5396323 |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18043
Location: Eugene, OR
|
| Posted: Fri Jan 20, 2012 2:27 pm Post subject: |
|
|
| Itawayoflife wrote: |
I just recently did edangerspecies' version and has been working well for the last few weeks.
|
I'll prolly have to pay someone to do this for me? It somehow looks OG correct.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
Endangered Species
Samba Member
Joined: December 15, 2008
Posts: 71
Location: grants pass Oregon
|
| Posted: Wed May 18, 2011 6:07 pm Post subject: |
|
|
Thought I would give you guys a update on how my conversion has been working...I drive it all the time and have never had an issue with it...I love being able to drive at night with the headlights bright, in the rain with the wippers going, and be listening to my stereo all at the same time...
|
|
| Back to top |
|
|
Itawayoflife
Samba Member
Joined: February 20, 2006
Posts: 1181
Location: Buena Park,CA
|
| Posted: Wed May 18, 2011 2:23 pm Post subject: |
|
|
I just recently did edangerspecies' version and has been working well for the last few weeks.
_________________
The quest continues... |
|
| Back to top |
|
|
Root_Werks
Samba Member
Joined: December 31, 2007
Posts: 1056
Location: San Juan Islands
|
| Posted: Wed May 18, 2011 12:51 pm Post subject: |
|
|
Very clean and nicely done.
_________________
When I set my timing, why do I flush, then take a pee? |
|
| Back to top |
|
|
NWnotch
Samba Member
Joined: November 07, 2010
Posts: 9
Location: Portland, OR
|
| Posted: Wed May 18, 2011 10:45 am Post subject: |
|
|
| dcdubs wrote: |
| bosch AL82N |
Thanks! And this will work for the type 3 and bolt-on without major mods? |
|
| Back to top |
|
|
dcdubs
Samba Member
Joined: January 29, 2003
Posts: 860
Location: the Great Northwest
|
| Posted: Wed May 18, 2011 9:06 am Post subject: |
|
|
bosch AL82N
_________________
dcdubs/glcustoms
AllRightGarageDoorsNW.com |
|
| Back to top |
|
|
|
